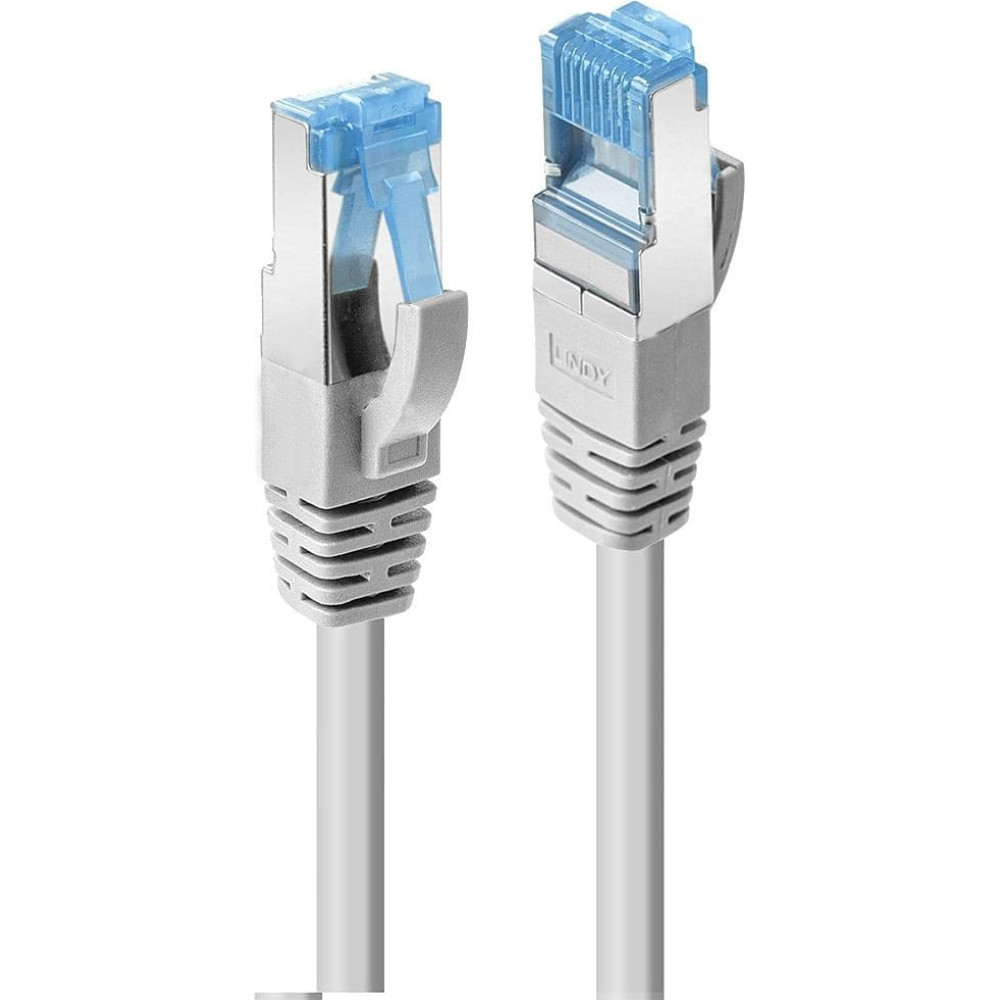

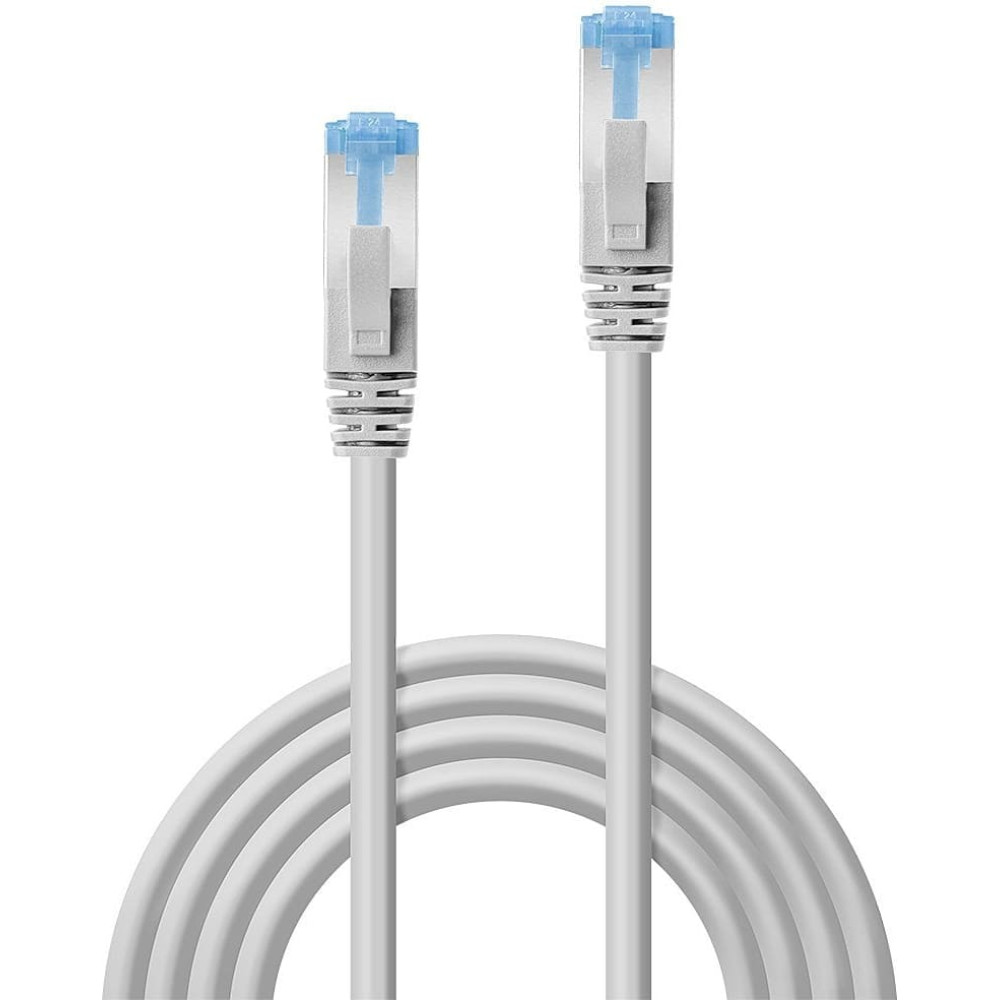

Lindy Patchkabel Cat.6A U/UTP LSZH Kabel, grau 0,3m
To purchase this product you must be registered in our system.
Specification
awg wire size: 26
bend radius (min): 6.9 cm
cable length: 0.3 m
cable shape: Round
cable shielding: S/FTP (S-STP)
cable standard: Cat6a
cabling technology: 10GBase-T
certification: RoHS, REACH, UL, California Proposition 65
compliance certificates: REACH, RoHS, UL
conductor material: Copper
connector 1: RJ-45
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: RJ-45
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel/Gold
connector housing material: Polycarbonate (PC)
connector shield material: Aluminium
connector shielding: Yes
depth: 22.8 mm
doesn't contain: Halogen
frequency: 500 MHz
height: 8.3 mm
jacket material: Low smoke zero halogen (LSZH)
manual: Yes
operating temperature (t-t): -10 - 60 °C
outer diameter: 5.8 mm

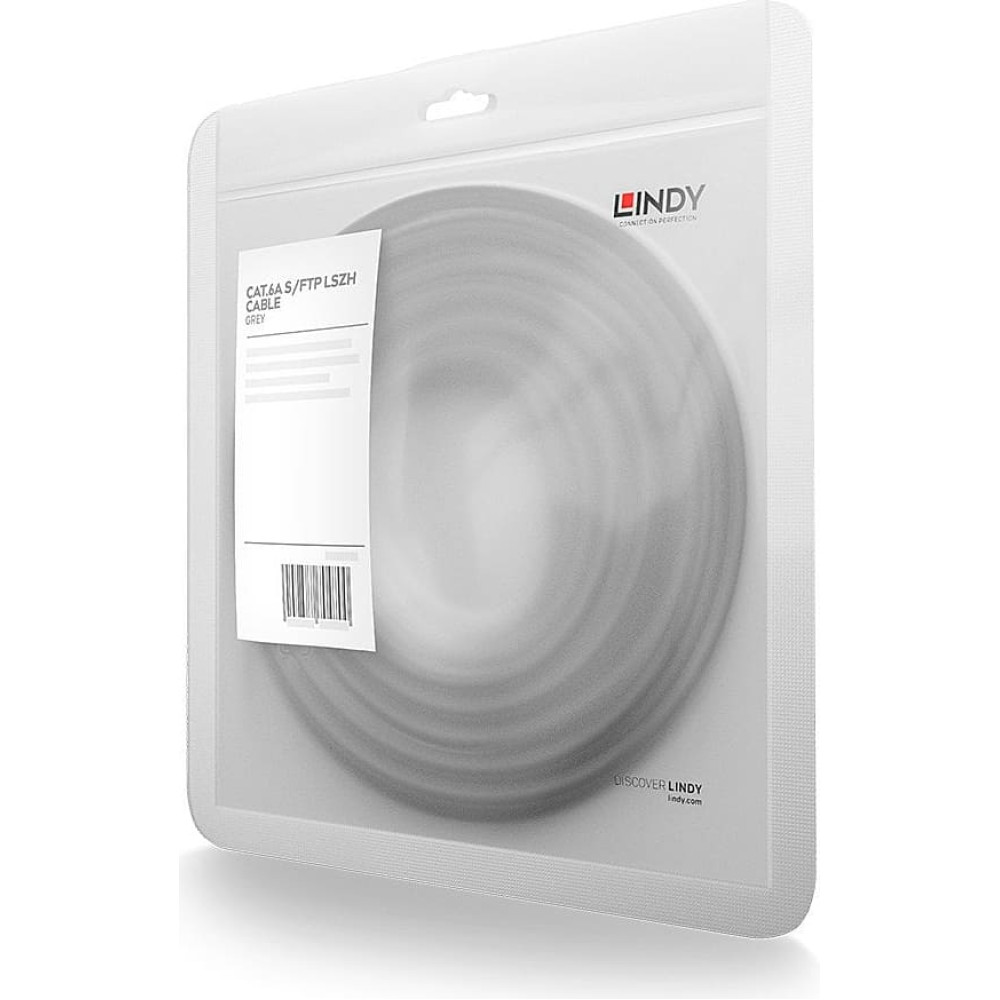

package type: Polybag
product colour: Grey
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 75 °C
sustainability compliance: Yes
warranty period: 10 year(s)
width: 11.6 mm
Description
| Cat.6A U/UTP LSZH network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. |
