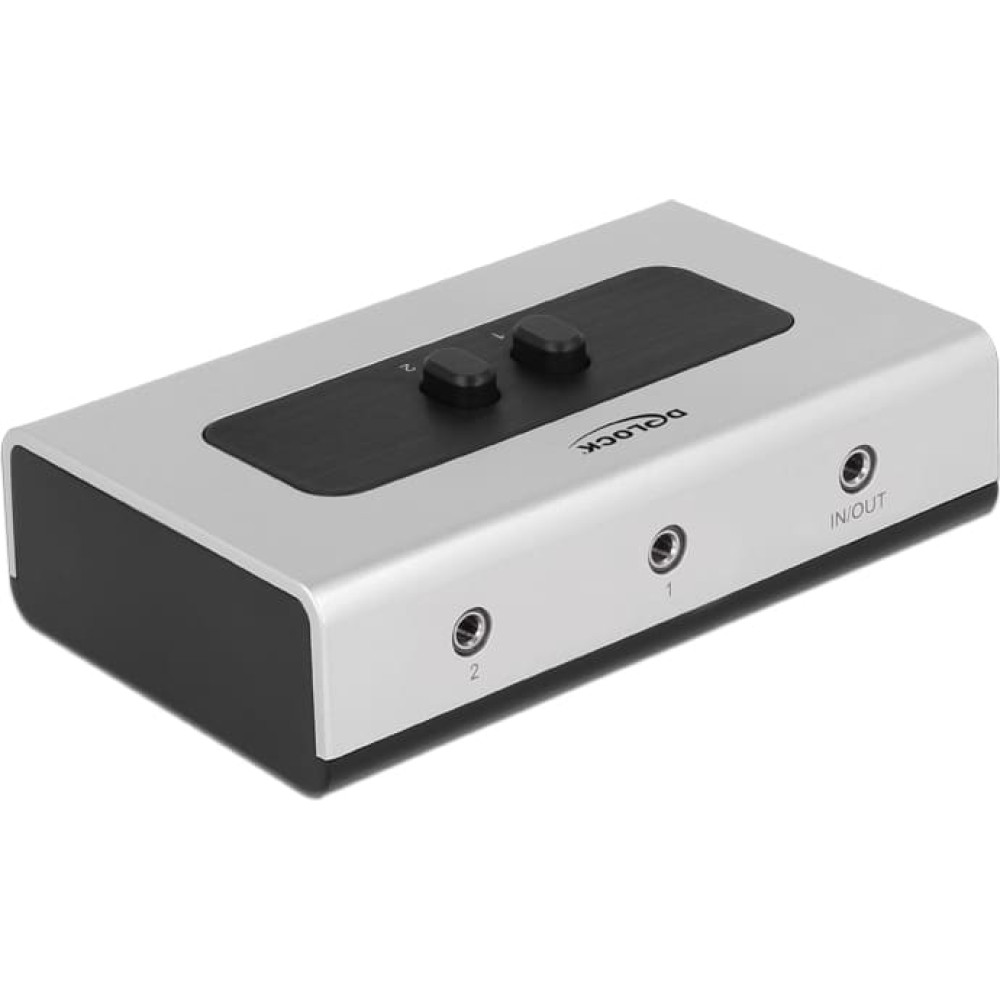

This Delock Stereo jack 3.5 mm switch is a manually bidirectional switch for connecting different audio devices. This switch offers two different applications.

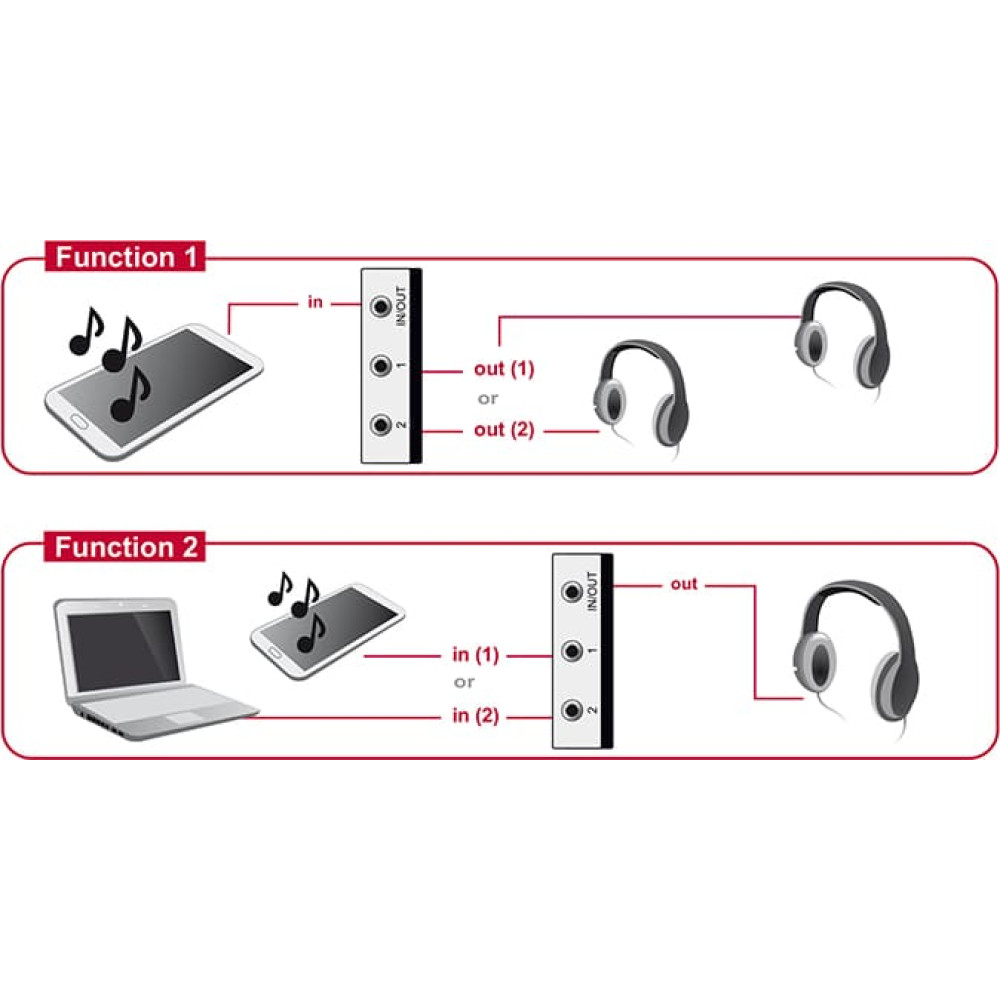

1. It can be connected to up to two devices with stereo jack port, e.g. headset, to an audio source. By using the button it can be selected the device which plays the audio signal. (Simultaneous output to multiple screens is not possible)

2. It can be connected to up to two devices with stereo jack port, e.g. PC, laptop or MP3 player and connect to the output port a headset. By using the button it can be selected from which device the audio signal plays on the headset.

System requirements:
• A free audio port
• Audio connection cables

Specification:
• Connector:

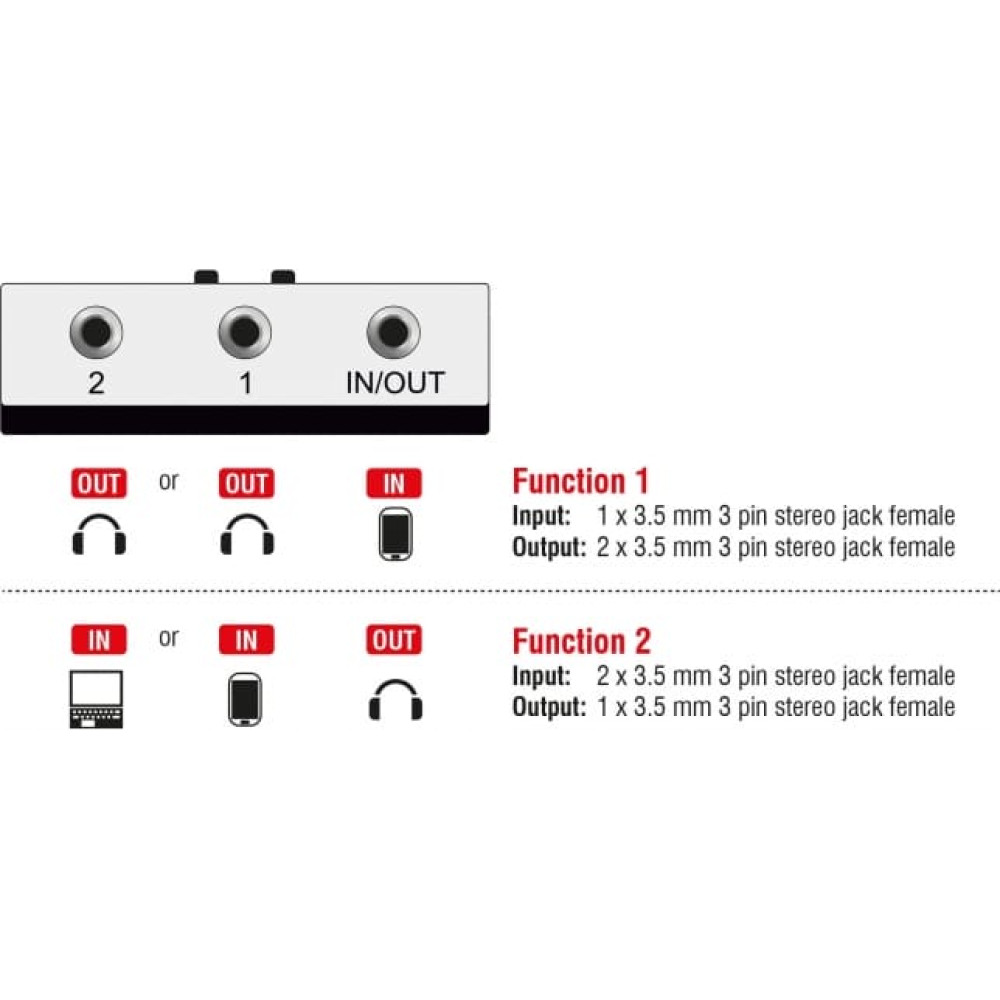

  Function 1
  Input: 1 x 3.5 mm 3 pin stereo jack female
  Output: 2 x 3.5 mm 3 pin stereo jack female
  Function 2
  Input: 2 x 3.5 mm 3 pin stereo jack female
  Output: 1 x 3.5 mm 3 pin stereo jack female
• 2 mechanical buttons
• Plastic housing
• No external power supply needed
• Dimensions (LxWxH): ca. 112 x 68 x 29 mm (without button)
• Colour: grey / black

Package content:
• Switch bidirectional
• User manual

Data sheet:
http://www.delock.de/produkt/87699/pdf.html?sprache=en
