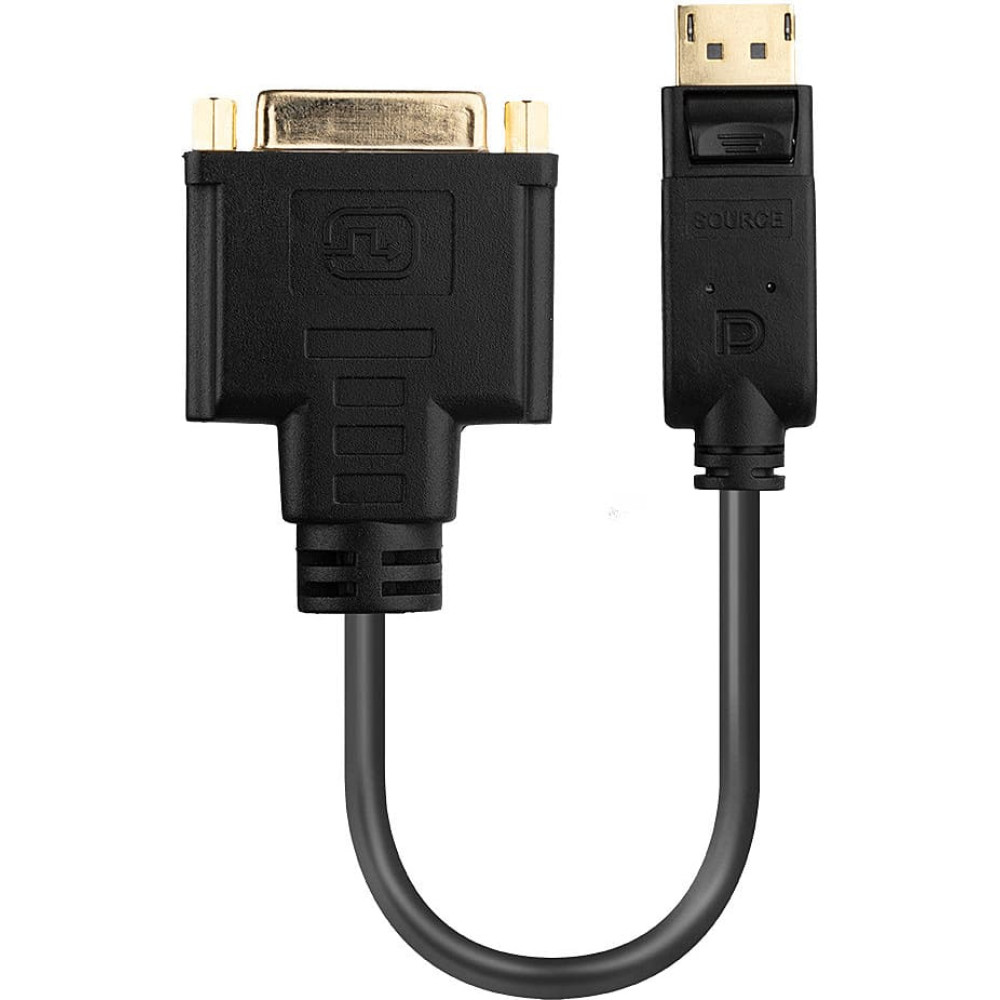

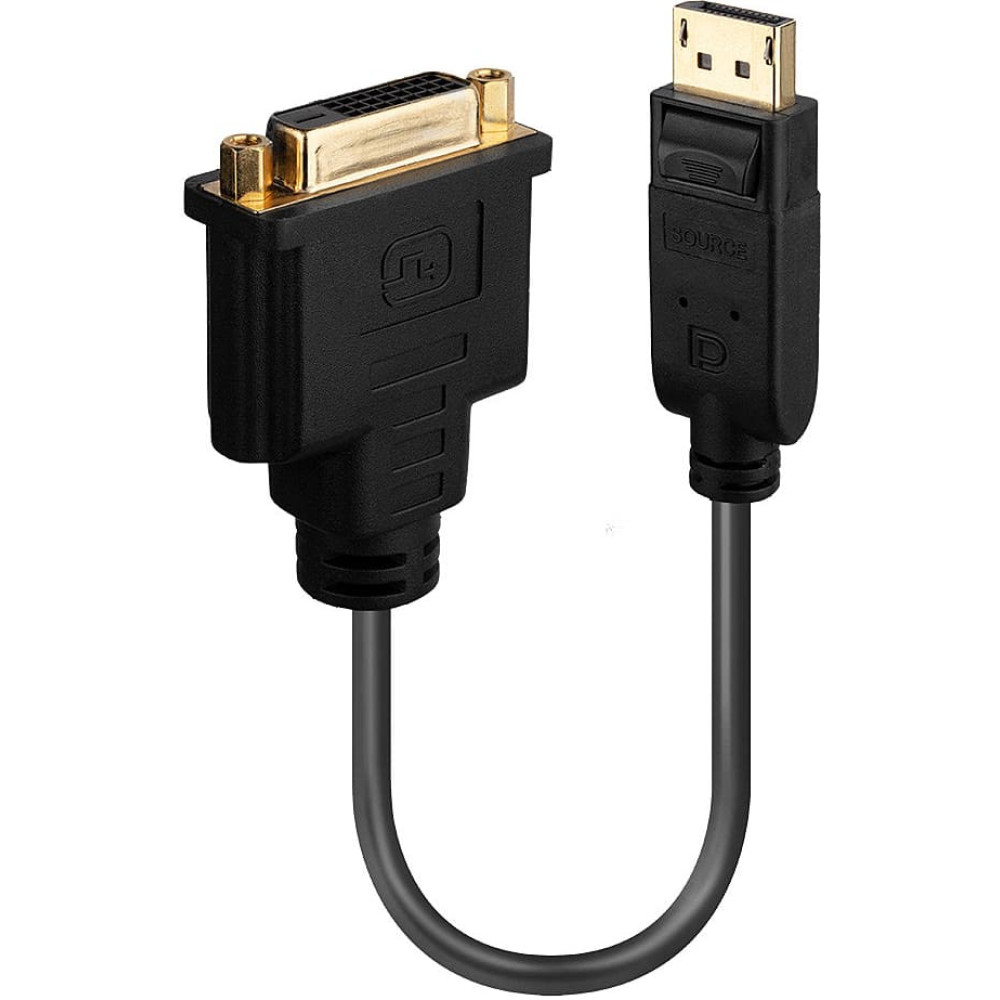

Lindy Display Port 1.2 to DVI-D Basic Adapter

Product Code: 41004

Barcode 4002888410045

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable length: 0.15 m

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/a0/c7/64/64c7a0c606dc2df550b17d50/CE_41004-06_V2_2023.pdf

ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/a0/c7/64/64c7a0c606dc2df550b17d50/CE_41004-06_V2_2023.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/70/55/97/62/62975570a7fecca6d5a65f30/CE_DoC_DE_41004_41006.pdf

certification: CE, FCC

connector 1: DisplayPort

connector 1 gender: Male

connector 2: DVI-D

connector 2 gender: Female

connector contacts plating: Gold

country of origin: CN

data transfer rate: 2.7 Gbit/s

gross weight: 0.06

harmonized system (hs) code: 84733080

manual: Yes

manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/99/67/97/62/62976799999c8d635dc13ebb/LINDY_41004_MAN_0322.pdf

net weight: 0.05

packaging height: 19.40

packaging lenght: 17.40

packaging width: 2.00

plug and play: Yes

product colour: Black

quantity per pack: 1 pc(s)

supported graphics resolutions: 1920 x 1200 (WUXGA)

supported video modes: 480i, 480p, 576i, 576p, 1080i, 1080p

tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f4/67/97/62/629767f4d0ebe20d37a65f30/41004_TDS_v1.pdf

warranty: 2

weight: 53 g

Description

Specifications

AV Interface: DisplayPort to DVI
Interface Standard: DisplayPort 1.1 / DVI
Supported Bandwidth: 4.45Gbps
Maximum Input Resolution: 1920x1080@60Hz / 1920x1200@60Hz
Maximum Output Resolution: 1920x1080@60Hz / 1920x1200@60Hz
Chipset: LT8611SX
HDCP Support: HDCP 1.4
Supported Audio: -
Separate Audio Ports: -
Special Features: -

Connectors

Input: DisplayPort Male
Output: DVI-D Female (Single Link)

Physical Properties

Dimensions (approx.) WxDxH:
- 47.2x38.7x15.8mm (1.86x1.52x0.62in)
- 20x36x11mm (0.79x1.42x0.43in)/DP
Cable Length: 150mm (5.91in)
Housing Material: PVC
Jacket Material: PVC
Jacket Diameter: 6.5mm (0.26in)
Minimum Bend Radius: 65mm (2.56in)
Net Weight: 0.053kg (0.12lb)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Humidity: 20 - 90% RH (non-condensing)
Colour: Black

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
Gross Weight: 0.062kg (0.14lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS & REACH

Package Contents

DisplayPort to DVI Converter

Purchasing Information

No.: 41004
EAN: 4002888410045

CE Doc: CE_DoC_DE_41004_41006.pdf
Tech Data Sheets: 41004_TDS_v1.pdf
Manuals: LINDY_41004_MAN_0322.pdf
