Lindy Konverter HDMI auf DisplayPort bis 4K 3840x2160 HDMI

LINDY

Lindy Konverter HDMI auf DisplayPort bis 4K 3840x2160 HDMI

Product Code: 38146
Barcode 4002888381468

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
certification: CE, FCC
connector 1: HDMI Type A (Standard)
connector 1 gender: Female
connector 2: DisplayPort
connector 2 form factor: Straight
connector 2 gender: Male
data transfer rate: 5.4 Gbit/s
harmonized system (hs) code: 84733080
maximum resolution: 3840 x 2160 pixels
plug and play: Yes
product colour: White
quantity per pack: 1 pc(s)
supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
Description

Specifications

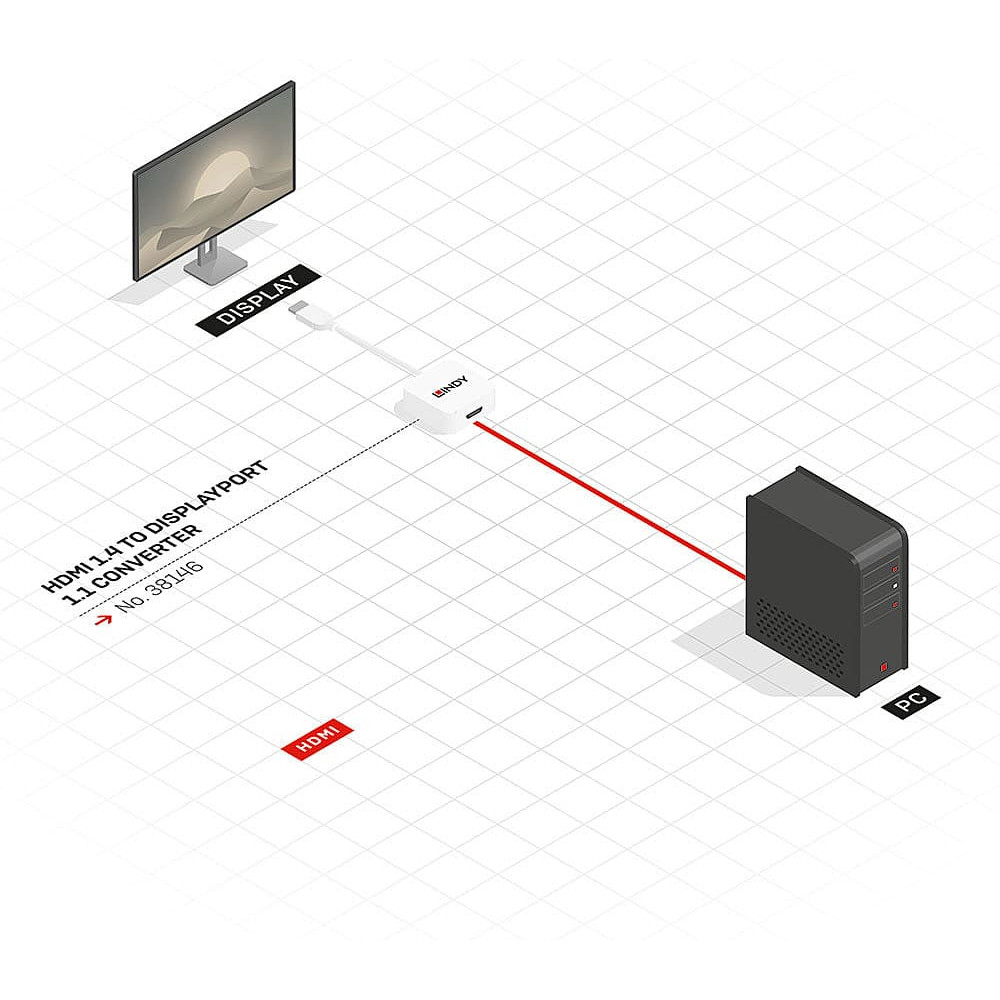

  • AV Interface: HDMI to DisplayPort
  • Interface Standard: HDMI 1.4 / DisplayPort 1.1
  • Supported Bandwidth: 10.2Gbps
  • Maximum Input Resolution: 3840x2160@30Hz 4:4:4 8bit
  • Maximum  Output Resolution: 3840x2160@30Hz 4:4:4 8bit
  • Chipset: STDP2600
  • HDCP Support: HDCP 1.3
  • Supported Audio: Supports 7.1 LPCM digital audio up to 192kHz 24bit
  • Separate Audio Ports: -
  • Special Features: -

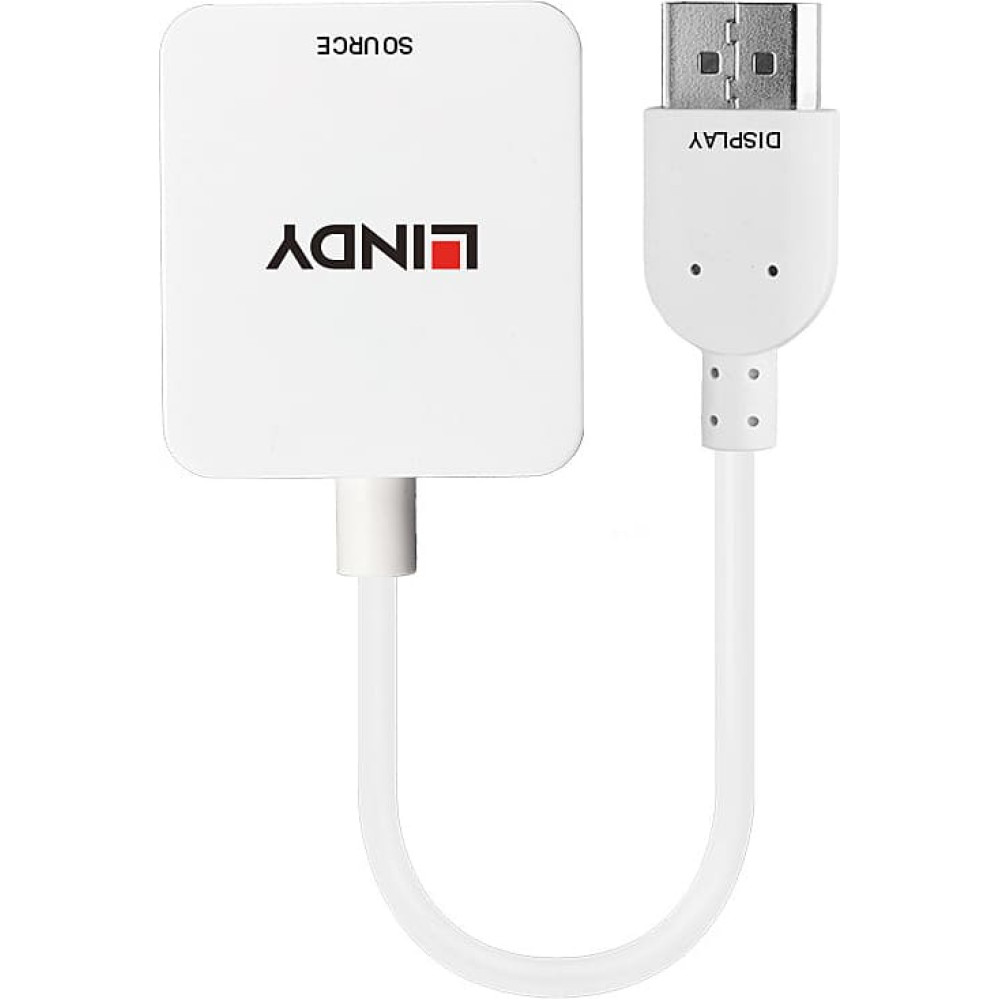

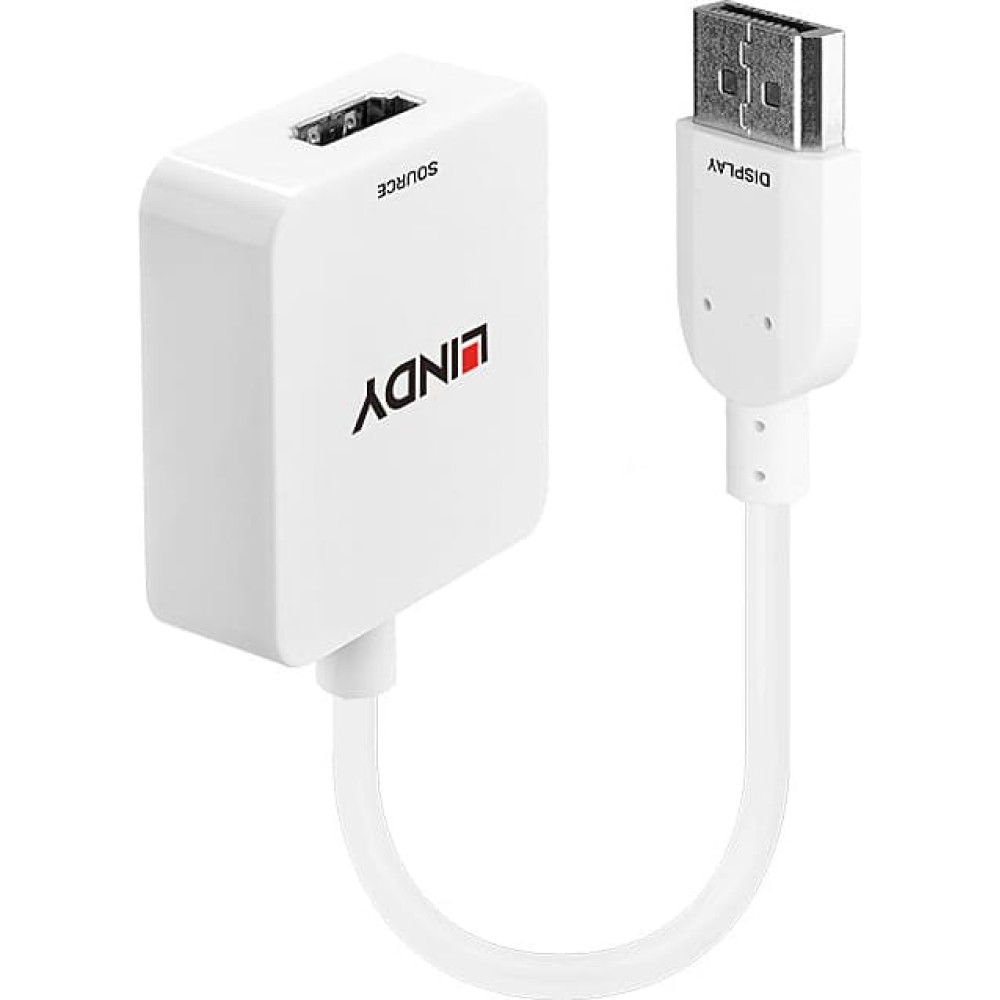

Connectors

  • Input: HDMI Type A Female
  • Output: DisplayPort Male



Physical properties

  • Dimensions (approx.) WxDxH:
    • 40x45x15mm (1.57x1.77x0.59in)
    • 20.5x16.5x3.5mm (0.81x0.65x0.14in) / DP
  • Cable Length: 150mm (5.91in)
  • Housing Material: PVC
  • Jacket Material: PVC
  • Jacket Diameter: 5mm (0.2in)
  • Minimum Bend Radius: 50mm (1.97in)
  • Net Weight: 0.028kg (0.06lb)
  • Operating Temperature: -20°C - 85°C (-4°F - 185°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Humidity: 20 - 95% RH (non-condensing)
  • Colour: White



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.032kg (0.07lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • HDMI to DisplayPort Converter



Purchasing Information

  • No.: 38146
  • EAN: 4002888381468
