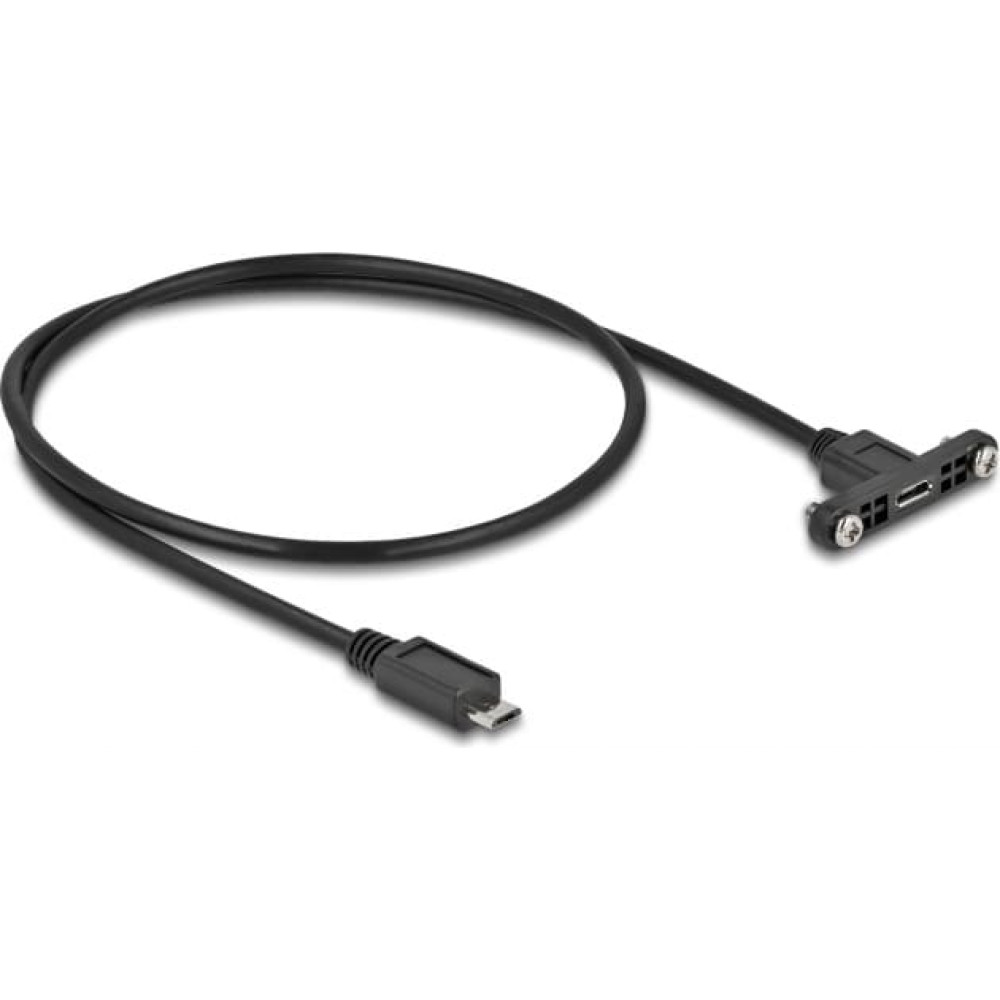

Delock Cable USB 2.0 Micro-B female panel-mount > USB 2.0 Micro-B male 0.5 m
To purchase this product you must be registered in our system.
Specification
depth: 0.160
height: 0.010
width: 0.150
Description

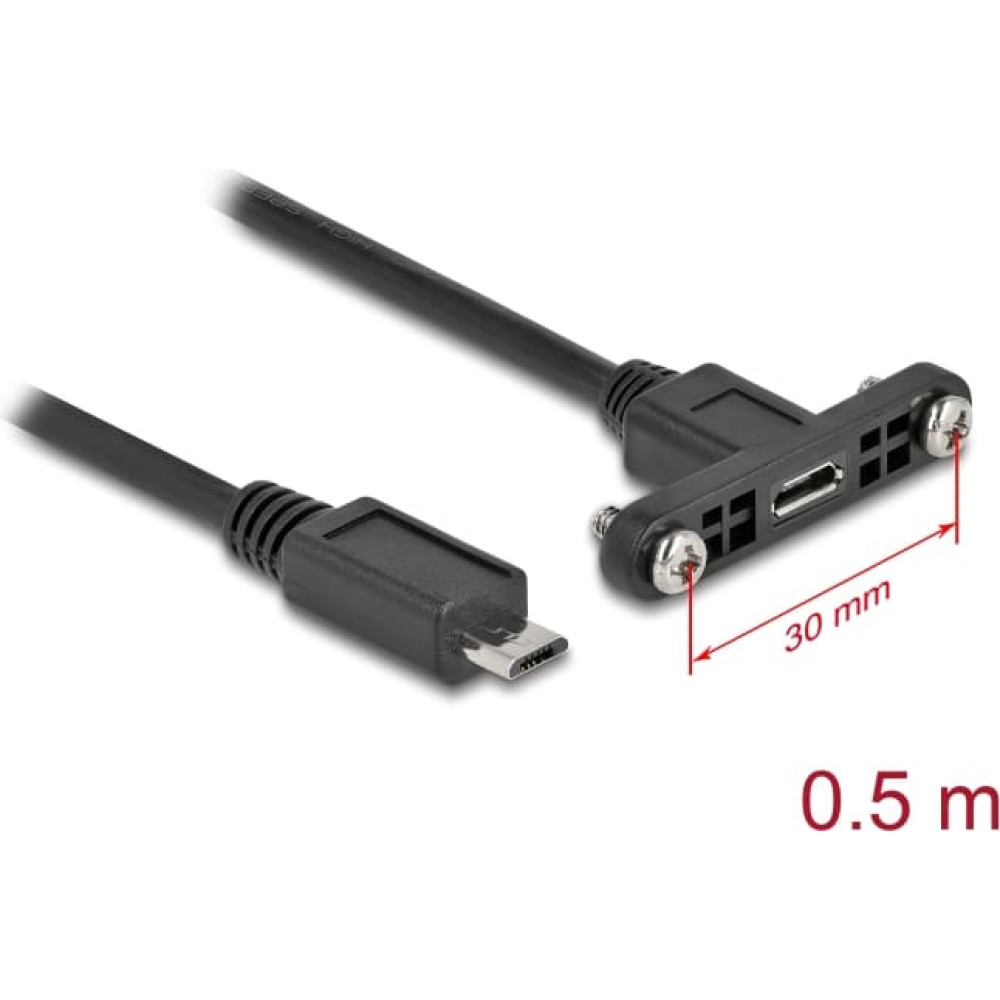

| This cable by Delock can be used to extend a USB 2.0 connection and to connect various devices. The female ports can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position. System requirements: • A free USB port Specification: • Connectors: 1 x USB 2.0 Type Micro-B female with screw nuts for installation > 1 x USB 2.0 Type Micro-B male • Screw type: #4-40 UNC • Mounting hole Type Micro-B ca. 8 x 3 mm, screw hole pitch ca. 30 mm • Data transfer rate up to 480 Mbps • Cable gauge: 28 AWG data line 28 AWG power line • Cable diameter: ca. 3.8 mm • Colour: black • Length incl. connectors: ca. 0.5 m Package content: • USB panel-mount cable • 2 screws Data sheet: http://www.delock.de/produkt/35108/pdf.html?sprache=en |
