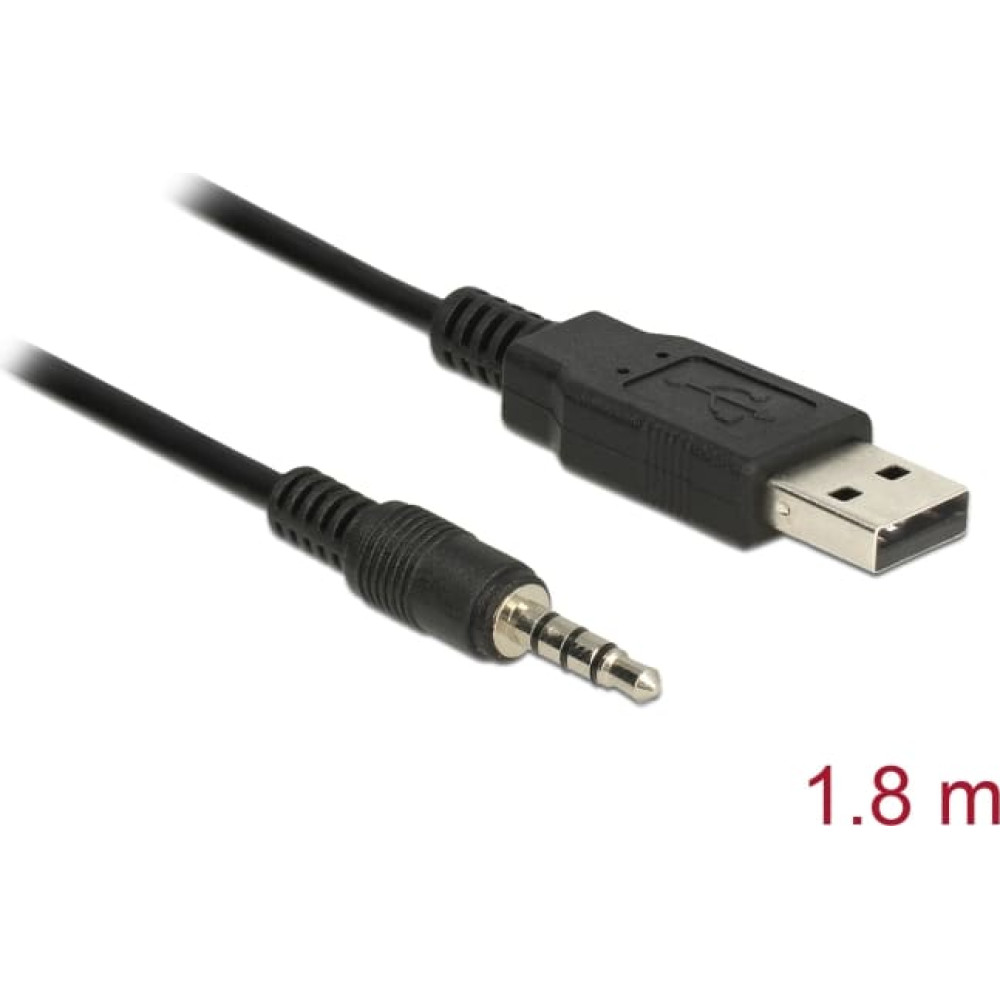

Delock Cable USB TTL male 3.5 mm 4 pin stereo jack male 1.8 m (5 V)

Product Code: 83778

Barcode 4043619837786

To purchase this product you must be registered in our system.

Description

Related products

Description

This USB 2.0 to TTL converter by Delock can be connected directly to GPIO (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.

System requirements:
• Linux Kernel 2.6 or above
• Mac OS 10.5 or above
• Windows CE 4.2/5.0/6.0
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
  1 x USB 2.0 Type-A male >
  1 x TTL 5 V 3.5 mm stereo jack male

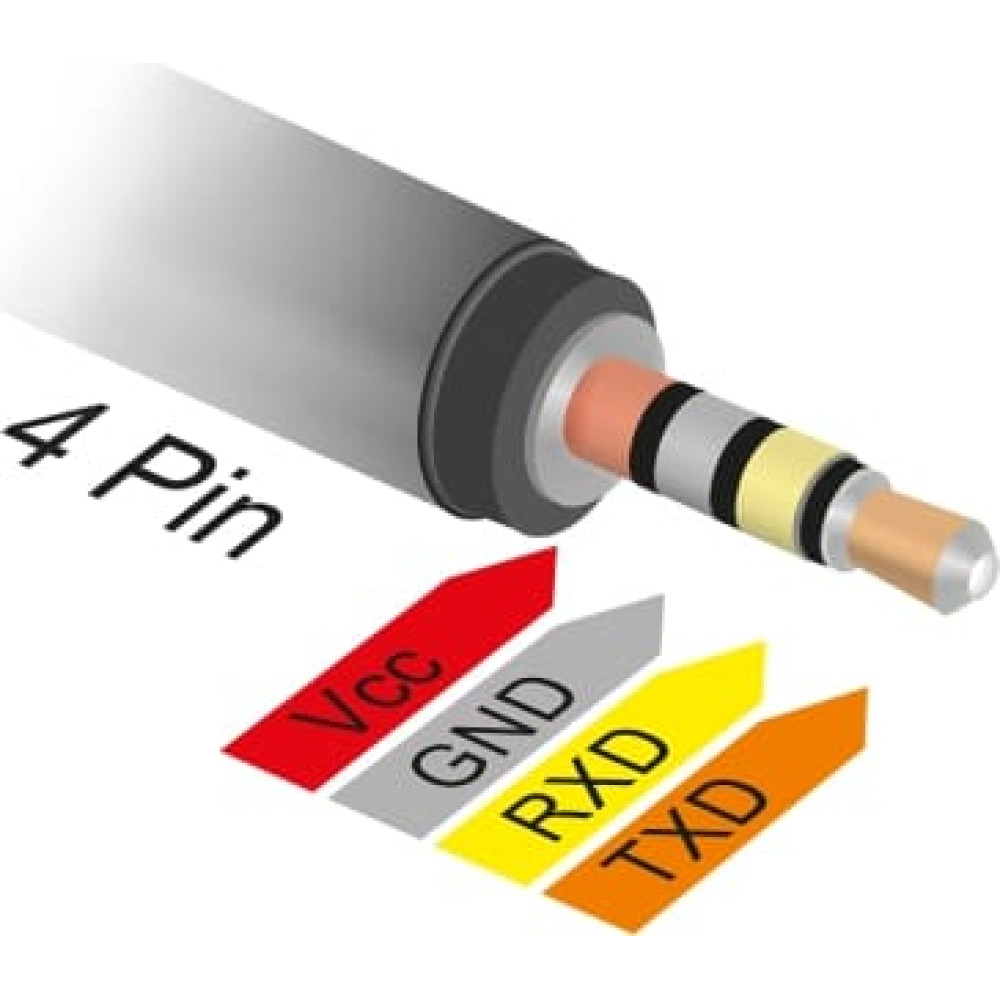

• Pin assignment:
  1. TXD
  2. RXD
  3. GND
  4. VCC
• Chipset: FTDI FT232RL
• Cable gauge: 28 AWG
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 3 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• FIFO:
  128 Byte - RX
  256 Byte - TX
• VCC = 5 V

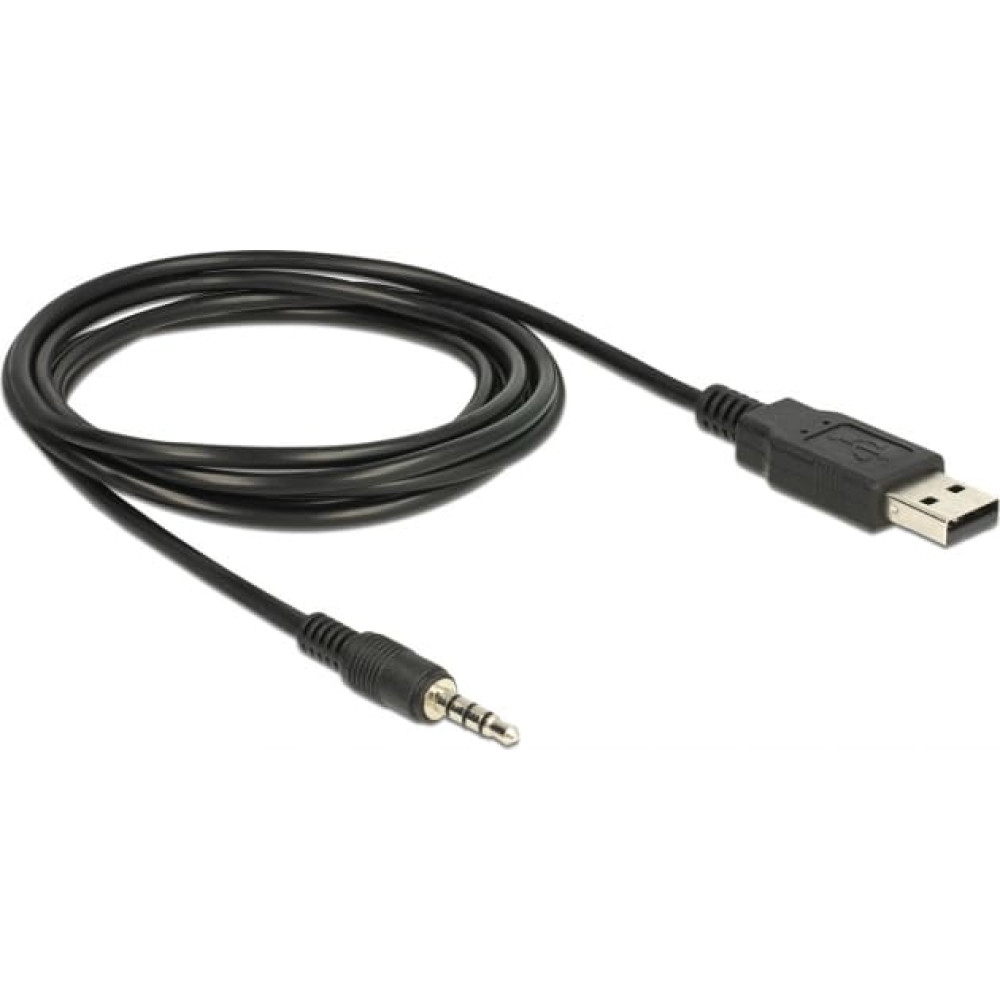

• Cable length incl. connectors: ca. 1.8 m
• Operating temperature: -20 °C ~ 80 °C

Package content:
• Converter USB 2.0 serial TTL
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/83778/pdf.html?sprache=en
