Home Cables Displayport Lindy DisplayPort 1.4 Verlängerungskabel 3m, Anthra Line
Lindy DisplayPort 1.4 Verlängerungskabel 3m, Anthra Line

LINDY

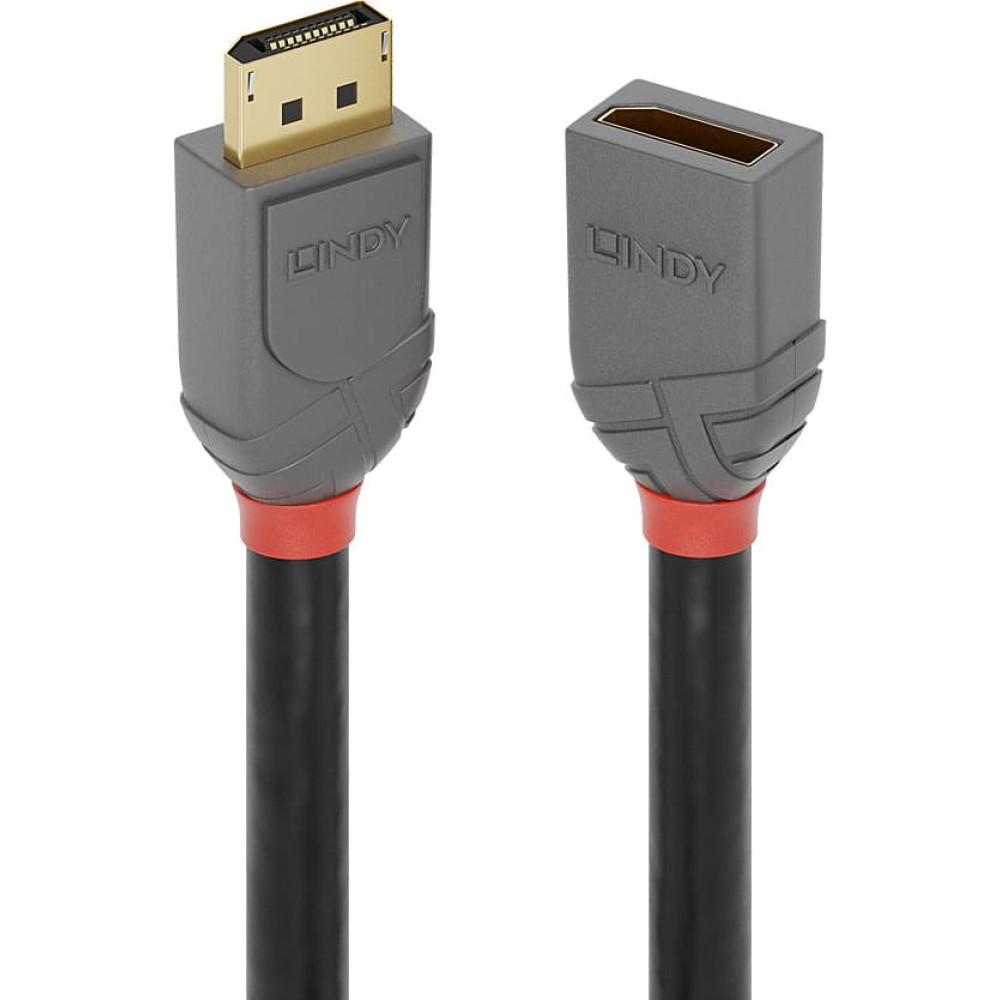

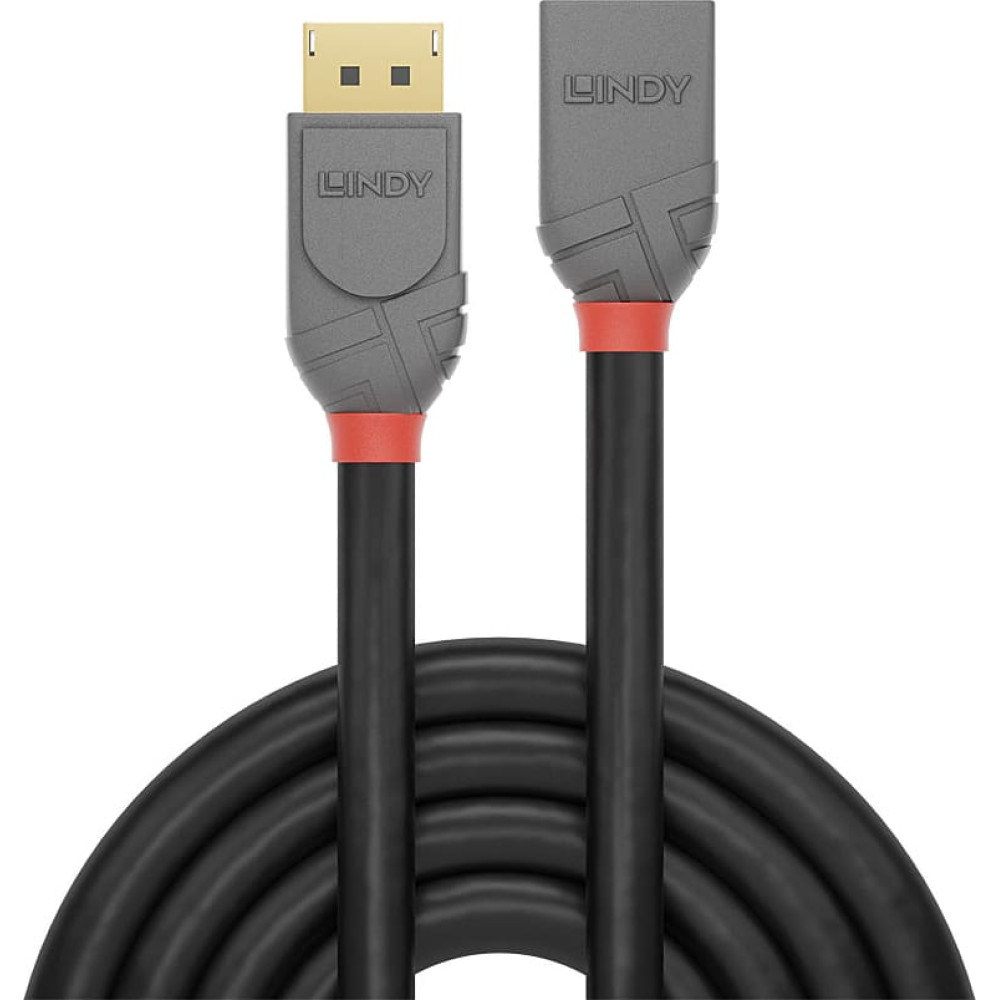

Lindy DisplayPort 1.4 Verlängerungskabel 3m, Anthra Line

Product Code: 36498
Barcode 4002888364980

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
3d: Yes
awg wire size: 28
cable length: 3 m
compliance certificates: RoHS
connector 1: DisplayPort
connector 1 gender: Male
connector 2: DisplayPort
connector 2 gender: Female
connector contacts plating: Gold
data transfer rate: 32.4 Gbit/s
displayport version: 1.4
harmonized system (hs) code: 84733080
jacket material: Polyvinyl chloride (PVC)
maximum refresh rate: 60 Hz
maximum resolution: 7680 x 4320 pixels
operating temperature (t-t): -10 - 80 °C
package type: Polybag
product colour: Black
storage temperature (t-t): -20 - 85 °C
supported graphics resolutions: 7680 x 4320
supported video modes: 4320p
Description

Connectors:

  • Connector A: DP Male
  • Connector B: DP Female
  • Housing Material: ABS (Male) / PVC (Female)
  • Connector Plating: Gold
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: M: 20.5x36.0x12.5mm (0.8x1.42x0.49in)
  • F:  20.9x35.0x11,8mm (0.82x1.38x0.46in)



Cable construction:

  • Length: 3m (9.841ft)
  • Standard: DP 1.4
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.0mm (0.28n)
  • Jacket Material: PVC
  • Conductor Material: Copper Alloy
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium Magnesium Braid 85%



Specifications:

  • Supported Bandwidth: 32.4Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit
  • Nominal Attenuation:
    • 1.35GHz > -5.5dB (HBR1)
    • 2.7GHz > -8.5dB (HBR2)
    • 4.05GHz > -11.0dB (HBR3)
  • Minimum Bend Radius: 70mm (2.76in)
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)



Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, CP65, UL



Purchasing information:

  • No.: 36498
  • EAN: 4002888364980



This product is also available in other lengths:

  • 36495 - 0.5m (1.64ft)
  • 36496 - 1m (3.281ft))
  • 36497 - 2m (6.561ft)
  • 36498 - 3m (9.841ft)
