Home Cables Displayport Lindy 1m Mini DisplayPort to HDMI® 4K60hz Adapter Cable

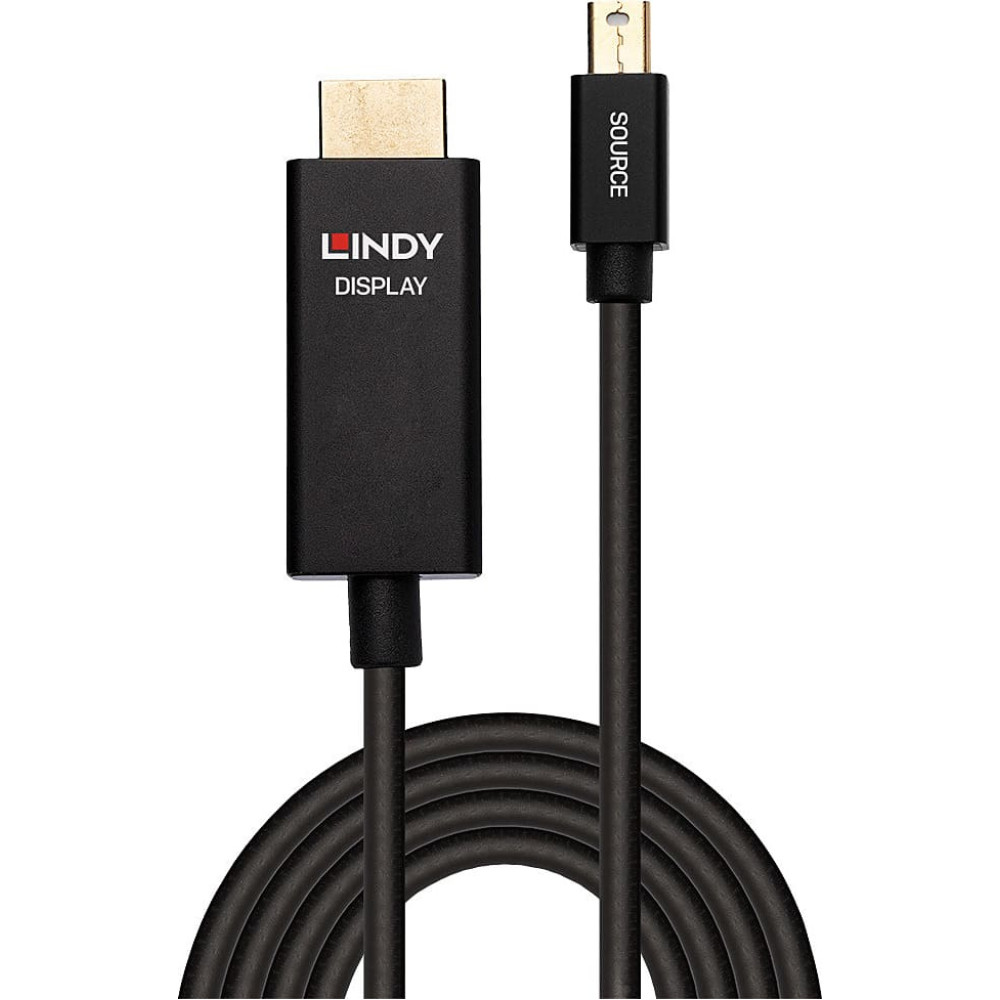

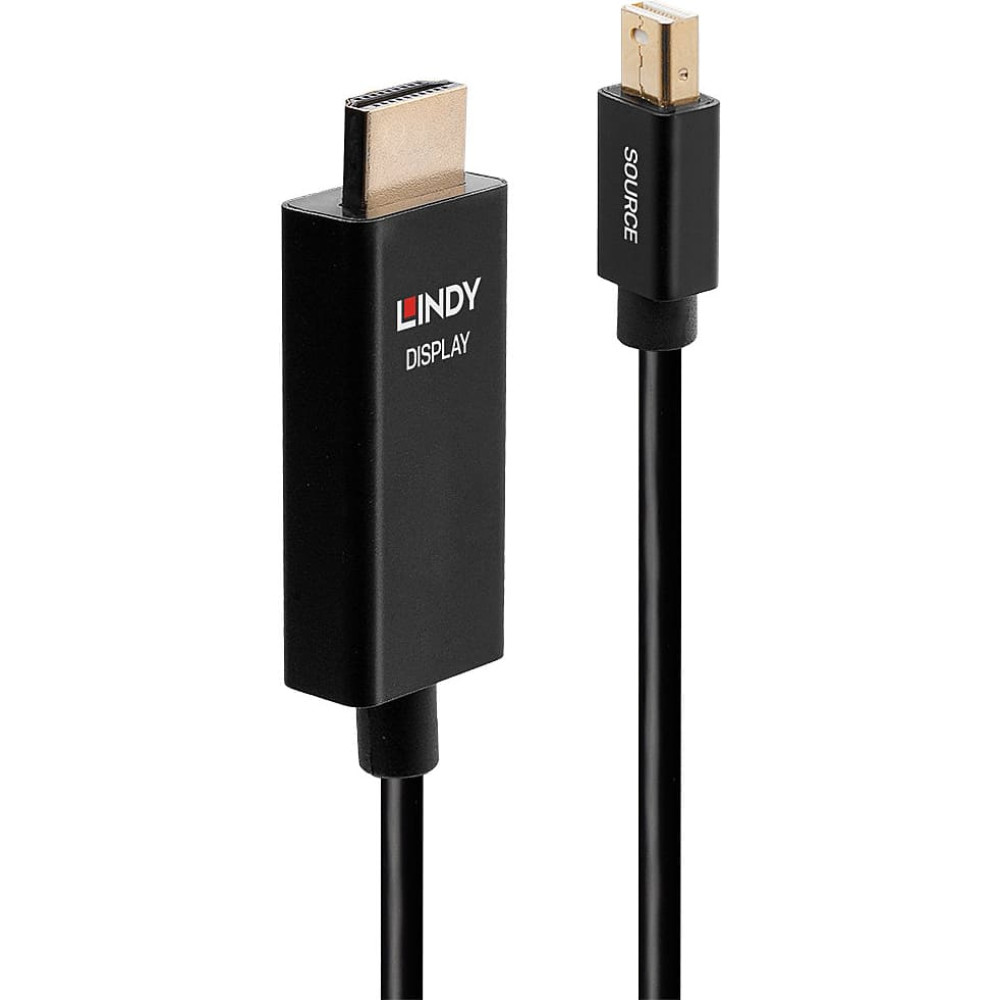

Lindy 1m Mini DisplayPort to HDMI® 4K60hz Adapter Cable

LINDY

Lindy 1m Mini DisplayPort to HDMI® 4K60hz Adapter Cable

Product Code: 40921
Barcode 4002888409216

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 32
cable length: 1 m
connector 1: Mini DisplayPort
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI
connector 2 form factor: Straight
connector 2 gender: Male
country of origin: CN
data transfer rate: 18 Gbit/s
displayport version: 1.2
gross weight: 0.05
harmonized system (hs) code: 84733080
hdmi version: 2.0
maximum resolution: 4096 x 2160 pixels
net weight: 0.04
packaging height: 19.40
packaging lenght: 17.40
packaging width: 1.50
product colour: Black
supported graphics resolutions: 4096 x 2160
supported video modes: 2160p
variation of: 40920
warranty: 2
Description

Connectors

  • Connector A: Mini DisplayPort Male
  • Connector B: HDMI® Type A Male
  • Housing material: ABS
  • Connector plating: 24K Gold 1µm
  • Pin construction: Brass
  • Pin Plating: 24K Gold 3µm
  • Dimensions:
    • Mini DisplayPort: 18.6x11.5x9.3mm (0.73x0.45x0.37in)
    • HDMI®: 45.1x21.8x12.2mm (1.78x0.86x0.48in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: HDMI®, Mini DisplayPort 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5mm (0.2in)
  • Jacket Material: PVC
  • Conductor Material: Tinned copper
  • Conductor Gauge: 32AWG
  • Shielding: Copper braid, 85% AL/MG coverage

Technical Information

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit, 4096x2160@60Hz 4:2:2 12bit
  • Nominal Attenuation:
    • -12dB@825-2475MHz
    • -20dB@ 2475-4125MHz
    • -25dB@4125-5100MHz
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: -20°C - 70°C (-4°F - 158°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Purchasing Information

  • No.: 40921
  • EAN: 4002888409216

This product is also available in other lengths

  • 40920 - 0.5m (1.64ft)
  • 40921 - 1m (3.28ft)
  • 40922 - 2m (6.56ft)
  • 40923 - 3m (9.84ft)
