Home Cables Displayport Lindy 1m DisplayPort to DVI-D Adapter Cable

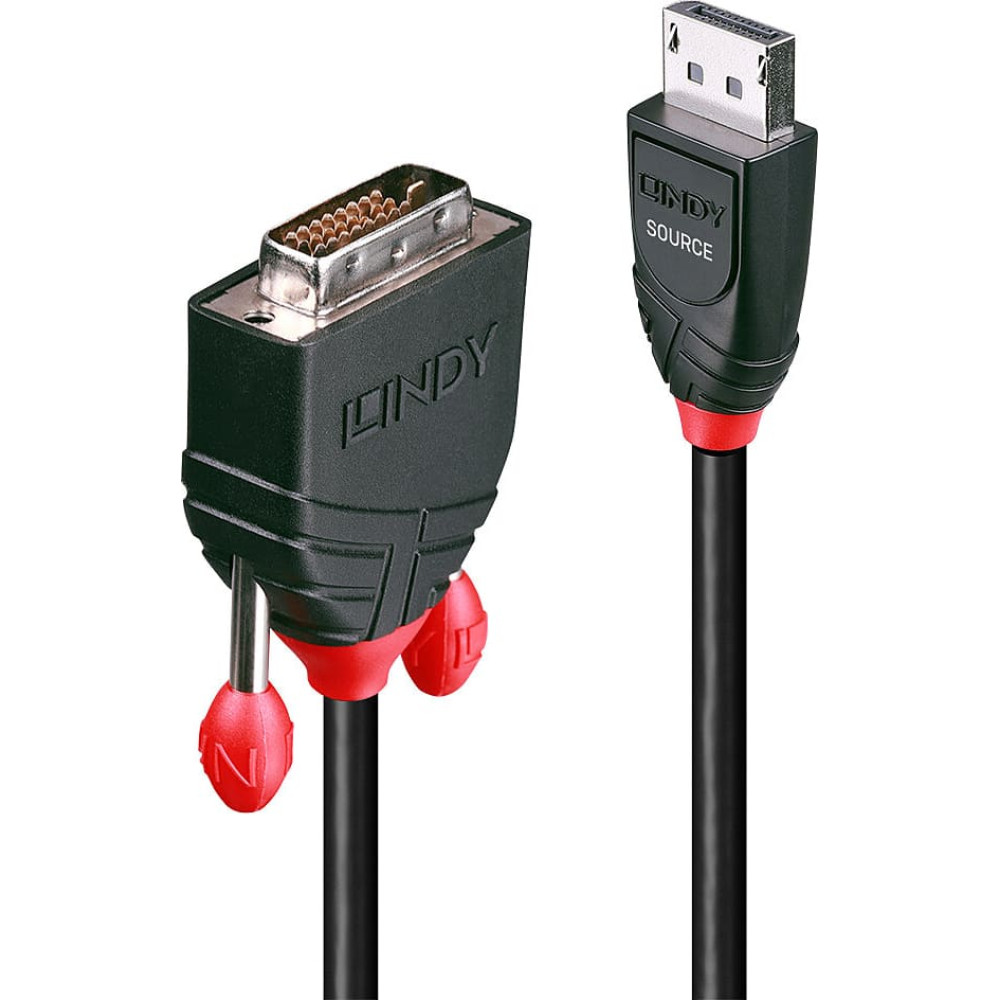

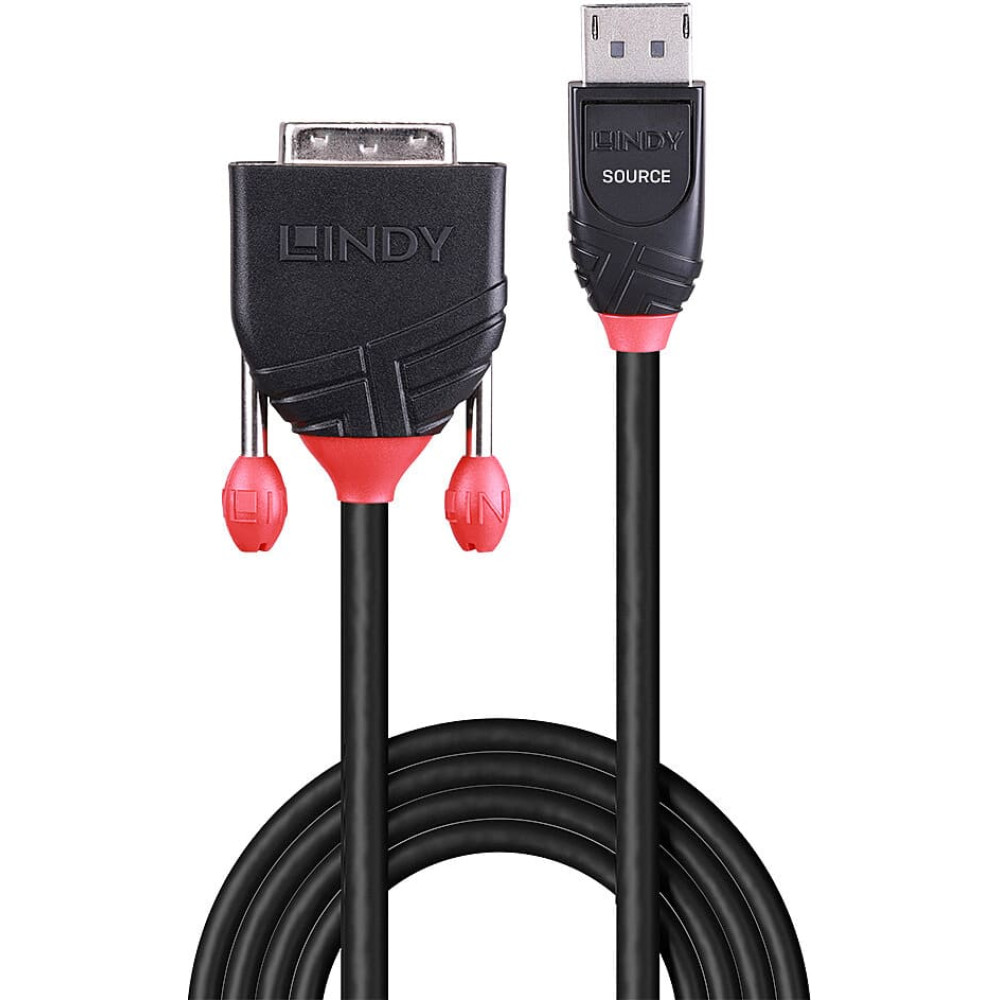

Lindy 1m DisplayPort to DVI-D Adapter Cable

LINDY

Lindy 1m DisplayPort to DVI-D Adapter Cable

Product Code: 41490
Barcode 4002888414906

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
cable length: 1 m
connector 1: DVI-D
connector 2: DisplayPort
connector contacts plating: Gold
connector gender: Male/Male
country of origin: CN
data transfer rate: 2.7 Gbit/s
gross weight: 0.11
harmonized system (hs) code: 84733080
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/99/67/97/62/62976799999c8d635dc13eb4/LINDY_41489-93_MAN_1121.pdf
net weight: 0.04
packaging height: 19.40
packaging lenght: 17.40
packaging width: 1.00
product colour: Black
variation of: 41489
warranty: 2
Description

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DVI-D Male
  • Housing Material:
    • DisplayPort: ABS+PC
    • DVI: PVC
  • Connector Plating: Nickel plated
  • Pin Construction: Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH:
    • DisplayPort: 38.8x19.8x11.9mm (1.53x0.78x0.47in)
    • DVI: 48.5x39.5x16.5mm (1.91x0.77x0.65in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DVI-D (Single Link), DisplayPort 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6mm (0.24in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Tinned Copper Braid  85%

Specifications

  • Supported Bandwidth: 1.65Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation:
    • 300KHz-825MHz  <5dB
    • 825MHz-2.475GHz  <5dB - <12dB
  • Minimum Bend Radius: 36mm (1.42in)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 41490
  • EAN: 4002888414906

This product is also available in other lengths

  • 41489 - 0.5m (1.64ft)
  • 41490 - 1m (3.28ft)
  • 41491 - 2m (6.56ft)
  • 41492 - 3m (9.84ft)
  • 41493 - 5m (16.44ft)



Manuals: LINDY_41489-93_MAN_1121.pdf
