Home Cables Displayport Lindy 0.5m Display Port to VGA Adapter Cable

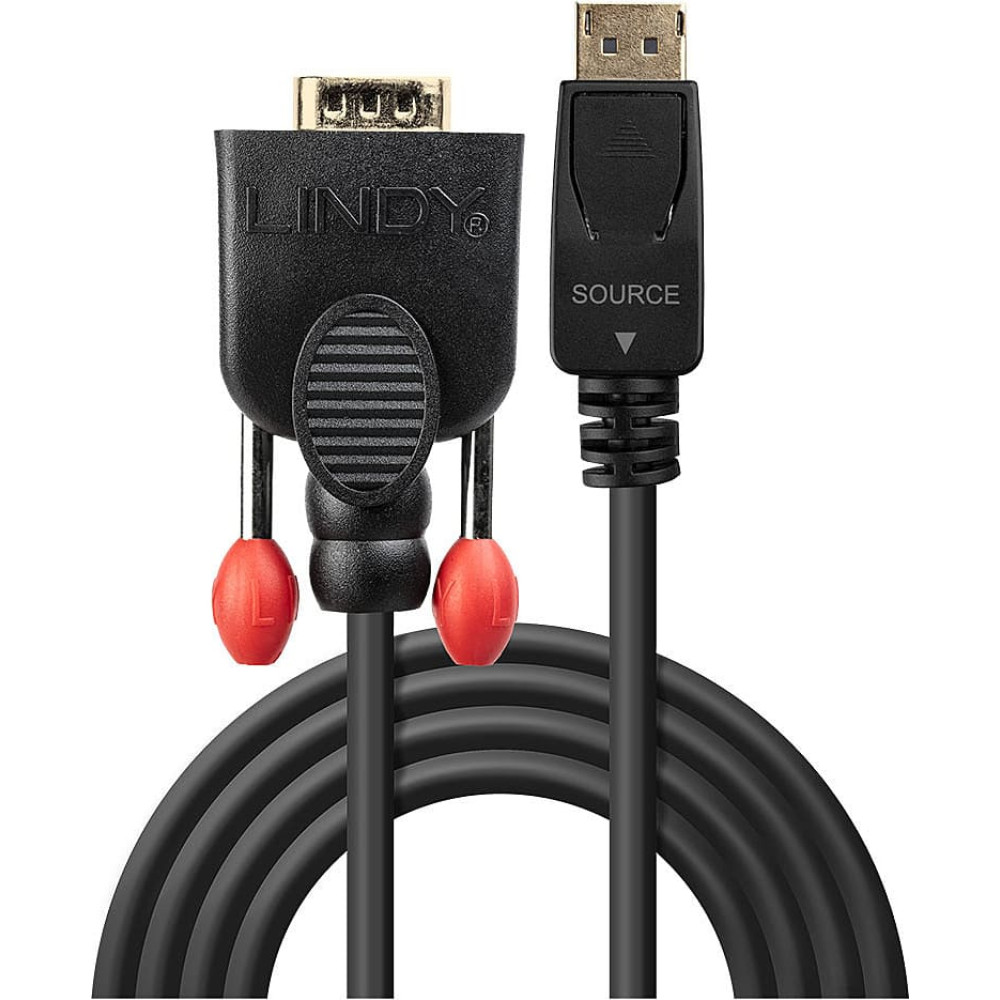

Lindy 0.5m Display Port to VGA Adapter Cable

Product Code: 41940

Barcode 4002888419406

To purchase this product you must be registered in our system.

Specification

cable length: 0.5 m

certification: CE, FCC, RoHS, REACH, UL

connector 1: VGA (D-Sub)

connector 1 gender: Male

connector 2: DisplayPort

connector 2 gender: Male

connector contacts plating: Gold

country of origin: CN

data transfer rate: 1.65 Gbit/s

gross weight: 0.10

harmonized system (hs) code: 84733080

maximum refresh rate: 60 Hz

maximum resolution: 1920 x 1200 pixels

net weight: 0.04

operating temperature (t-t): 0 - 70 °C

package type: Polybag

packaging height: 19.40

packaging lenght: 17.40

packaging width: 2.10

product colour: Black

storage temperature (t-t): -10 - 85 °C

variations: 41944,41943,41942,41941

warranty: 2

Description

Connectors

Connector A: DisplayPort Male
Connector B: VGA Male
Housing Material:
- DisplayPort: ABS
- VGA: PVC
Connector Plating: Gold plated
Pin Construction: Copper
Pin Plating: Gold plated
Dimensions (approx.) WxDxH:
- DisplayPort: 42x19.8x11.6mm (1.65x0.78x0.46in)
- VGA: 53x33.8x16.7mm (2.09x1.33x0.66in)

Cable Construction

Specifications

Supported Bandwidth: 1.65Gbps
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation:
- 100MHz-450MHz 2.44-5.099dB
- 450MHz-8100MHz 5.094-32.906dB
Minimum Bend Radius: 60mm (2.36in)
Operating Temperature: 0°C - 70°C (32°F - 158°F)
Storage Temperature: -10°C - 85°C (14°F - 185°F)

Miscellaneous

Purchasing Information

This product is also available in other lengths

41940 - 0.5m (1.64ft)
41941 - 1m (3.28ft)
41942 - 2m (6.56ft)
41943 - 3m (9.84ft)
41944 - 5m (16.44ft)
