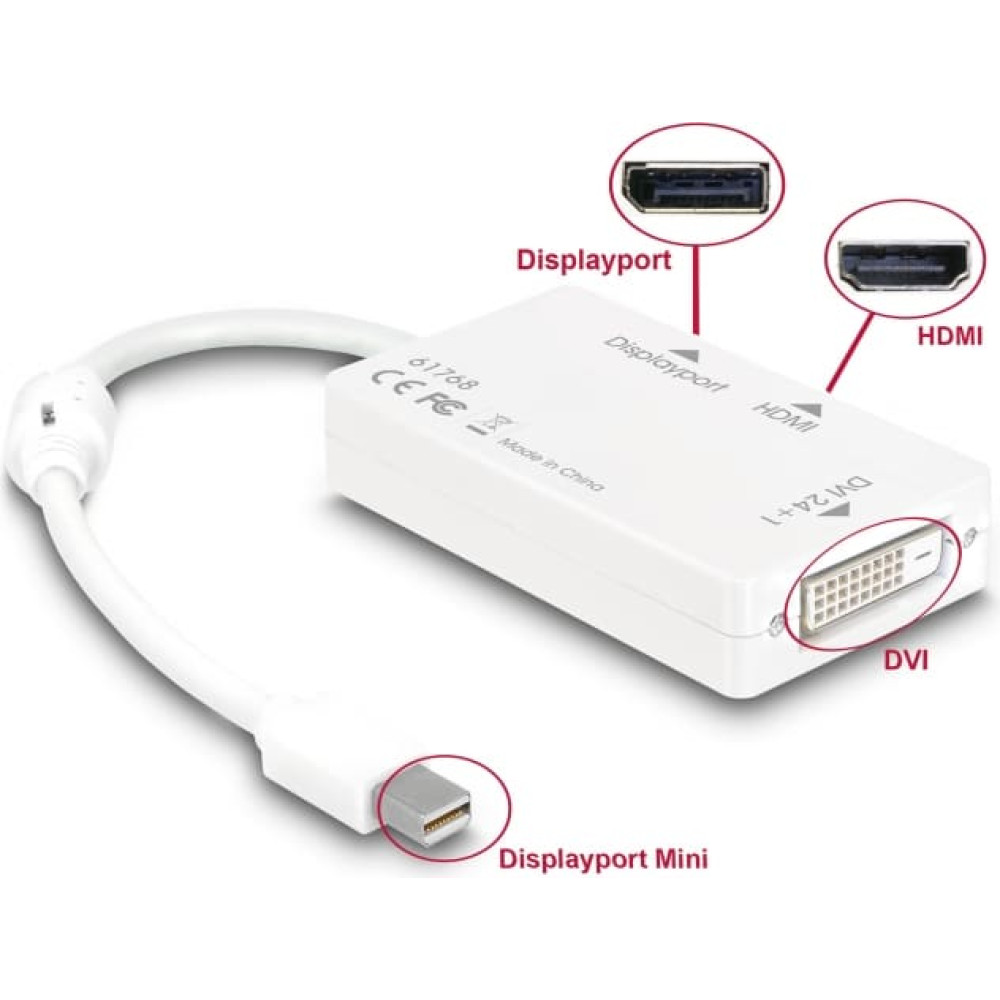

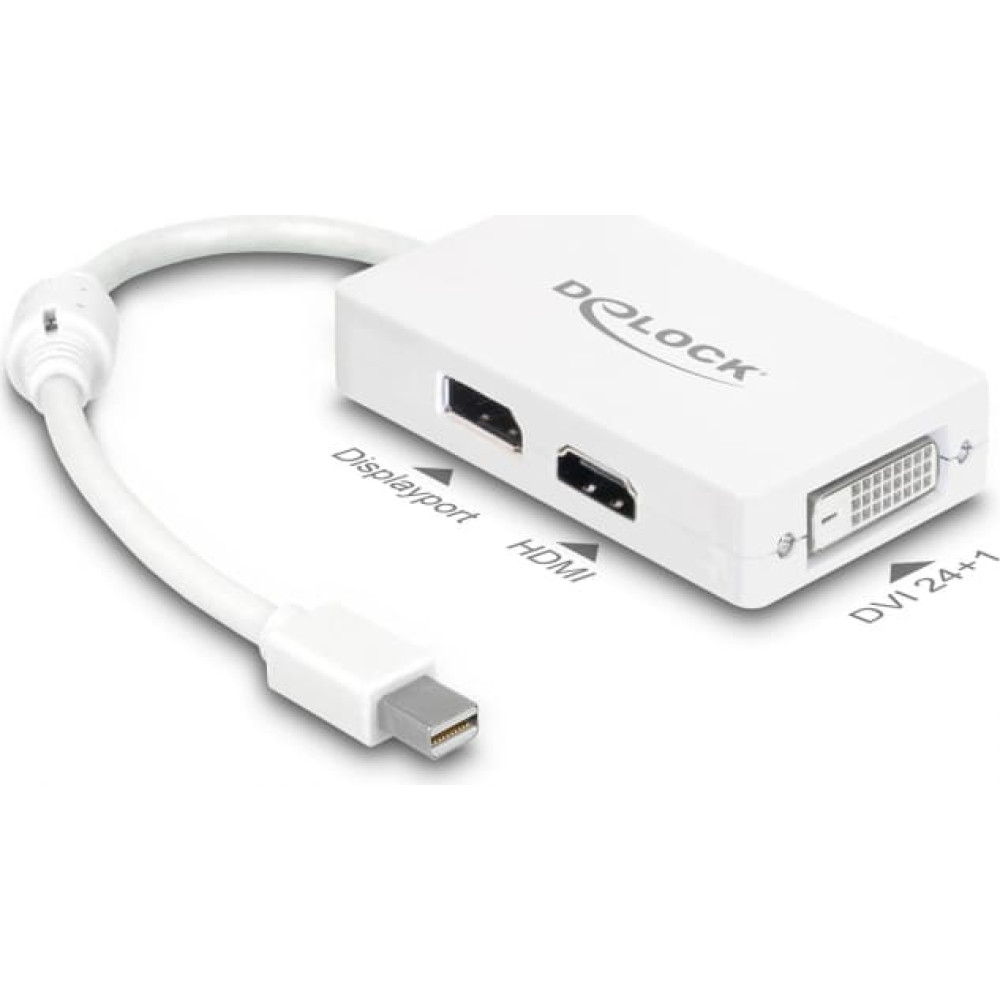

Delock Adapter mini Displayport 1.1 male Displayport HDMI DVI female Passive white
To purchase this product you must be registered in our system.
Specification
depth: 0.151
height: 0.023
width: 0.159
Description

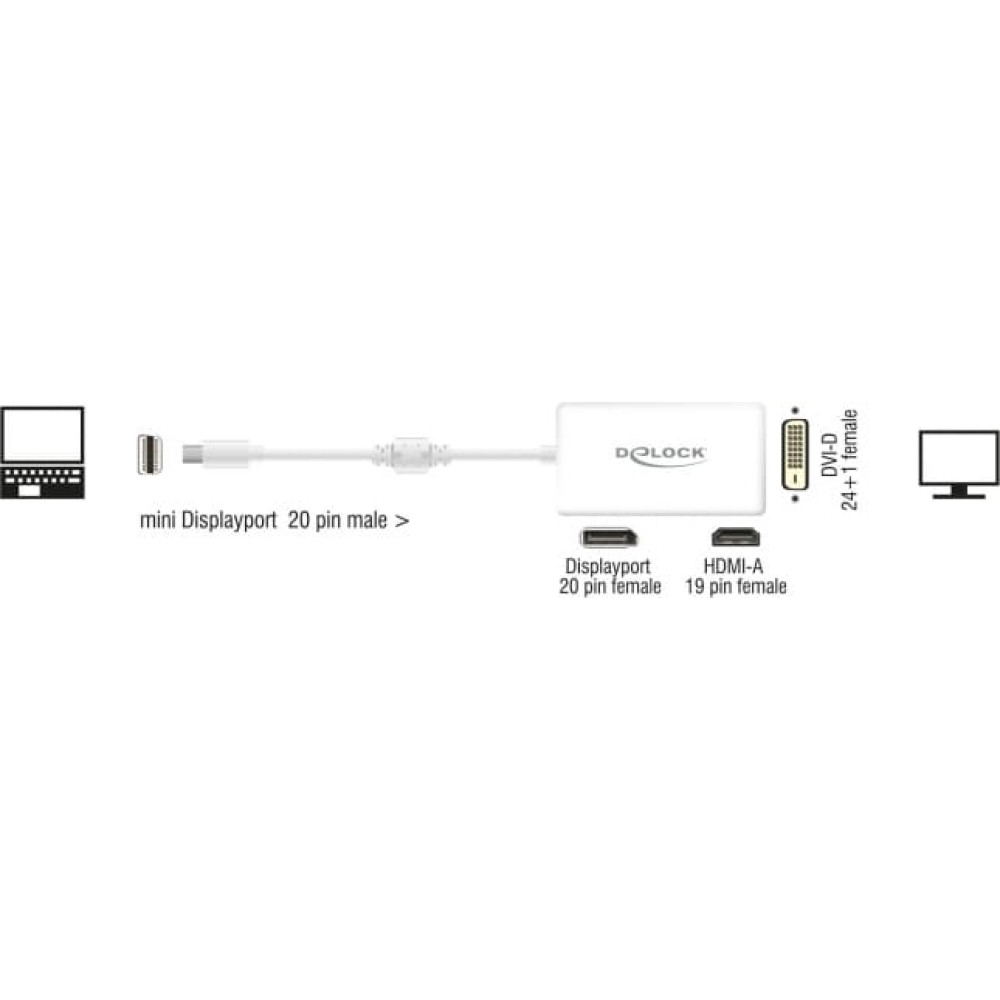

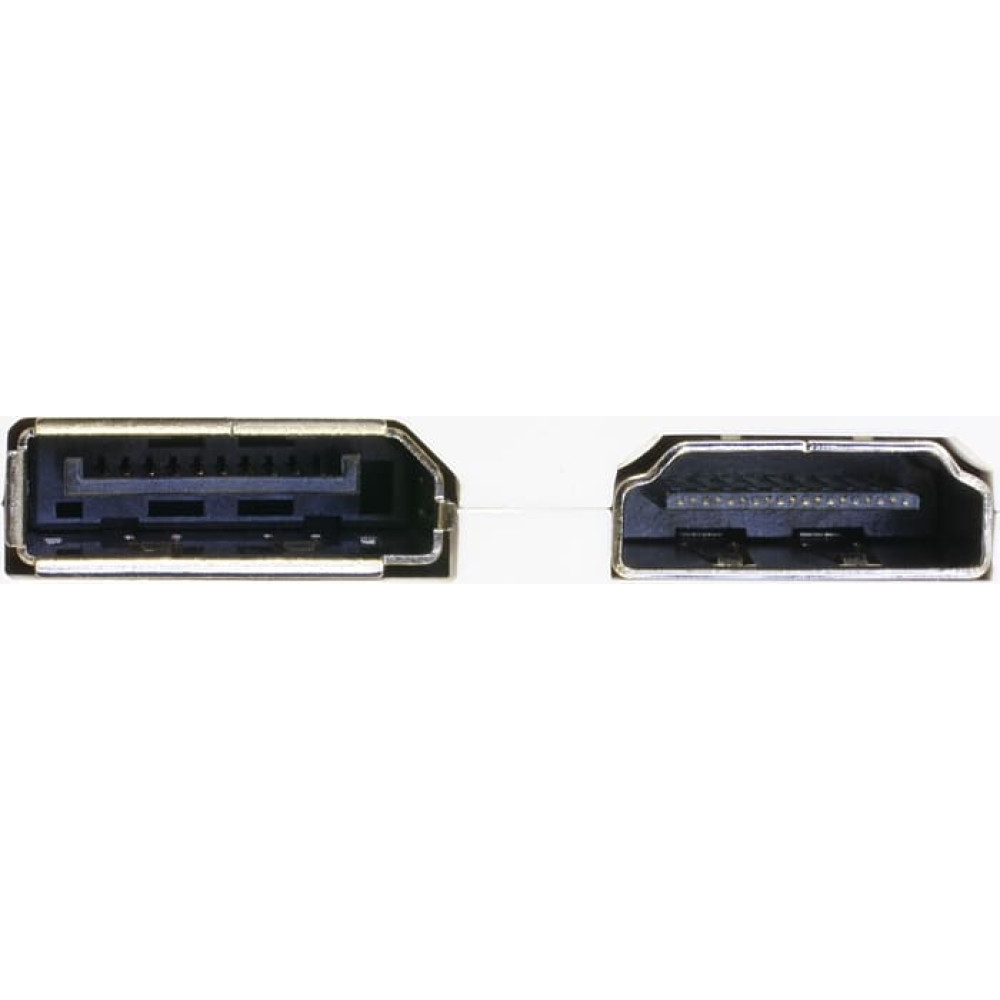

| With this mini DisplayPort adapter by Delock, the system can be extended by a DisplayPort, HDMI or DVI interface and various devices such as TV, beamer, monitor etc. can be connected. Only one monitor can be used on the adapter. System requirements: • One free mini DisplayPort DP++ female Specification: • Connectors: 1 x mini DisplayPort 20 pin male > 1 x DisplayPort 20 pin female 1 x HDMI-A 19 pin female 1 x DVI 24+1 female with nuts • Chipset: PS8312 • Mini DisplayPort 1.1a specification • High Speed HDMI specification • DVI-D (Single Link), VGA not wired • Passive converter (level shifter), suitable only for graphics cards with DP++ output • Supports a resolution up to 1920 x 1200 / 1080p @ 60 Hz (depending on the system and the connected hardware) • Power consumption: ca. 100 mW • 1 x ferrite core • Cable length without connectors: ca. 16 cm • Colour: white • OS independent, no driver installation necessary Package content: • Adapter mini DisplayPort to DisplayPort / HDMI / DVI Data sheet: http://www.delock.de/produkt/61768/pdf.html?sprache=en |
