Home Cables Displayport Delock Cable Displayport 1.2 male to High Speed HDMI A male 2 m

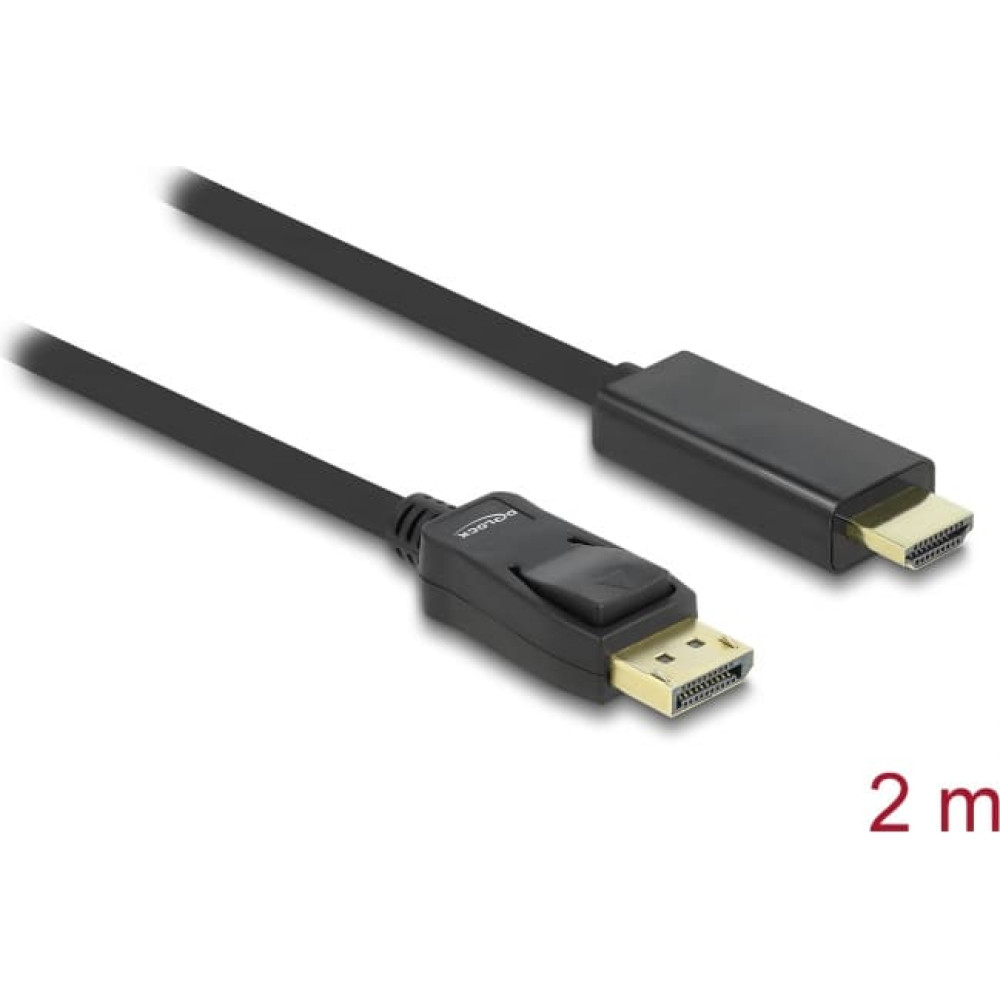

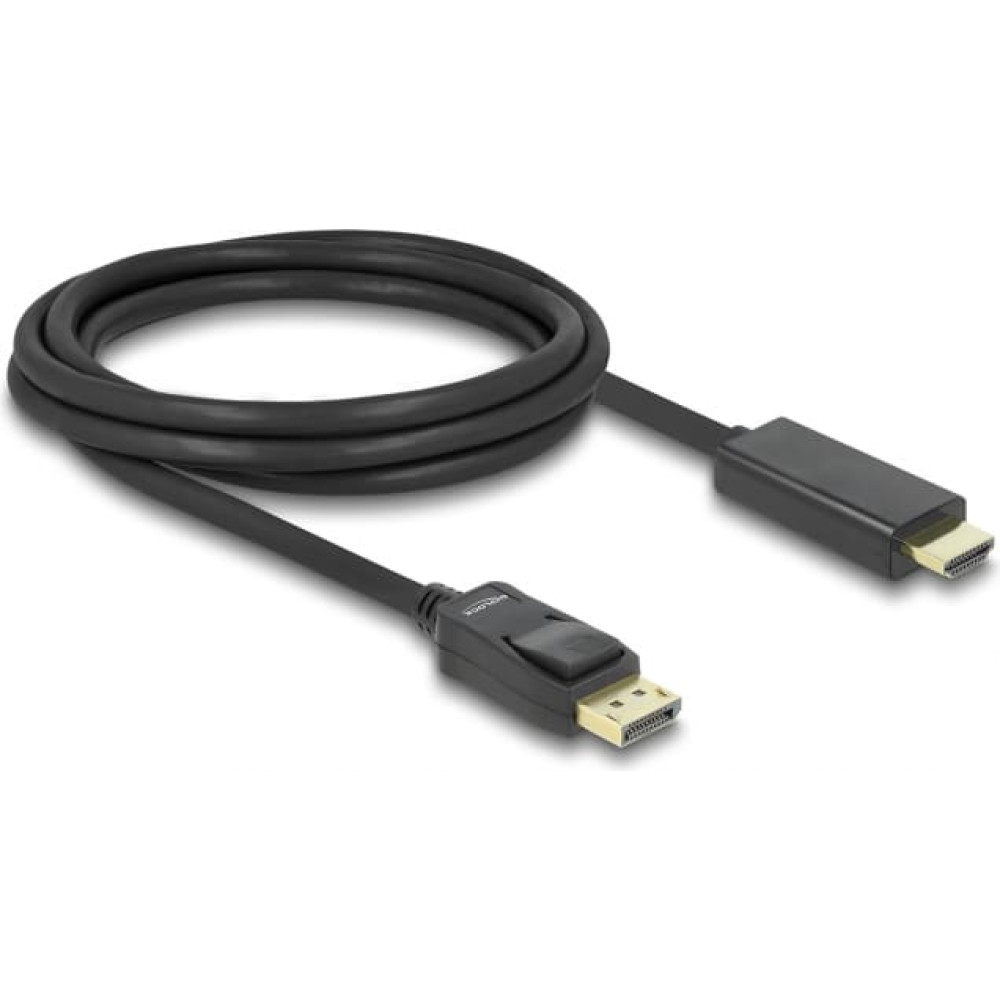

Delock Cable Displayport 1.2 male to High Speed HDMI A male 2 m

Product Code: 82587

Barcode 4043619825875

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.265

height: 0.020

width: 0.185

Description

This cable by Delock enables the connection between devices, e.g. a monitor, with HDMI connector to a DisplayPort interface.

System requirements:
• A free DisplayPort DP++ female port

Specification:
• Connectors:
1 x DisplayPort 20 pin male >
1 x High Speed HDMI-A 19 pin male
• Chipset: NXP PTN3361
• DisplayPort 1.1 and High Speed HDMI specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: DisplayPort input > HDMI output
• Cable gauge: 28 AWG
• Cable diameter: ca. 6.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Transfer of audio and video signals
• Data transfer rate up to 8.16 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Length incl. connectors: ca. 2 m

Package content:
• DisplayPort to HDMI cable

Data sheet:
http://www.delock.de/produkt/82587/pdf.html?sprache=en
