Home Cables eSATA / S-SATA / ATA / IDE Delock Converter IDE 44 Pin > mSATA with 2.5″ Frame (7 mm)

Delock Converter IDE 44 Pin > mSATA with 2.5″ Frame (7 mm)

Product Code: 62495

Barcode 4043619624959

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.128

height: 0.053

width: 0.177

Description

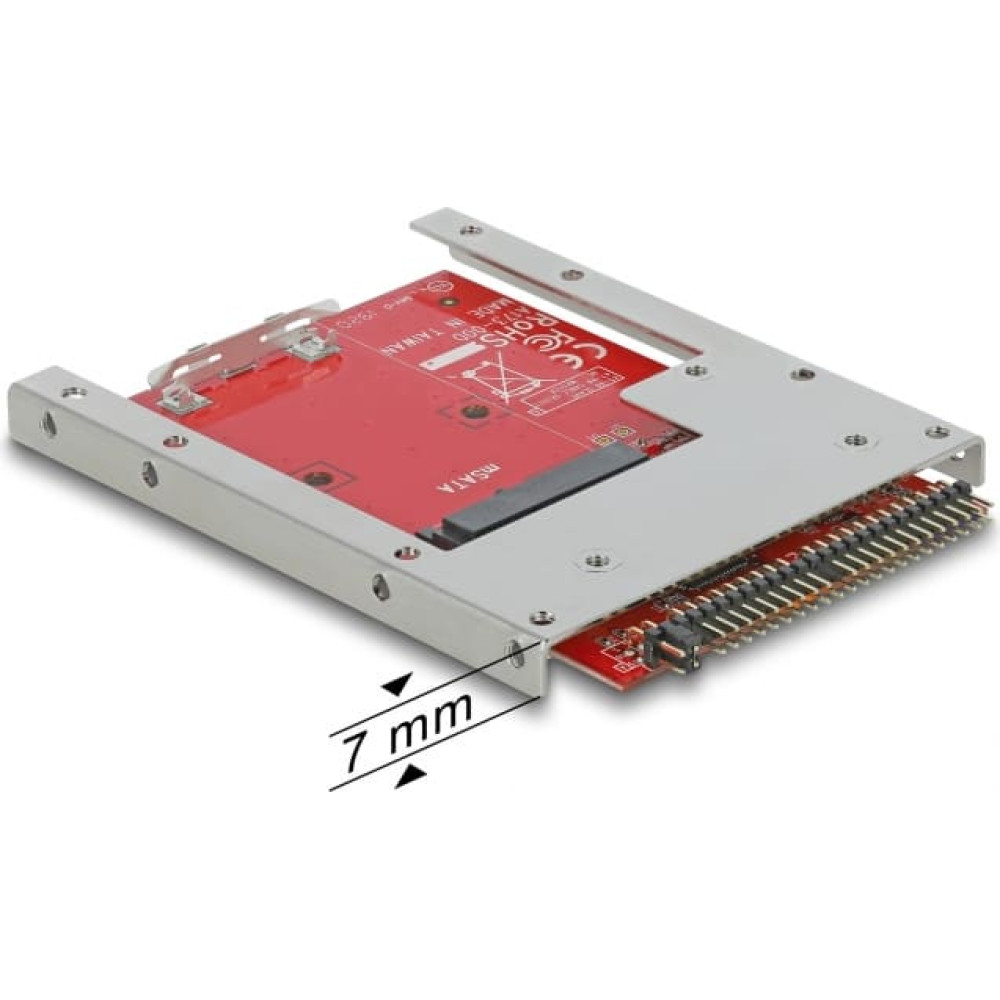

This converter by Delock enables the connection of an mSATA SSD in half size or full size format which can be used as a 2.5″ HDD. The converter will be installed into the system internally through a IDE 44 pin interface.

System requirements:
• A free IDE 44 pin interface

Specification:
• Connectors:
1 x IDE 44 pin male
1 x mSATA slot (full size)
• Form factor: 2.5″
• For 3.3 V mSATA module
• Supports ATA/ATAPI-7
• Supports ATA/ATAPI Ultra DMA mode
• Supports ATA/ATAPI PIO mode
• Jumper for selecting Master / Slave and Cable Select
• Latch for mSATA module, full size can fit in
• Dimensions (LxWxH): ca. 98 x 70 x 7 mm
• OS independent, no driver installation necessary

Package content:
• Converter
• 2.5″ frame

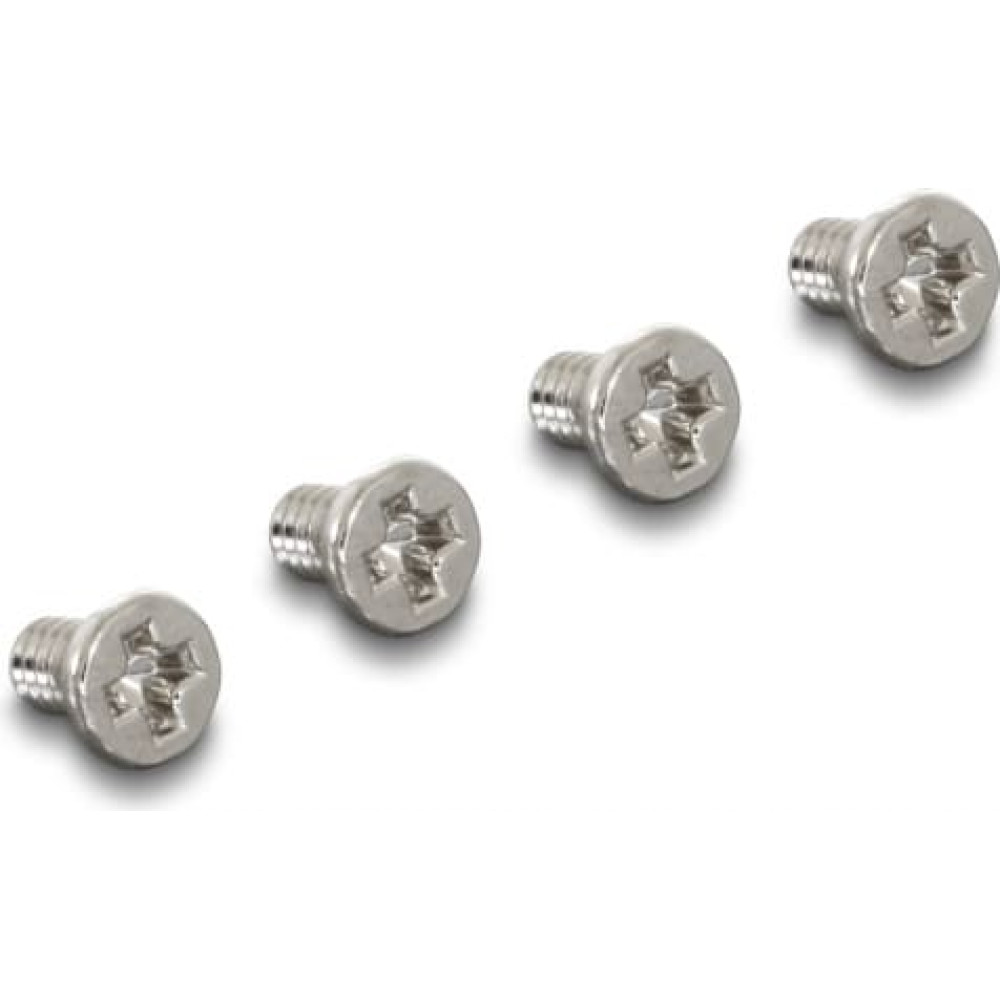

• 4 x screws
• User manual

Data sheet:
http://www.delock.de/produkt/62495/pdf.html?sprache=en
