Delock M12 Adapter D-coded 4 pin female to RJ45 jack straight

DELOCK

Delock M12 Adapter D-coded 4 pin female to RJ45 jack straight

Product Code: 60060
Barcode 4043619600601

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.125
height: 0.020
width: 0.085
Description

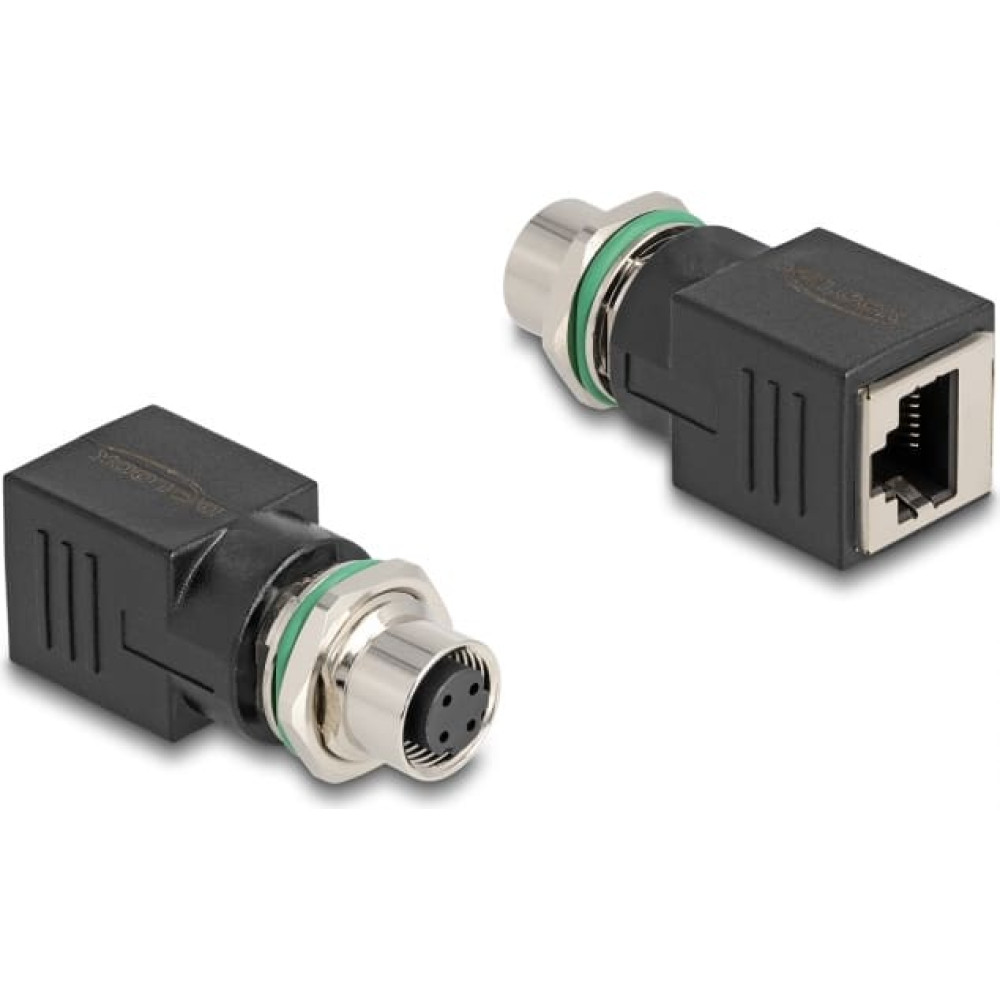

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Einbau in Schaltschrank
Due to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure.
System requirements:
• A free M12 plug
• A free RJ45 plug
Specification:
• Connectors:

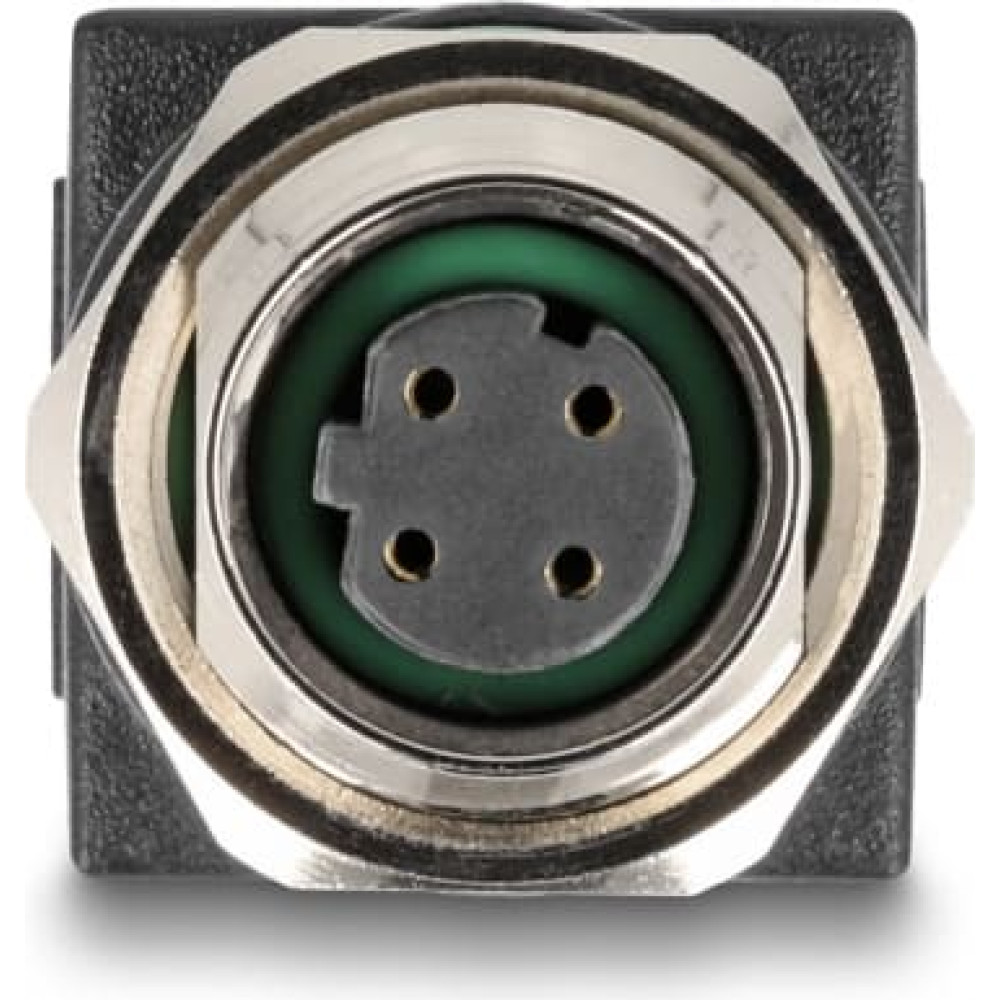

  1 x M12 female 4 pin D-coded
  1 x RJ45 jack
• PROFINET specification
• Pin assignment according to PROFINET standard
• Cat.5e specification
• Housing material: PUR (TPU)
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67 (M12)
• Colour: black
• Dimensions (LxWxH): ca. 47 x 19 x 19 mm
Package content:
• Adapter
Data sheet:
http://www.delock.de/produkt/60060/pdf.html?sprache=en
