Home Cables M12 Delock Network cable M12 8 pin X-coded TPU 1 m

Delock Network cable M12 8 pin X-coded TPU 1 m

Product Code: 85421

Barcode 4043619854219

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.000

height: 0.000

width: 0.000

Description

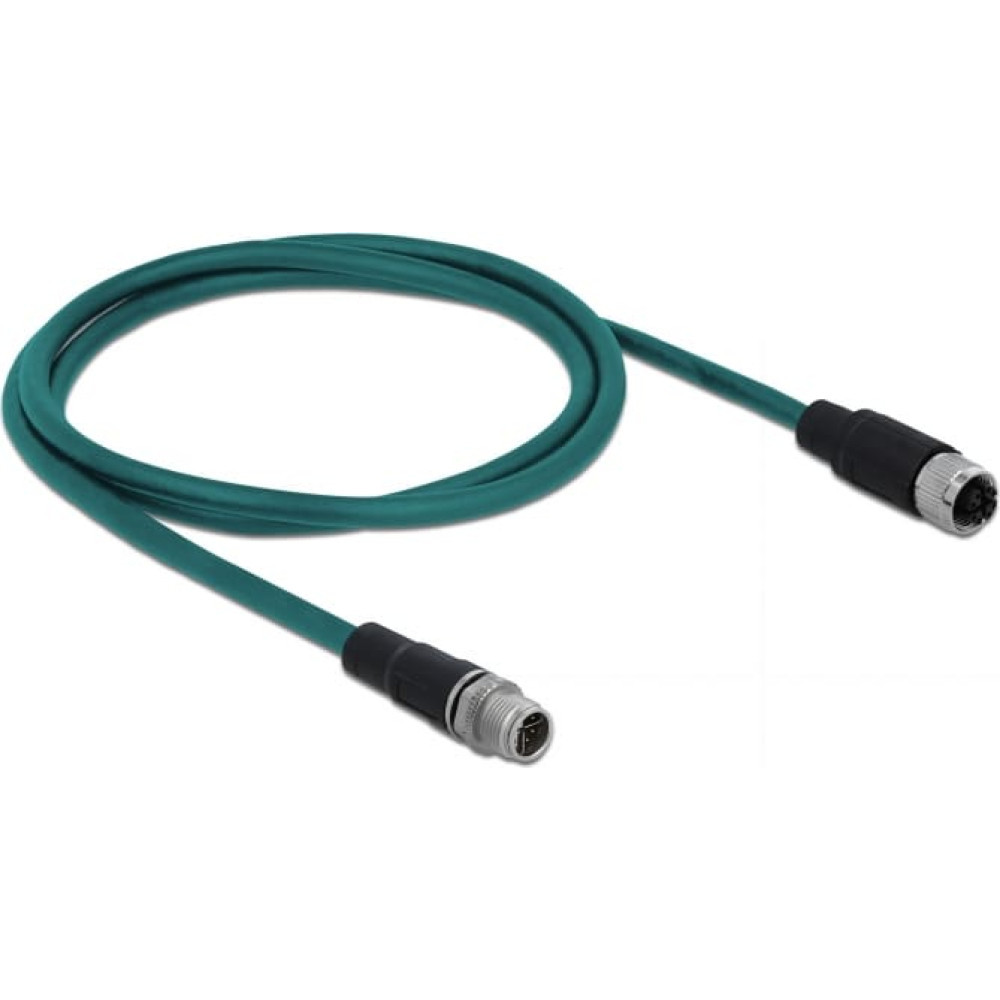

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Durable PUR (TPU) cable jacket
The material of the cable jacket makes the cable flexible and durable, making it suitable for use in drag chains and harsh environments.

The cable is oil and UV resistant and meets the high requirements for industrial applications.

System requirements:
• A free M12 female port

Specification:
• Connectors:

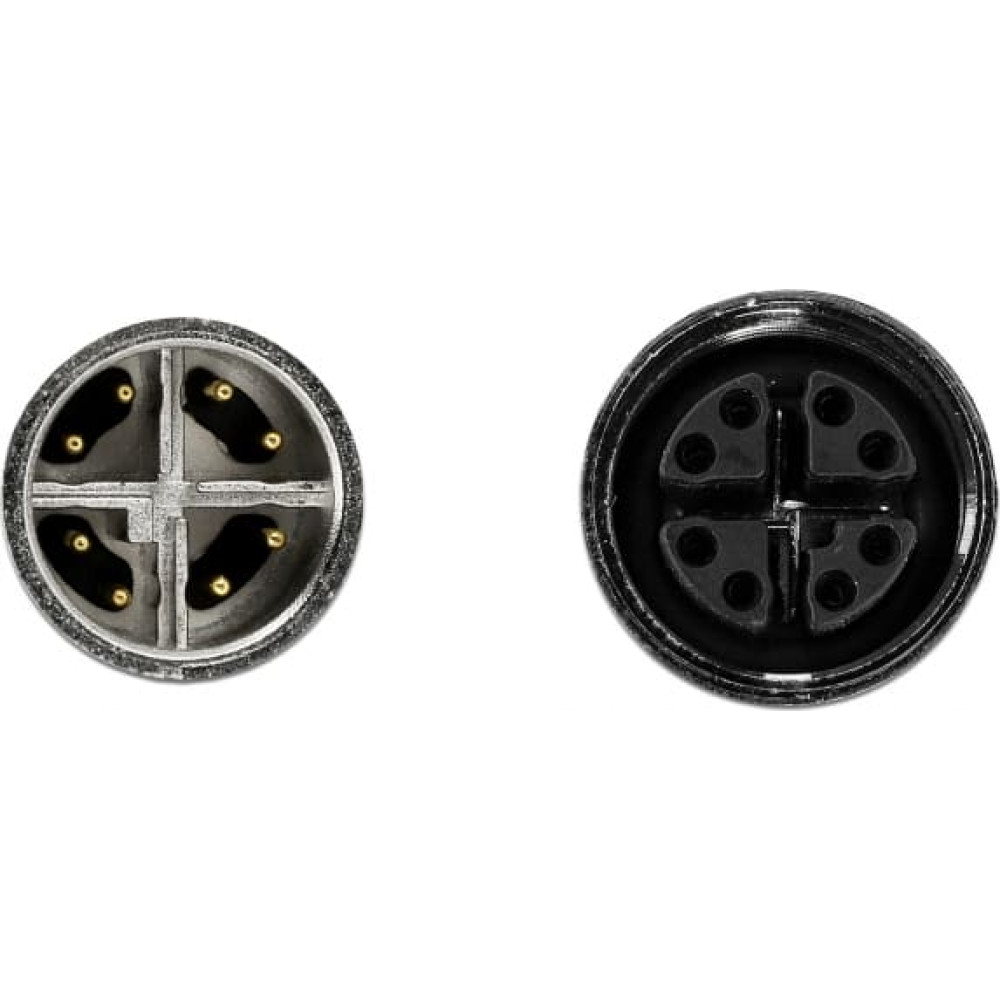

  1 x M12 male 8 pin X-coded >
  1 x M12 female 8 pin X-coded
• Cat.6A specification
• Pin assignment: 1:1
• Suitable for drag chains
• S/FTP
• Shielding: aluminium foil, tinned copper braiding
• Copper cable
• Cable gauge: 26 AWG
• Cable diameter: ca. 6.4 mm
• Cable jacket material: PUR (TPU)
• Max. number of bending cycles: 1,000,000
• Smallest bending radius:
  32 mm with fixed installation
  64 mm with flexible installation
• Oil-resistant according to DIN EN 60811-2-1
• UV-resistant
• LS0H (halogen-free)
• Flammability class: FT2
• Operating temperature: -20 °C ~ 80 °C
• Protection class: IP67
• Colour: water blue

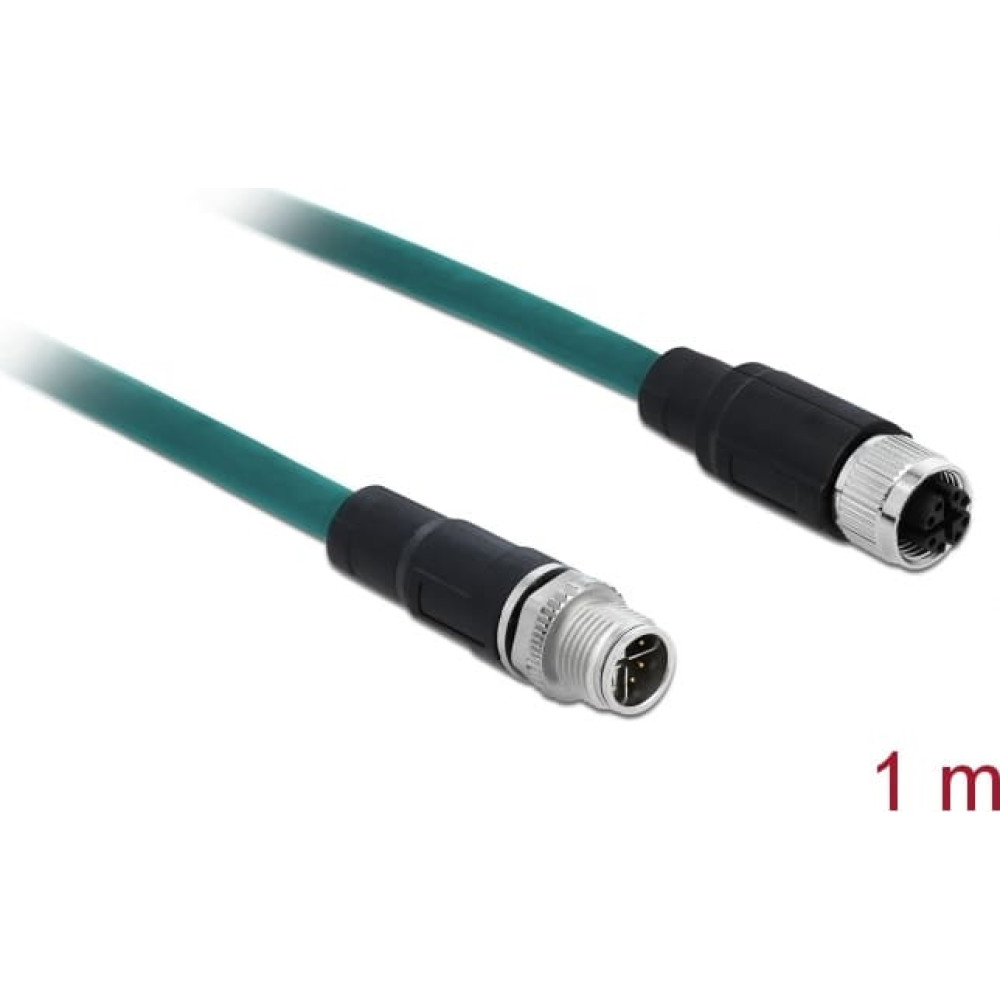

• Length incl. connectors: ca. 1 m

Package content:
• Patch cable

Data sheet:
http://www.delock.de/produkt/85421/pdf.html?sprache=en
