Home Cables Network patch cable RJ45 Network RJ45 (6 cat) Lindy 0.5m Cat.6A S/FTP LSZH Network Cable, Grey (Fluke Tested)

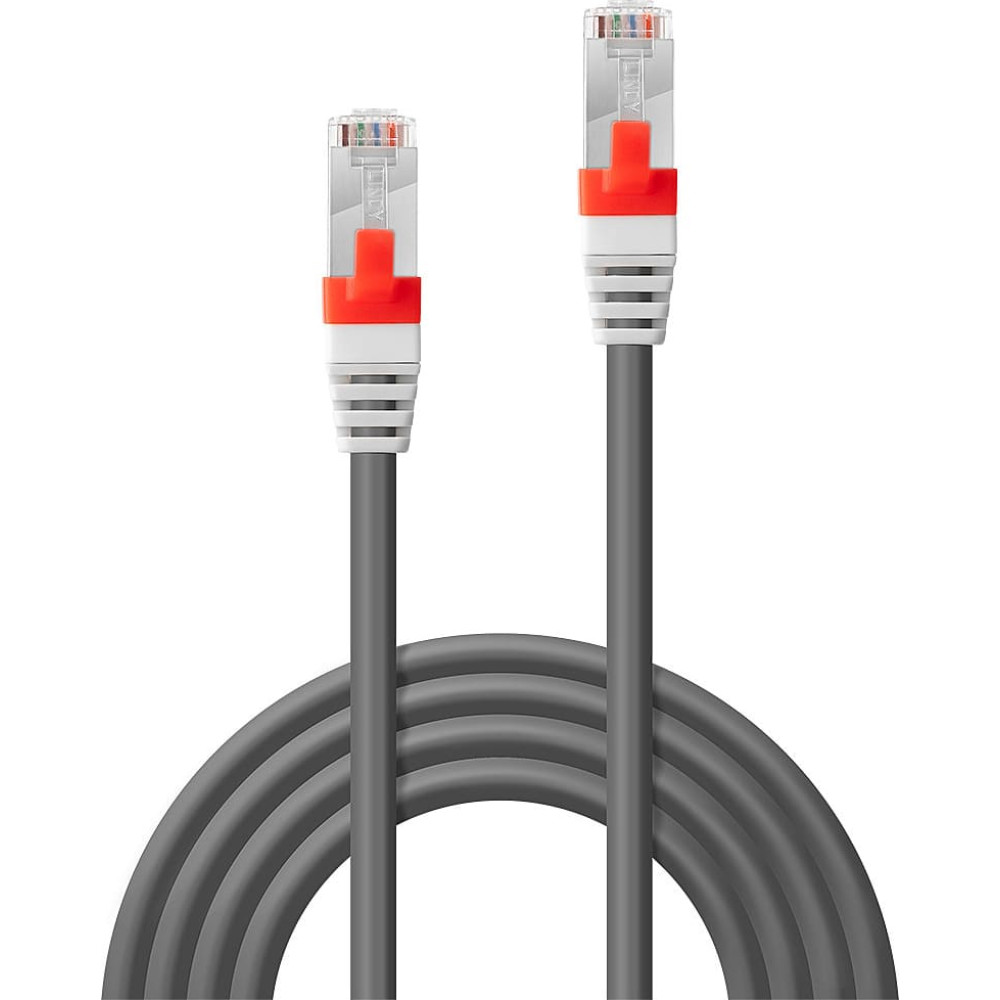

Lindy 0.5m Cat.6A S/FTP LSZH Network Cable, Grey (Fluke Tested)

LINDY

Lindy 0.5m Cat.6A S/FTP LSZH Network Cable, Grey (Fluke Tested)

Product Code: 45351
Barcode 4002888453516

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 26
cable length: 0.5 m
cable shielding: SF/UTP (S-FTP)
cable standard: Cat6a
cabling technology: 10/100/1000Base-T(X)
connector 1: RJ-45
connector 1 gender: Male
connector 2: RJ-45
connector 2 gender: Male
country of origin: CN
doesn't contain: Halogen
harmonized system (hs) code: 84733080
jacket material: Low smoke zero halogen (LSZH)
packaging height: 19.4
packaging lenght: 17.4
packaging width: 2.0
product colour: Grey
variation of: 45350.0
warranty: 10.0
Description

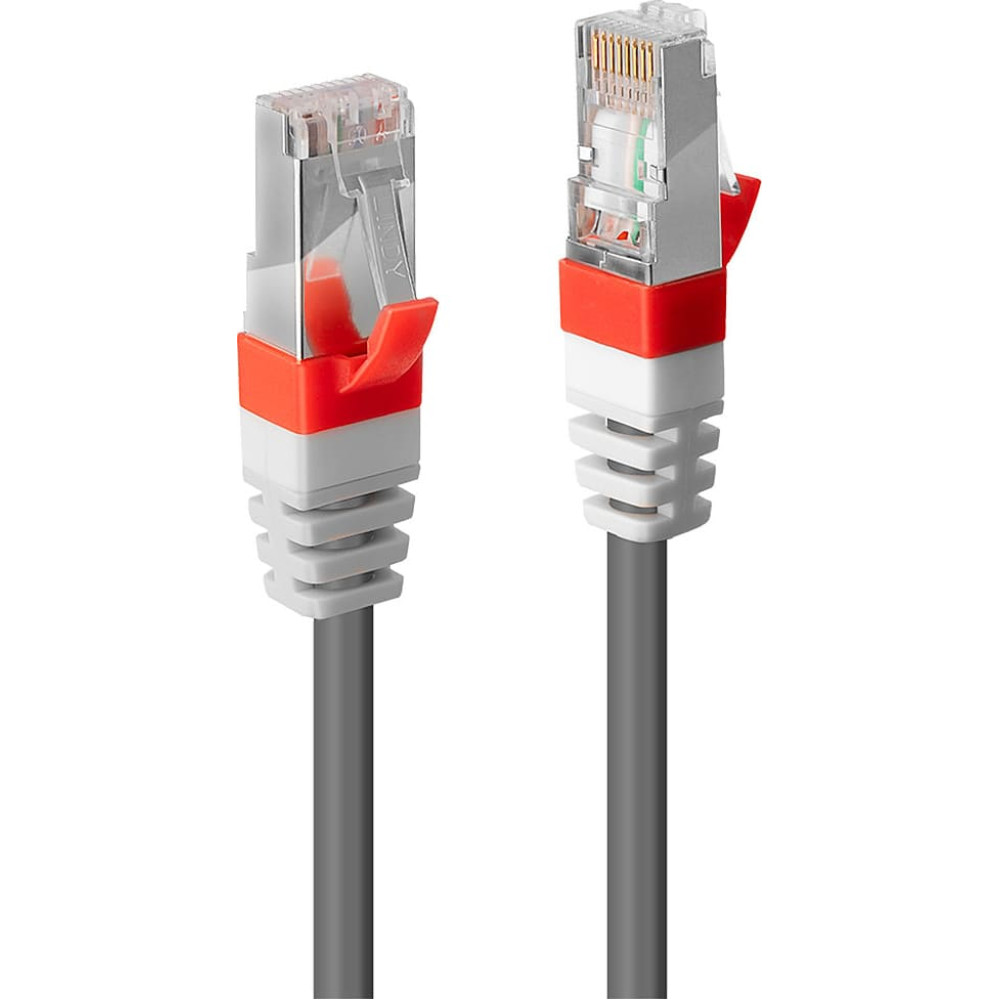

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)



Cable Construction

  • Length: 0.5m (1.64ft)
  • Colour: Grey
  • Type: Cat.6A
  • Jacket Diameter: 6.2mm (0.24in)
  • Jacket Material: LSZH
  • Conductor Material: Copper
  • Conductor Gauge: 26AWG
  • Shielding: Aluminium / Polyester



Specifications

  • Supported Bandwidth: 500MHz
  • Nominal Attenuation: 67.86dB/100m @ 500MHz
  • Minimum Bend Radius: 18.6mm (0.74in)
  • Operating Temperature: -25°C - 60°C (-43F - 140°F)
  • Storage Temperature: -25°C - 60°C (-43F - 140°F)



Miscellaneous

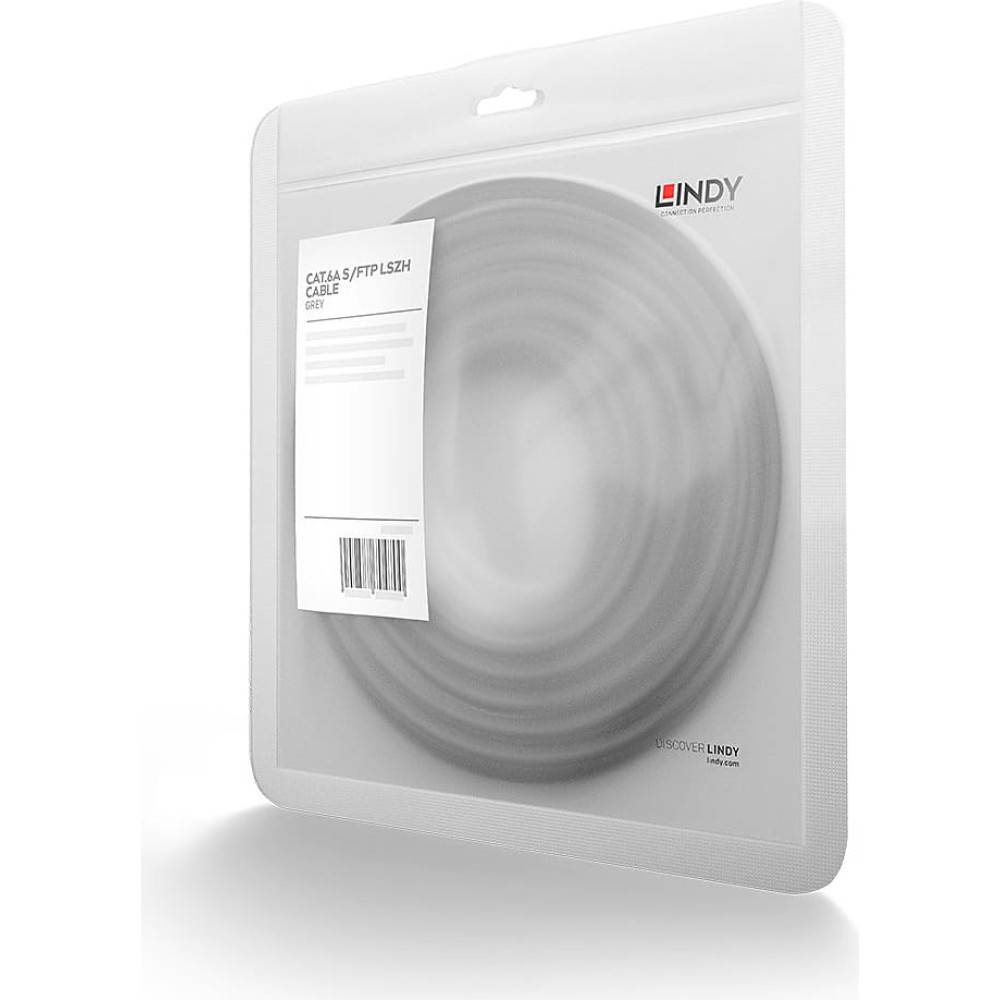

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL
  • Purchasing Information
  • No.: 45351
  • EAN: 4002888453516



This product is also available in other lengths:

  • 45350 - 0.3m (0.98ft)
  • 45351  - 0.5m (1.64ft)
  • 45352 - 1m (3.28ft)
  • 45353 - 2m (6.56ft)
  • 45354 - 3m (9.84ft)
  • 45355 - 5m (16.44ft)
  • 45356 - 7.5m (24.61ft)
  • 45357 - 10m (32.81ft)
  • 45358 - 15m (49.21ft)
  • 45359 - 20m (65.62ft)
  • 45360 - 30m (98.43ft)
