Home Cables Network patch cable RJ45 Network RJ45 (6 cat) Lindy 1m Cat.6 S/FTP Network Cable, Green

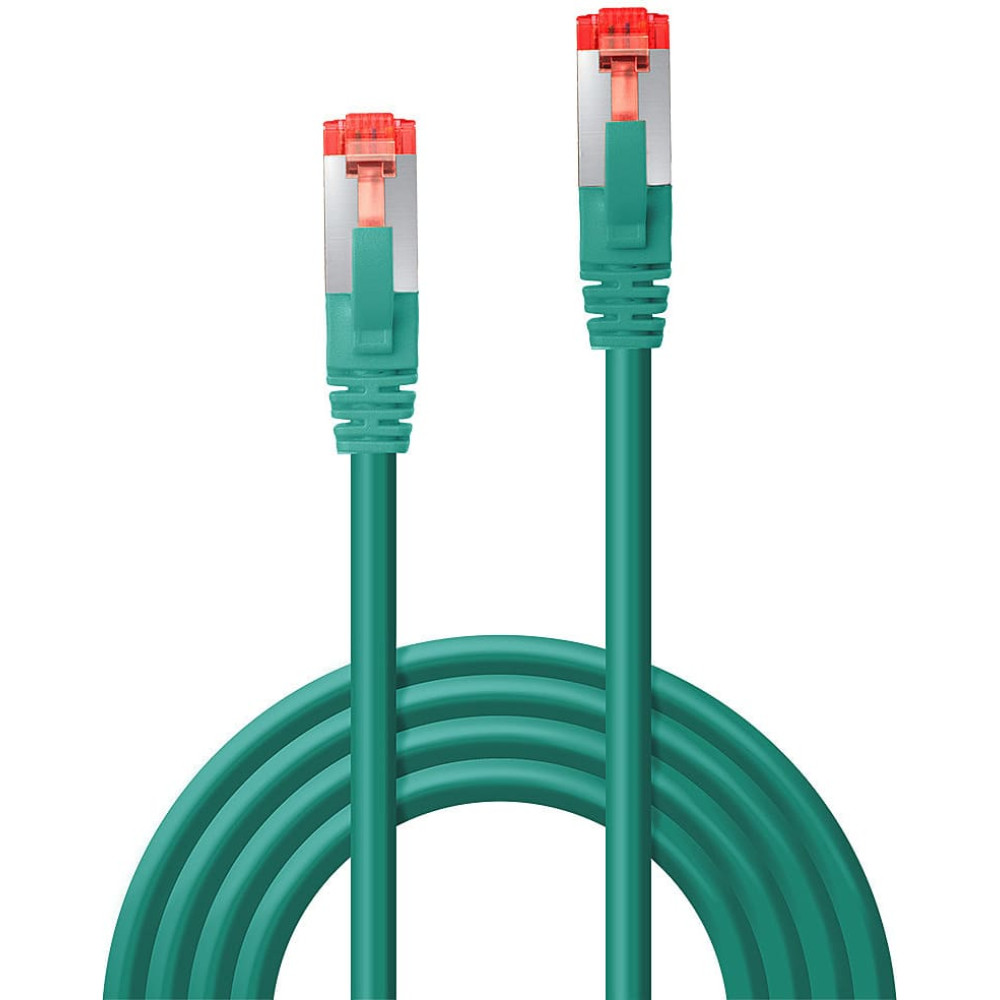

Lindy 1m Cat.6 S/FTP Network Cable, Green

LINDY

Lindy 1m Cat.6 S/FTP Network Cable, Green

Product Code: 47747
Barcode 4002888477475

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 27
cable class: E
cable length: 1 m
cable shielding: S/FTP (S-STP)
cable standard: Cat6
cabling technology: 10/100/1000Base-T(X)
category: 6
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/e5/51/30/68/683051e5a64873f7f0030178/CE_47700-47845.pdf
connector 1: RJ-45
connector 1 gender: Male
connector 2: RJ-45
connector 2 gender: Male
connector contacts plating: Gold
connector shielding: Yes
country of origin: CN
harmonized system (hs) code: 84733080
packaging height: 19.4
packaging lenght: 17.4
packaging width: 1.0
product colour: Green
snagless cable boot: Yes
variation of: 47745.0
warranty: 10.0
Description

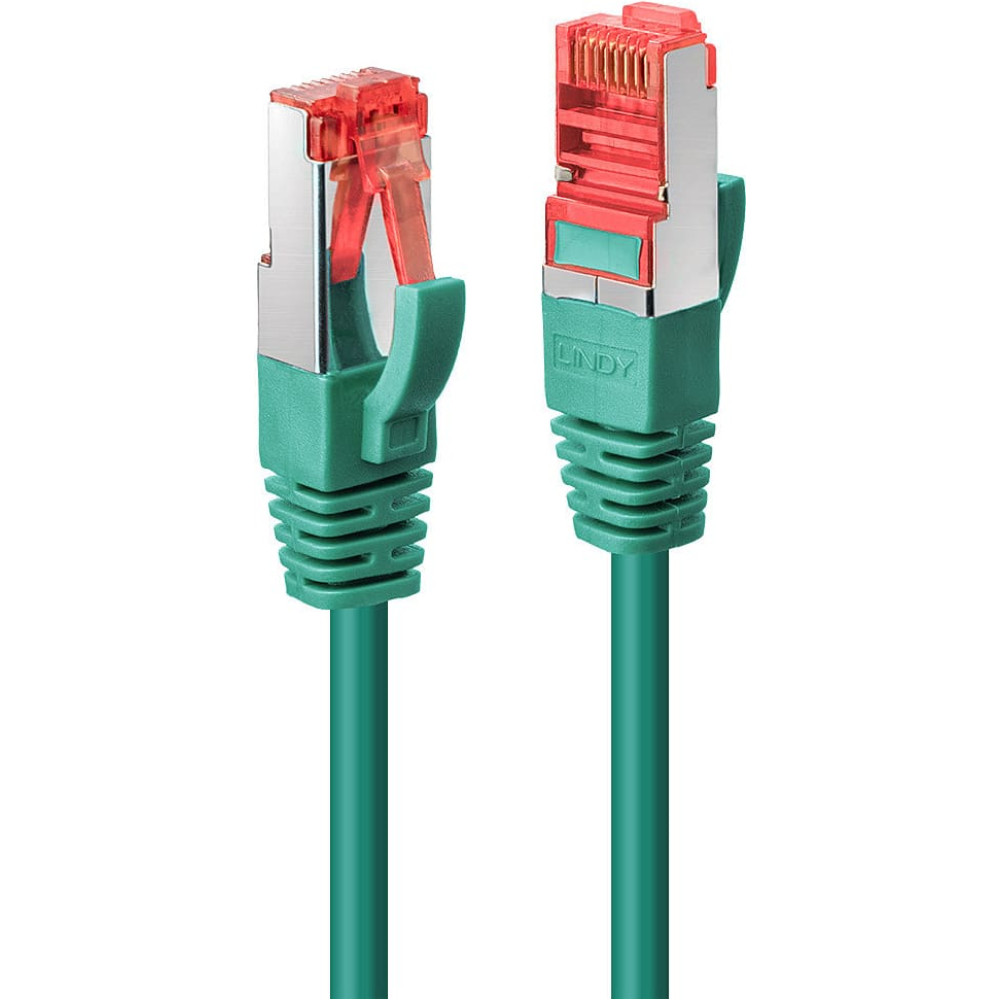

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)



Cable Construction

  • Length: 1m (3.28ft)
  • Colour: Green
  • Type: Cat.6
  • Jacket Diameter: 6.2mm (0.24in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge: 27AWG
  • Shielding: Aluminium Braid



Specifications

  • Supported Bandwidth: 250MHz
  • Nominal Attenuation: 32.8dB/100m @250MHz
  • Minimum Bend Radius: 74mm (2.91in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4°F - 167°F)



Miscellaneous

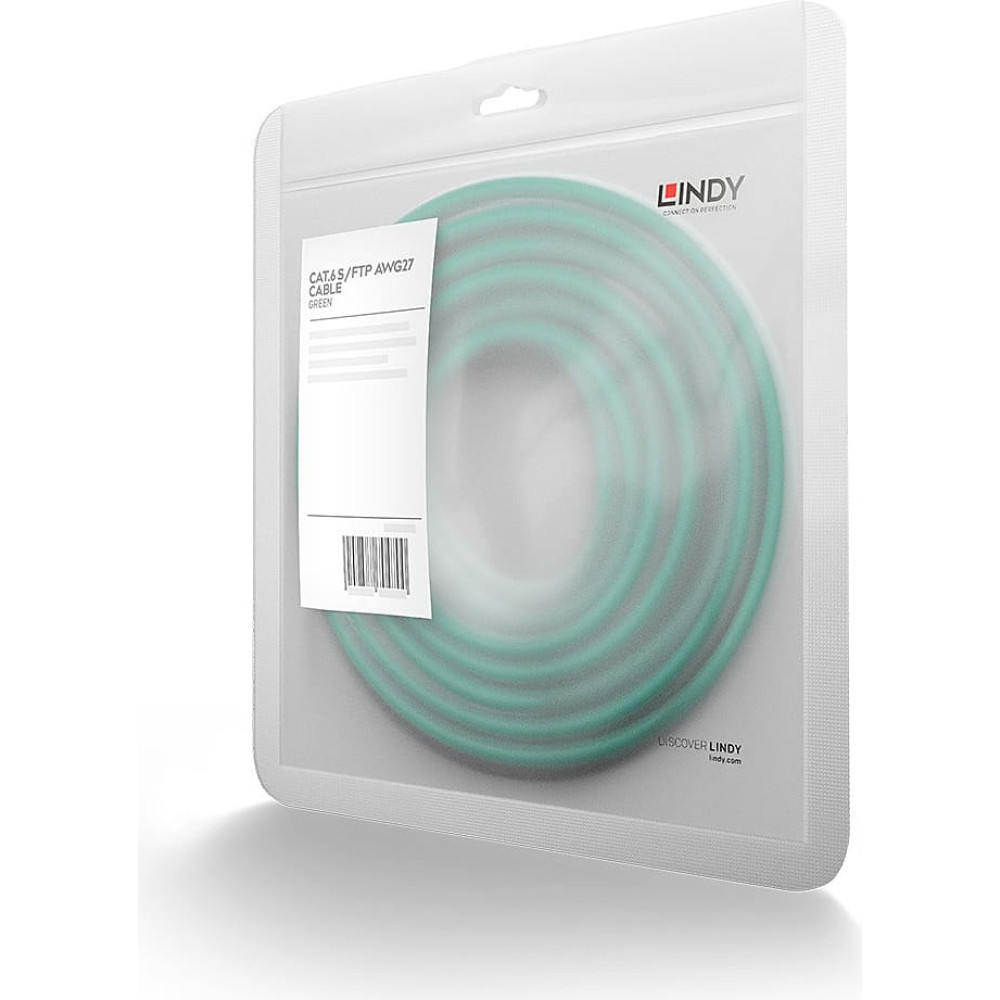

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL, California Proposition 65



Purchasing Information

  • No.: 47747
  • EAN: 4002888477475



This product is also available in other lengths:

  • 47745 - 0.3m (0.98ft)
  • 47746 - 0.5m (1.64ft)
  • 47747 - 1m (3.28ft)
  • 47748 - 1.5m (4.92ft)
  • 47749 - 2m (6.56ft)
  • 47750 - 3m (9.84ft)
  • 47751 - 5m (16.44ft)
  • 47752 - 7.5m (24.61ft)
  • 47753 - 10m (32.81ft)
  • 47754 - 15m (49.21ft)
  • 47755 - 20m (65.62ft)
  • 47756 - 30m (98.43ft)
