Roline Outdoor S/FTP Patch Cord Cat.6A / Class EA, Stranded, TPE, LSOH, black, 1

ROLINE

Roline Outdoor S/FTP Patch Cord Cat.6A / Class EA, Stranded, TPE, LSOH, black, 1

Product Code: 21.15.0751
Barcode 7630049687462

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
anti-kink sleeve: Moulded-on
bend radius: Min. 25mm
cable lsoh: yes
colour: black
conductor cross section (awg): AWG 26
conductor type: Stranded
connector type rj45: Standard
crossed: no
current catalog edition: C25-01.32
current catalog page: 1.34
depth of packaging (single piece): 110 mm
external cable diameter: 6.0 +/-0.2mm
gross weight: 0.045
height of packaging (single piece): 10 mm
length: 1 m
length: 1 m
locking lever: yes
manufacturer: ROLINE
material (external cable mantle): TPE
operating temperature max.: 60 °C
operating temperature min.: -40 °C
package weight (single piece): 0.045 kg
product group: Twisted Pair Cable
product type: S/FTP Patchcord
quantity of wires: 8
shield type: PiMF
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
storage temperature max.: 75 °C
storage temperature min.: -40 °C
transfer quality: Cat6A / Class EA
weight: 36.8 g
width of packaging (single piece): 110 mm
Description

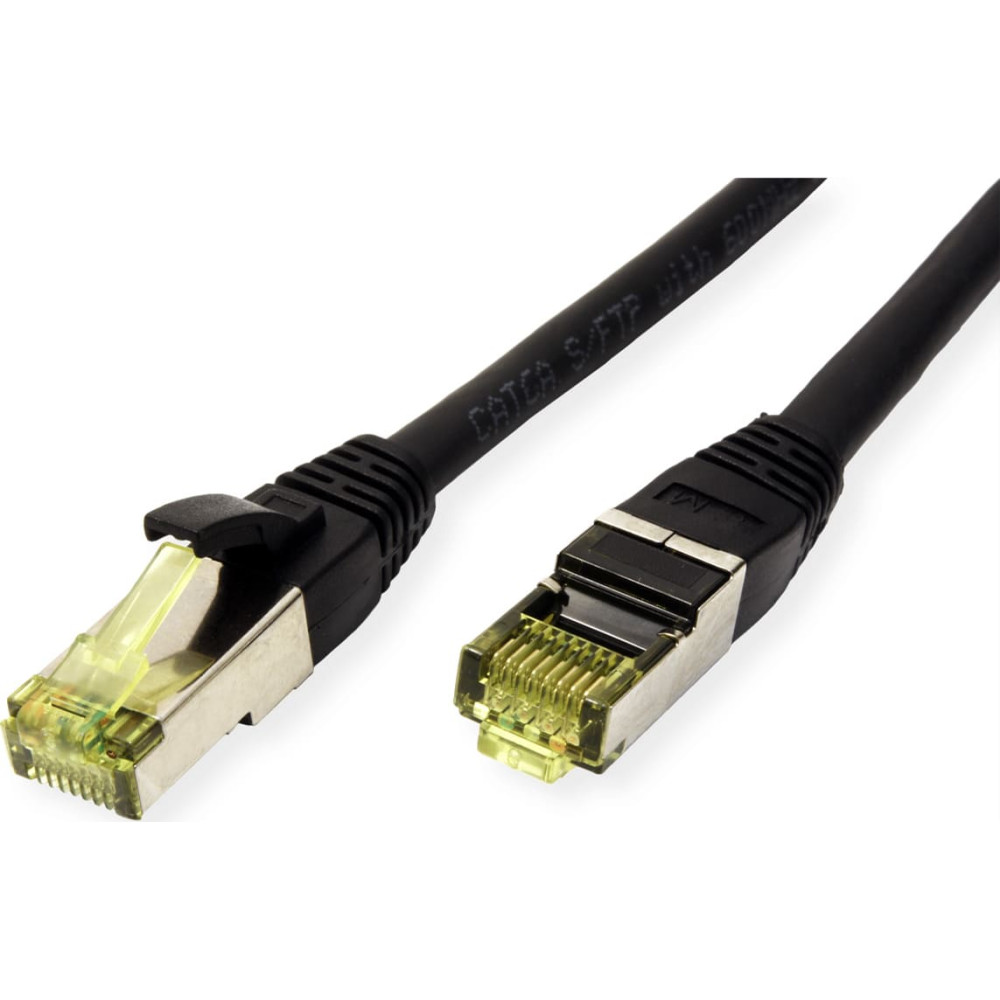

Assembled double shielded (PiMF) twisted pair cable category 6A with shielded RJ-45 connectors on both sides. For outdoor use (cable routing), e.g. for connecting an IP camera.

Patch cord for networking connections between devices in combination with outdoor application (e.g. connection to outdoor surveillance cameras)

  • Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends
  • Durable due to moulded kink protection
  • Suitable for PoE applications and multimedia applications where the extension is working over TP
  • High quality plugs with gold plated contacts
  • UV - resistant (Ultraviolet resistance - ability of the material to withstand the degradation that can be caused by exposure to ultraviolet light)
  • Contact settings 1:1, in accordance with the EIA/TIA 568 standard
  • Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium foil

REMARK: NOT suitable for underground installation / application
