Home Cables Network patch cable RJ45 Network RJ45 (6a cat) Value S/FTP Patch Cord Cat.6A, white, 7.0 m
Value S/FTP Patch Cord Cat.6A, white, 7.0 m

Value

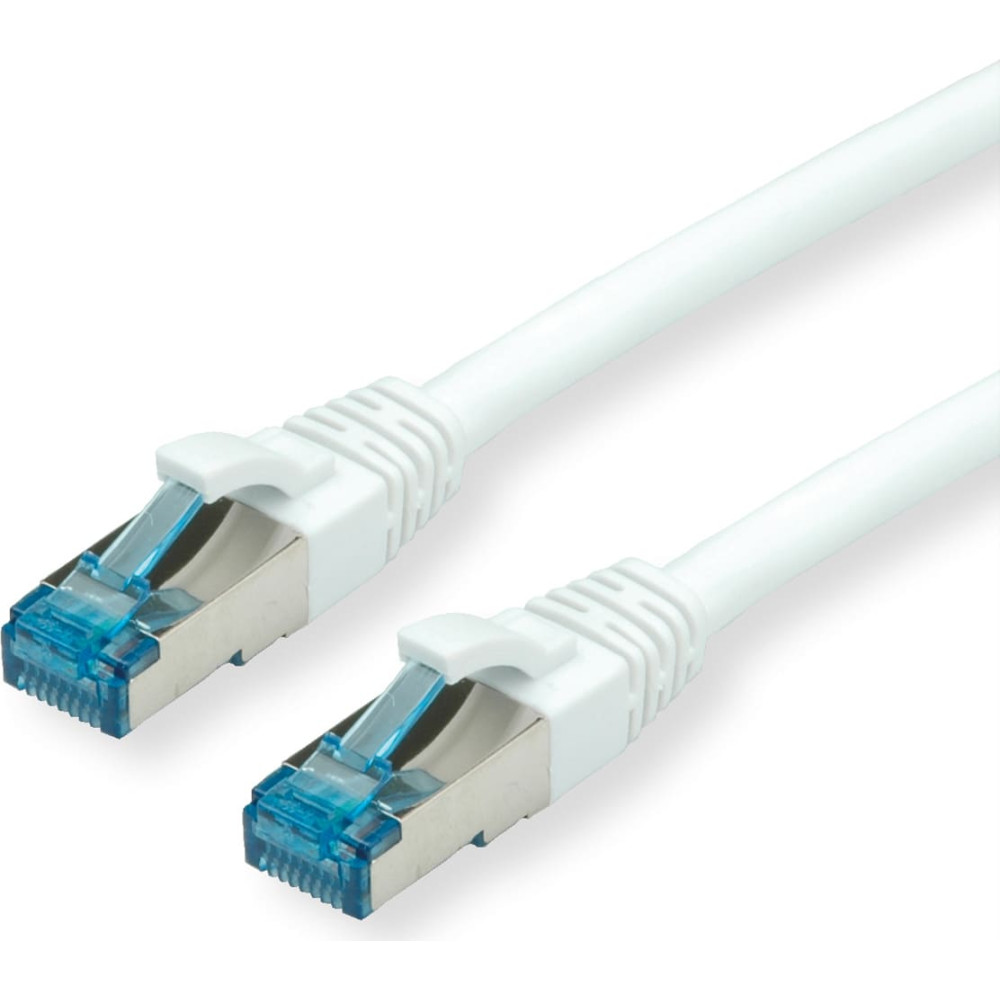

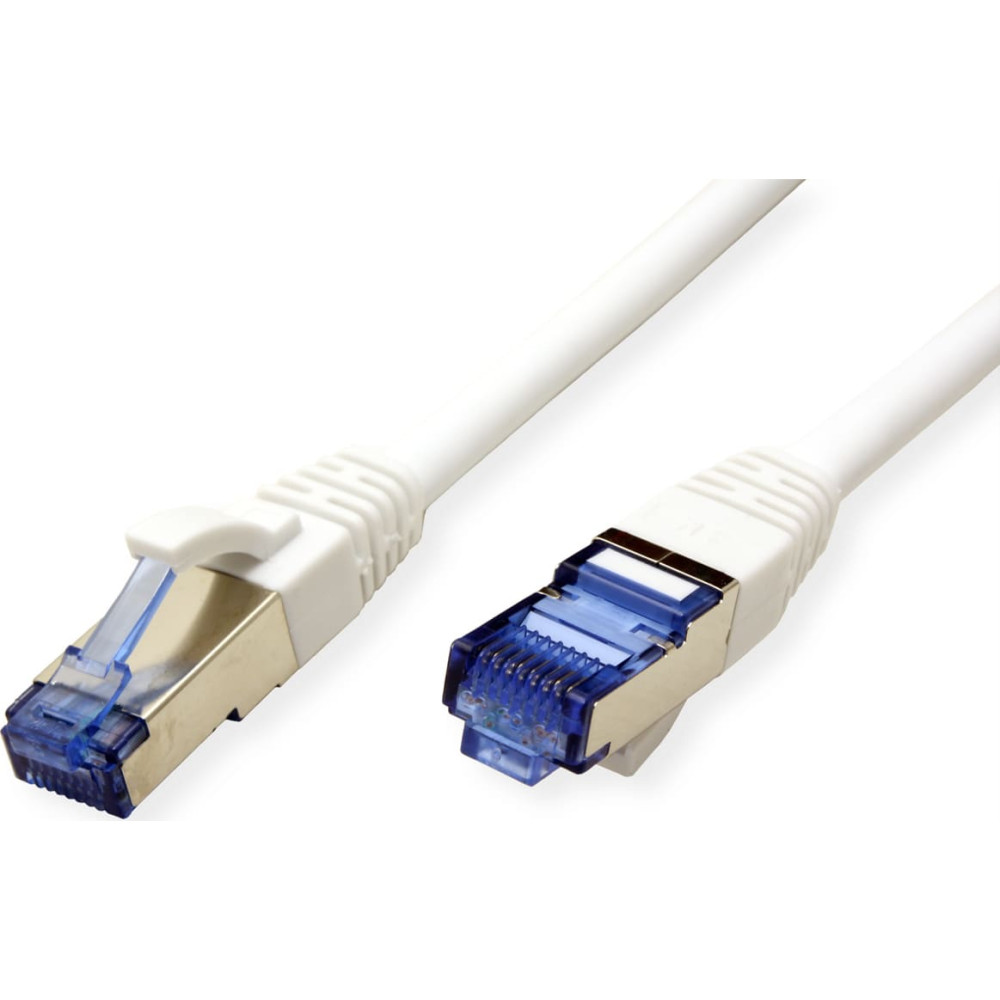

Value S/FTP Patch Cord Cat.6A, white, 7.0 m

Product Code: 21.99.1976
Barcode 7611990924288

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
anti-kink sleeve: Moulded-on
cable lsoh: yes
colour: white
conductor cross section (awg): AWG 27
conductor type: Stranded
connector type rj45: Standard
crossed: no
current catalog edition: C25-01.26
current catalog page: 1.28
depth of packaging (single piece): 180 mm
gross weight: 0.4
height of packaging (single piece): 30 mm
length: 7 m
length: 7 m
locking lever: yes
manufacturer: VALUE
package weight (single piece): 0.4 kg
product group: Twisted Pair Cable
product type: S/FTP Patchcord
quantity of wires: 8
shield type: SFTP
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
transfer quality: Cat6A / Class EA
weight: 208.1 g
width of packaging (single piece): 180 mm
Description

The cheap solution for data transfer rates of up to 10 Gbit/s and a bandwidth of 500 MHz. Patch cable for networking connections between devices. Prepared shielded Twisted Pair cable (PiMF) with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. Impedance: 100 Ohm. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 8 lines, pairs shielded with aluminium foil, complete braided shielding.

For a structured shielded Cat.6a cabling system we recommend to use the following components:

VALUE Cat.6a S/FTP Cable, Solid Wire, 100 m: 21.99.0881.
Flush Mount Wall Jack for Keystones: 25.16.8579.
Surface Wall Mount Frame: 25.16.8484.
VALUE Cat.6a Keystone, RJ-45, shielded: 26.99.0366.
19" Keystone Patch Panel: 26.11.0359.
VALUE Cat.6a S/FTP Patch Cord, 5 m: 21.99.0865.
