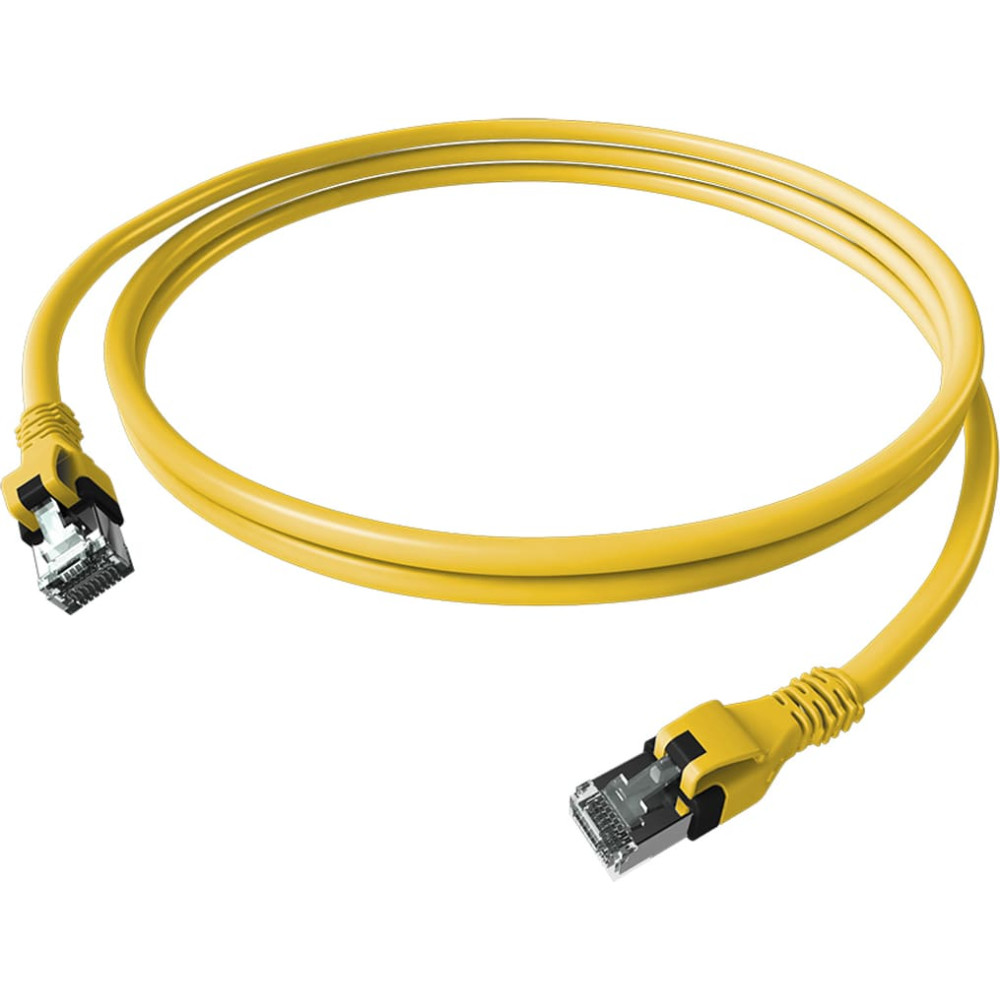

Easylan DualBoot® PushPull Patch Cable Cat.6A (Class EA), S/FTP, RJ45 / RJ45, yellow, 3 m

Easylan DualBoot® PushPull Patch Cable Cat.6A (Class EA), S/FTP, RJ45 / RJ45, yellow, 3 m

Product Code: CPP1OYAYAY0030
Barcode 4055516006639
Brand: EASYLAN

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
anti-kink sleeve: Moulded-on
cable lsoh: yes
colour: yellow
conductor cross section (awg): AWG 26
conductor type: Stranded
connector type rj45: saCon®
crossed: no
depth: 3000 mm
depth of packaging (single piece): 180 mm
gross weight: 0.129
height: 14 mm
height of packaging (single piece): 10 mm
impedance: 100 Ohm
length: 3 m
locking lever: yes
manufacturer: EasyLan
material (external cable mantle): Halogenfreier Compound
operating temperature max.: 60 °C
operating temperature min.: -25 °C
package weight (single piece): 0.129 kg
product group: Twisted Pair Cable
product type: S / FTP patch cable PiMF
quantity of wires: 8
shield type: PiMF
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
technical particularity: Push-Pull-Technik
transfer quality: Cat6A / Class EA
weight: 142.492 g
width: 13 mm
width of packaging (single piece): 200 mm
Description

PushPull IP20 Patch cable RJ45 DualBoot®, cat. 6A ISO/IEC, shielded

PushPull connection cable RJ45/RJ45, shielded 1:1 pinout and featuring DualBoot® overmoulding incl. PushPull unlock protection. In this RJ45 plug variant, the small RJ45 tab is not pressed to release, instead all you have to do is pull on the boot. PushPull locking works with any standard RJ45 socket and jack. The PushPull patch cable facilitates e.g. patching in densely packed data center patch panels, in difficult-to-access consolidation points or for subscriber ports in floor boxes. The plugs are optimized for applications in high density switches. Use of DualBoot® overmoulding ensures optimal strain relief and eliminates catching of locking levers. The patch cable provides maximum data reliability via its foil shield and 360° shielded RJ45 plugs.
