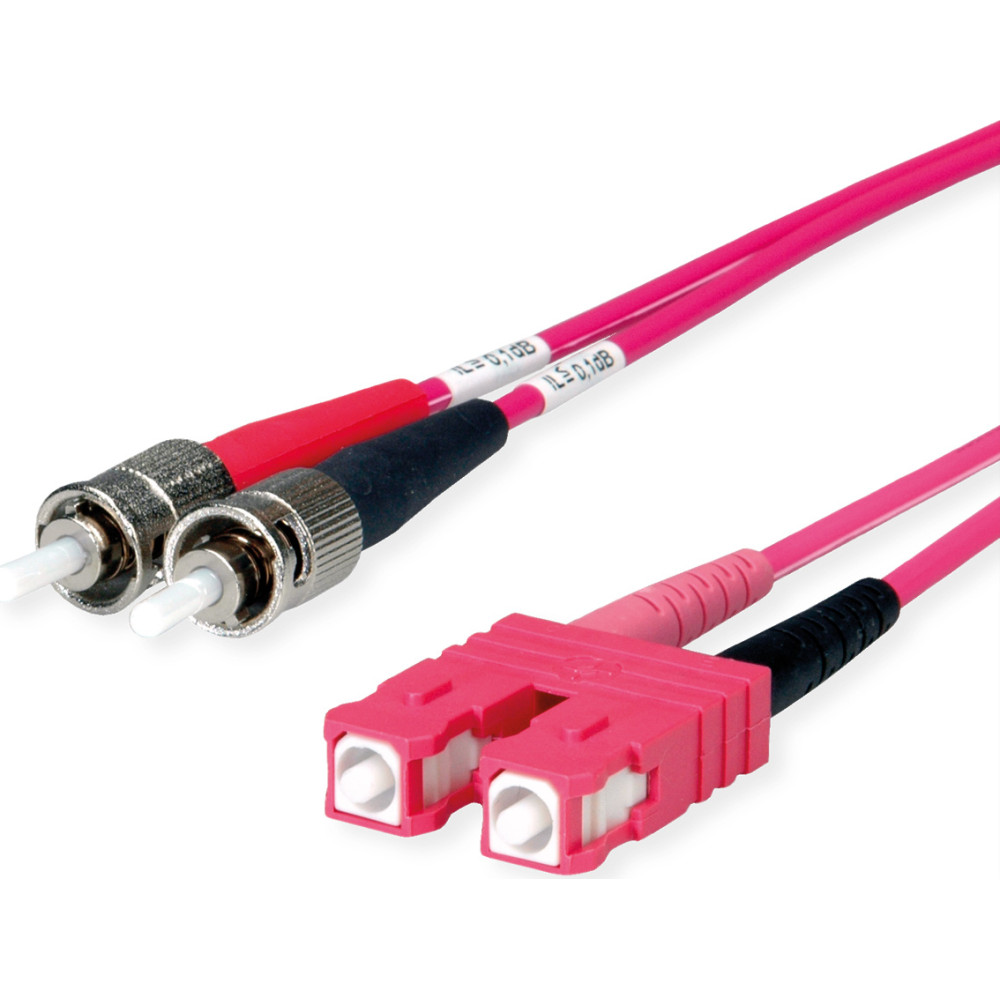

Telegärtner TELEGÄRTNER FO duplex adaptor cord, 2x ST, SC Duplex G50/125 OM4, violet, 1 m

Product Code: 100012101
Barcode 4018359411589

To purchase this product you must be registered in our system.



Specification
bend radius: 25 mm
cable lsoh: yes
cable type: Duplex Cable
colour: violet
connection ports: ST / SC
depth of packaging (single piece): 170 mm
fibre section: Multi mode 50/125µm OM4
flame retardant according to iec 60332-1-2: yes
gross weight: 0.034
halogen free according to iec 60754-2: yes
height of packaging (single piece): 10 mm
length: 1 m
manufacturer: TELEGÄRTNER
operating temperature max.: 55 °C
operating temperature min.: -5 °C
package weight (single piece): 0.034 kg
product group: Network Passive Components
product type: Fibre Optic Jumper Cables OM4
side 1 connector type: ST
side 2 connector type: SC
weight: 30 g
width of packaging (single piece): 140 mm

Description

FO duplex adaptor cord 1st end 2xST, 2nd end SC Duplex G50/125 OM4 1,0 m

The LC duplex fibre optic patch cables from Telegärtner can be used within structural cabling (ISO/IEC 11801) in data centres, office buildings, telecommunications rooms and in all other places where fibre optic patch cables are required. Of all the components in a transmission path, patch cables are subjected to the highest stresses and the greatest wear. That’s why many users rely on patch cables from Telegärtner: perfectly matched components, the highest quality standards, a thoroughly controlled manufacturing process, and 100% attenuation testing ensure secure and reliable network operation. The patch cables in the OM3-OM5 (IEC 60793-2-10 type A1a.2-4, ITU G.651.1) and OS2 (IEC 60793-2-50 type B1.3, ITU G.657.A1) categories also feature bend-optimised fibres to enable optimum transmission even in confined spaces.
