Easylan FO Splice Housing, Grade C 19" 1U, 12 Ports, 12x LC-Duplex, OM4

Easylan FO Splice Housing, Grade C 19" 1U, 12 Ports, 12x LC-Duplex, OM4

Product Code: LSB1B224
Barcode 4055516085269
Brand: EASYLAN

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
colour: grey
depth: 482 mm
depth of packaging (single piece): 260 mm
fibre section: Multi mode 50/125µm OM4
gross weight: 3.058
height: 43.6 mm
height of packaging (single piece): 40 mm
manufacturer: EasyLan
operating temperature max.: 60 °C
operating temperature min.: -25 °C
package weight (single piece): 3.058 kg
product group: Network Passive Components
product type: Patch Panel FO
ral colour: RAL 7035 Light grey
weight: 4573.89 g
width: 211.5 mm
width of packaging (single piece): 590 mm
Description

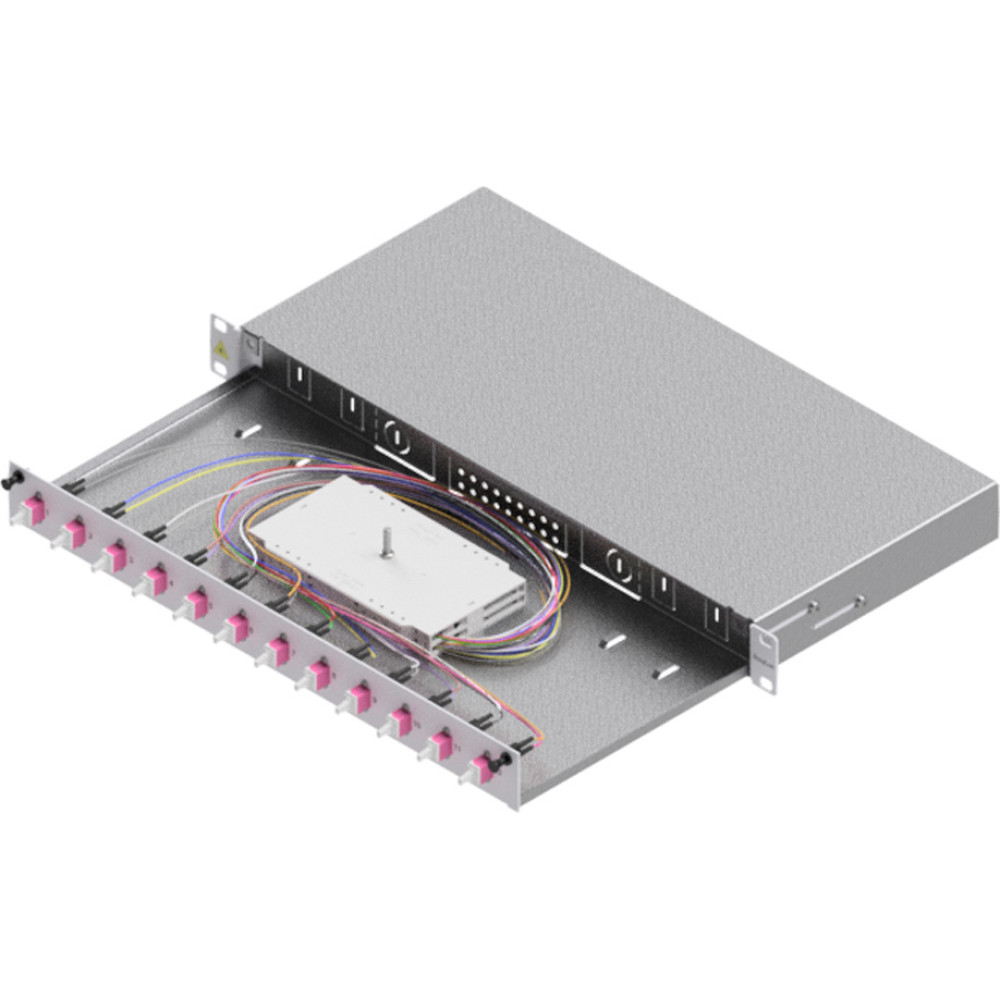

EasyLan® FO Splice Housing, Grade C, 1U, 12 Ports, equipped with 12x LC-Duplex, type of fibers: OM4, RAL7035

FO Splice Housing, Grade C 19" 1U:
FO splice housing exentable with quick lock and exchangeable front panel for up to 48 fibers. For SC and LC couplings the front panel is also supplied with screw holes in order to affix couplings. The extensible depth of 200mm ensures comfortable access to the couplings. The box can also be offset by 40mm towards the rear. A breakout point is already integrated. The FO splice box extendable contains couplings grade C. Pigtails are ready for splicing, inserted and loaded.

  • Offsetable towards rear
  • Front panels and side parts powder-coated
  • Color: gray RAL 7035
  • Centered bolt for attaching up top 4 splice cassettes
  • The box can be tilted downward while open
