ROLINE

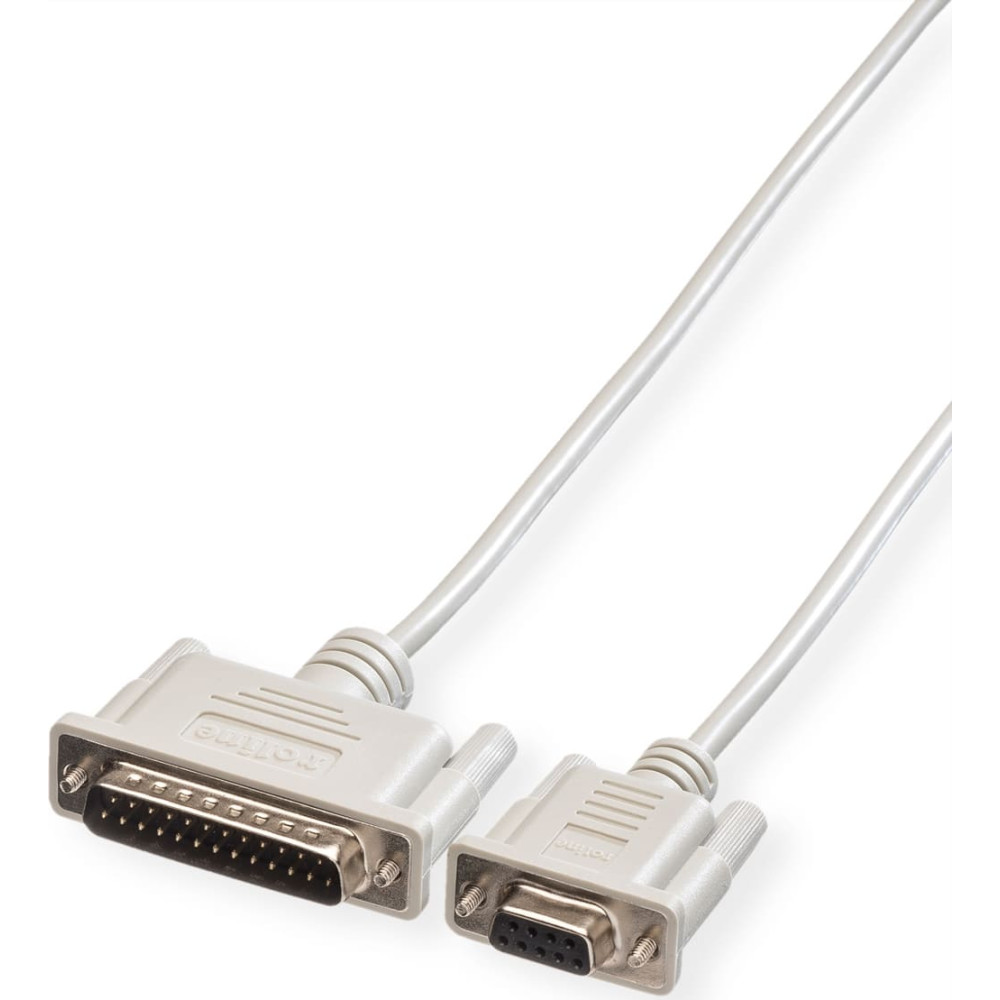

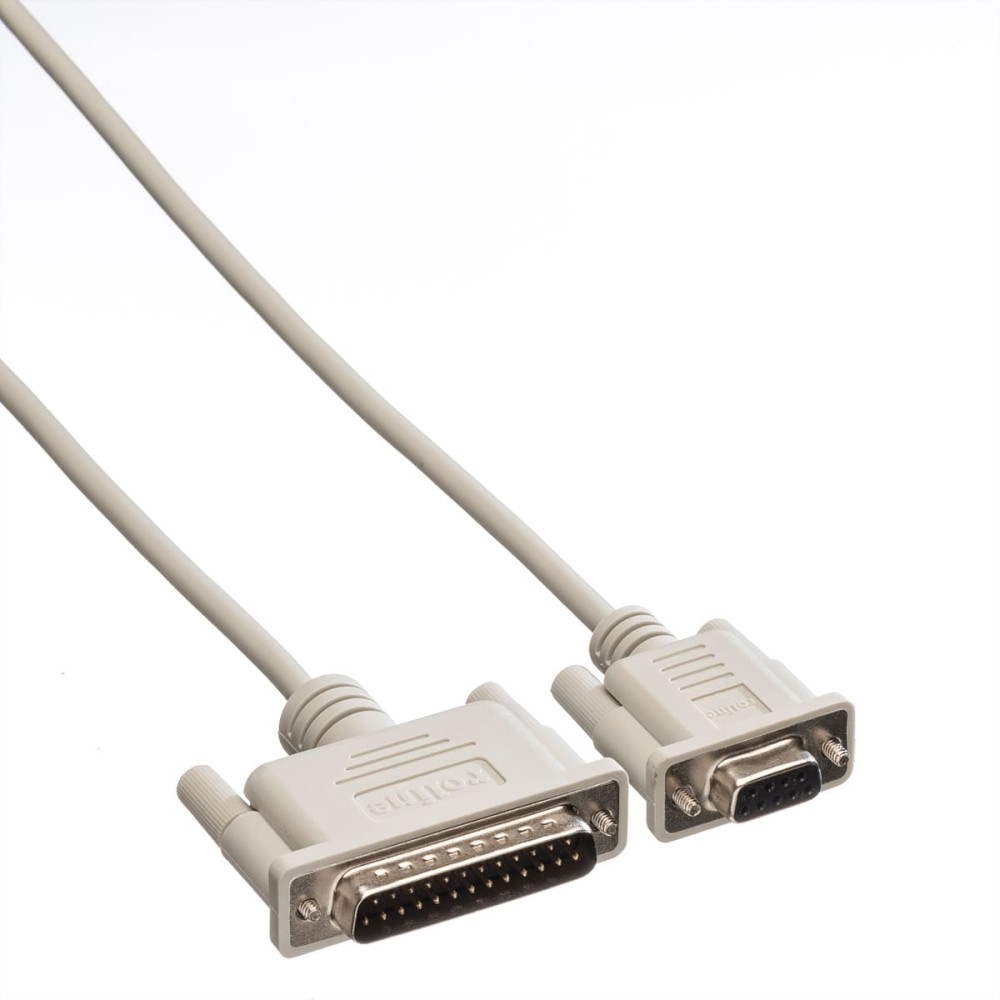

Roline Serial Printer Cable, DB9 F - DB25 M 1.8 m

Product Code: 11.01.4618
Barcode 7611990915316

To purchase this product you must be registered in our system.



Specification
cable shielding: Screened
colour: grey
connection ports: Female / Male
current catalog edition: C25-03.23
current catalog page: 4.14
depth of packaging (single piece): 220 mm
gross weight: 0.1
hand locking screws: yes
height of packaging (single piece): 20 mm
length: 1.8 m
length: 1.8 m
manufacturer: ROLINE
package weight (single piece): 0.1 kg
product group: Cable
product type: Serial Printer Cable 9 - 25P
side 1 connector: 9 pin Female
side 1 connector gender: Female
side 1 connector type: D-Sub 9-pin (DE-9)
side 2 connector: 25 pin Male
side 2 connector gender: Male
side 2 connector type: D-Sub 25-pin (DB-25)
weight: 112 g
width of packaging (single piece): 180 mm

Description

  • Cable with a 9-pole D-Sub socket and a 25-pole D-Sub plug
  • Connects PC and modem
  • Connector casing moulded with special plastic, thus optimal strain reduction, no cable breaks
  • Very good screening prevents data loss and electromagnetic interference
  • Hand locking screws
  • Bronze contacts with gold coating


DB9 Female 1 | 2 | 3 | 4 | 5 | 7 | 6/8
DB25 Male 4 | 2 | 3 | 5/6 | 7 | 8 | 20
