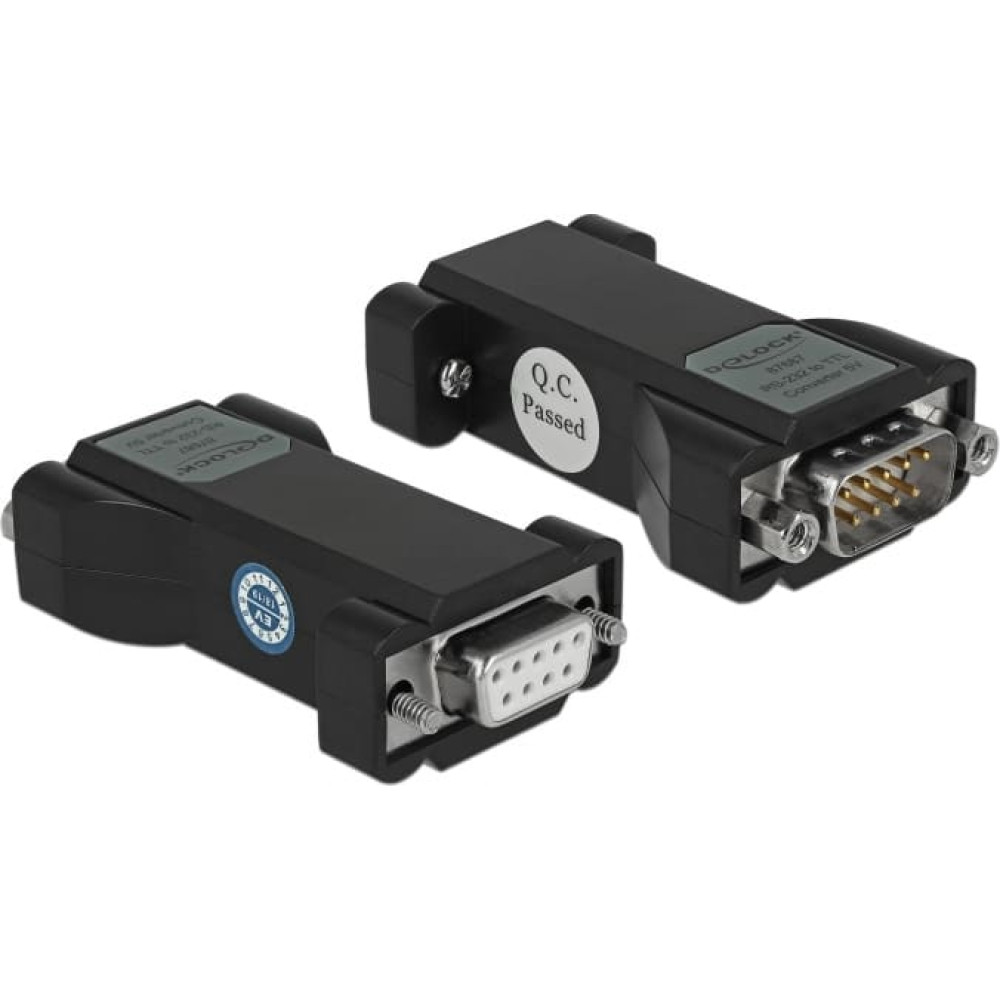

| This RS-232 serial to TTL / CMOS converter by Delock converts RS-232 signals to compatible TTL / CMOS 5 V levels and is suitable for connection to industrial controls, level shifter, microcontrollers etc. The converter can be screwed directly between two DB9 connectors without an additional power supply. System requirements: • Device with a free RS-232 port Specification: • Connectors: 1 x serial RS-232 DB9 female with screws 1 x serial TTL / CMOS DB9 male with nuts • Auto data flow control • Plug & Play • Data transfer: asynchronous, full duplex • Data transfer rate: 300 bps - 115.2 Kbps • ±3 kV ESD protection for all serial signals • Housing material: plastic • Colour: black • Operating temperature: -40 °C ~ 85 °C • Relative humidity: 5 - 95 % (non condensing) • Dimensions (LxWxH): ca. 63 x 34 x 18 mm • Bus Power from RS-232: TXD, RTS or DTR • No external power supply needed Package content: • Converter RS-232 to TTL / CMOS Data sheet: http://www.delock.de/produkt/87687/pdf.html?sprache=en |
