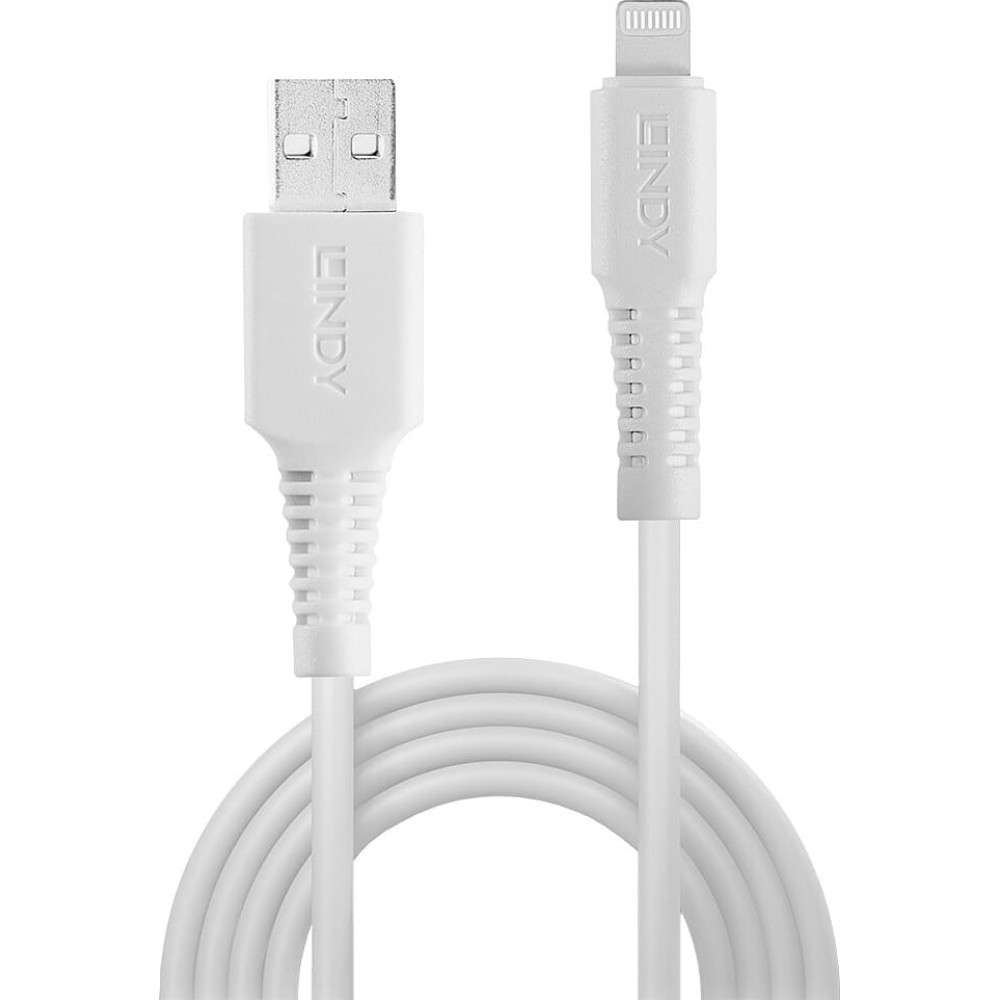

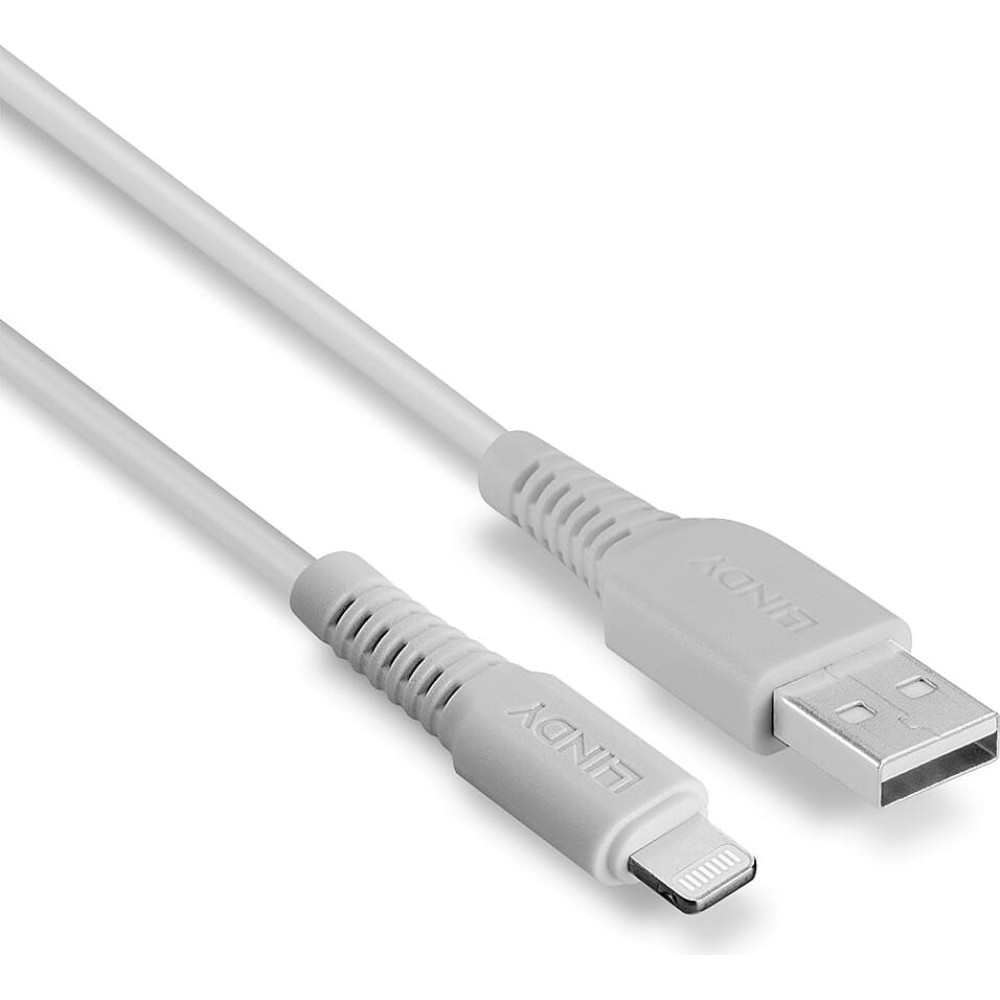

Lindy USB an Lightning Kabel weiß 0.5m

LINDY

Lindy USB an Lightning Kabel weiß 0.5m

Product Code: 31325
Barcode 4002888313254

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
cable jacket material: Polyvinyl chloride (PVC)
cable length: 0.5 m
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2 form factor: Straight
connector 2 gender: Male
harmonized system (hs) code: 84733080
product colour: White
usb version: USB 2.0
Description

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: Lightning C89 Male
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:

A: 40x15.6x7.8mm (1.57x0.61x0.31in)

Lightning: 37.5x10.6x6mm (1.48x0.42x0.24in)



Cable Construction

  • Length: 0.5m (1.64ft)
  • Standard: USB 2.0
  • Colour: White
  • Type: Round
  • Jacket Diameter: 3.2mm (0.13in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge Power: 22AWG
  • Conductor Gauge Data: 28AWG
  • Shielding: Tinned Copper Braid



Specifications

  • Supported Bandwidth: 480Mbps
  • Minimum Bend Radius: 35mm (1.38in)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)



Miscellaneous

  • Packaging Type: Carton Box
  • Warranty (Years): 2
  • Certificated: CE, UKCA, RoHS, REACH, California Proposition 65, MFi



Purchasing Information

  • No. 31325
  • EAN: 4002888313254



This product is also available in other lengths

  • 31325- 0.5m (1.64ft)
  • 31326 - 1m (3.28ft)
  • 31327 - 2m (6.56ft)
  • 31328 - 3m (9.84ft)
