Home Cables USB USB 2.0 Lindy USB 2.0 Kabel Typ A/Micro-B Anthra Line M/M 1m

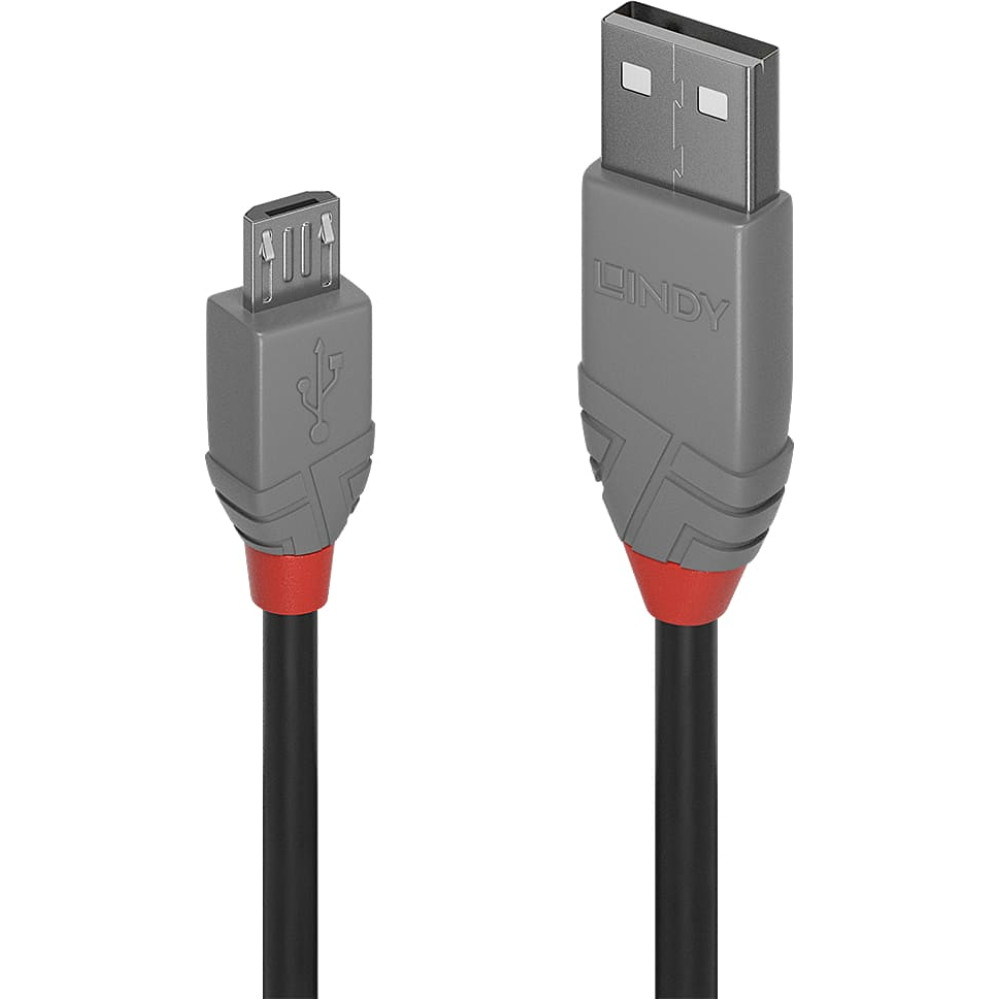

Lindy USB 2.0 Kabel Typ A/Micro-B Anthra Line M/M 1m

LINDY

Lindy USB 2.0 Kabel Typ A/Micro-B Anthra Line M/M 1m

Product Code: 36732
Barcode 4002888367325

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 28
bend radius (min): 1.6 cm
cable diameter: 3.5 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 1 m
cable type: Round cable
certification: RoHS, REACH, UL
conductor material: Tinned copper
connector 1: USB A
connector 1 dimensions (wxdxh): 15.5 x 35 x 7.8 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: Micro-USB B
connector 2 dimensions (wxdxh): 10 x 24 x 7.6 mm
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
connector housing material: Polyvinyl chloride (PVC)
connector material: Nickel
connector shield material: Aluminium
connector shielding: Yes
contact material: Copper
country of origin: CN
harmonized system (hs) code: 84733080
maximum data transfer rate: 0.48 Gbit/s
nominal attenuation: 5.8db/km
operating temperature (t-t): 0 - 60 °C
package type: Polybag
packaging height: 19.4
packaging lenght: 17.4
packaging width: 1.0
product colour: Black, Grey
quantity per pack: 1 pc(s)
storage temperature (t-t): 0 - 60 °C
usb version: USB 2.0
variation of: 36730.0
warranty: 10.0
Description

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type Micro-B Male
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • A: 15.5x35x7.8mm (0.61x1.38x0.31in)
    • Micro-B:10x24x7.6mm (0.29x0.95x0.30in)

    •

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 3.5mm (0.14in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28/28AWG
  • Shielding: Aluminium Magnesium Braid



Specifications

  • Supported Bandwidth: 480Mbps
  • Maximum Resolution: -
  • Nominal Attenuation: 5.8db/km
  • Minumum Band Radius: 16mm (0.63in)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: 0°C - 60°C (32°F - 140°F)
  • ATC Approved: -



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH & UL



Purchasing Information

  • No.: 36732
  • EAN: 4002888367325



This product is also available in other lengths

  • 36730 - 0.2m (0.66ft)
  • 36731  - 0.5m (1.64ft)
  • 36732 - 1m (3.28ft)
  • 36733 - 2m (6.56ft)
  • 36734 - 3m (9.84ft)
  • 36735 - 5m (16.44ft)
