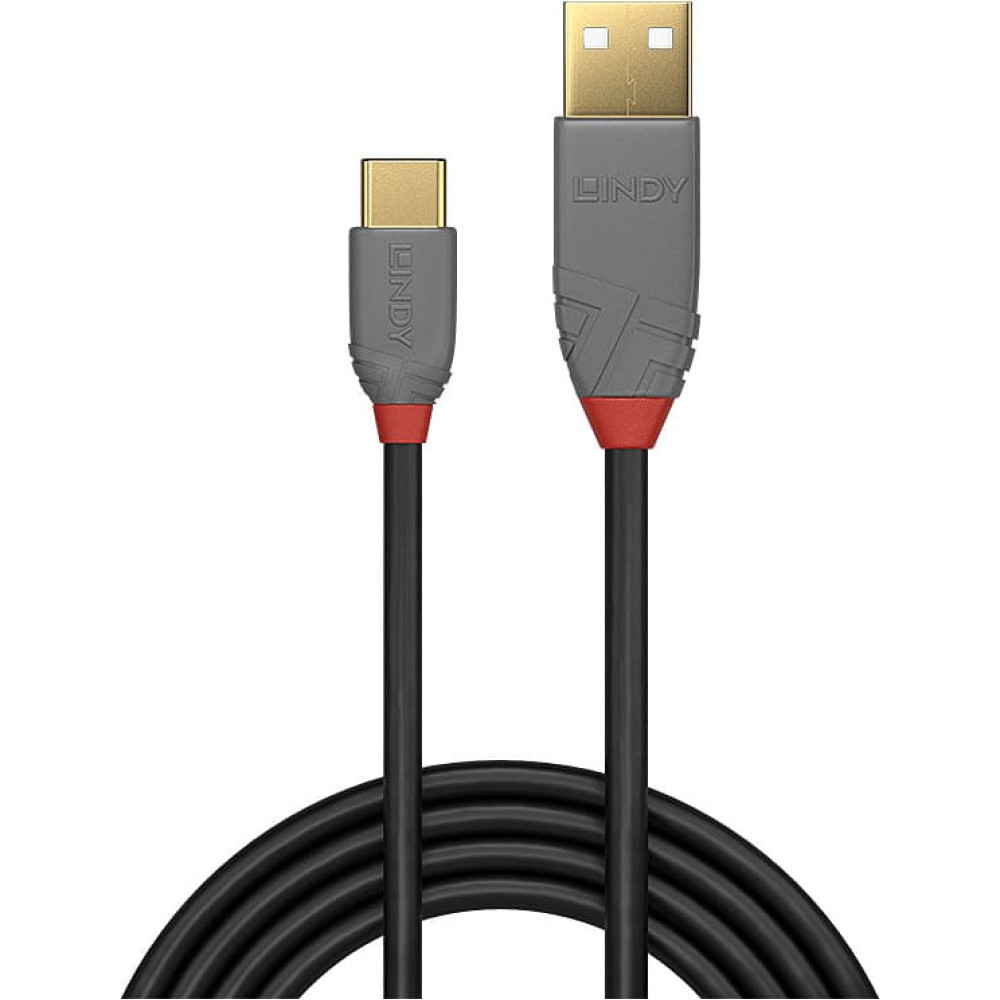

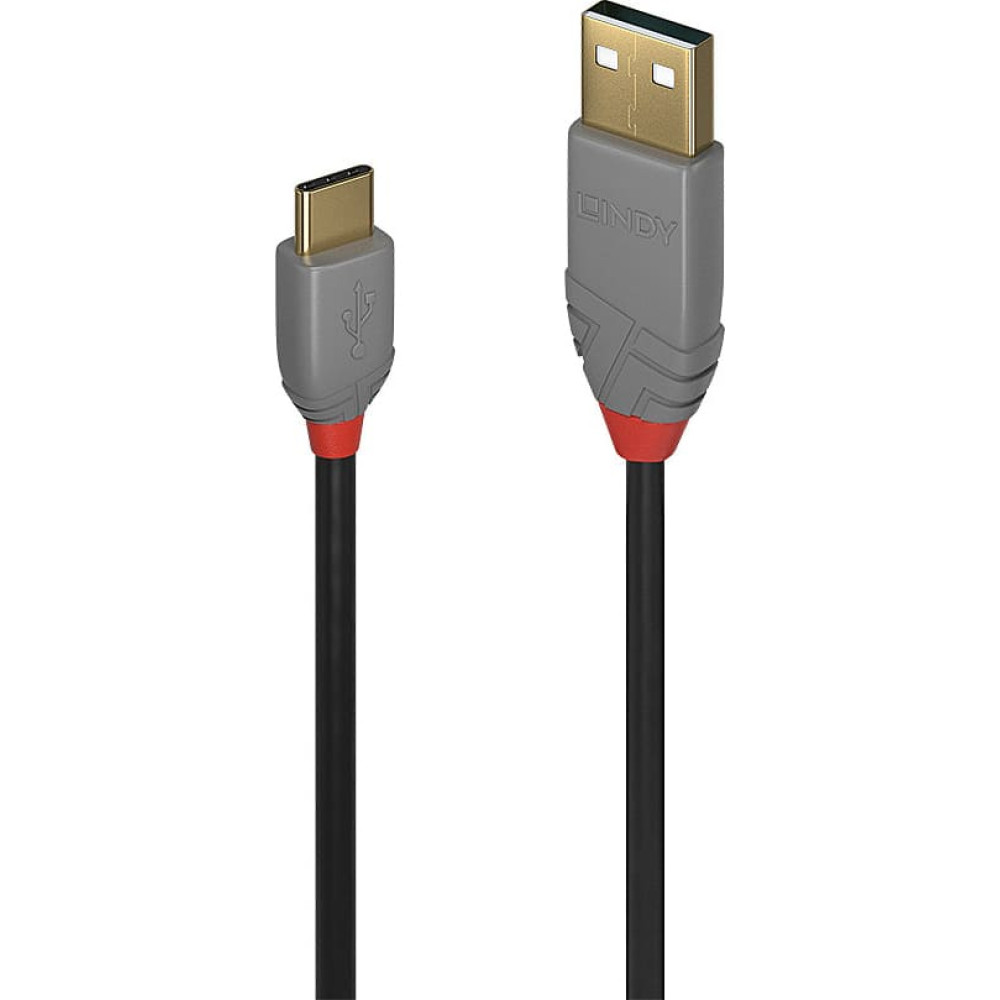

Home Cables USB USB 2.0 Lindy USB 2.0 Kabel Typ A/C Anthra Line M/M 2m

Lindy USB 2.0 Kabel Typ A/C Anthra Line M/M 2m

Product Code: 36887

Barcode 4002888368872

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

awg wire size: 28

bend radius (min): 3.5 cm

cable diameter: 3.5 mm

cable jacket material: Polyvinyl chloride (PVC)

cable length: 2 m

cable type: Round cable

certification: RoHS, REACH, UL

conductor material: Tinned copper

connector 1: USB A

connector 1 dimensions (wxdxh): 11 x 25.5 x 7.3 mm

connector 1 form factor: Straight

connector 1 gender: Male

connector 2: USB C

connector 2 dimensions (wxdxh): 15.5 x 35.1 x 7.8 mm

connector 2 form factor: Straight

connector 2 gender: Male

connector contacts plating: Gold

connector housing material: Polyvinyl chloride (PVC)

connector material: Gold

connector shield material: Copper

connector shielding: Yes

contact material: Phosphor bronze

harmonized system (hs) code: 84733080

maximum data transfer rate: 0.48 Gbit/s

nominal attenuation: 0.5-3m: 0.5Mhz €“ 400Mhz 5.8db

operating temperature (t-t): -20 - 80 °C

package type: Polybag

plug and play: Yes

product colour: Black, Grey

quantity per pack: 1 pc(s)

storage temperature (t-t): -25 - 85 °C

usb version: USB 2.0

Description

Connectors

Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type C Male
Housing Material: PVC
Connector Plating: 24K Gold Plated
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold Plated
Dimensions, USB Type A (approx.) WxDxH: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction

Length: 2m (6.56ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 3.5mm (0.14in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG
Shielding: Copper Braid 60%

Specifications

Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
Minimum Bend Radius: 35mm (1.38in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Purchasing Information

No. 36887
EAN: 4002888368872

This product is also available in other lengths

36885 - 0.5m (1.64ft)
36886 - 1m (3.28ft)
36887 - 2m (6.56ft)
36888 - 3m (9.84ft)
