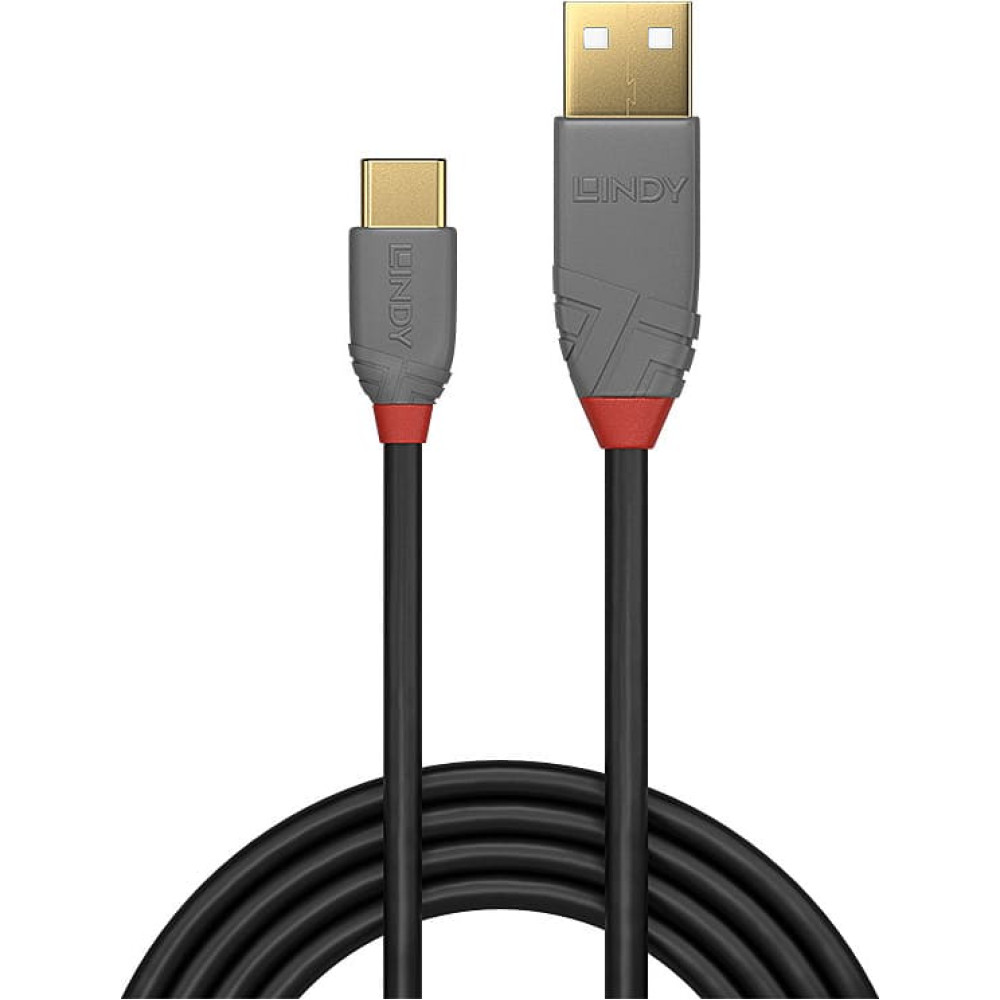

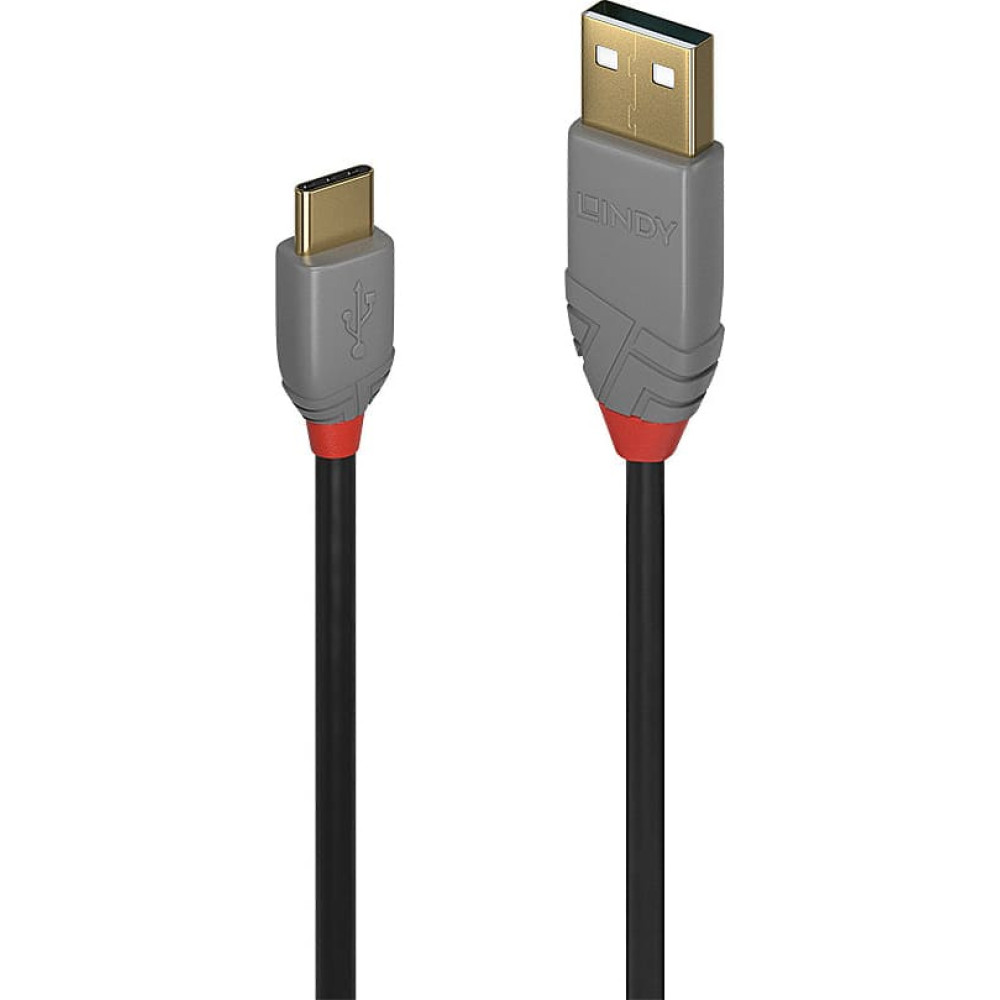

Home Cables USB USB 2.0 Lindy USB 2.0 Kabel Typ A/C Anthra Line M/M 3m
Lindy USB 2.0 Kabel Typ A/C Anthra Line M/M 3m

LINDY

Lindy USB 2.0 Kabel Typ A/C Anthra Line M/M 3m

Product Code: 36888
Barcode 4002888368889

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 28/28
cable colour: Black
cable jacket material: Polyvinyl chloride (PVC)
cable length: 3 m
certification: REACH, UL
compliance certificates: RoHS
conductor material: Copper
connector 1: USB A
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB C
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
harmonized system (hs) code: 84733080
maximum data transfer rate: 0.48 Gbit/s
package type: Polybag
plug and play: Yes
product colour: Black, Grey
quantity per pack: 1 pc(s)
reversible connectors: No
usb version: USB 2.0
Description

Connectors

  • Connector A: USB 2.0 Type A Male
  • Connector B: USB 2.0 Type C Male
  • Housing Material: PVC
  • Connector Plating: 24K Gold Plated
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold Plated
  • Dimensions, USB Type A (approx.) WxDxH: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
  • Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)



Cable Construction

  • Length: 3m (9.84ft)
  • Standard: USB 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 3.5mm (0.14in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Copper Braid 60%



Specifications

  • Supported Bandwidth: 480GMbps
  • Maximum Resolution: -
  • Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
  • Minimum Bend Radius: 35mm (1.38in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL



Purchasing Information

  • No. 36888
  • EAN: 4002888368889



This product is also available in other lengths

  • 36885 - 0.5m (1.64ft)
  • 36886 - 1m (3.28ft)
  • 36887 - 2m (6.56ft)
  • 36888 - 3m (9.84ft)
