Home Cables USB USB 2.0 Lindy 2m USB4 Type C Cable, 40Gbps, 240W PD, Anthra Line

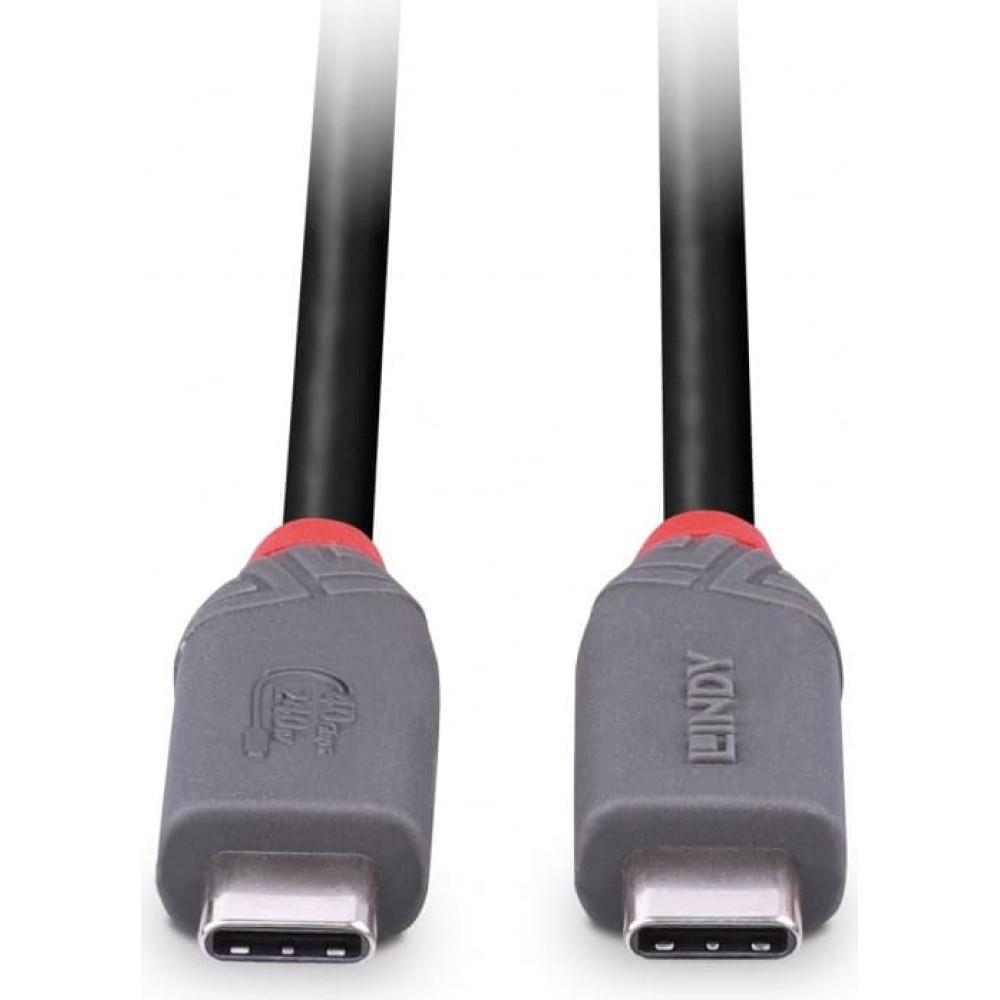

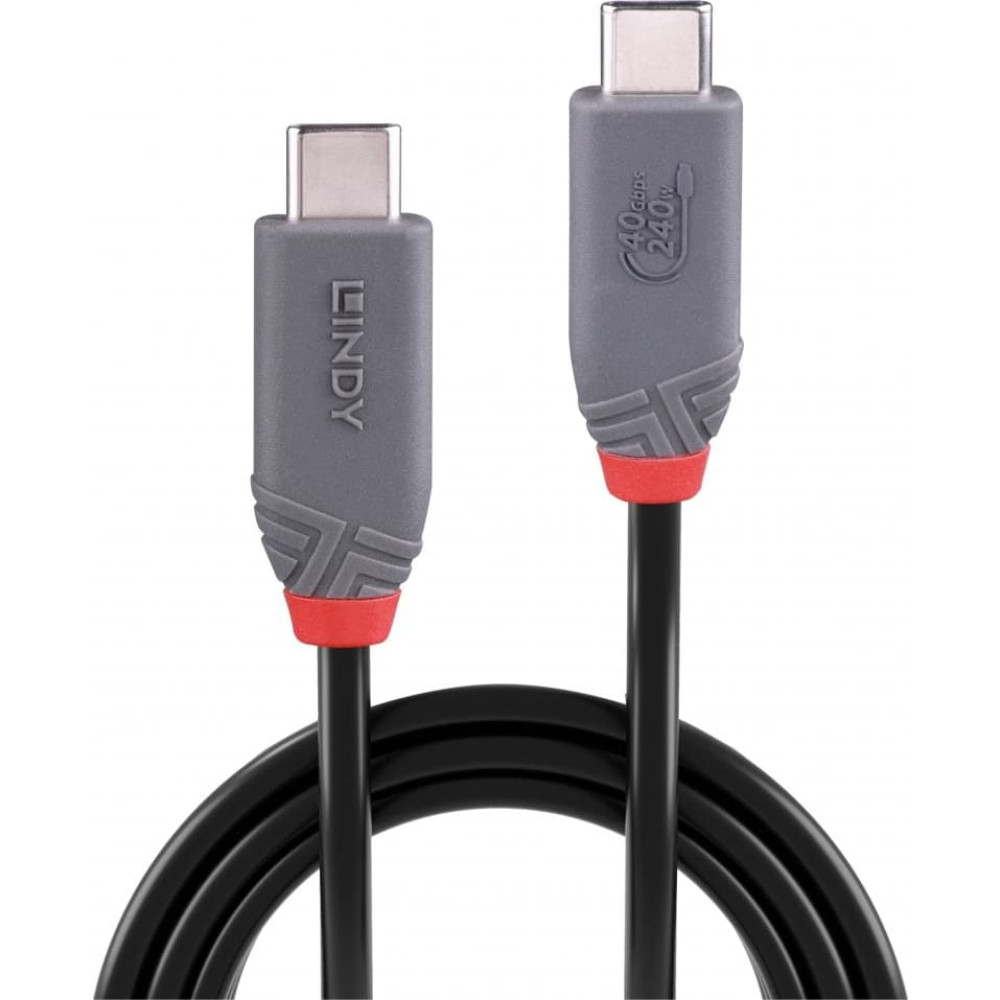

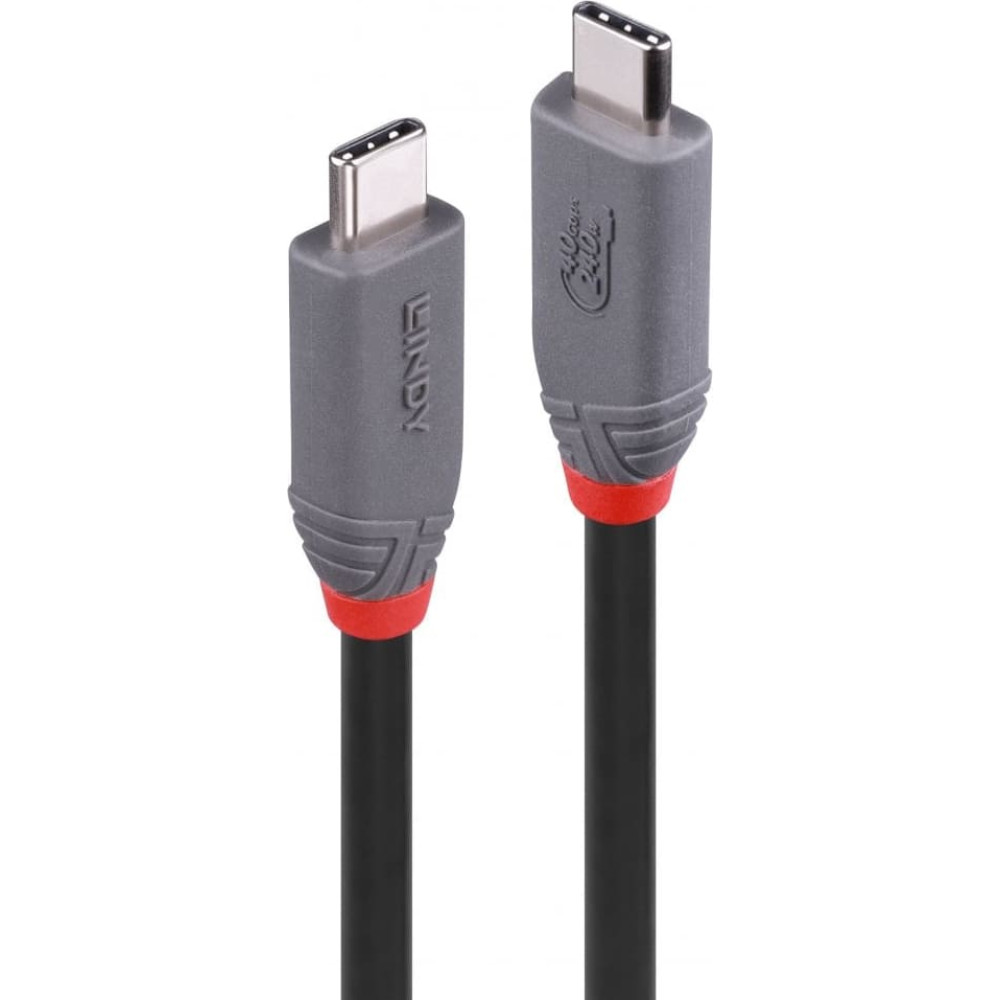

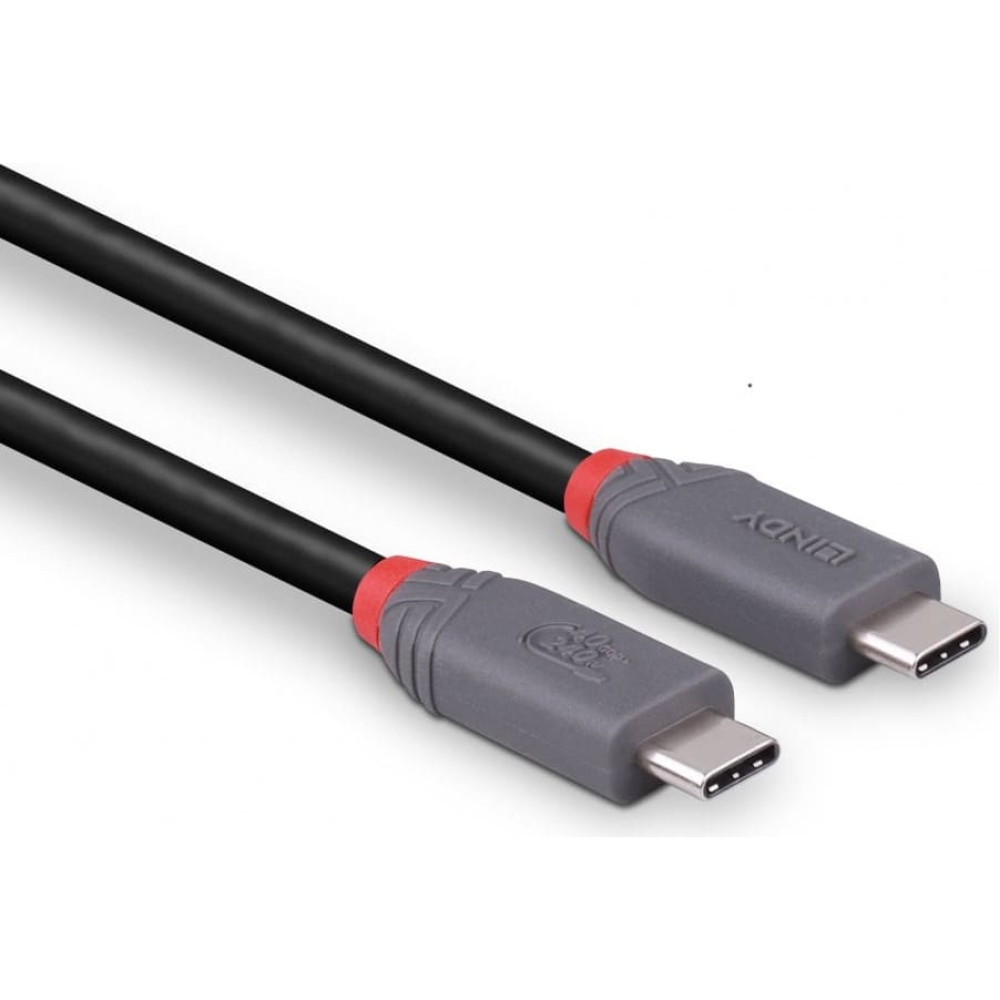

Lindy 2m USB4 Type C Cable, 40Gbps, 240W PD, Anthra Line

LINDY

Lindy 2m USB4 Type C Cable, 40Gbps, 240W PD, Anthra Line

Product Code: 36958
Barcode 4002888369589

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 23/30/34
bend radius (min): 2.88 cm
cable diameter: 4.8 mm
cable jacket material: Thermoplastic elastomer (TPE)
cable length: 2 m
cable type: Round cable
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/e2/3b/c2/69/69c23be2e2ec1cacb5d865f9/CE DoC 36956_36958.pdf
certification: RoHS, REACH, California Proposition 65 & UL
compliance certificates: REACH, RoHS
conductor material: Copper
connector 1: USB C
connector 1 dimensions (wxdxh): 30 x 12.4 x 6.5 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB C
connector 2 dimensions (wxdxh): 30 x 12.4 x 6.5 mm
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
connector material: Nickel
connector shield material: Copper
connector shielding: Yes
country of origin: CN
gross weight: 0.10
maximum data transfer rate: 40 Gbit/s
maximum refresh rate: 60 Hz
maximum resolution: 3840 x 2160 pixels
net weight: 0.10
operating temperature (t-t): -20 - 40 °C
packaging height: 19.40
packaging lenght: 17.40
packaging width: 1.00
plug and play: Yes
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -40 - 80 °C
sustainability certificates: UL ECOLOGO
sustainability compliance: Yes
un number: `
usb power delivery (usb pd): Yes
usb power delivery revision: 3.1
usb power delivery up to: 240 W
usb version: USB4 Gen 3x2
variation of: 36956
warranty: 2
warranty period: 2 year(s)
Description

Connectors

  • Connector A: USB4 Type C Male
  • Connector B: USB4 Type C Male
  • Housing Material: TPE
  • Shielding in head shell: Copper foil
  • Connector Plating: Nickel
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: 34.3x12.7x7.3mm (1.35x0.50x0.29in)

Cable Construction

  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: TPE
  • Conductor Material: Silver plated copper
  • Conductor Gauge Power: 23AWG
  • Conductor Gauge Data: 30AWG/33AWG/34AWG
  • Shielding: Copper Braid 85%

Specifications

  • Length: 2m (6.56ft)
  • Colour: Black
  • Type: Round
  • Standard: USB4 Gen 3x2
  • Supported Bandwidth: 40Gbps
  • Maximum Power: PD 3.1 with ERP up to 240W (48V 5A)
  • E-Mark: Yes
  • Maximum Resolution: 3840x2160@60Hz, 7680x4320@60Hz
  • Supported Protocols: USB4, USB 3.2, USB 2.0, Thunderbolt 3, DisplayPort 2.0
  • Nominal Attenuation: 0.5Mhz-15Ghz-11dB
  • Minimum Bend Radius: 28.8mm (1.13in)
  • Operating Temperature: -20°C - 40°C (-4°F - 104°F)
  • Storage Temperature: -40 °C - 80°C (-40°F - 176°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable)

Purchasing Information

  • No.: 36958
  • EAN: 4002888369589

This product is also available in other lengths

  • 36956 - 0.8m (2.62ft)
  • 36957 - 1.5m (4.92ft)
  • 36958 - 2m (6.56ft)


CE Doc: CE DoC 36956_36958.pdf
