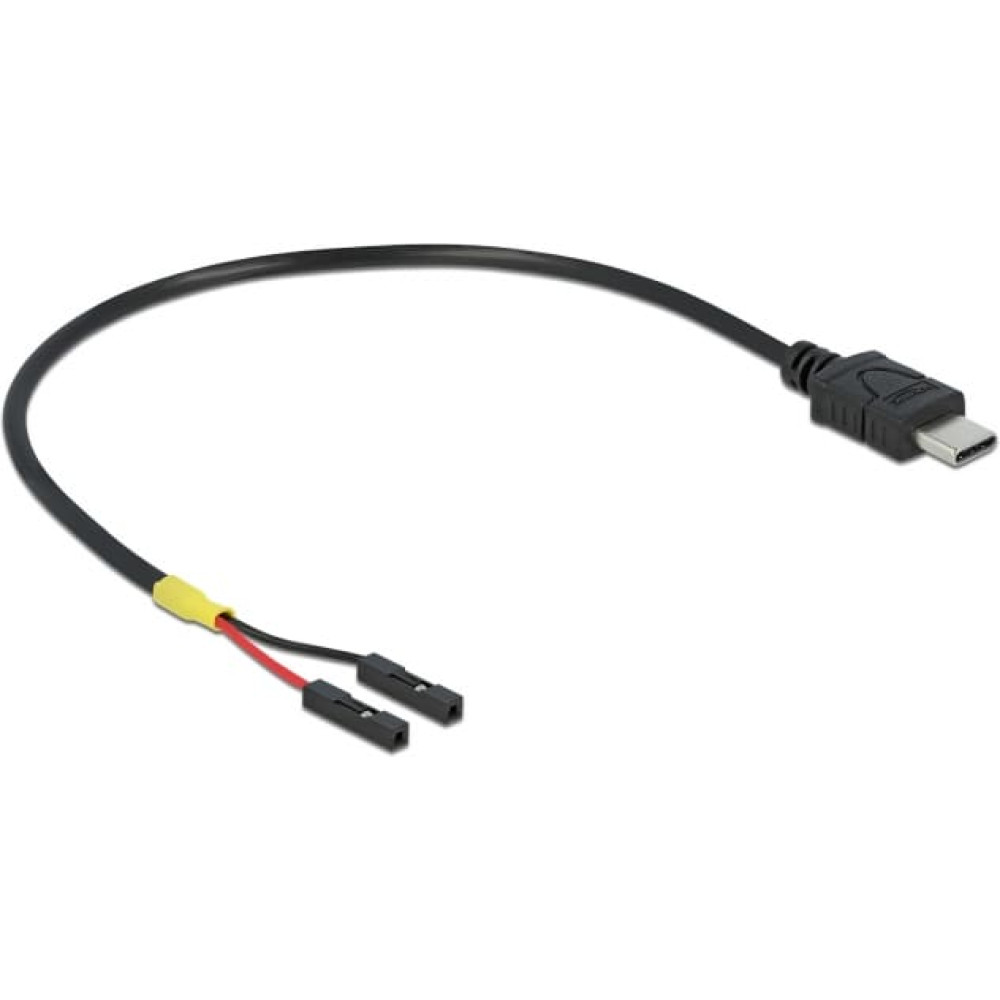

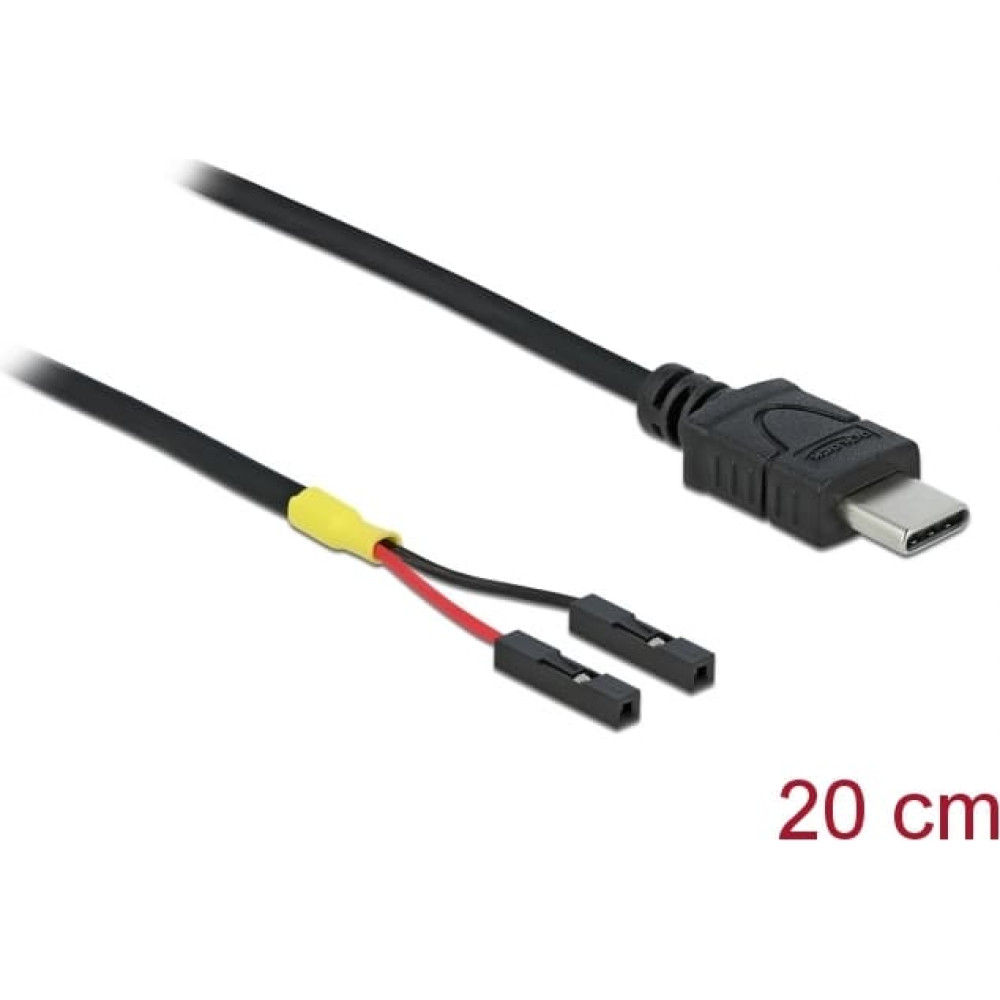

Delock Cable USB Type-C™ male > 2 x pin header female separate power 20 cm

Product Code: 85395

Barcode 4043619853953

To purchase this product you must be registered in our system.

Description

Related products

Description

This USB cable with two separate female pin headers can be used to power modules or devices via an existing USB Type-C™ port. It is particularly suitable for special industrial applications.

Please Note
This cable does not support the USB Power Delivery specification.

System requirements:
• One free USB Type-C™ female port

Specification:
• Connectors:
1 x USB Type-C™ male >
2 x pin header female separate (VCC and GND)
• Red = VCC (5 V); black = GND (ground)
• Cable gauge: 22 AWG
• Cable diameter: ca. 3 mm
• Colour: black
• Length without connectors: ca. 20 cm

Package content:
• USB cable

Data sheet:
http://www.delock.de/produkt/85395/pdf.html?sprache=en
