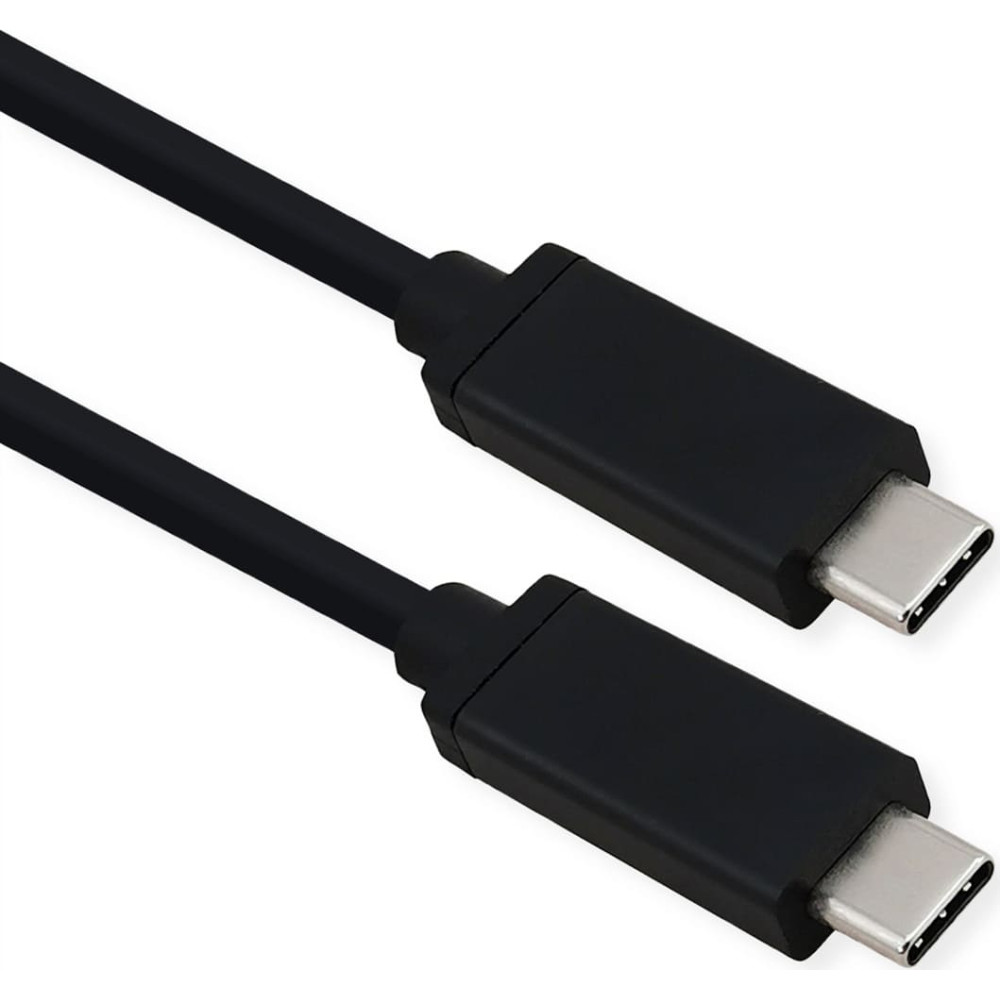

ROLINE USB4 Gen 3 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 40 Gbi

ROLINE

ROLINE USB4 Gen 3 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 40 Gbi

Product Code: 11.02.9080
Barcode 7630049699274

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
area of application: External
cable shielding: Screened
colour: black
connection ports: USB Type C (USB-C) Male / USB Type C (USB-C) Male
current catalog edition: 23.1
current catalog page: 4.14
depth of packaging (single piece): 50 mm
gross weight: 0.02
hand locking screws: no
height of packaging (single piece): 20 mm
length: 0.5 m
manufacturer: ROLINE
maximum data transfer rate: 40 Gbit/s
package weight (single piece): 0.02 kg
power (max.): 100 W
product group: Cable
product type: USB4 Cable
side 1 connector gender: Male
side 1 connector type: USB Type C (USB-C)
side 2 connector gender: Male
side 2 connector type: USB Type C (USB-C)
supported charging technology: USB-PD - USB Power Delivery
transfer quality: USB4 Gen3 40 Gbit/s
weight: 30.3 g
width of packaging (single piece): 50 mm
Description

The major benefits of the USB4 includes faster transfer speeds (up to 40 Gbit/s), a better management of video bandwidth (using a process called "protocol tunneling" that sends DisplayPort, PCIe and USB packets at the same time while allocating bandwidth accordingly) and optional compatibility with Thunderbolt 3 products.

  • High quality USB4 Gen 3 cable with improved shielding
  • With the reversible Type C connectors at both ends
  • Gold-plated contacts for low wear at high plugging cycles
  • Suitable for data transfer rates of up to 40 Gbit/s
  • Supports USB Power Delivery to 20V / 5A



Manufacturer ROLINE
Product group Cable
Product type USB4 Cable
Colour black
Length 0.5 m
Transfer quality USB4 Gen3 40 Gbit/s
Connection ports USB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Male
Area of application External
Cable shielding Screened
Hand locking screws Nē
Current catalog edition 79
