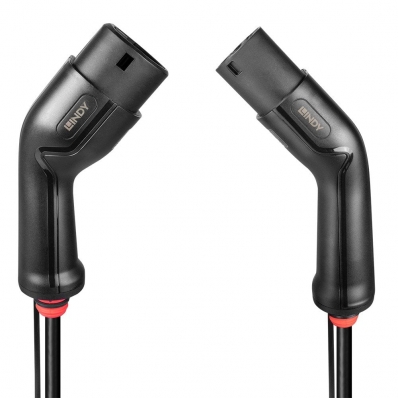

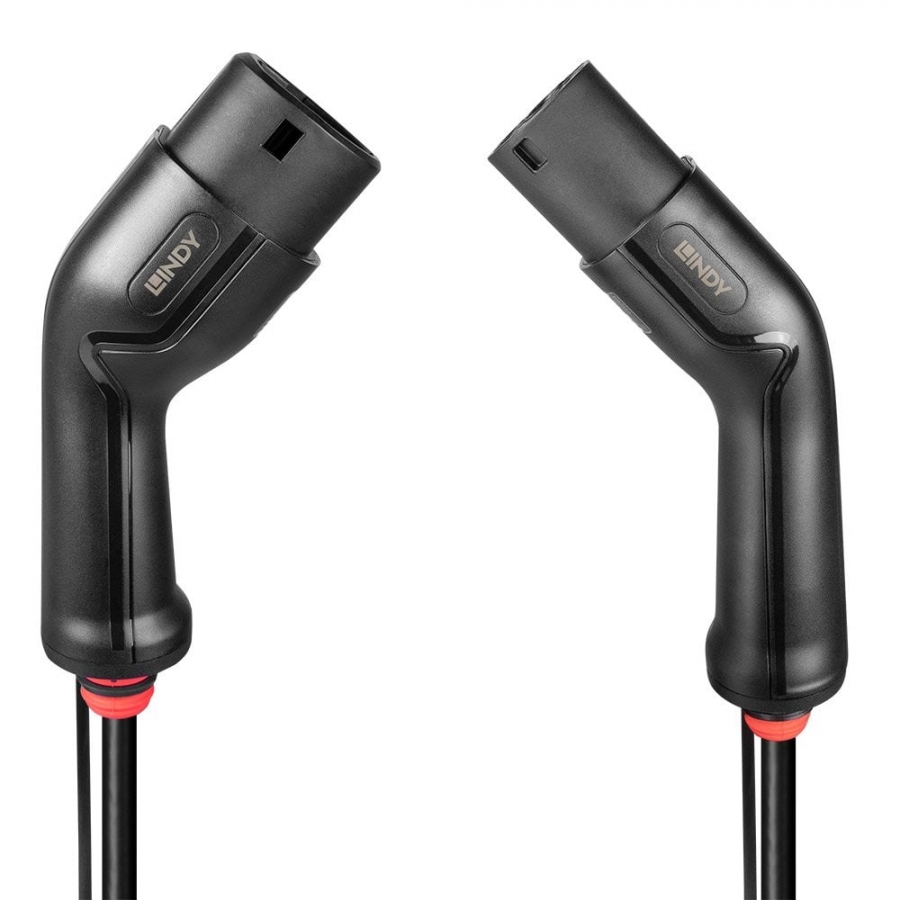

LINDY Autoladekabel Typ 2 an Typ 2 22kW 32A, 5m




Quickly recharge your E-Vehicle or Plug in Hybrid with the Lindy Type 2 cables. With this charging cable you can recharge any vehicle, fitted with a Type 2 port, at a public charging station or wall box. As Type 2 is standard in the EU, you can use this cable at most charging stations in the European area. 3-phase charging with up to 22kW (32A 480VAC) is possible as well as 1-phase charging. The cable is well protected against dust and water (IP55), it is UV-resistant and the connectors are flame retardant (UL 94 V-0). The plugs are designed for more than 10,000 mating cycles, which means a lifespan of more than 10 years with daily use. When not in use the cable can easily be stored in the carrying bag which is supplied with the product. This product has been certified by TÜV Rheinland.

Cable colourBlack
Connector 1Type 2
Connector 2Type 1
Handle colourBlack
Connector 1 form factorAngled
Connector 2 form factorAngled
International Protection (IP) codeIP55, IP65
CertificationUKCA, TÜV
Number of phases3
Maximum operating power (three-phase)22000 kW
Maximum operating current (three-phase)32 A
Operating voltage480 V
Cable length5 m
Cable diameter1.36 cm
Operating temperature (T-T)-30 - 50 °C
Storage temperature (T-T)-30 - 40 °C
Quantity per pack1 pc(s)
Carrying caseY
Sustainability complianceY
Sustainability certificatesCE, REACH, RoHS
