ROLINE

Roline USB 3.2 Gen 2 Type C Docking Station, 1x HDMI 4K60, 2x USB 3.2 Gen 2, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet, 1x SD/microSD Card Reader

Product Code: 12.02.1126
Barcode 7630049675605

To purchase this product you must be registered in our system.



Specification
area of application: External
colour: grey
colour (cable): black
current catalog edition: 25.1
depth: 135 mm
depth of packaging (single piece): 200 mm
dimensions (hxwxd): 15 x 39 x 135 mm
gross weight: 1.1
height: 15 mm
height of packaging (single piece): 10 mm
manufacturer: ROLINE
material: Aluminium Alloy + ABS
max. resolution: 3840 x 2160 @60Hz (4K, UHD-1)
operating temperature max.: 60 °C
operating temperature min.: 0 °C
package weight (single piece): 1.1 kg
product group: Adapters, Terminators, Converters
product type: Docking Station
scope of delivery: Docking Station, User Manual
side 1 connection (pc): USB Type C
side 1 connector gender: Male
side 1 connector type: USB Type C (USB-C)
side 2 connection (peripherals): 1x HDMI 4K60, 2x USB 3.2 Gen 2 Type A, 1x USB Type C PD (...
side 2 connector gender: Female
side 2 connector type: HDMI Type A
technical particularity: With blue illuminated On/Off switch for the HDMI port
transfer quality: HDMI Ultra High Speed (HDMI 2.0)
weight: 78 g
width: 39 mm
width of packaging (single piece): 170 mm

Description

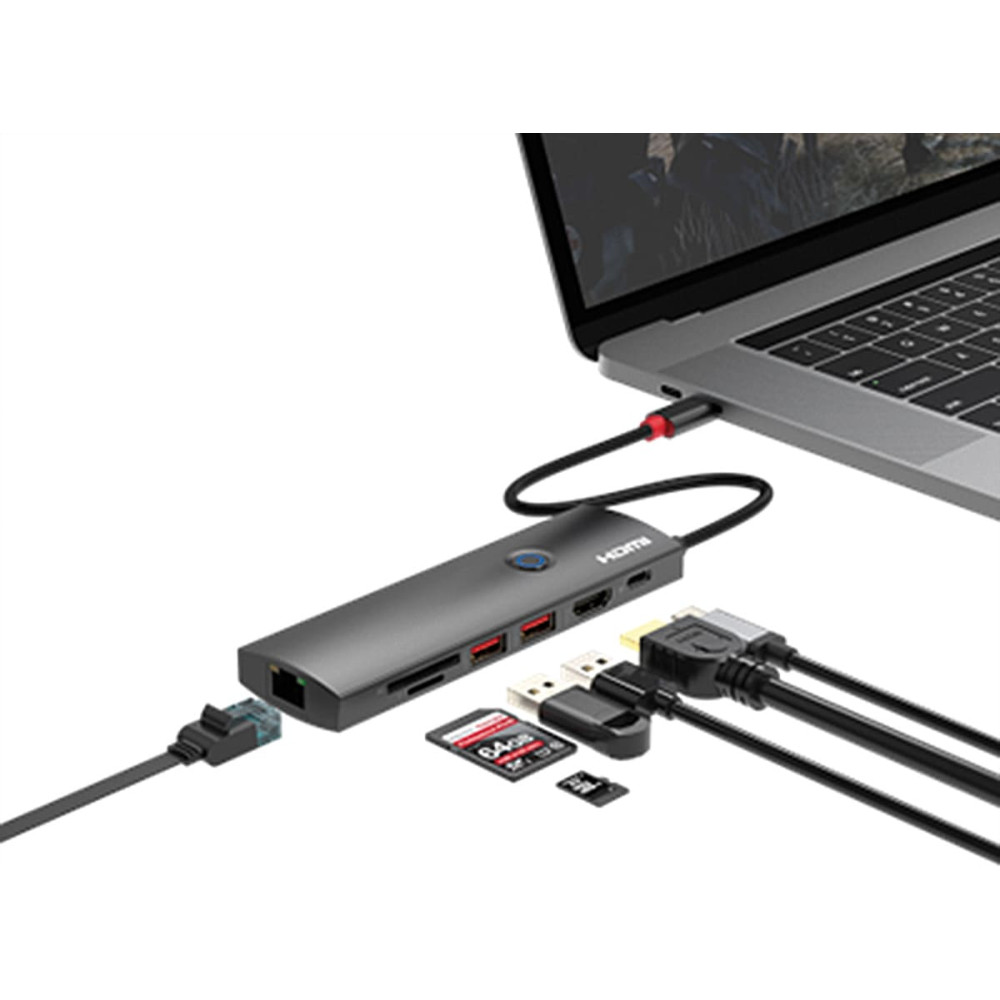

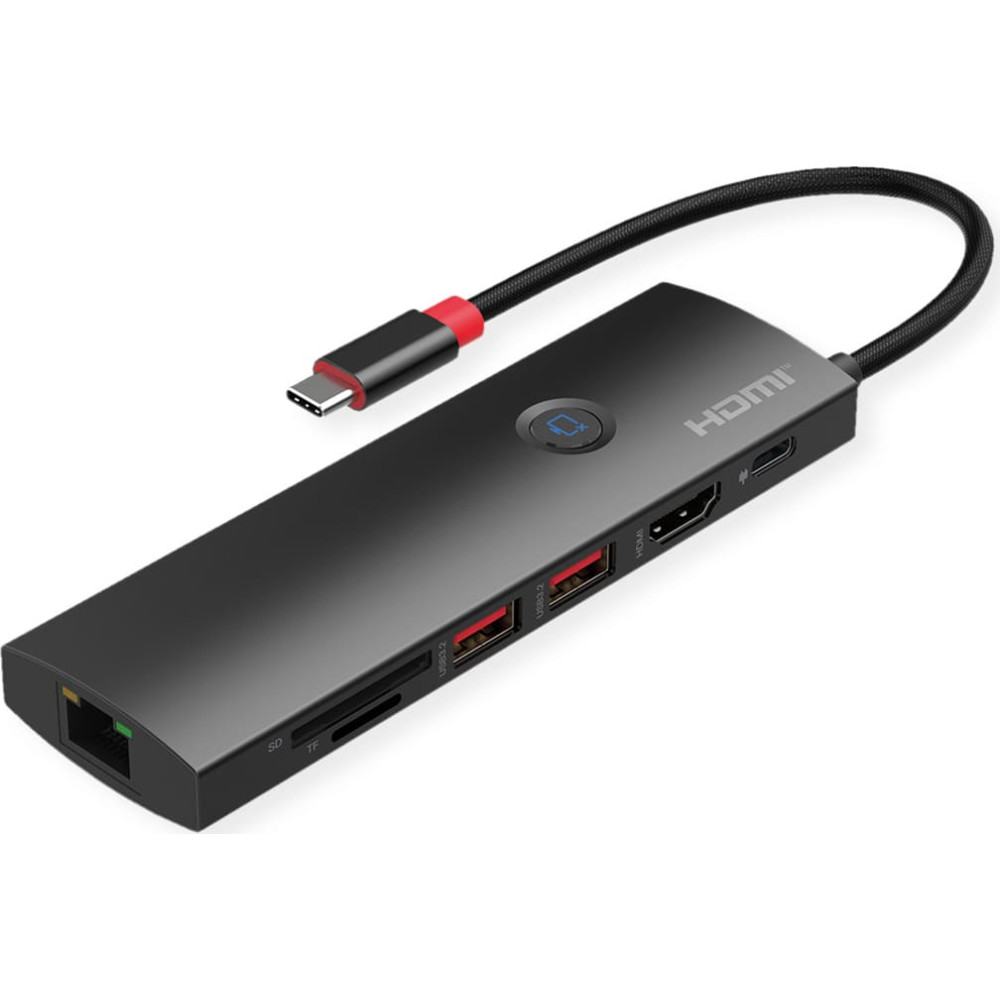

This ROLINE USB 3.2 Gen 2 Type C Docking Station provides your Notebook, Laptop, Macbook, or Ultrabook with 1x HDMI 4K@60Hz, 2x USB 3.1 / USB 3.2 Gen 2 Type A, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet and 1x SD/Micro SD Card Reader!

  • With blue illuminated On/Off switch for the HDMI port
  • Plug & Play
  • Aluminium housing in dark grey

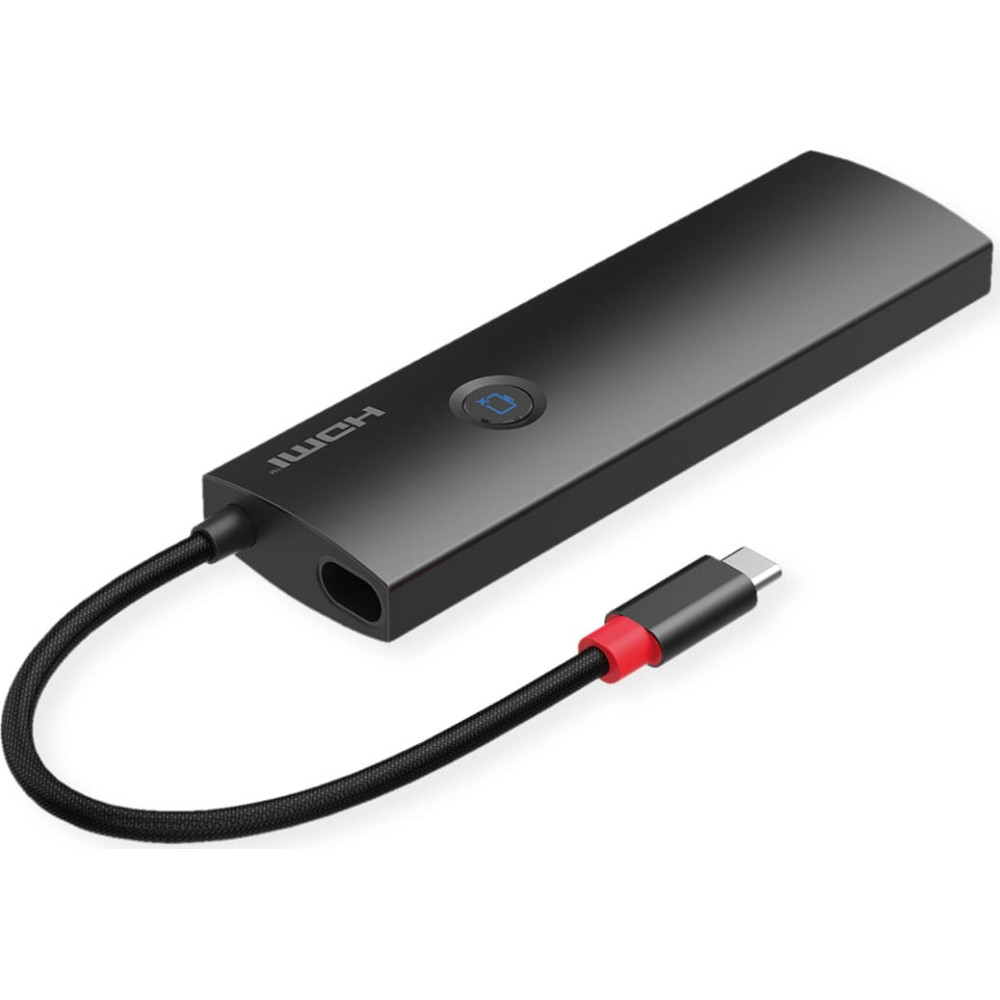

  • Fixed fabric-covered Type C connection cable (length about 21 cm)

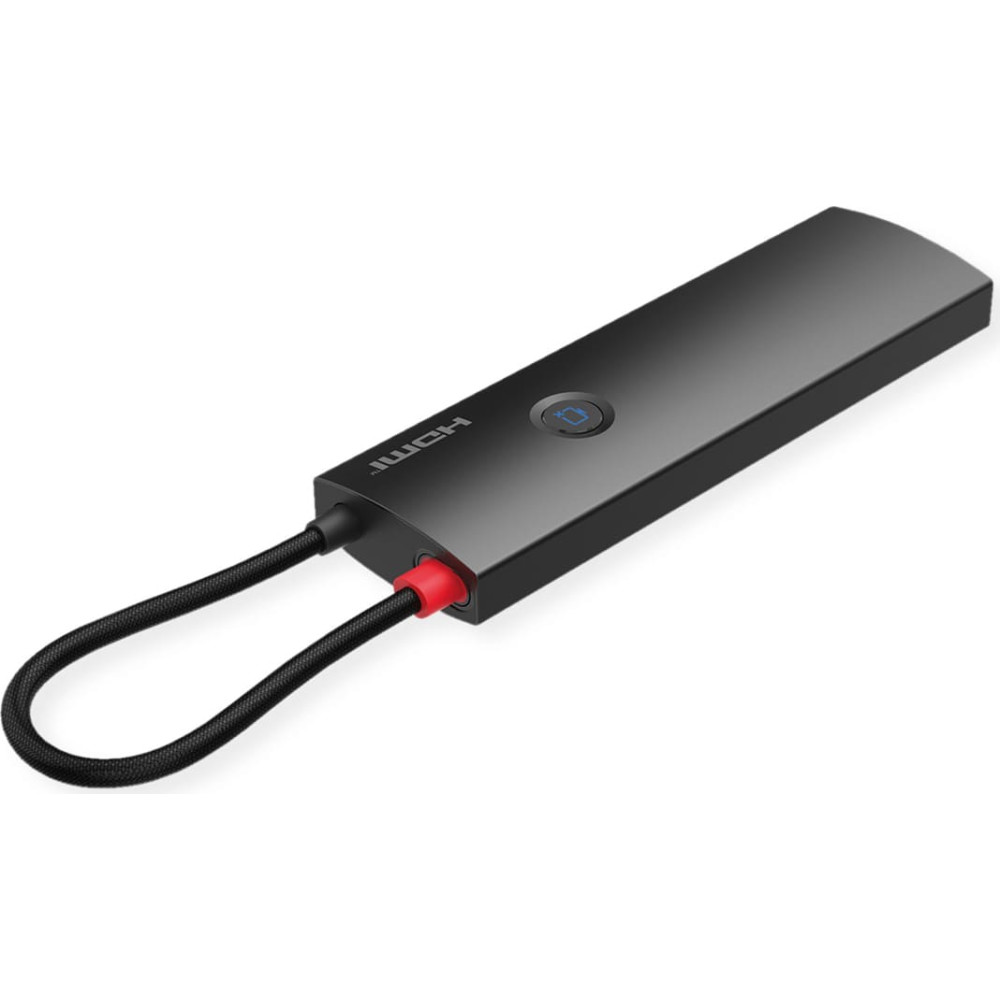

  • Cable can be plugged into the docking itself to form a loop (for convenient transport)
  • Max. HDMI resolution: 3840 x 2160 @60Hz
  • Max. USB data transfer: 10 Gbit/s

This ROLINE USB 3.2 Gen 2 Type C Docking Station provides your Notebook, Laptop, Macbook, or Ultrabook with 1x HDMI 4K@60Hz, 2x USB 3.1 / USB 3.2 Gen 2 Type A, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet and 1x SD/Micro SD Card Reader!

Connection to the mobile device:
  • 1x USB Type C connector

Connections for peripheral devices:
  • 1x HDMI 4K@60Hz video output: mirror or expand your screen to a TV, monitor, projector, etc.
  • 2x USB 3.1 / USB 3.2 Gen 2 Type A ports (data transfer rate up to 10Gbit/s), for connecting e.g. keyboard, mouse, USB HDD/SSD, etc.
  • 1x USB Type C PD (Power Delivery, max. 100W)
  • 1x RJ45 for Gigabit Ethernet
  • 1x SD/microSD

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
