Home Computer Components I/O Cards M.2 Delock Adapter M.2 NGFF Key M male PCI Express x4 Slot
Delock Adapter M.2 NGFF Key M male PCI Express x4 Slot

DELOCK

Delock Adapter M.2 NGFF Key M male PCI Express x4 Slot

Product Code: 62584
Barcode 4043619625840

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.162
height: 0.020
width: 0.101
Description

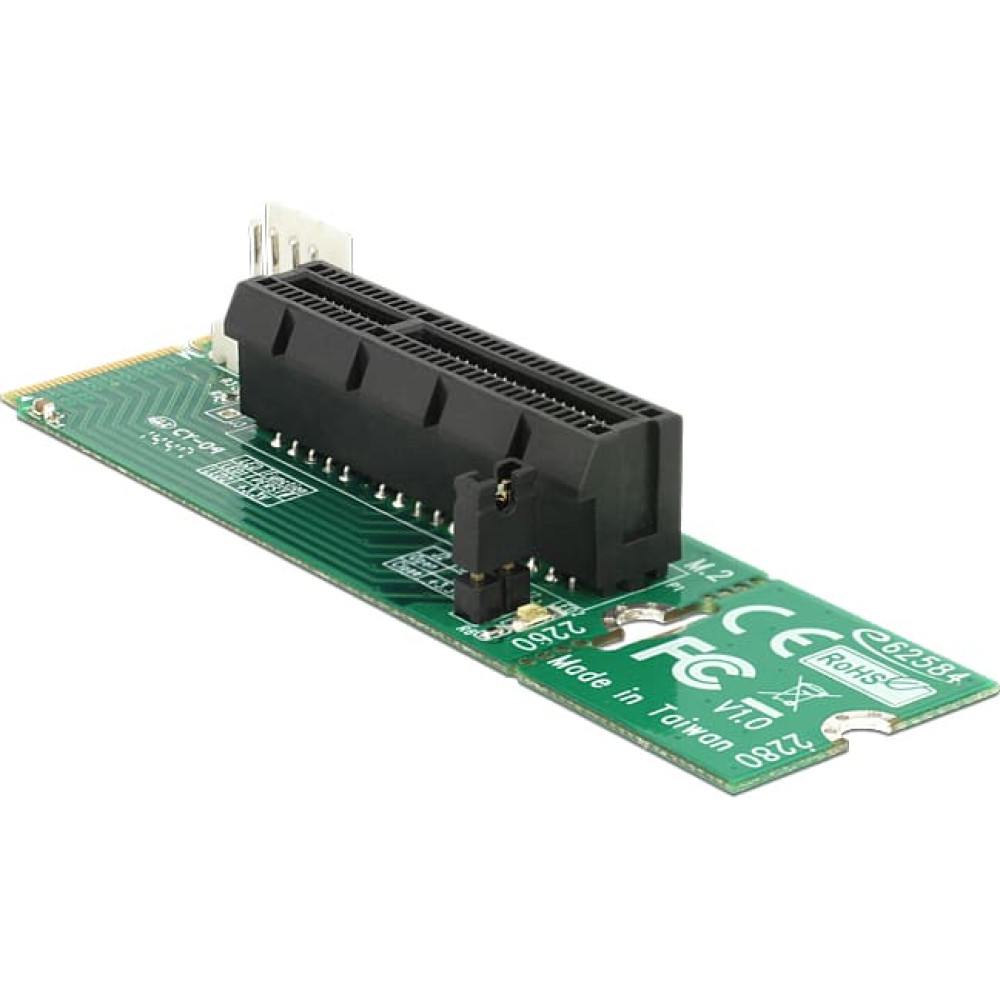

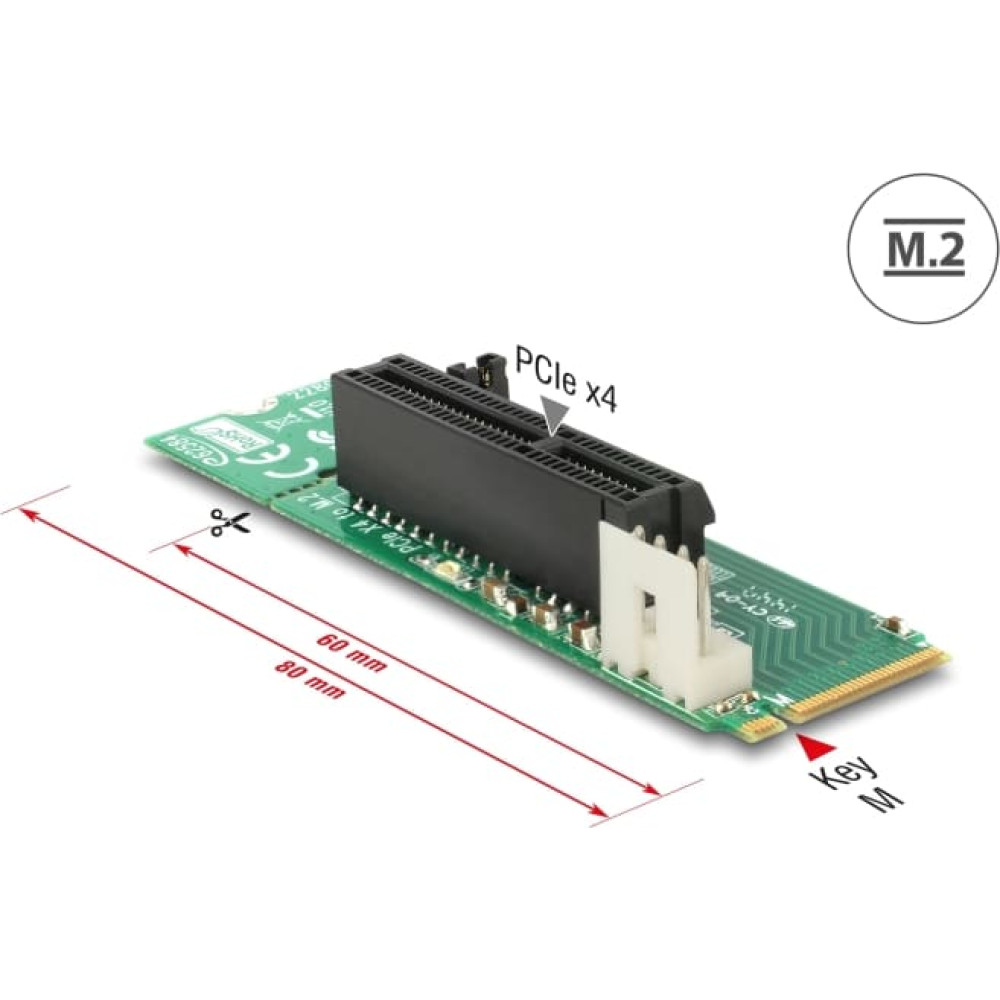

This adapter by Delock can be used to connect a PCI Express card to the M.2 key M interface. Through the predetermined breaking point, the length can be shortened from 80 mm to 60 mm.
System requirements:
• A free M.2 interface with key M
Specification:
• Connectors:
  1 x 67 pin M.2 Key M male
  1 x PCI Express x4 slot, rev. 4.0
  1 x 4 pin power connector
• Interface: PCIe
• Form factor: 2280 or 2260
• Suitable for M.2 slot with key M based on PCIe
• Supports NVM Express (NVMe)
• 2 x LED indicator
• Bootable
• OS independent, no driver installation necessary
Package content:
• Adapter M.2 > PCI Express

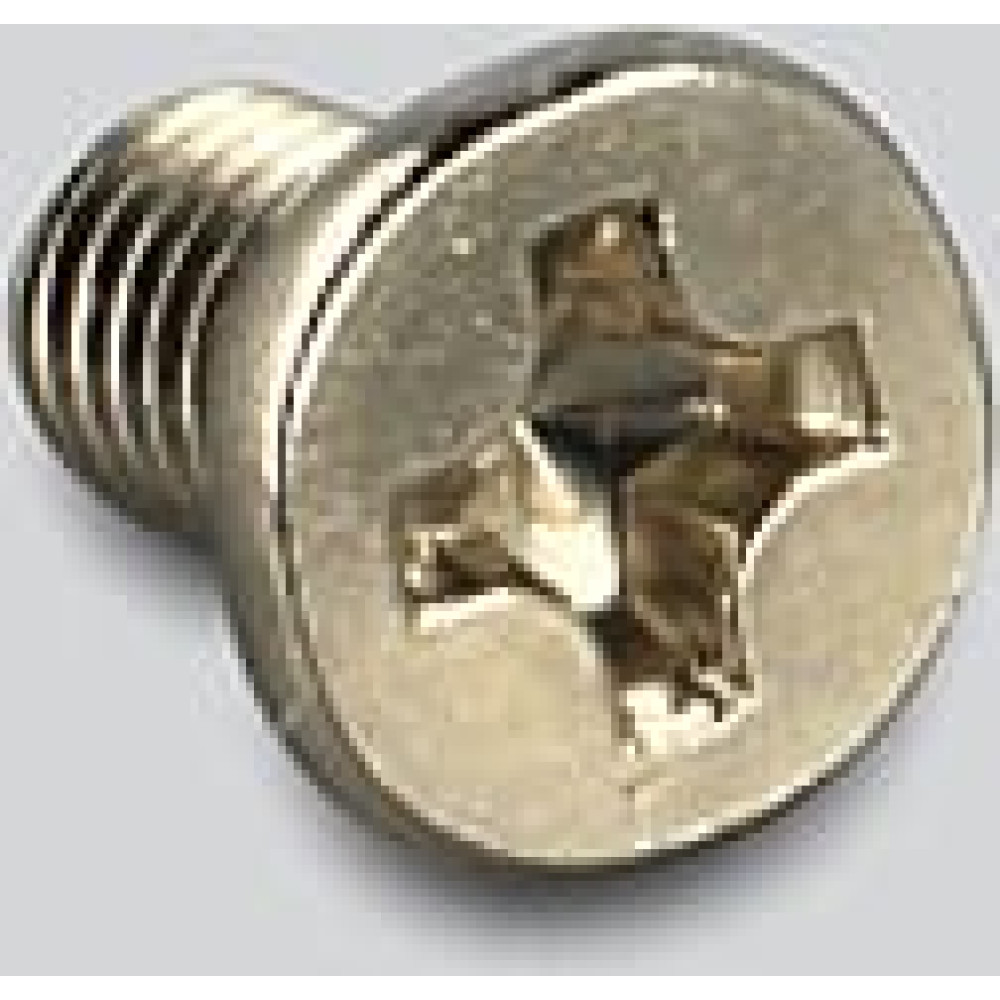

• Fixing screw for M.2 adapter

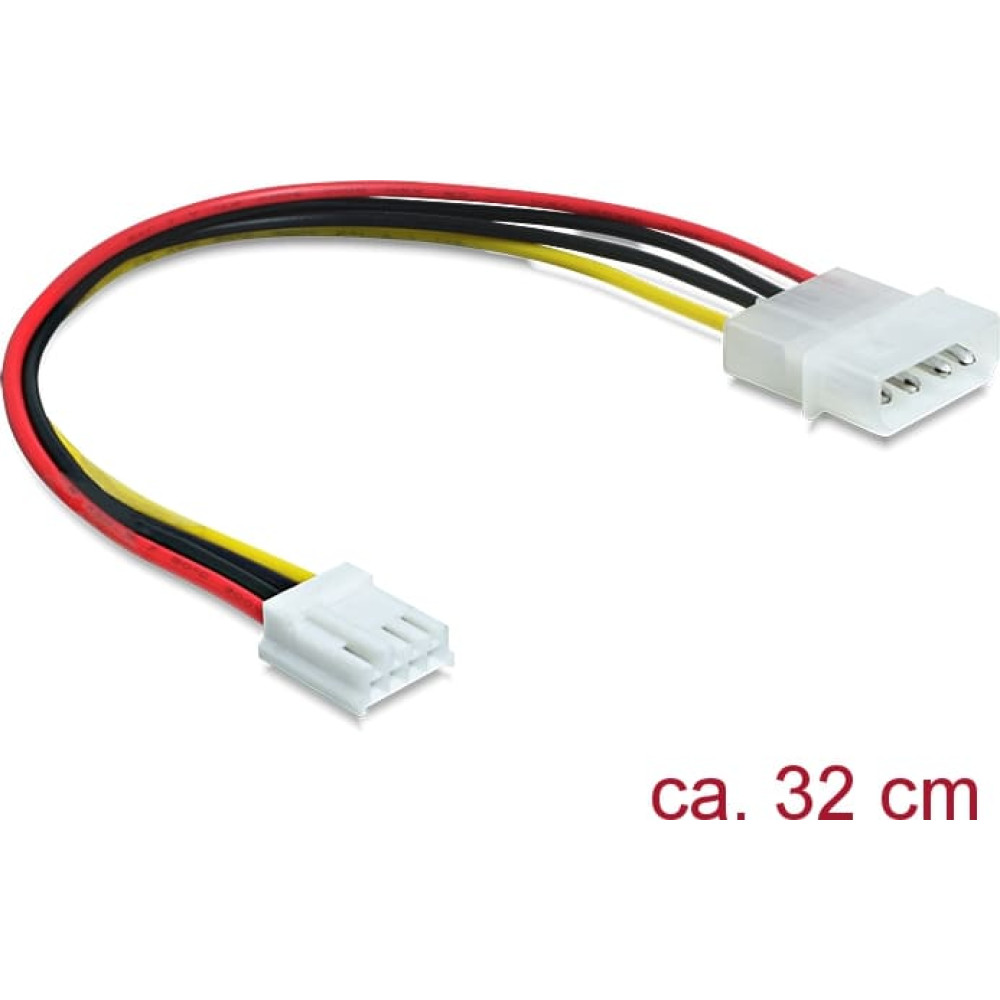

• Power cable
Data sheet:
http://www.delock.de/produkt/62584/pdf.html?sprache=en
