Delock Converter U.2 SFF-8639 - M.2 NGFF NVMe Key M
To purchase this product you must be registered in our system.
Specification
depth: 0.140
height: 0.030
width: 0.100
Description

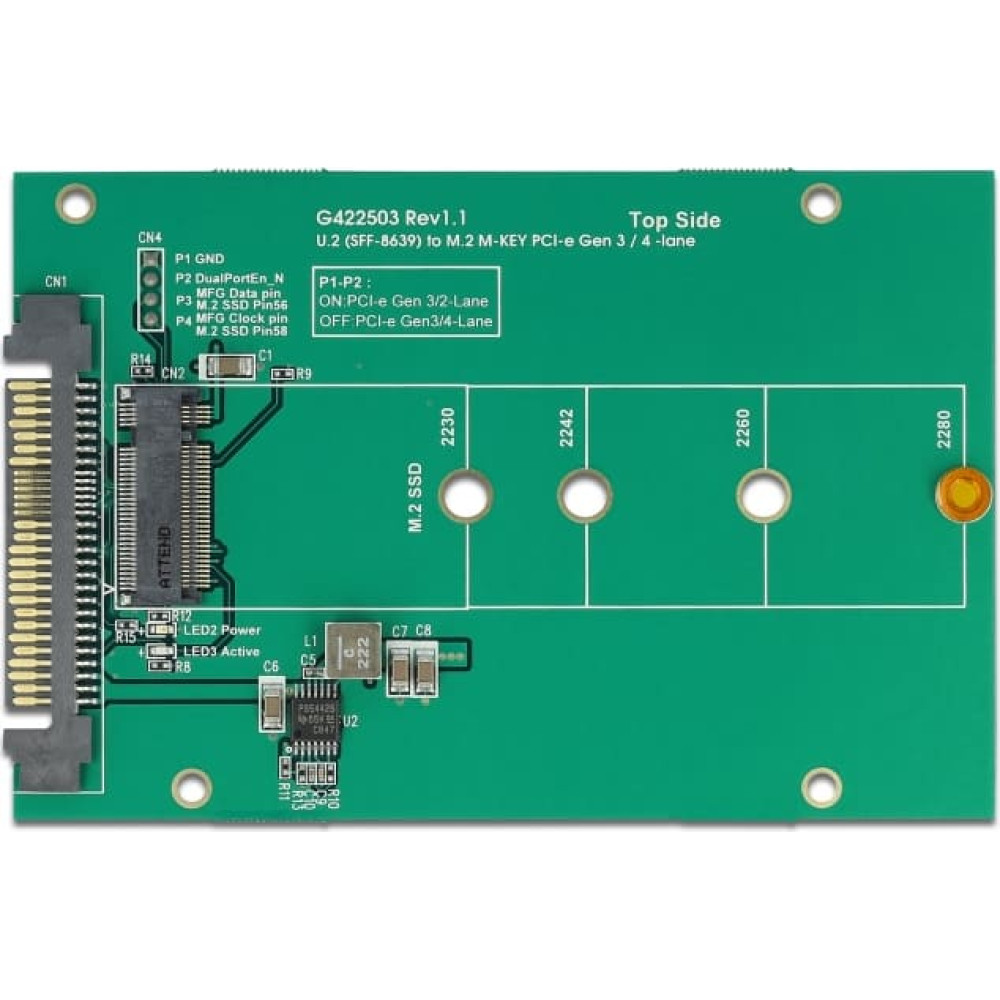

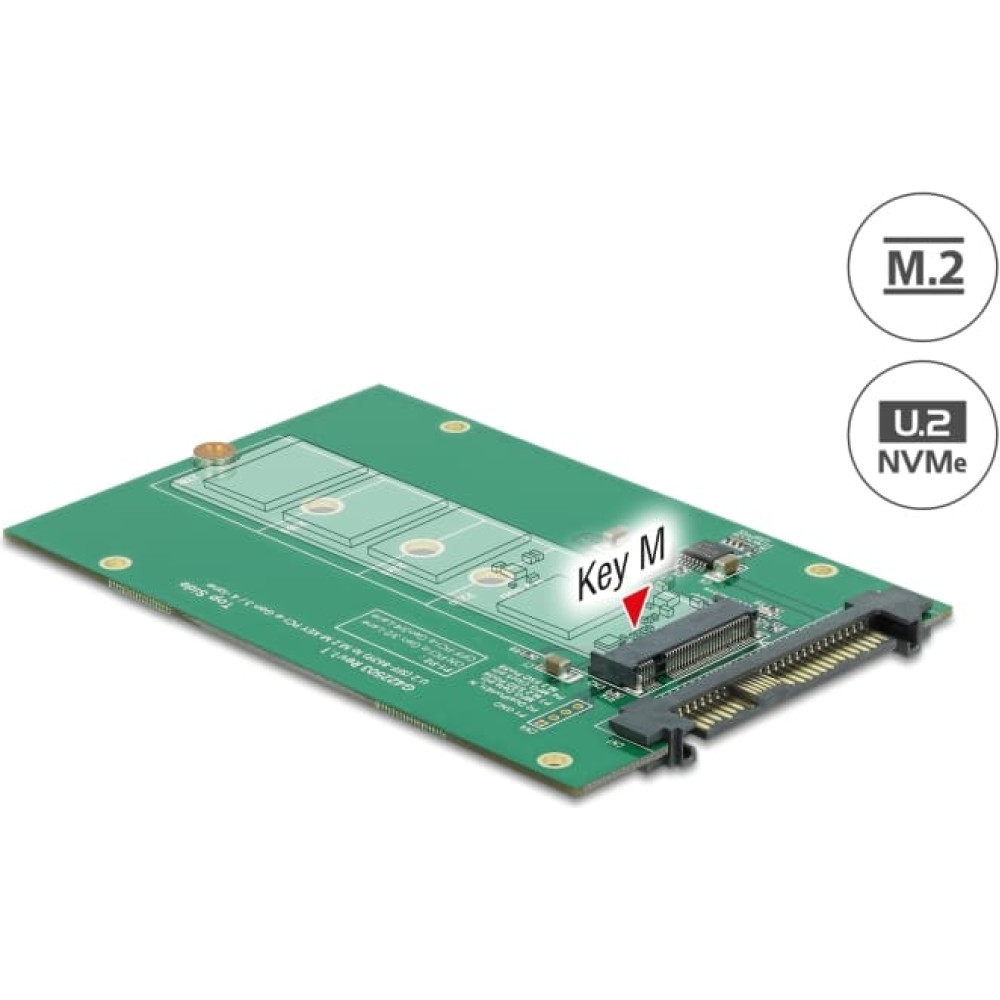

| This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the U.2 68 pin interface. System requirements: • Linux Kernel 3.16 or above • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • A free U.2 SFF-8639 interface or • A free SFF-8643 interface Specification: • Connectors: 1 x U.2 SFF-8639 male > 1 x 67 pin M.2 key M slot • Interface: PCIe (2 or 4 lanes) • Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe • Maximum height of the components on the module: 1.5 mm, application of double- sided assembled modules supported • Jumper for 2 or 4 lanes setting M.2 SSD • LEDs for power and activity • Supports NVM Express (NVMe) • Power consumption: max. 13.2 W • Short circuit protection, in-rush current suppression, over heating protection • Dimensions (LxWxH): ca. 100 x 65 x 7 mm Package content: • Converter • 1 x fixing screw for M.2 module • User manual Data sheet: http://www.delock.de/produkt/62696/pdf.html?sprache=en |
