Delock Converter M.2 Key A+E male 1 x Mini PCIe Slot half size full size with flexible cable

DELOCK

Delock Converter M.2 Key A+E male 1 x Mini PCIe Slot half size full size with flexible cable

Product Code: 62848
Barcode 4043619628483

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.160
height: 0.020
width: 0.100
Description

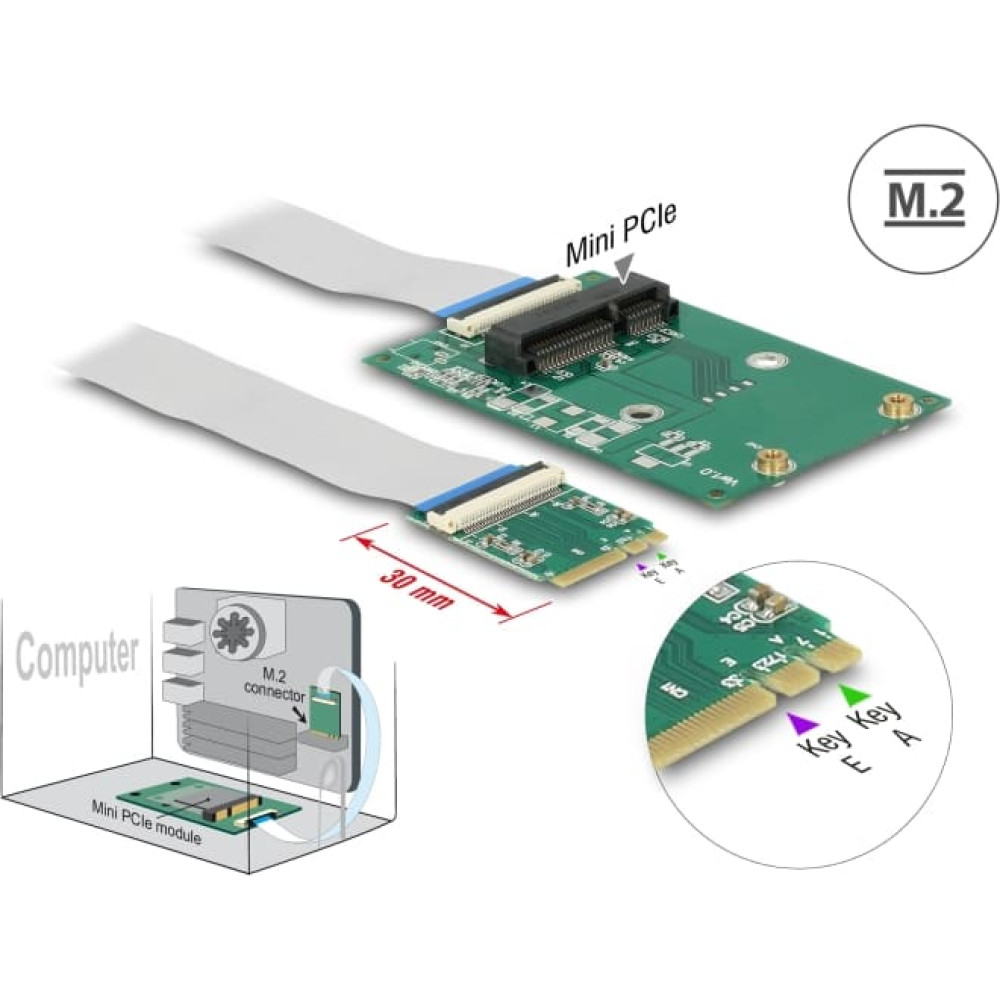

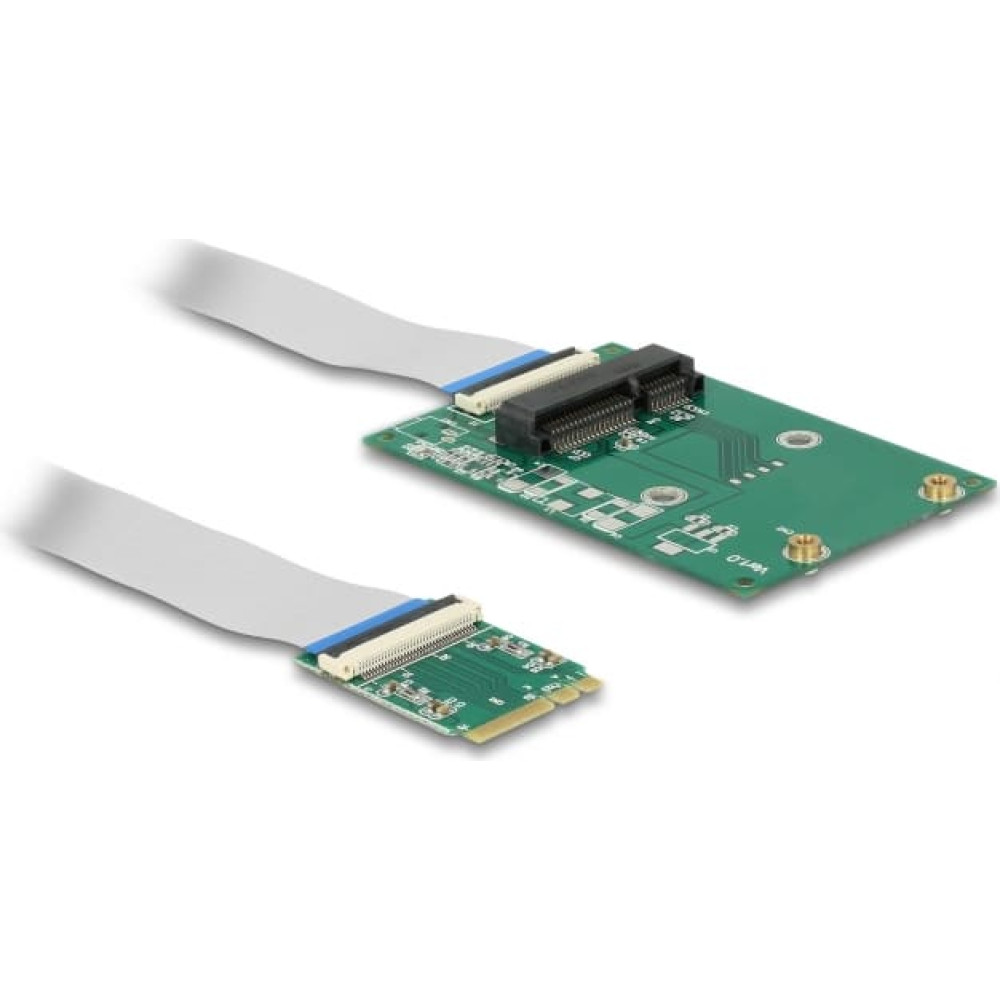

This converter by Delock changes the M.2 key A or key E interface into a Mini PCIe interface. Different Mini PCIe modules with USB and PCIe signals (e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules) can be inserted in the converter. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth.
System requirements:
• One free M.2 key A or key E slot
Specification:
• Connector:
  1 x 59 pin M.2 key A+E male >
  1 x Mini PCIe slot
• PCI Express Rev. 1.1
• Interface: PCIe + USB
• Form factor M.2: 2230
• Form factor Mini PCIe: half size and full size
• Suitable for M.2 slot with key A or key E based on PCIe and USB
• Operating temperature: 0 °C ~ 80 °C
• Dimensions (LxWxH):
  M.2 board: ca. 30 x 22 x 3 mm
  Mini PCIe board: ca. 69 x 45 x 6 mm
• OS independent, no driver installation necessary
Package content:
• Converter board M.2
• Mini PCIe board

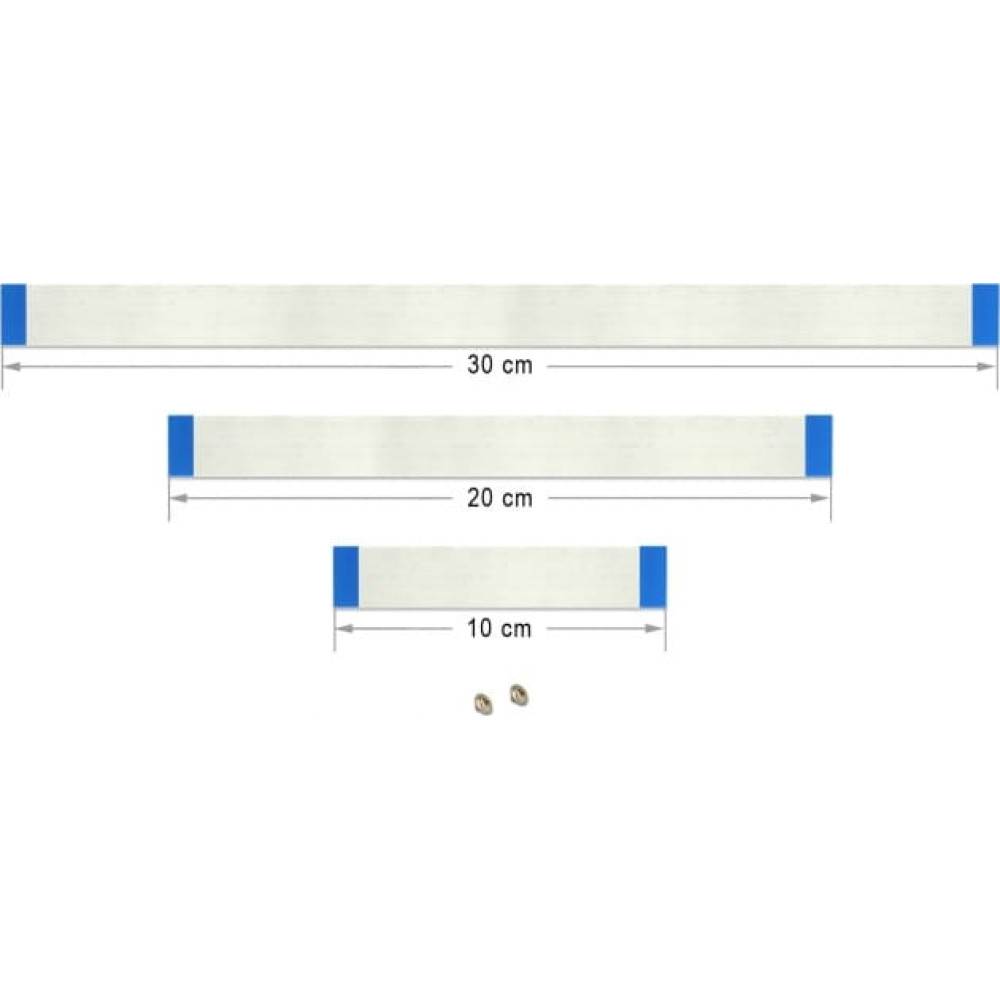

• 3 x flat cable, length ca.: 1 x 10 cm, 1 x 20 cm, 1 x 30 cm
• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/62848/pdf.html?sprache=en
