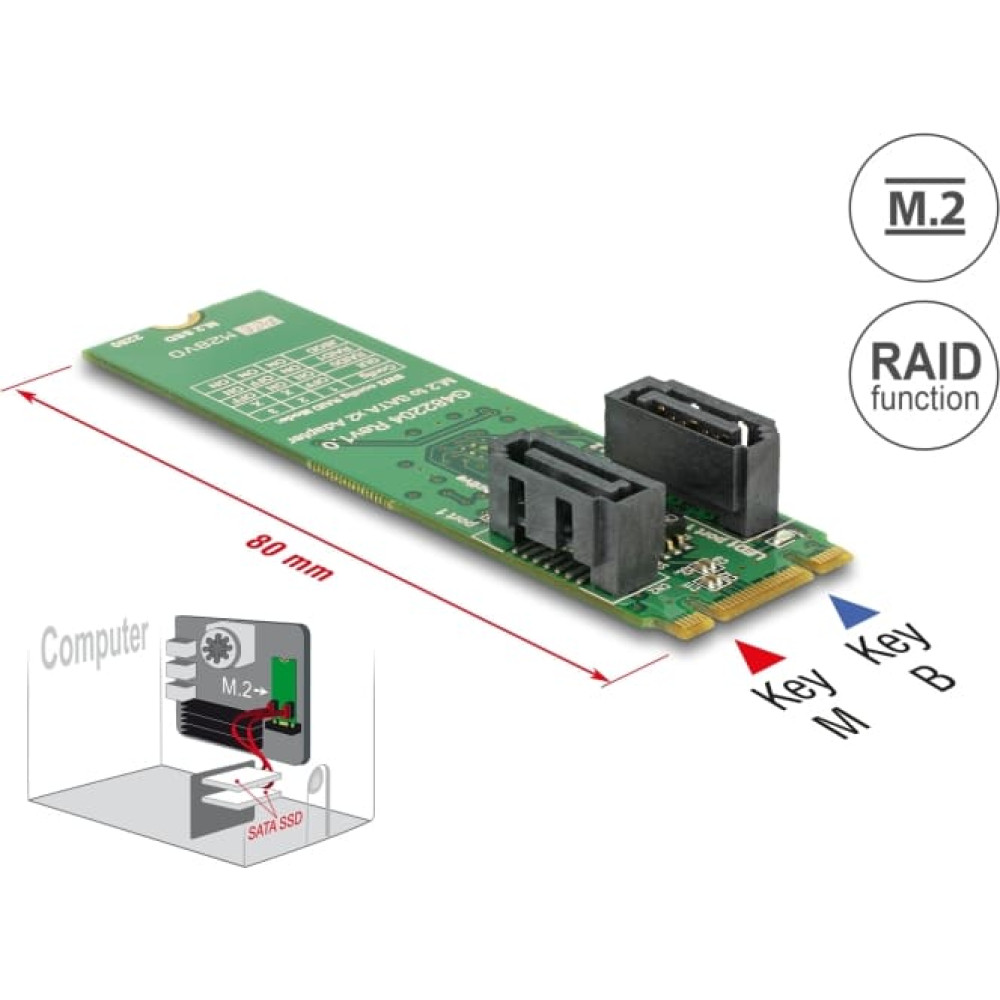

Delock Converter M.2 Key B+M male > 2 x SATA 7 pin male with RAID

DELOCK

Delock Converter M.2 Key B+M male > 2 x SATA 7 pin male with RAID

Product Code: 62961
Barcode 4043619629619

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.016
height: 0.020
width: 0.010
Description

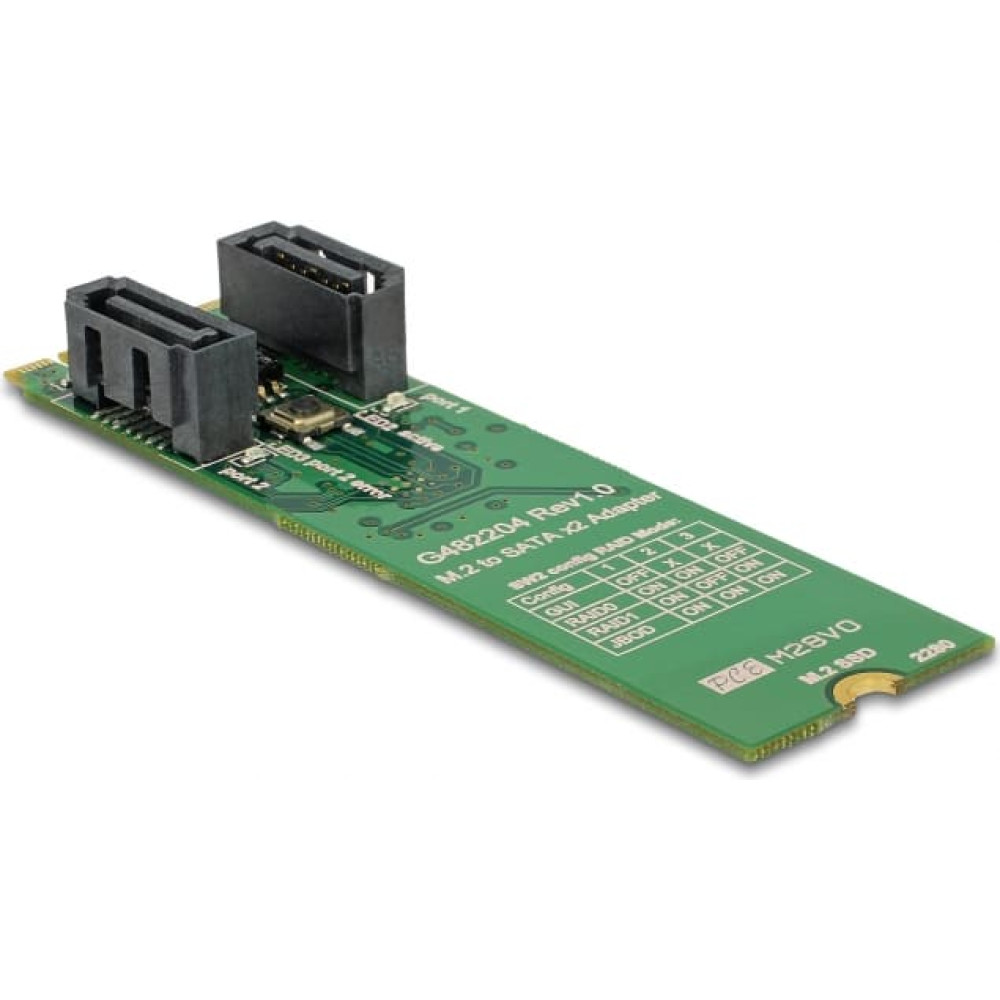

This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes.

Please Note
This product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.
The SMART function is not supported. JBOD is only supported on SATA controllers with port multiplier function.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux ex Kernel 3.3.0 / Kernel 4.9.4
• One free M.2 key M or key B slot
Specification:
• Connectors:
  1 x 59 pin M.2 key B+M male >
  2 x SATA 6 Gb/s 7 pin plug
• Chipset: Asmedia ASM1092R
• Interface: SATA
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B based on SATA
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, 1, JBOD
• Supports HDD and SSD

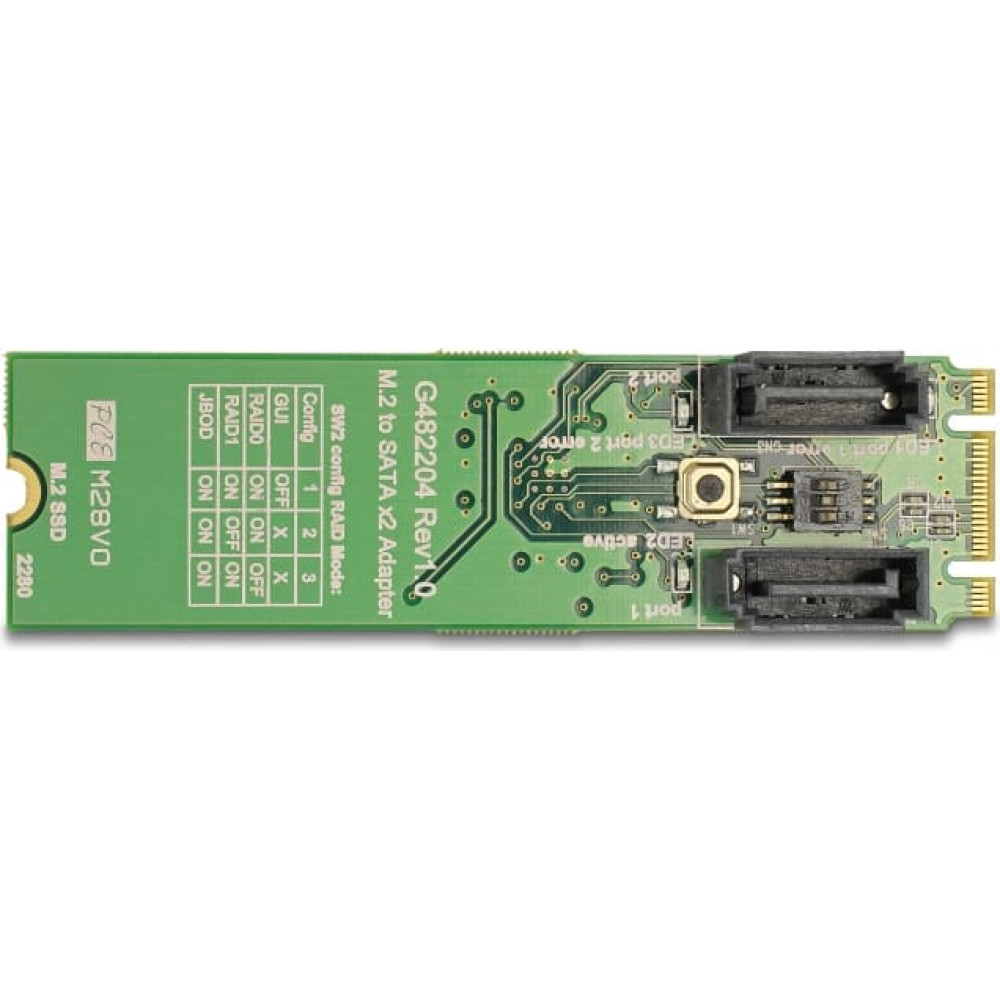

• 1 x button for RAID setting
• 1 x DIP switch for RAID mode
• Dimensions (LxWxH): ca. 80 x 22 x 11 mm
Package content:
• Converter
• User manual
Data sheet:
http://www.delock.de/produkt/62961/pdf.html?sprache=en
