Delock PCI Express x1 Card to 2 x internal M.2 Key B

DELOCK

Delock PCI Express x1 Card to 2 x internal M.2 Key B

Product Code: 90432
Barcode 4043619904327

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 0.000
height: 0.000
width: 0.000
Description

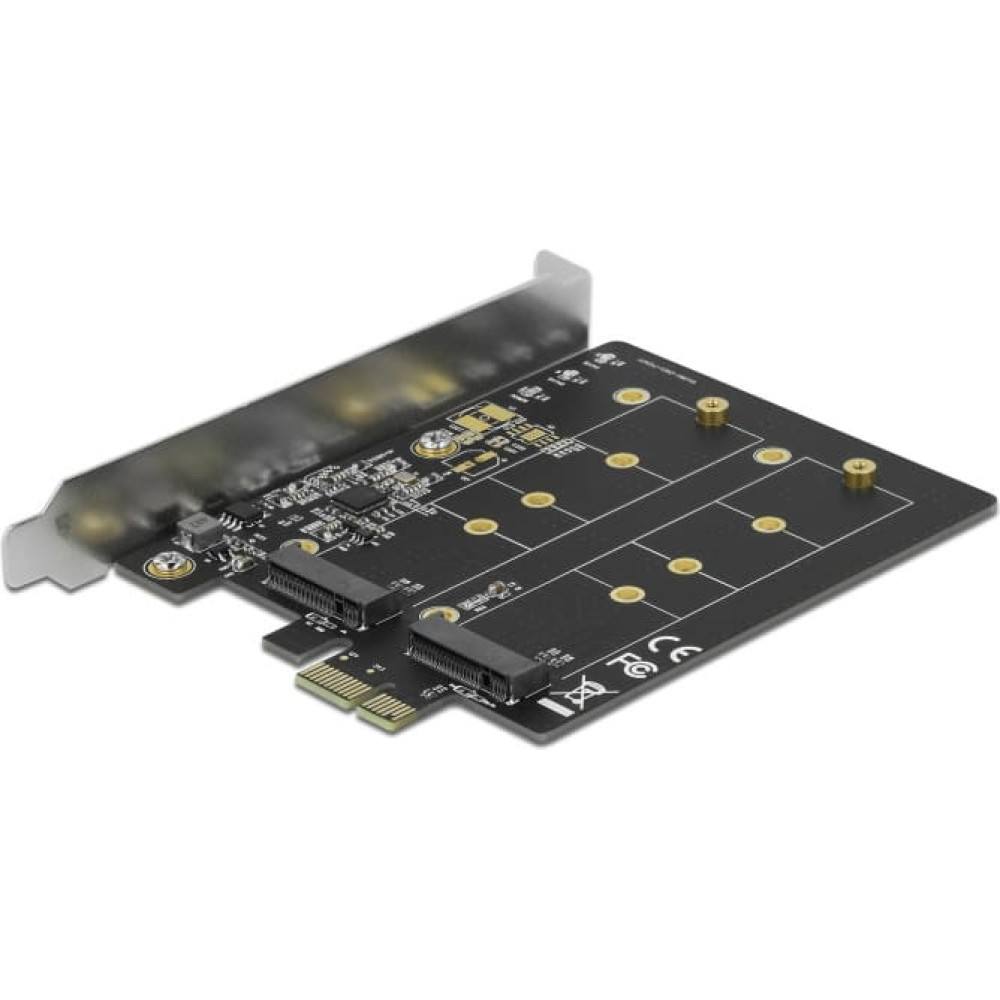

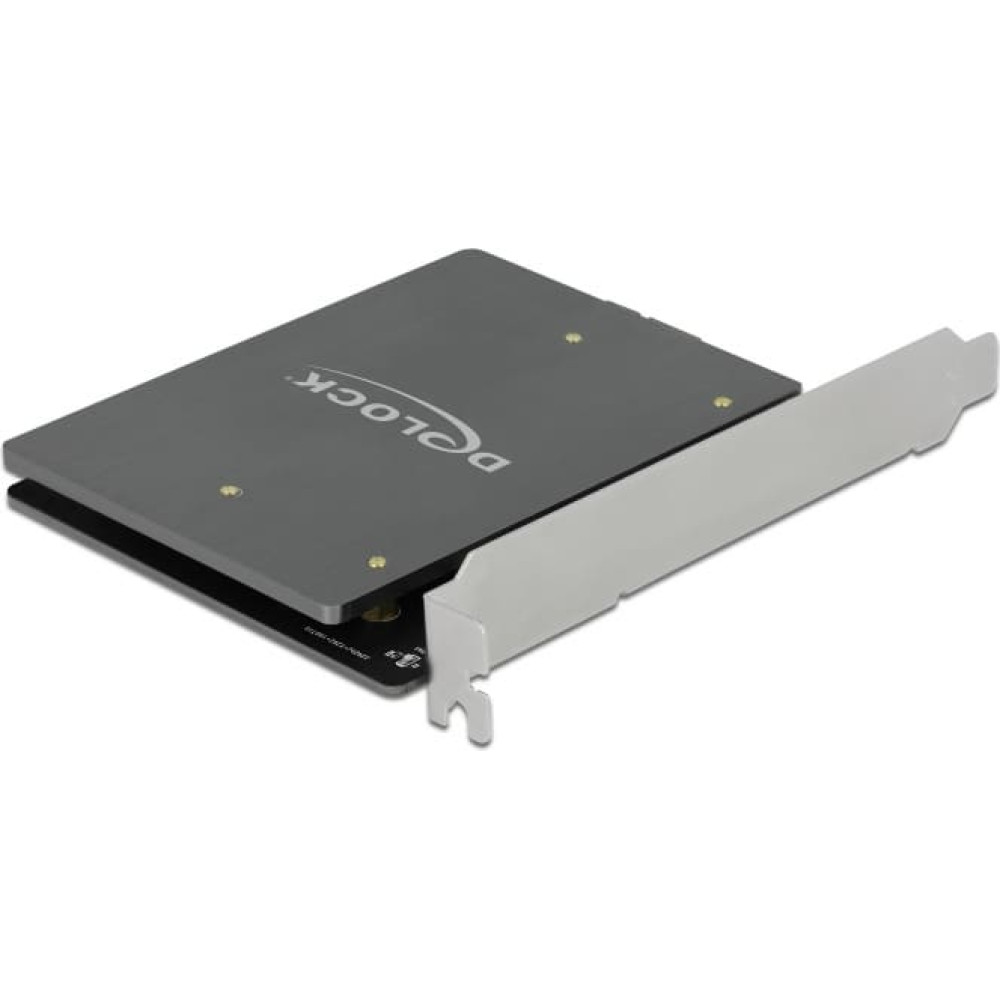

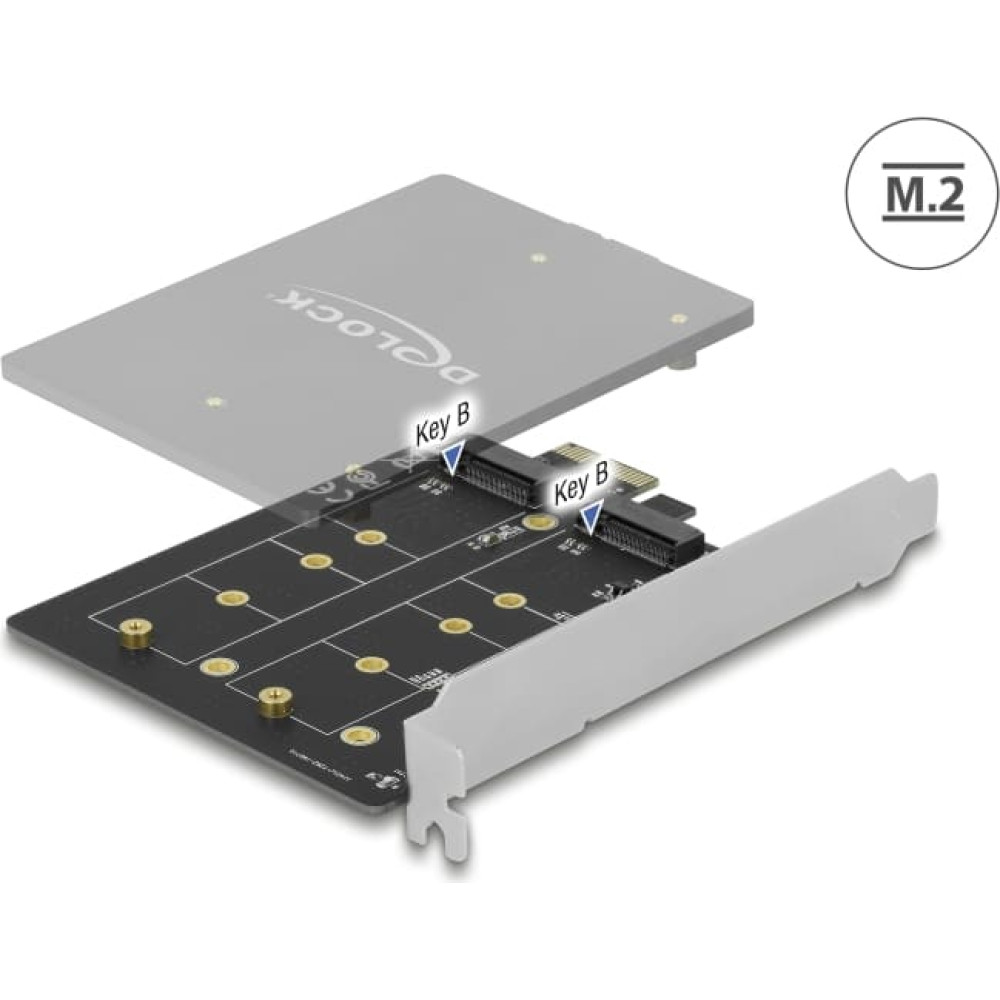

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card. With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed.
System requirements:
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Specification:
• Connectors:
  internal:
  2 x 67 pin M.2 key B slot
  1 x PCI Express x1, V3.0
• Chipset: JMicron JMB582
• 3 x LED indicator
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
  based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double-
  sided assembled modules supported
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
Package content:
• PCI Express card
• Heat sink

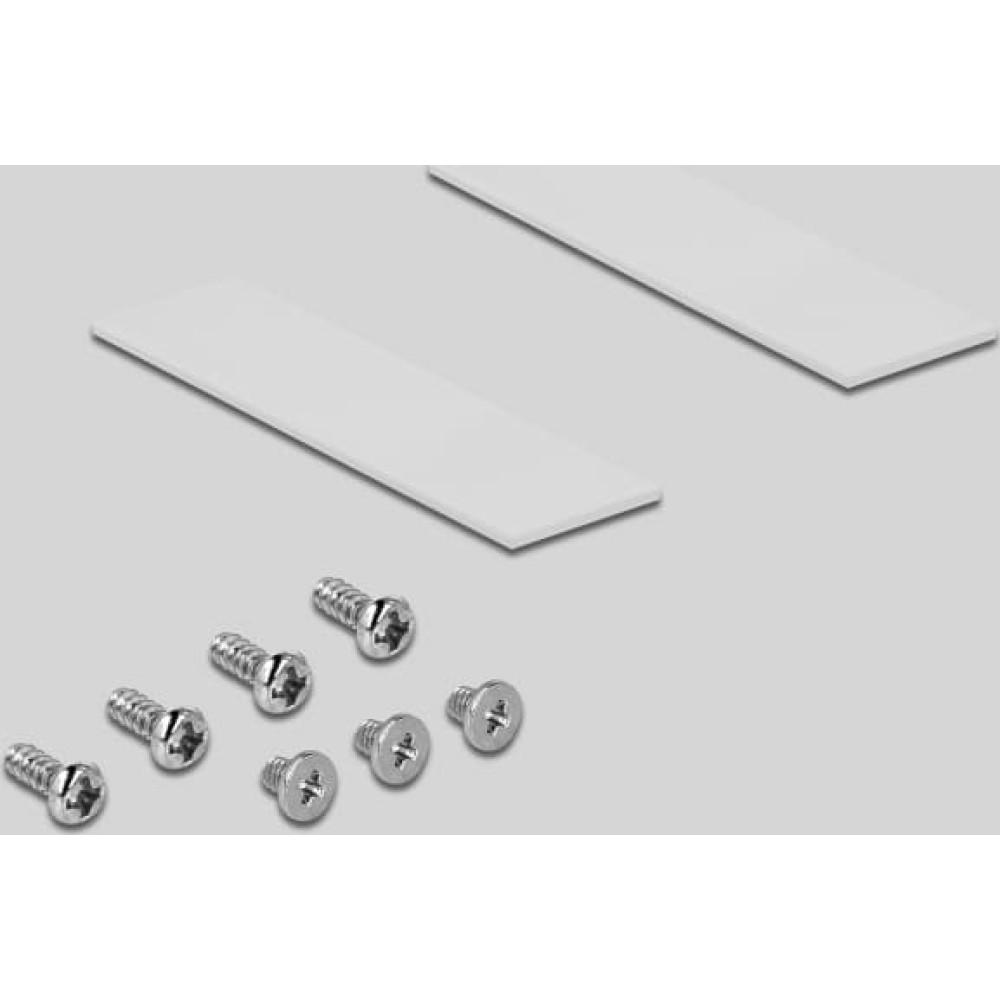

• 2 x thermal pad
• M.2 mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/90432/pdf.html?sprache=en
