Delock PCI Express Card to 4 x Serial RS-232
To purchase this product you must be registered in our system.
Specification
depth: 0.000
height: 0.000
width: 0.000
Description

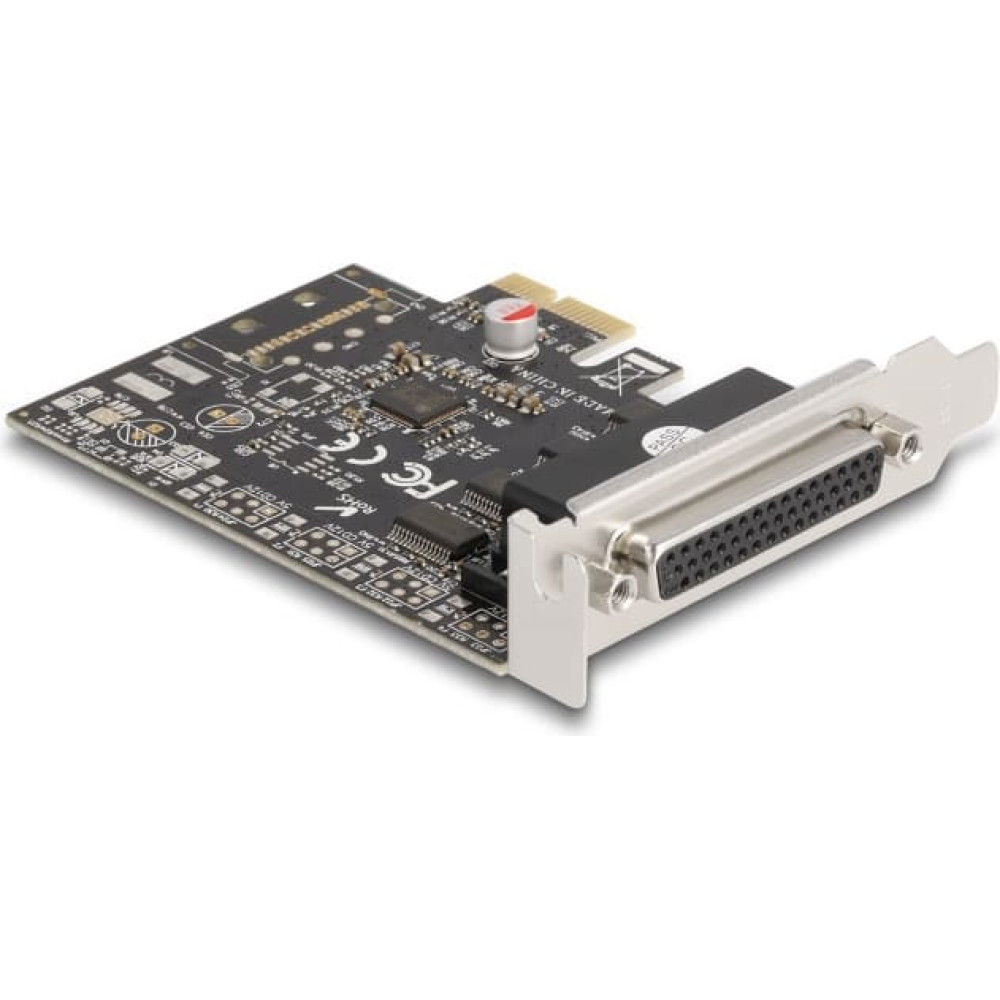

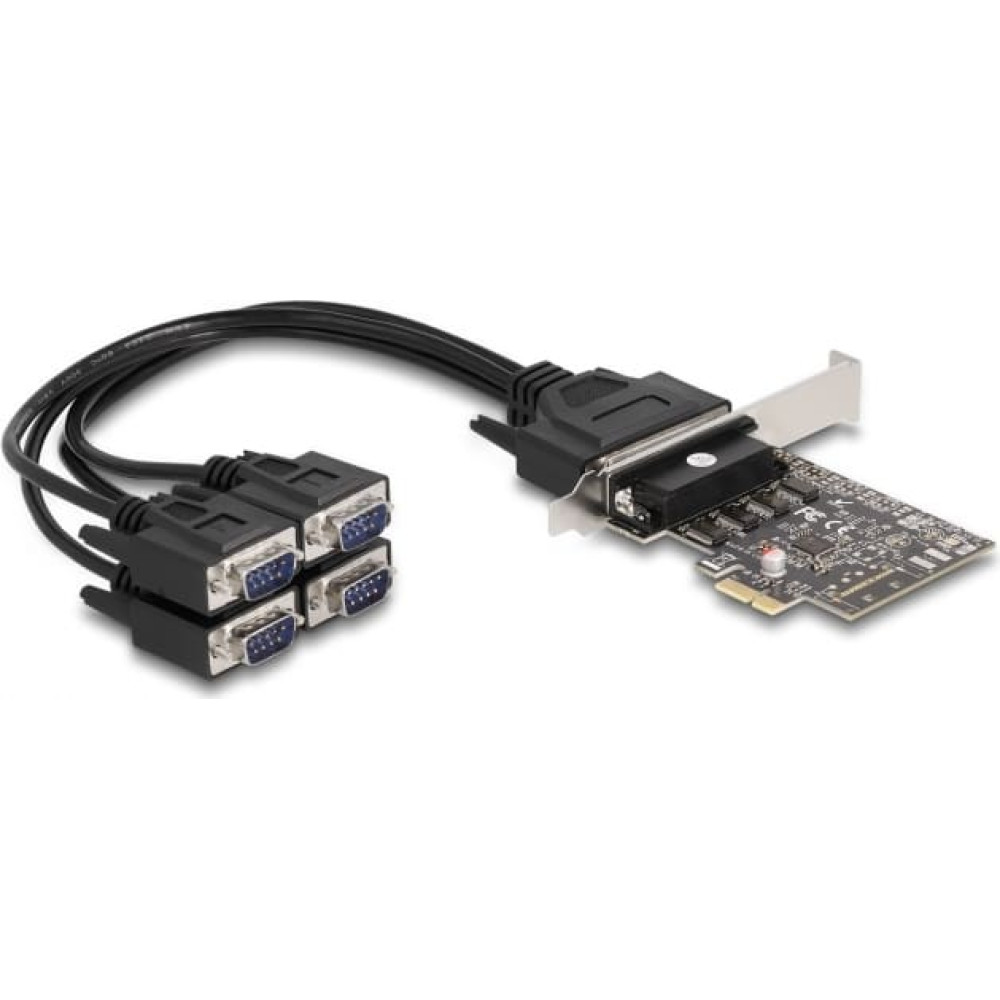

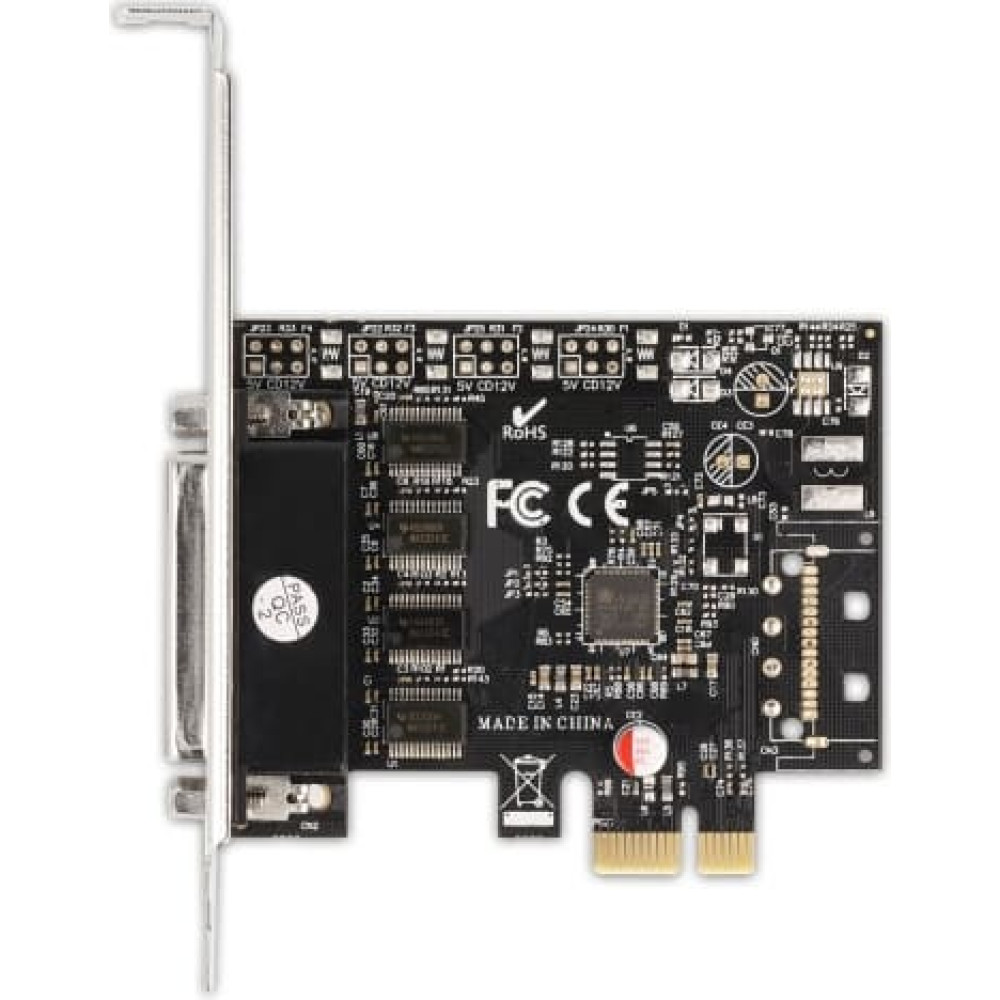

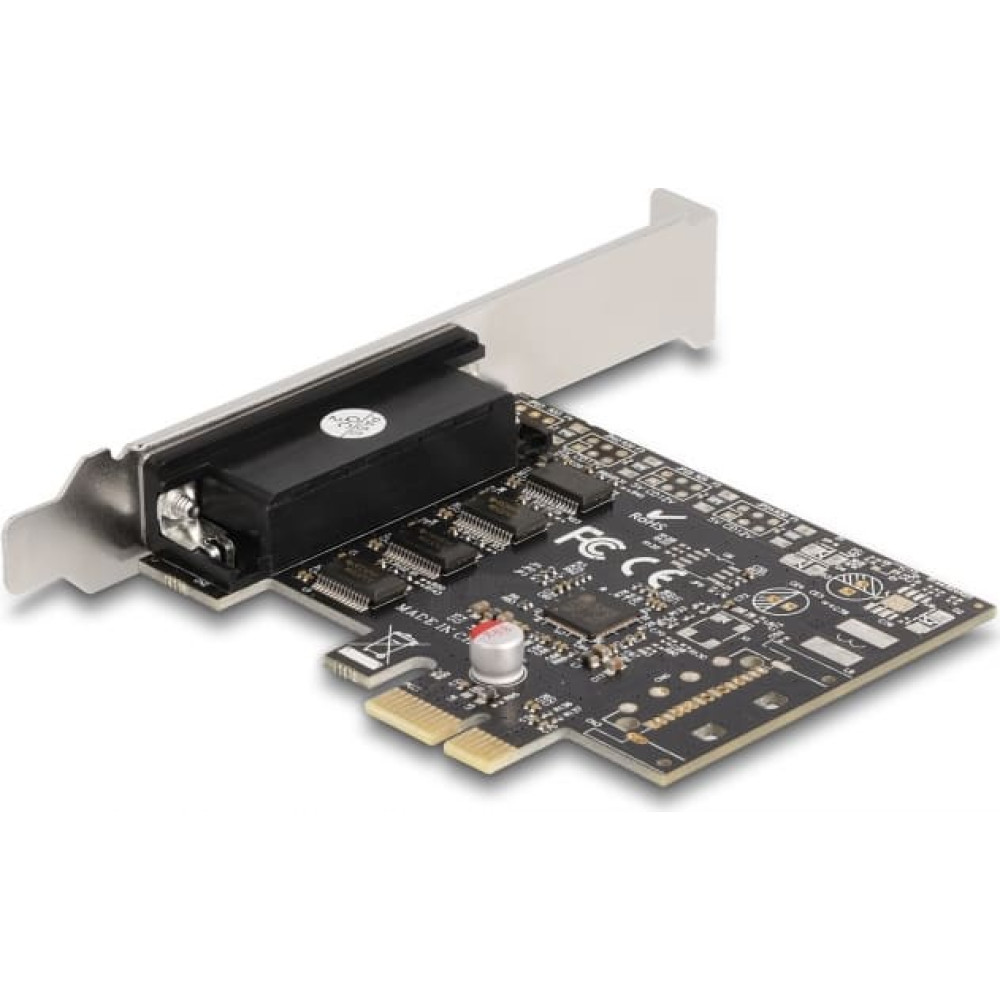

| The PCI Express card by Delock expands a PC by four external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card. Fan-out cable The fan-out cable provides flexibility at the RS-232 ports and simplifies the handling of computers, machines, facilities etc. Low Profile Form Factor The included low profile bracket enables the additional installation of the PCI Express card in industrial computers and 19″ housings. System requirements: • Windows 8.1/8.1-64/10/10-64/11 • Windows Server 2016/Server 2019 • PC with one free PCI Express slot Specification: • Connectors: external: 1 x D-Sub 44 pin female connecting cable: D-Sub 44 pin male to 4 x serial RS-232 D-Sub 9 pin male internal: 1 x PCI Express x1, V2.0 • Chipset: ASIX AX99100 • Compatible with 16C950 UART • Data transfer rate up to 921.6 Kbps • FIFO: 4 x 256 byte • Databits: 5, 6, 7, 8, 9 • Stop bits: 1, 1.5, 2 • Parity: even, odd, none, mark, space • Flow control: none, hardware RTS / CTS, software XON / XOFF • Operating temperature: 0 °C ~ 70 °C • Relative humidity: 0 ~ 90 % (non condensing) • Dimensions (LxWxH): ca. 80 x 69 x 15 mm • Cable length incl. connectors: ca. 38 cm Package content: • PCI Express card • 1 x serial connecting cable • 1 x low profile bracket • Driver CD • User manual Data sheet: http://www.delock.de/produkt/66324/pdf.html?sprache=en |
