Delock PCI Express Card > 2 x Serial RS-232

Product Code: 89555

Barcode 4043619895557

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

depth: 0.205

height: 0.030

width: 0.151

Description

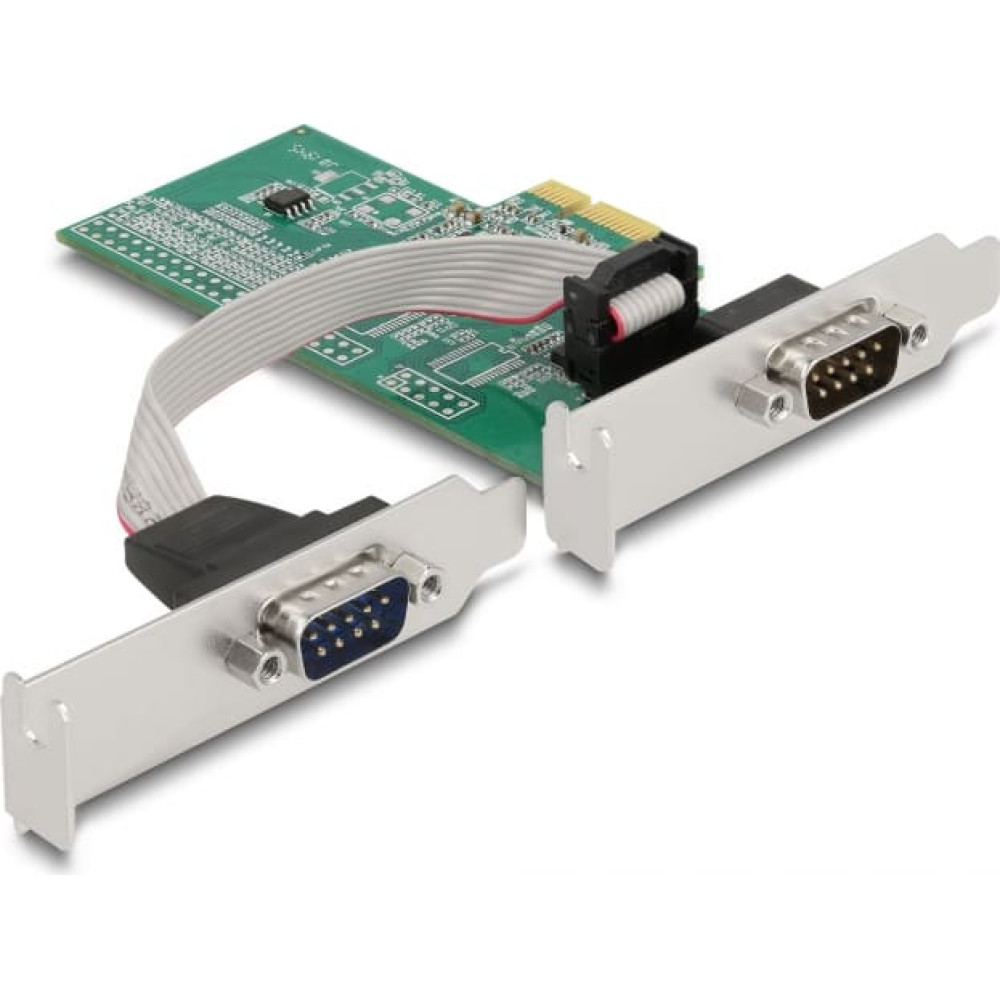

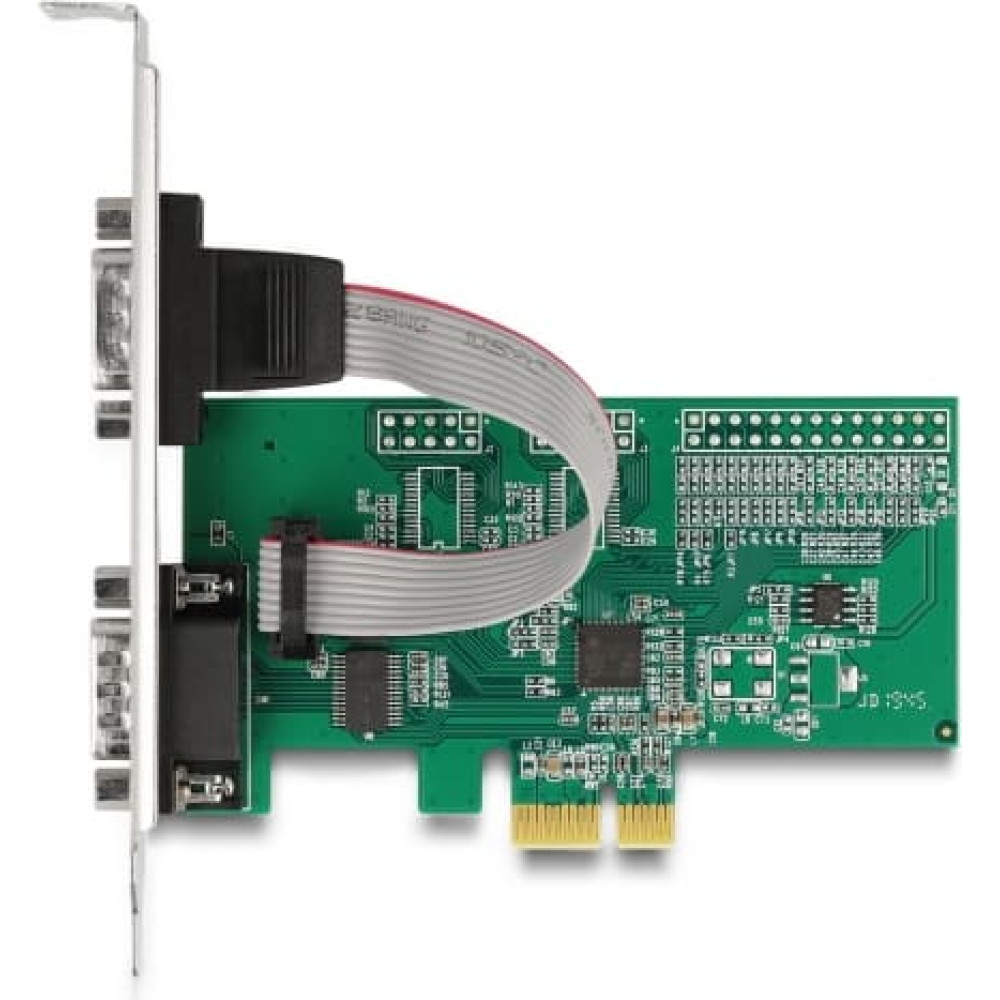

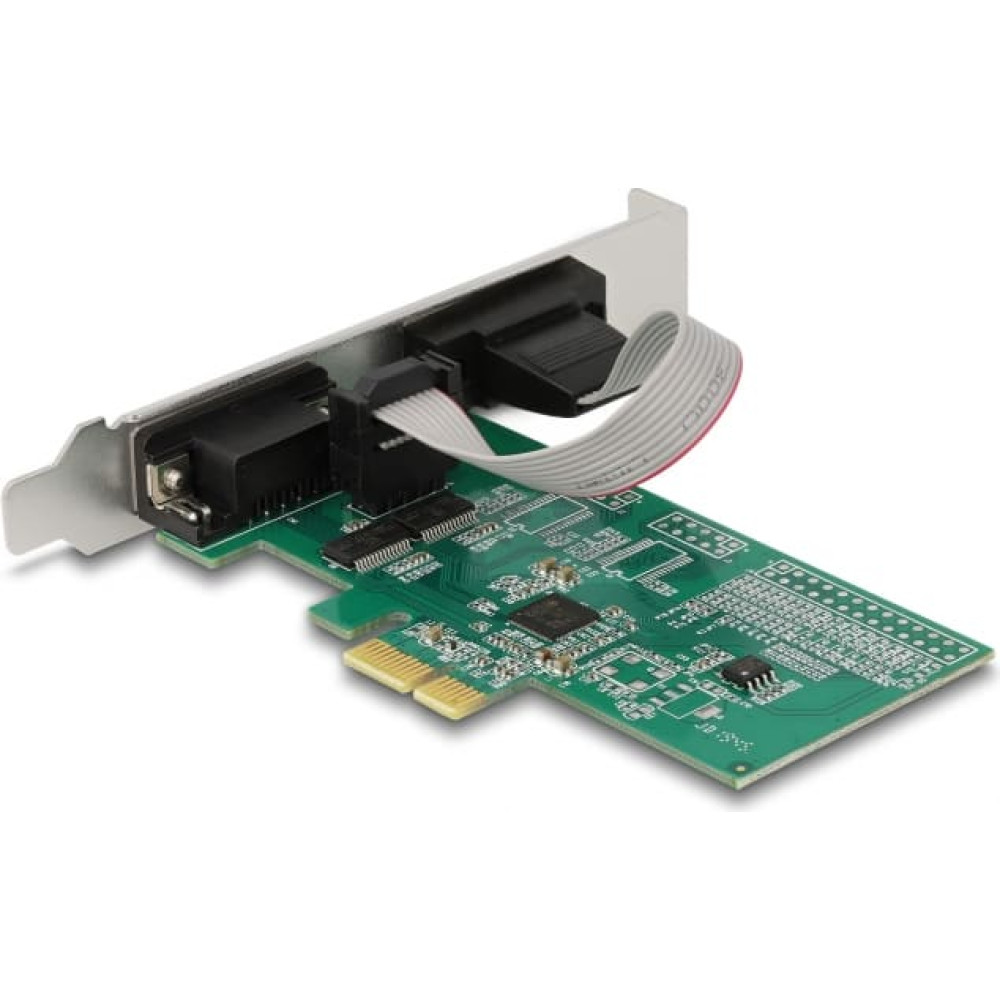

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot

Specification:

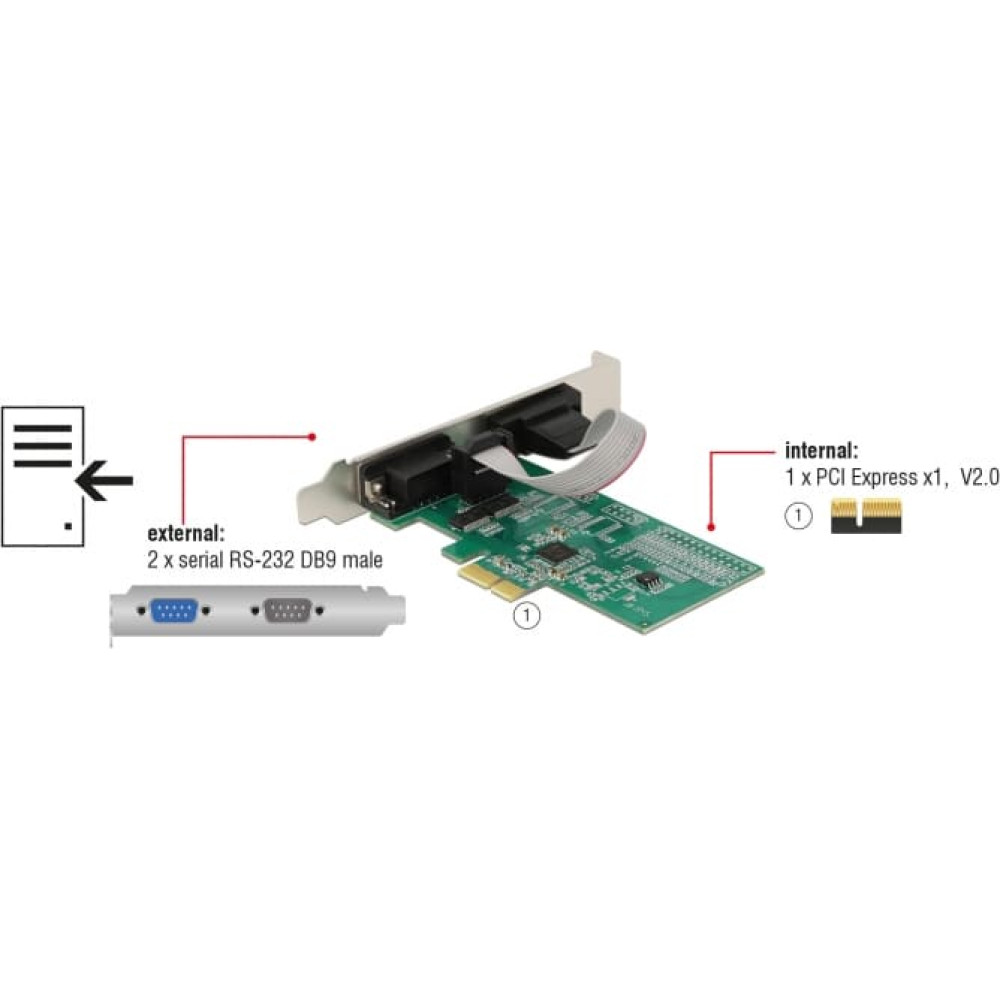

• Connector:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Data transfer rate up to 230.4 Kb/s
• FIFO: 4 x 256 byte
• Data bit: 5, 6, 7, 8, 9
• Compatible with 16C950 UART
• Dimensions (LxWxH): ca. 97 x 51 x 21 mm

Package content:
• PCI Express card

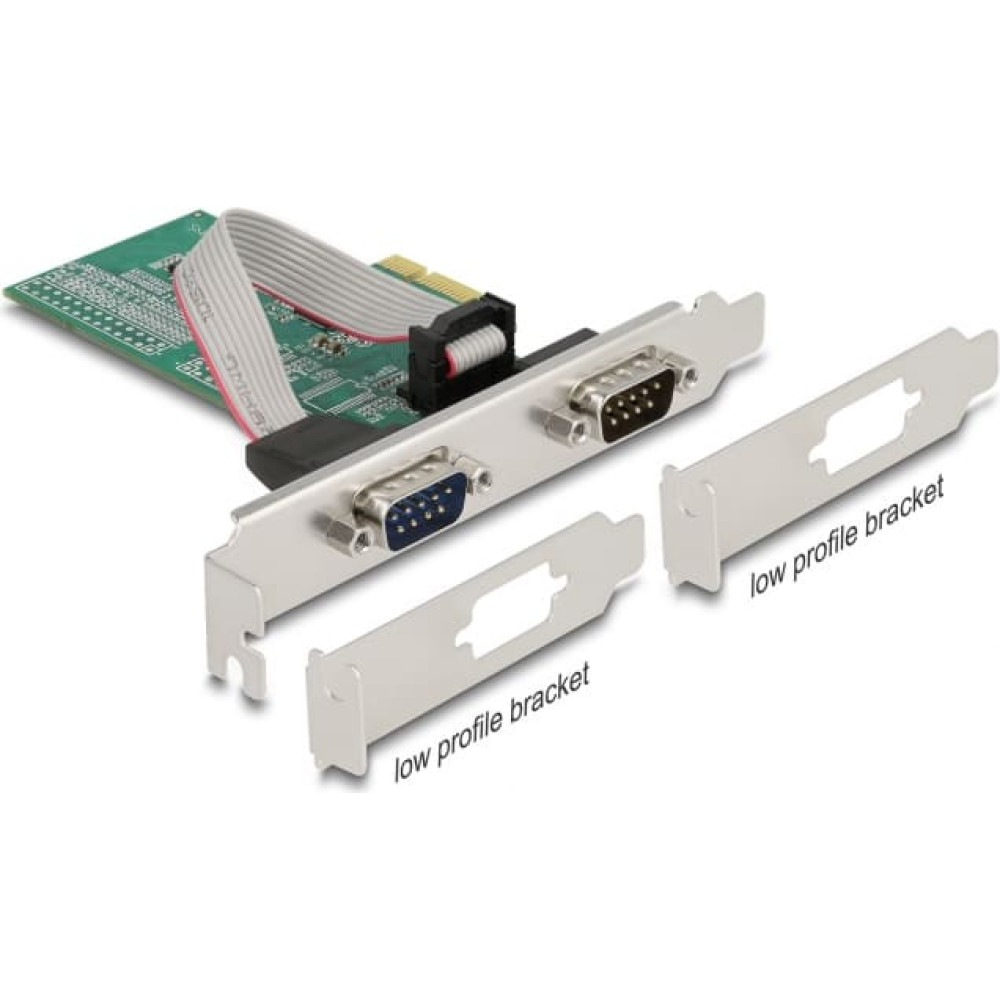

• 2 x low profile bracket
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/89555/pdf.html?sprache=en
