Delock PCI Express Card to 1 x Serial RS-232

Product Code: 90006
Barcode 4043619900060

To purchase this product you must be registered in our system.



Specification
depth: 0.155
height: 0.160
width: 0.030

Description

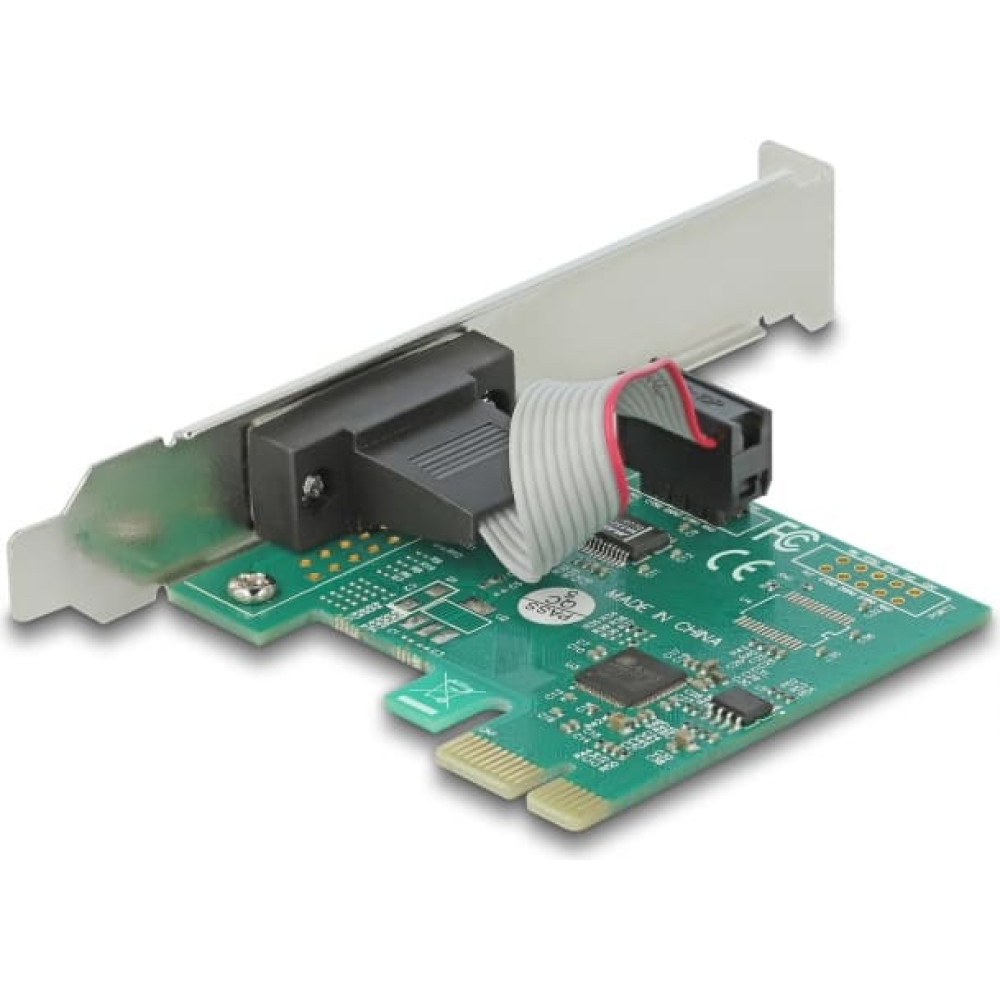

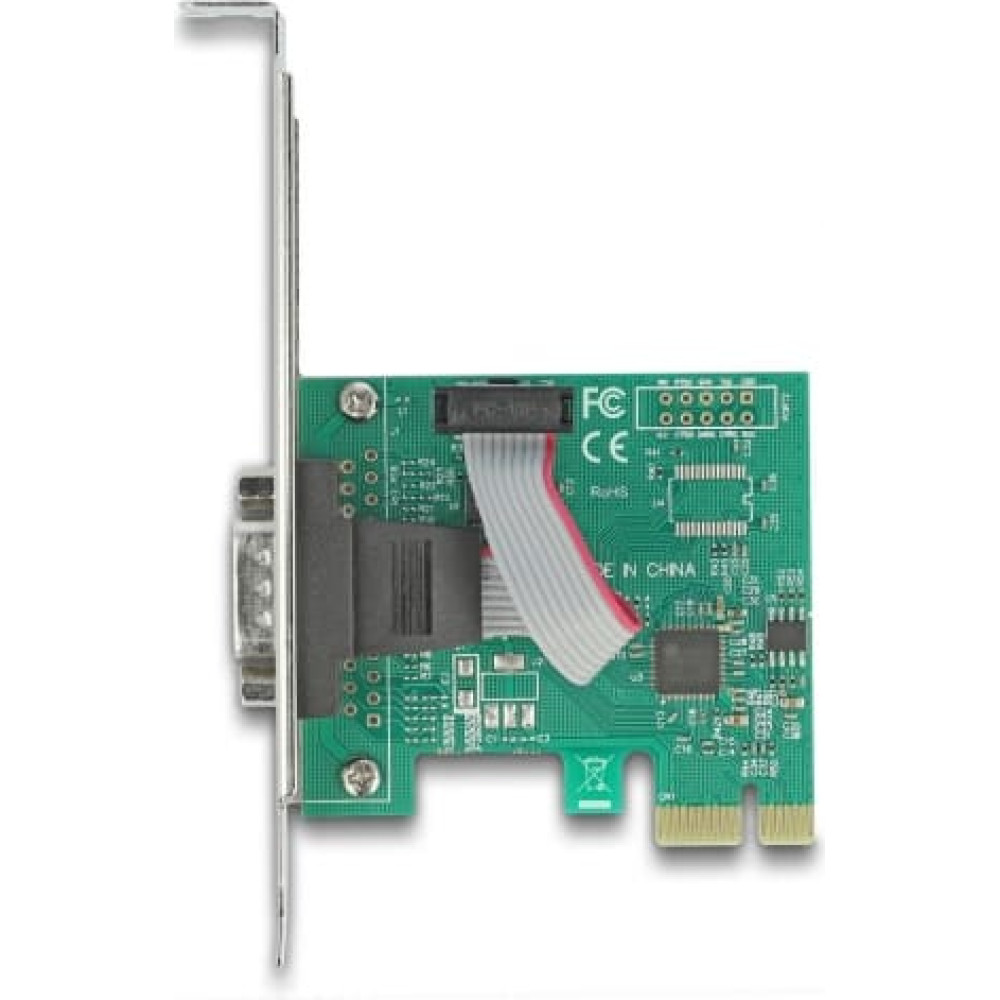

The PCI Express card by Delock expands a PC by one external serial port. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

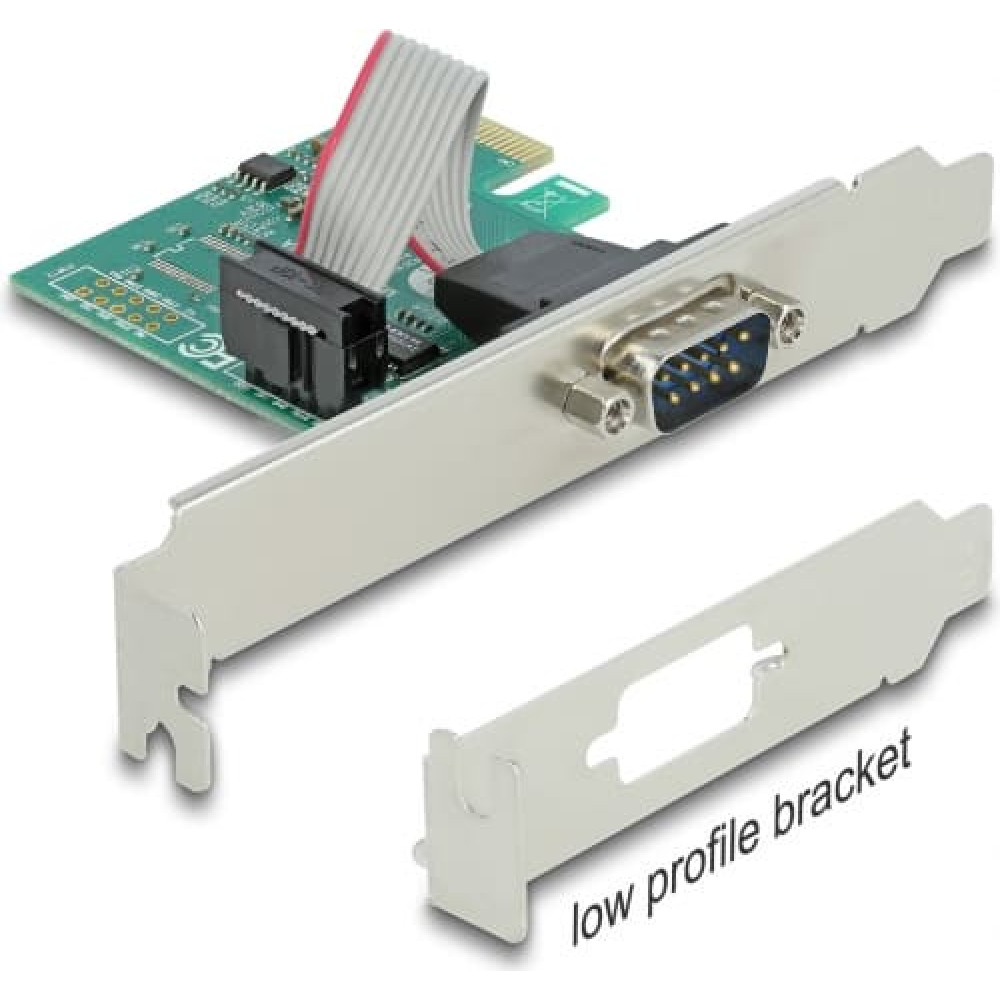

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
System requirements:
• Linux Kernel 2.6.24 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
Specification:
• Connectors:

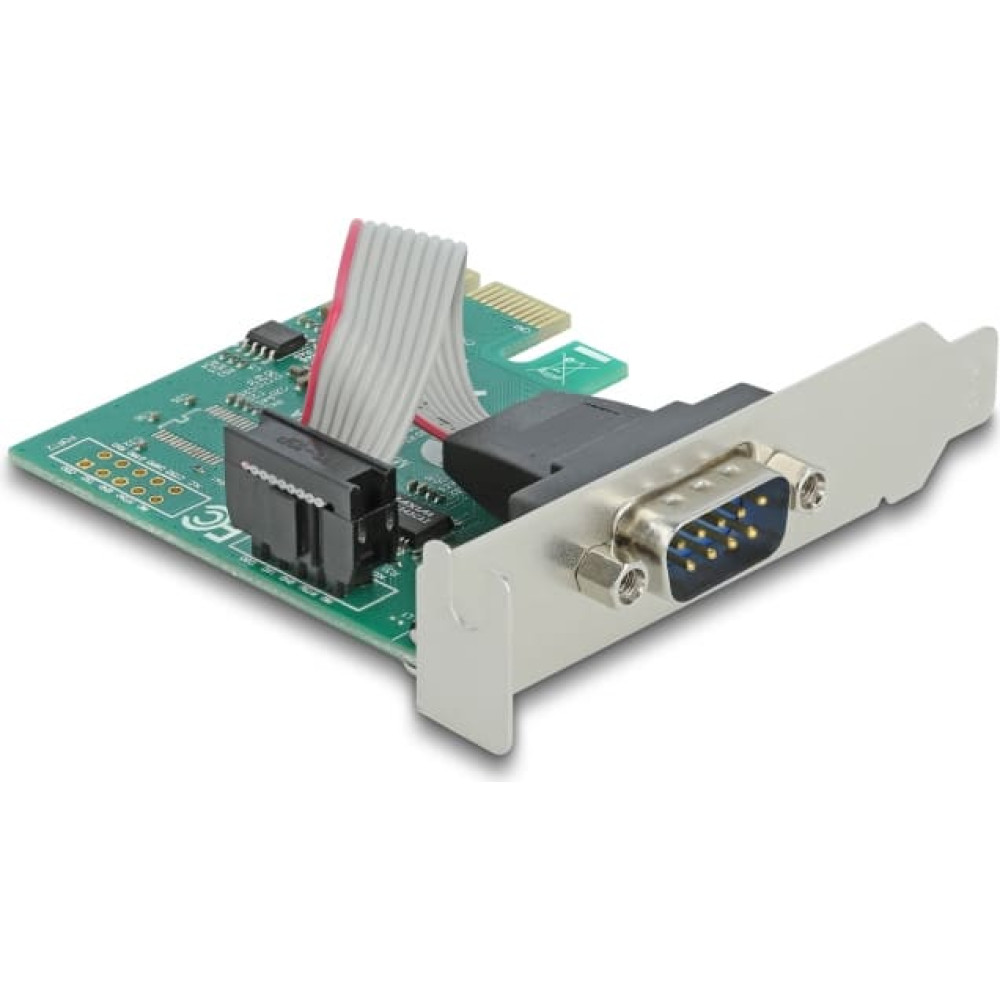

  external: 1 x serial RS-232 DB9 male
  internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Data transfer rate up to 921.6 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
Package content:
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/90006/pdf.html?sprache=en
