Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card

Product Code: DS-33170
Barcode 4016032464419

To purchase this product you must be registered in our system.



Specification
country of origin: CN
depth: 0.175
height: 0.030
height(cm): 3
length(cm): 13
volume(cm3): 546
weight(kg): 0.1455
width: 0.125
width(cm): 14

Description
M.2 NGFF/NVMe SSD PCIexpress Add-On card supports B, M and B+M Key, size 80,60,42 and 30mm

Use M.2 NGFF/NVMe SSDs at PCIe x4 slots on the mainboard – B & M key

NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16
Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
Ultra-fast PCI express V3.0 data transfer at up to 6 Gbps / 32 GT/s
Supports PCIe 3.0 / SATA 3.0
Low-profile slot bracket included

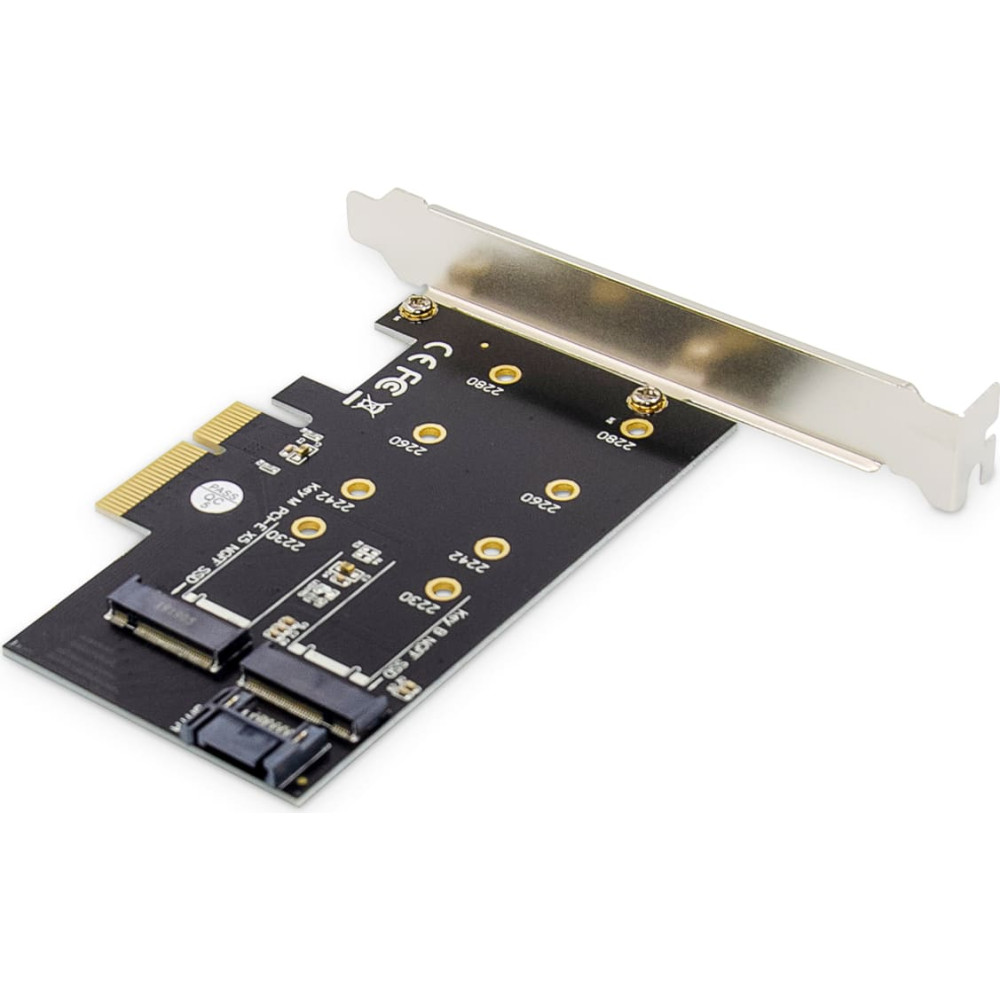

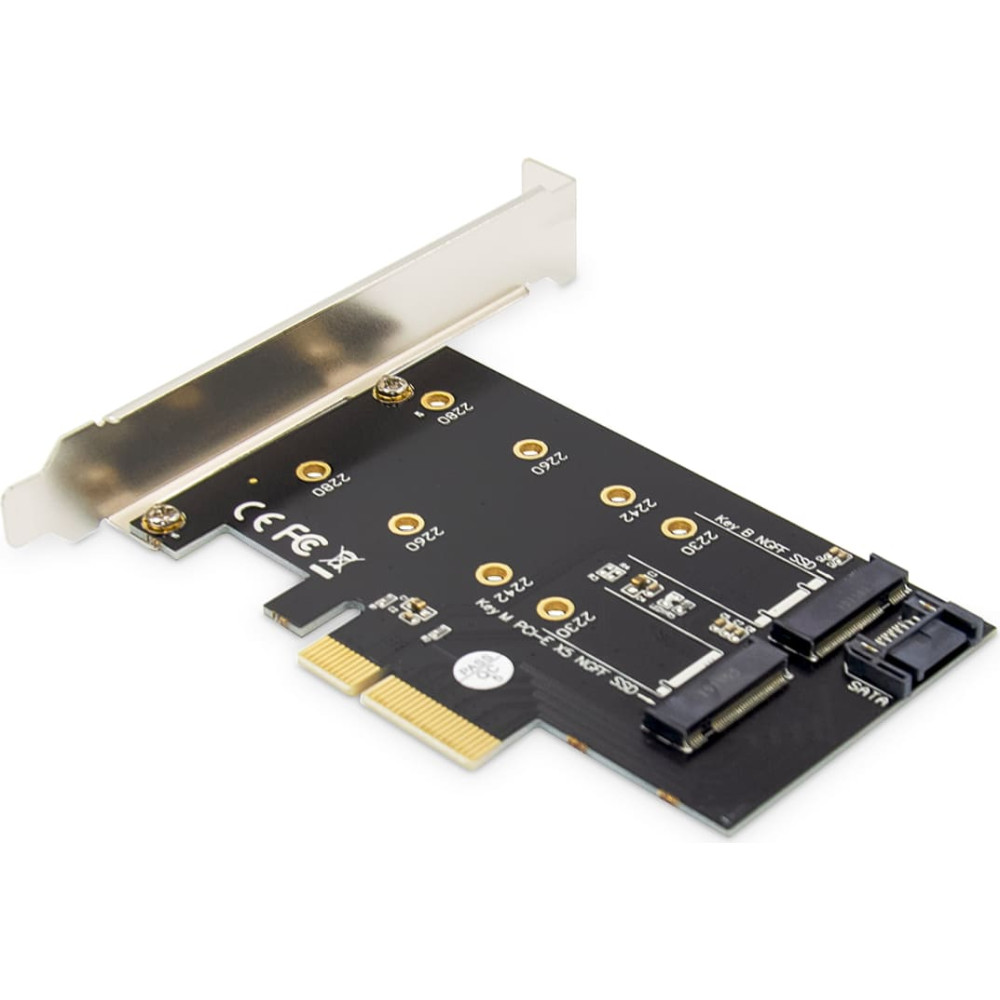

This PCIe x4 adapter card is suitable for M.2 / NGFF storage media (NVMe) with B, M, B+M key and the dimensions 2230, 2242, 2260 & 2280. Together with the x4 interface and PCIe 3.0 standard, data transfers of up to 6 Gbps (32 GT/s) are possible. Storage media can either be connected via the integrated SATA interface for M.2 SATA SSDs, or via the PCI interface for NVMe PCIe SSDs. Go into turbo mode with the multi-functional M.2 PCIe 3.0 add-on card from DIGITUS®.

Adapter Card for PCIe Slots x4/ x8/ x16
Supports PCIe 3.0 (x4)
Data transfer rate: up to 6Gbps (32GT/S)
Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
Hard disk sizes: 80, 60, 42 & 30 mm
Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
Bus type: PCIe 3.0 (complies with PCI express specification Rev. 3)
SATA: 3.0 (complies with SATA specification Rev. 3)
Backwards compatible with PCIe 2.0 and 1.0 mainboards
Power supply via PCIe interface (3.3 V)
Supported operating systems: Windows10/8/8.1/Server 2012 R2/Linux/Ubuntu
Dimensions: 11.4 x 7 x 2 cm (W x D x H)
Weight: 41.2 g

Package content:
1 x M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card
1 x Low-profile slot bracket
1 x SATA cable
2 x fastening screws
1 x Screwdriver
1 x Quick reference guide
