Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0
• Supports Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio:
  • Audio Pass-through
  • LPCM 2CH
  • Up to 7.1CH (Optical)
• Separate Audio Ports:
  • 3.5mm (Female)
  • Toslink (Optical)
• CEC Support: -
• Serial Interface: -
• Special Features: Downscaler Function, EDID Emulation

Connectors

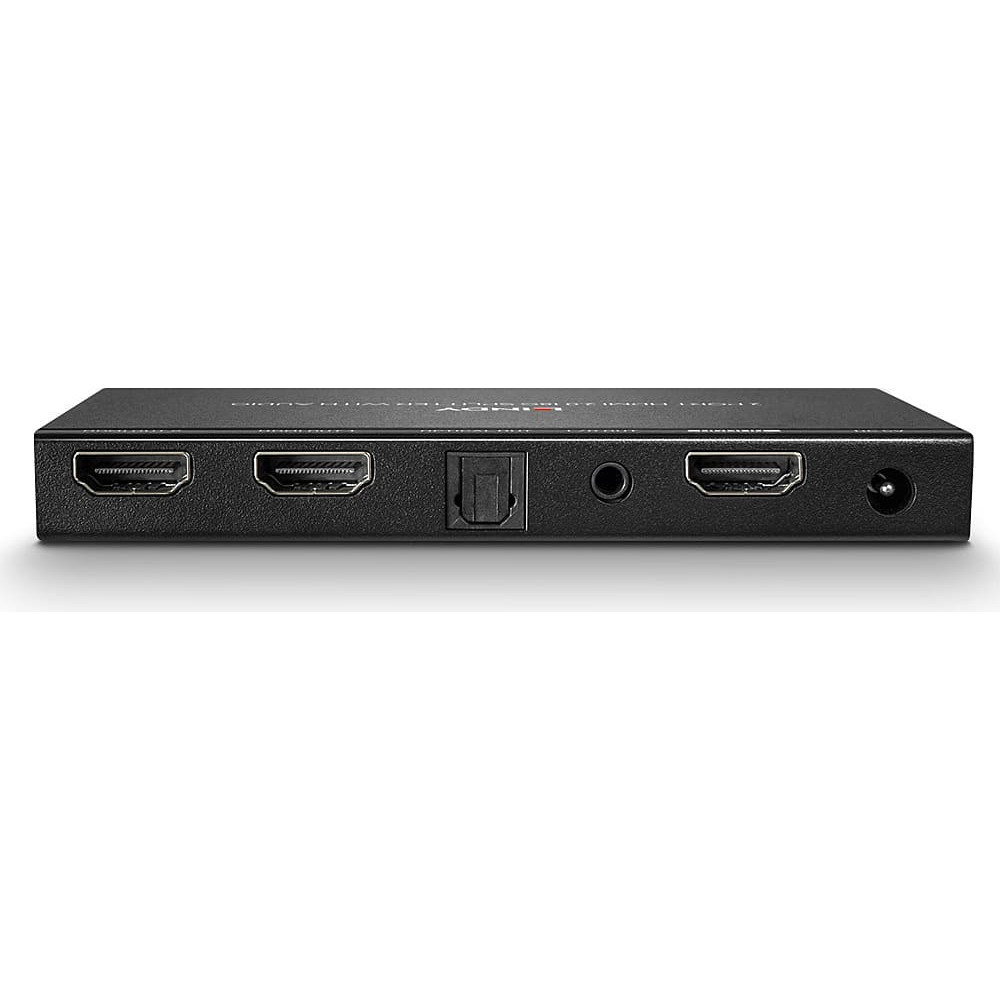

• Input: HDMI® Type A (Female)
• Output: 2 x HDMI® Type A (Female), Toslink (Optical), 3.5mm (Female)
• Control: -
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 120x14.4x63mm (4.72x0.57x2.48in)
• Housing Material: Metal
• Net Weight: 0.29kg (0.64lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 206x64x117mm (8.11x2.52x4.61in)
• Gross Weight: 0.396kg (0.87lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 2 Port HDMI® Splitter with Audio
• Multi-Country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38230
• EAN: 4002888382304
