Lindy HDMI 4K60 Audio Extractor

Product Code: 38361

Barcode 4002888383615

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

audio (l/r) out: 1

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/30/72/c7/64/64c772302b5de14fe303f05e/CE_38361.pdf

ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/30/72/c7/64/64c772302b5de14fe303f05e/CE_38361.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/70/55/97/62/62975570a7fecca6d5a65f44/CE_DoC_DE_38361.pdf

certification: CE, FCC, REACH

compliance certificates: RoHS

country of origin: CN

depth: 104.4 mm

digital audio optical out: 1

gross weight: 0.35

harmonized system (hs) code: 85176990

hdmi in: 1

height: 28.3 mm

housing material: Metal

manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/0c/67/fd/65/65fd670c8114cd0fd1e4a1bb/Lindy_38361_Man_2203.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/92/67/97/62/62976792999c8d635dc13d35/Lindy_38361_Man_1021.pdf

maximum resolution: 3840 x 2160 pixels

net weight: 0.12

number of hdmi outputs: 1

operating relative humidity (h-h): 5 - 90%

operating temperature (t-t): -5 - 35 °C

operating voltage: 5 V

package depth: 57 mm

package height: 151 mm

package width: 205 mm

packaging height: 15.30

packaging lenght: 20.80

packaging width: 5.50

product colour: Black

quantity: 1

s/pdif out port: Yes

tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f4/67/97/62/629767f4d0ebe20d37a65f45/38361_TDS_v1.pdf

usb connector type: Micro-USB B

warranty: 2

weight: 175 g

width: 64 mm

Description

Specifications

Video Interface: HDMI®
Interface Standard: 2.0
Supported Bandwidth: 18Gbps
Maximum Resolution:
- 3840x2160@60Hz 4:4:4 8bit
- 3840x2160@60Hz 4:2:2 12bit
HDCP Support: 2.2 / 1.4
Audio Interface:
- SPDIF
- Analogue L/R
- Chipset: IT66321
Supported Audio:
- HDMI® (Pass-Through): LPCM 5.1CH, Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD
- Optical: LPCM 2CH, Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH
- Analogue L/R: LPCM 2CH, Analogue Stereo 2CH
Maximum Supported Audio Sample Rate: 24-bit/192kHz
Input Impedance: 1KO
Output Impedance: 10KO
Output Voltage: 5V 1A
Frequency Response: <3db; 20h~20kh
Signal to Noise Ratio: 85db
Special Features: CEC Pass-through

Connectors

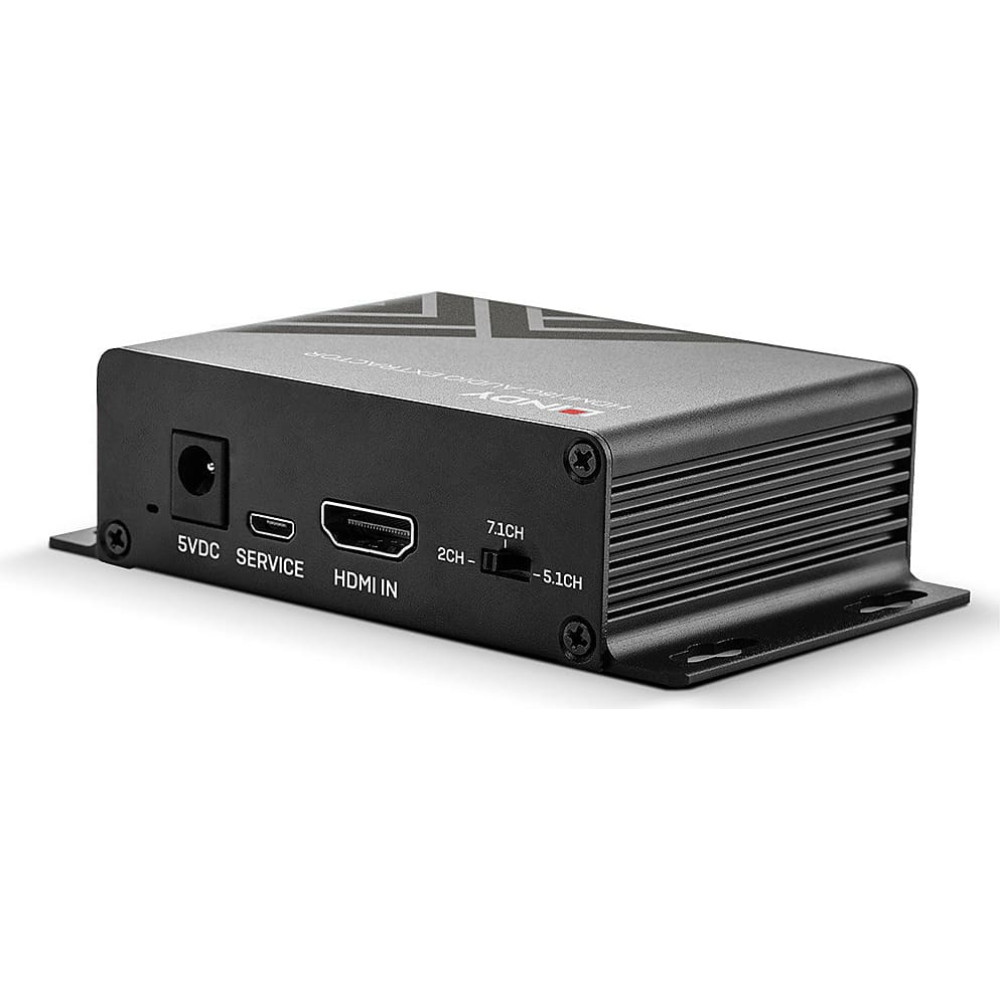

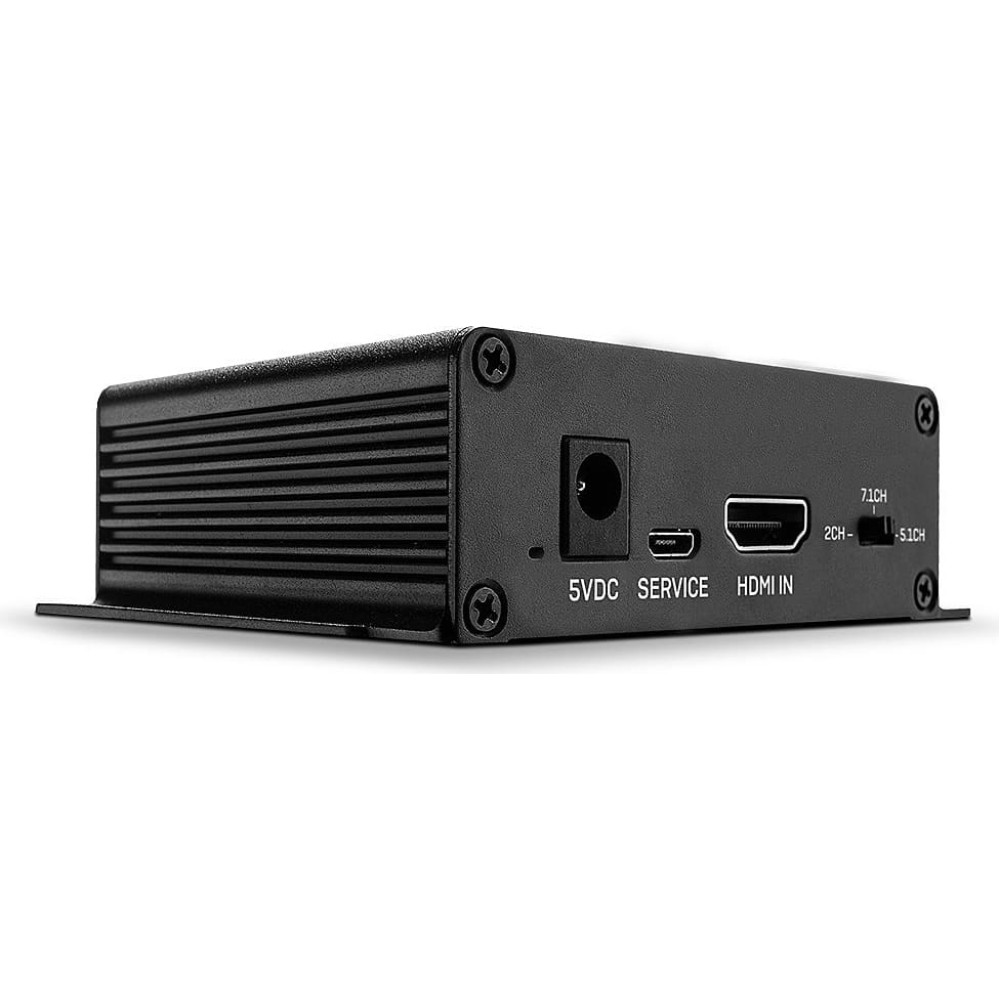

Input: HDMI® Type A (Female)

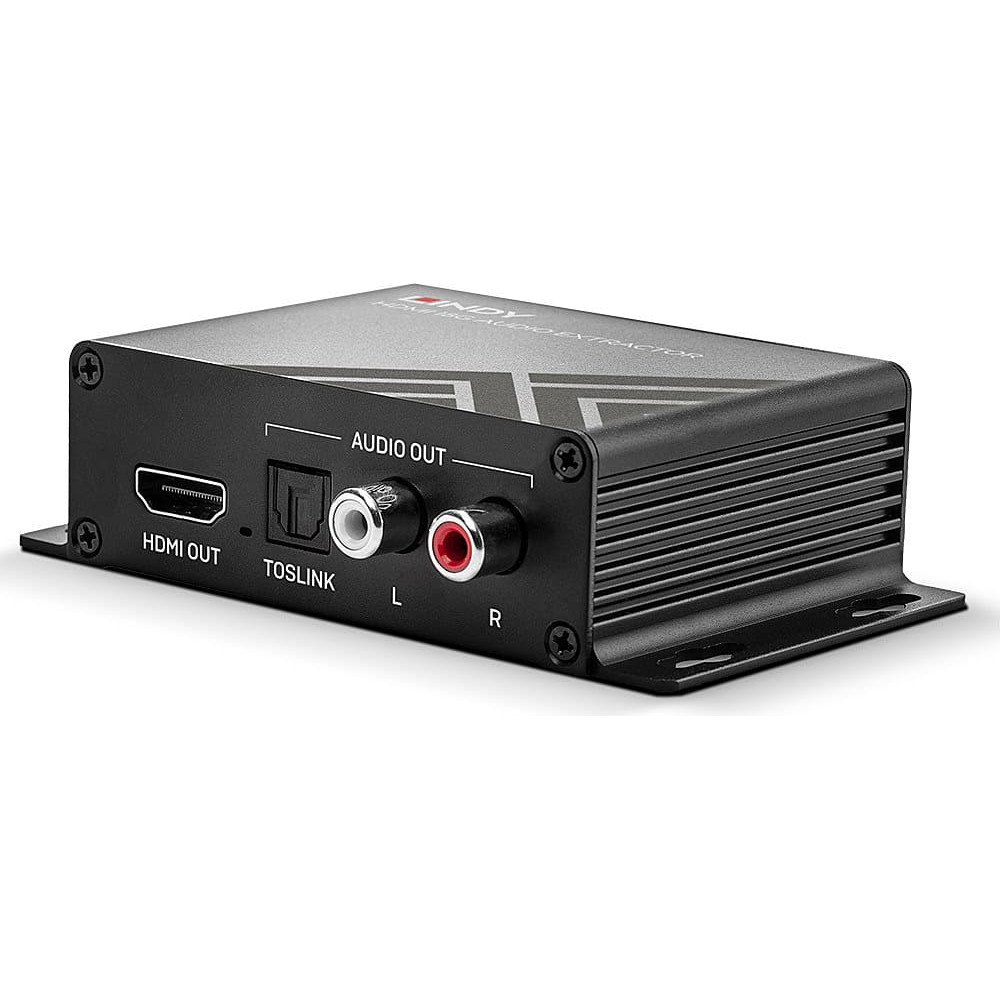

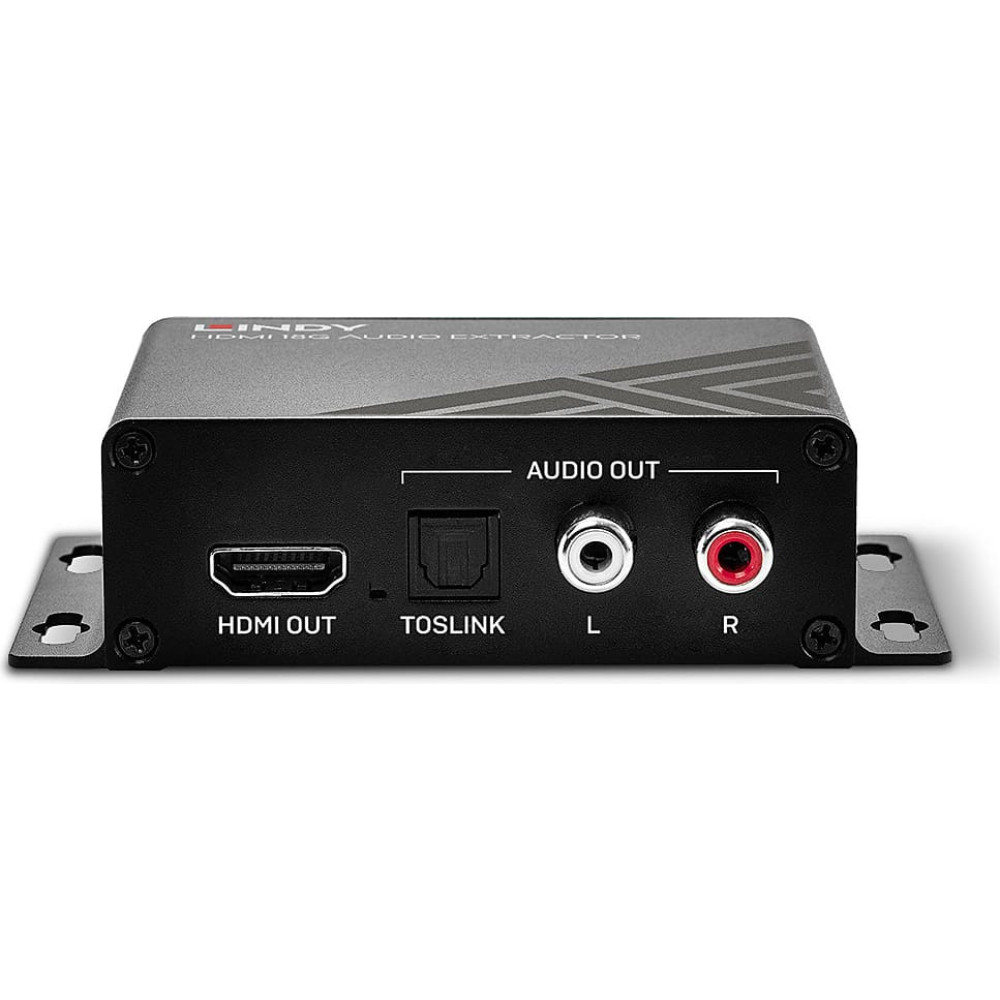

Output: HDMI® Type A (Female), SPDIF (Female), Analogue L/R (Female), USB Micro-B (Female)
Power: 5.5/2.1mm

Physical Properties

Dimensions (approx.) WxDxH: 104.4x64x28.3mm (4.11x2.52x1.11in)
Housing Material: Metal
Net Weight: 0.118kg (0.26lb)
Operating Temperature: -5°C - 55°C (23°F - 131°F)
Storage Temperature: -5°C - 55°C (23°F - 131°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements: 5VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 257x56x150mm (10.12x2.2x5.91in)
Gross Weight: 0.357kg (0.79lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

HDMI® 18G Audio Extractor
0.8m USB to DC cable: Barrel Size: 5.5/2.1mm
Lindy Manual

Purchasing Information

No.: 38361
EAN: 4002888383615

CE Doc: CE_DoC_DE_38361.pdf
Tech Data Sheets: 38361_TDS_v1.pdf
Manuals: Lindy_38361_Man_1021.pdf
