Delock DisplayPort 1.4 Repeater 8K 30 Hz
To purchase this product you must be registered in our system.
Specification
depth: 0.160
height: 0.060
width: 0.100
Description

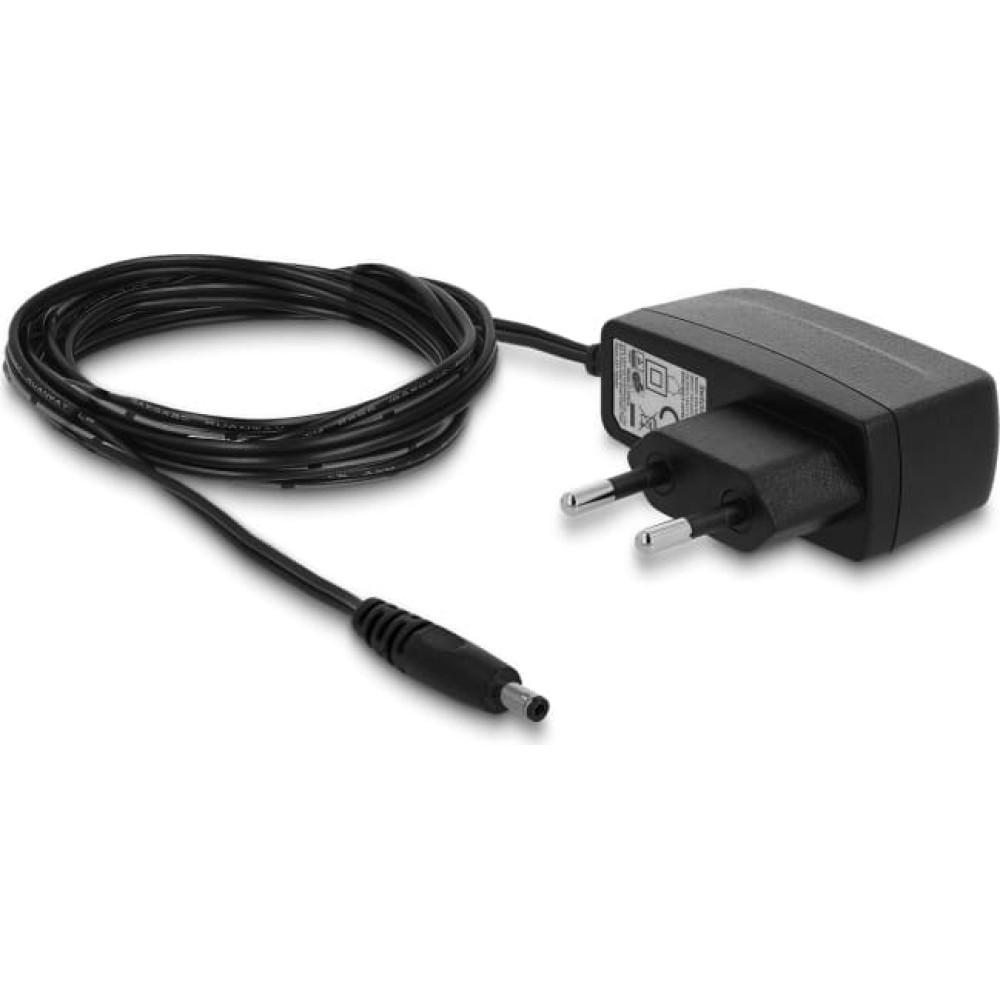

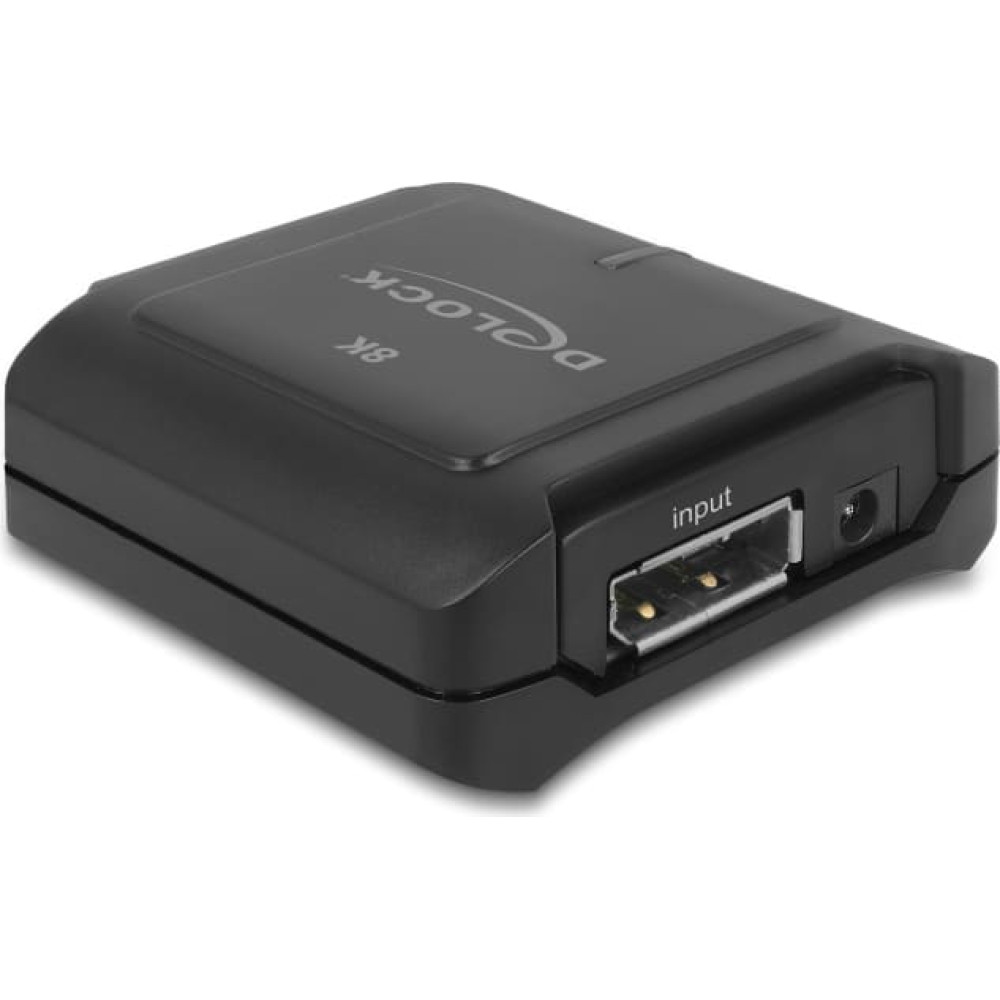

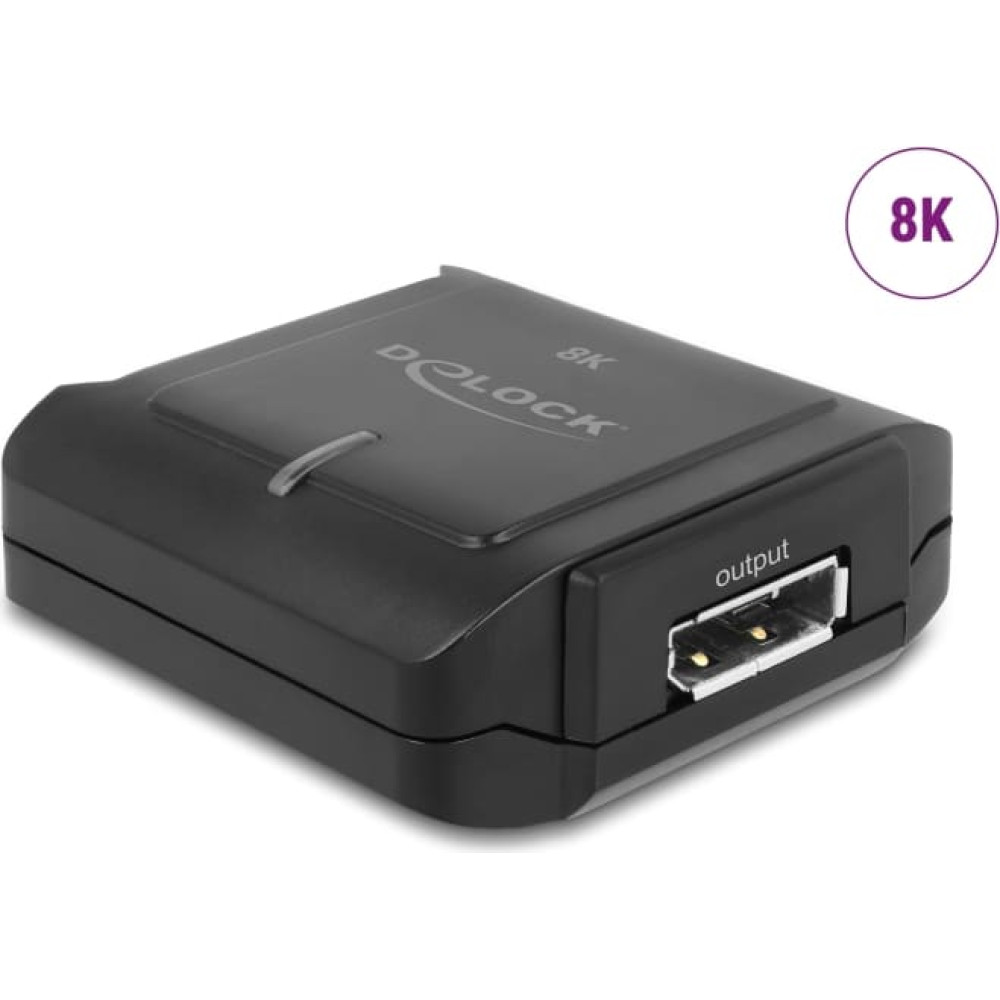

| This DisplayPort repeater by Delock can be used for signal enhancement of a DisplayPort connection up to 12 m. An up to 2 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 10 m long cable to the output port of the repeater, which is then connected to a display or TV. System requirements: • A free DisplayPort port on your system and display • DisplayPort connection cables Specification: • Connectors: Input: 1 x DisplayPort 20 pin female 1 x DC 5 V power connector Output: 1 x DisplayPort 20 pin female • DisplayPort 1.4 specification • Downwards compatible to DisplayPort 1.3, 1.2 and 1.1 • Supports HBR3 (8.1 Gbps) data rate • Transmission of audio and video signals • Data transfer rate up to 32.4 Gb/s • Resolution up to: 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware) • Resolution and maximum cable length: 7680 x 4320 @ 30 Hz / 2 m in, 10 m out • Daisy Chain (cascadable) • Colour: black • Dimensions (LxWxH): ca. 55 x 54 x 20 mm Power supply specification • Wall power supply • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A • Output: 5 V / 1 A • Ground outside, plus inside • Dimensions: inside: ø ca. 1.35 mm outside: ø ca. 3.5 mm length: ca. 7.0 mm Package content: • DisplayPort repeater • External power supply • User manual Data sheet: http://www.delock.de/produkt/11474/pdf.html?sprache=en |
