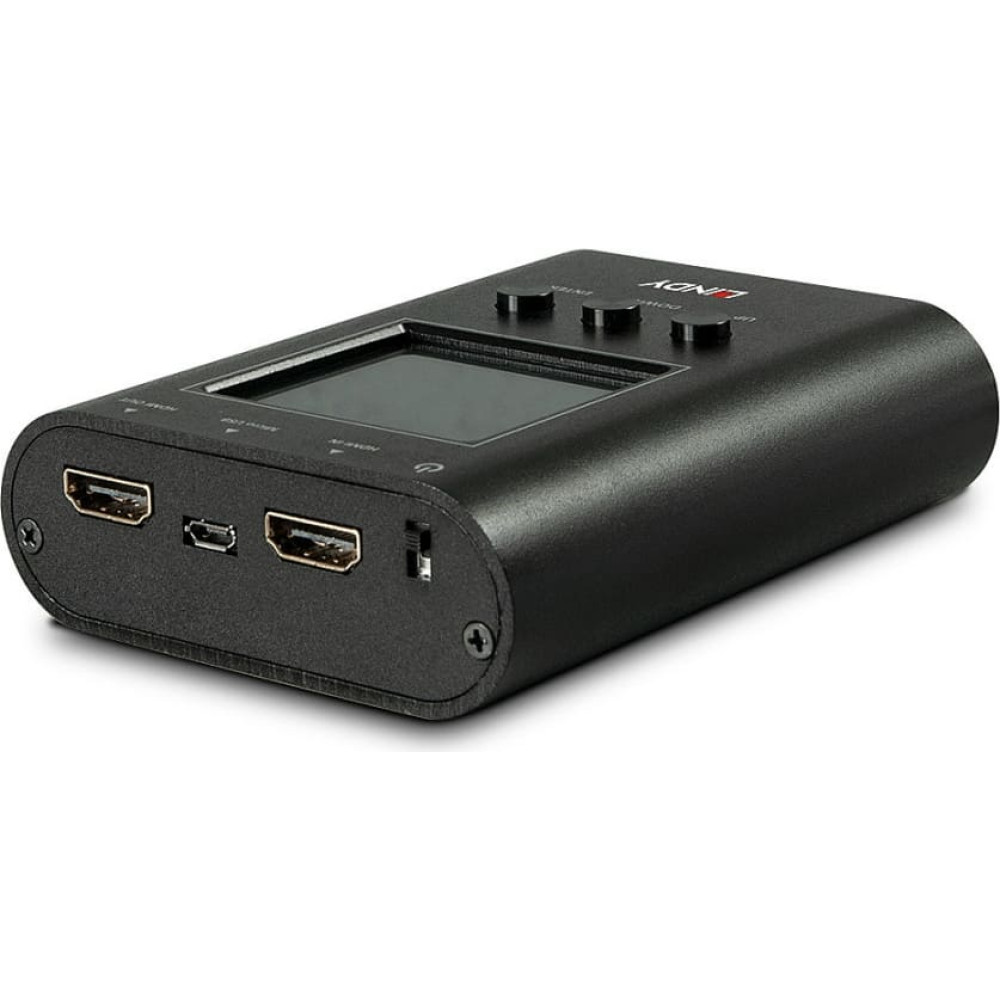

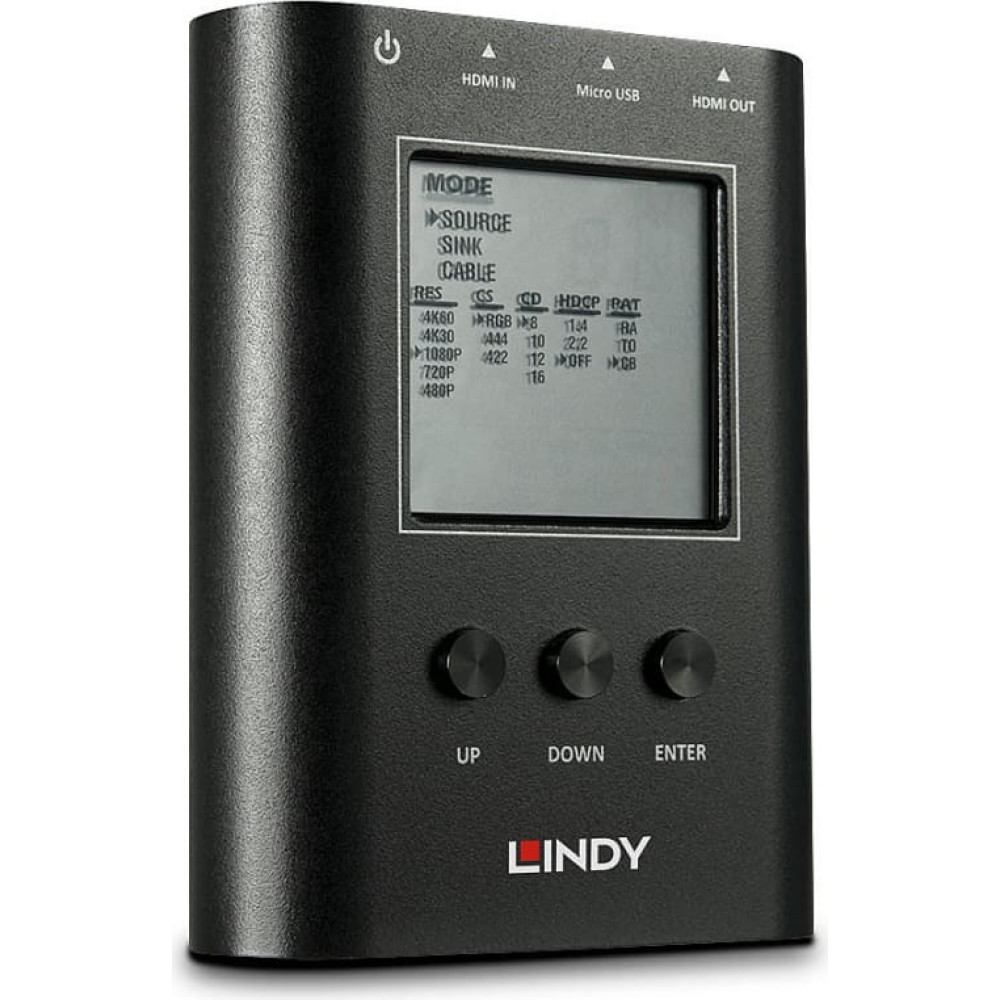

Lindy HDMI 4K60 Signal Analyser and Generator

LINDY

Lindy HDMI 4K60 Signal Analyser and Generator

Product Code: 32675
Barcode 4002888326759

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8d/25/88/64/6488258d884e7a9cdc33adea/CE_32675.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8d/25/88/64/6488258d884e7a9cdc33adea/CE_32675.pdf
colour depth: 16 bit
country of origin: TW
depth: 89 mm
gross weight: 0.43
hdcp: Yes
hdcp version: 2.2
height: 14 mm
high frequency rate: 60 Hz
housing material: Metal
interface: HDMI
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9c/67/97/62/6297679c999c8d635dc13f5b/LINDY_32675_Man_0619.pdf
net weight: 0.22
operating relative humidity (h-h): 20 - 90%
operating temperature (t-t): 0 - 40 °C
package depth: 400 mm
package height: 300 mm
package weight: 320 g
package width: 420 mm
packaging height: 7.40
packaging lenght: 19.80
packaging width: 14.10
product colour: Black
storage temperature (t-t): -20 - 60 °C
supported video modes: 720p, 1080p, 2160p
warranty: 2
weight: 220 g
width: 130 mm
Description

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 2.0
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • Adjustable Colour Depths: 8bit, 10bit, 12bit, 16bit
  • HDCP Support: 2.2 and 1.4
  • Video Patterns: 3840x2160@60Hz, 1920x1080@60hz, 1280x720@60Hz, 480p@60Hz
  • Control: Push Button
  • Special Features: HDR Support, Updatable via Firmware

Connectors

  • Input: HDMI® Type A (Female)
  • Output: HDMI® Type A (Female)
  • Other Connections: USB Micro-B (Female)
  • Power: Rechargeable battery

Physical Properties

  • Dimensions (approx.) WxDxH: 130x89x14mm (5.12x3.5x0.55in)
  • Housing Material: Metal
  • Net Weight: 0.22kg (0.49lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20~90% RH (non condensing)
  • Power Requirements: 5W
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 420x400x300mm (16.54x15.75x11.81in)
  • Gross Weight: 0.430kg (0.95lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH

Package Contents

  • HDMI® 4K60 Signal Analyser and Generator
  • Lindy Manual

Purchasing Information

  • No.: 32675
  • EAN: 4002888326759



CE Doc: CE_32675.pdf
Manuals: LINDY_32675_Man_0619.pdf
