Home Multimedia / Peripherals Transmitters / Amplifiers Lindy 300m Cat.6 VGA Extender, Receiver
Lindy 300m Cat.6 VGA Extender, Receiver

LINDY

Lindy 300m Cat.6 VGA Extender, Receiver

Product Code: 35404
Barcode 4002888354042

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
ac adapter included: Yes
ac input voltage: 12 V
audio ports quantity: 1
cable types supported: Cat5e, Cat6
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c4/c0/cf/63/63cfc0c46b7595b6920d8d91/CE_DoC_DE_35403-4.pdf
compliance certificates: REACH, RoHS
country of origin: TW
dc-in jack: Yes
depth: 73 mm
ethernet lan (rj-45) ports: 4
harmonized system (hs) code: 85176990
hd type: Full HD
height: 31 mm
input current: 1.2 A
led indicators: Yes
manual: Yes
maximum operating distance: 300 m
maximum resolution: 1920 x 1080 pixels
operating relative humidity (h-h): 20 - 80%
operating temperature (t-t): 0 - 50 °C
package depth: 110 mm
package height: 75 mm
package weight: 547 g
package width: 177 mm
packaging height: 11.0
packaging lenght: 7.5
packaging width: 17.7
product colour: Black
storage temperature (t-t): -20 - 70 °C
video out: VGA
video port type: VGA
video ports quantity: 1
warranty: 2.0
weight: 484 g
width: 135.4 mm
Description

Specifications

  • AV Interface: VGA
  • Interface Standard: -
  • Supported Bandwidth: 350MHz
  • Maximum Distance: 300m (984.24ft)
  • Maximum Resolution: 300m (984.24ft) - 640x480

200m (656.16ft) - 800x600

180m (590.54ft) - 1024x768

120m (393.7ft) - 1280x1024

100m (328.08ft) - 1920x1080

  • HDCP Support: -
  • EDID Pass Through: -
  • Supported Audio: Dual Mono
  • Separate Audio Ports: 3.5mm
  • IR Support: -
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Cat.5e/6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: ISL59910
  • Special Features: Dual Mono Audio Extraction
  • Mountable Housing

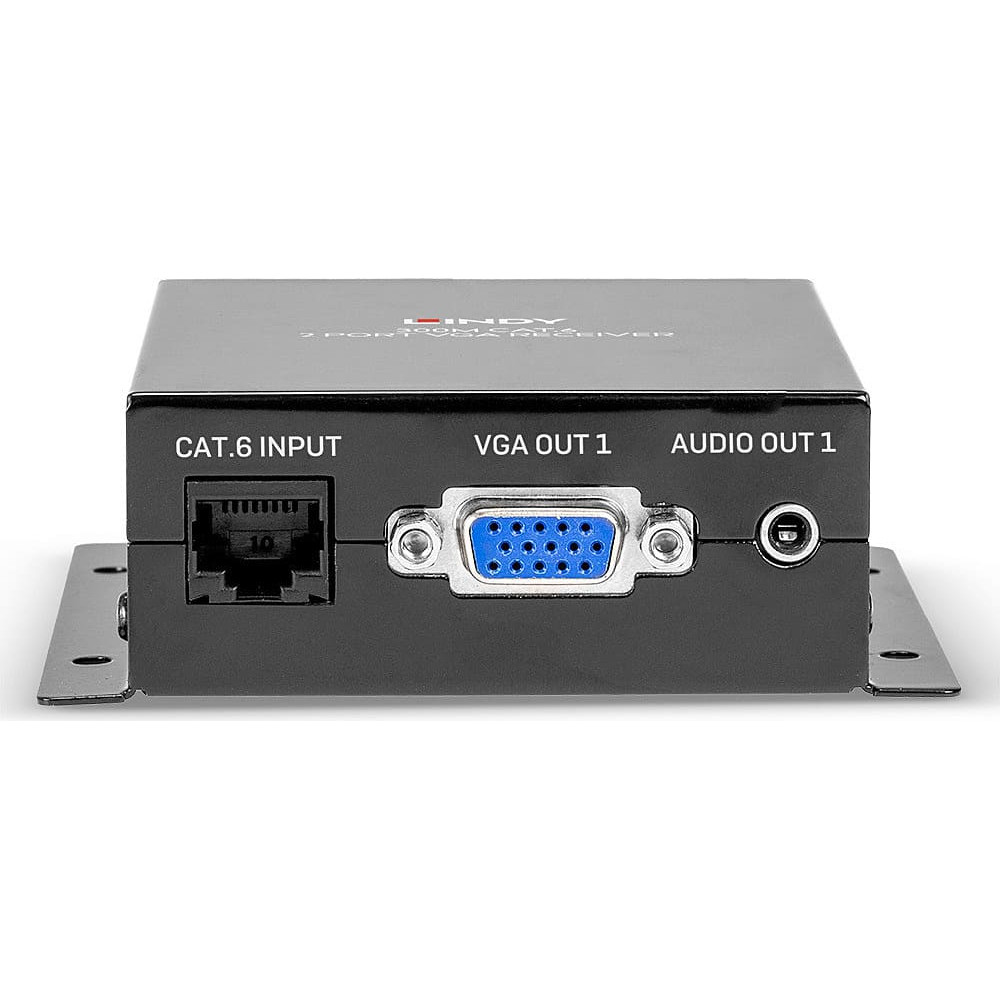

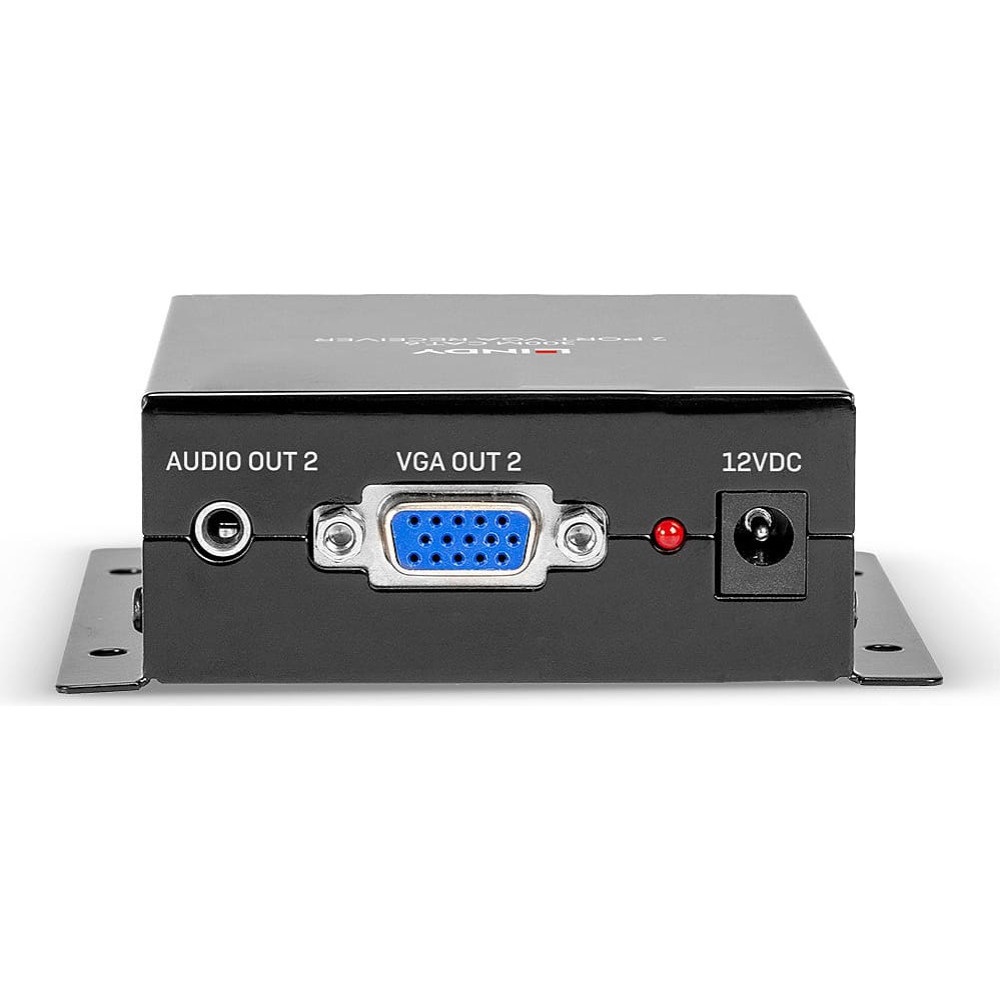

Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: RJ-45 (Female)
  • Receiver Output: 2 x VGA (Female), 2 x 3.5mm (Female)
  • Bi-directional Ports: -
  • Power : 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 87.6x94.6x31mm (3.45x3.72x1.22in)
  • Housing Material: Metal
  • Net Weight: 0.396kg (0.87lb)
  • Operating Temperature : 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 20 - 80% RH (non-condensing)
  • Power Requirements: 12VDC 1.2A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 177x75x110mm (6.97x2.95x4.33in)
  • Gross Weight: 0.481kg (1.06lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • 300m 2 Port Cat.6 VGA Receiver
  • 4 x Mounting Screws
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 35404
  • EAN: 4002888354042
