Lindy 50m Cat.6 18G HDMI & IR Extender

Product Code: 38205

Barcode 4002888382052

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

bandwidth: 18 Gbit/s

cable types supported: Cat5e, Cat6

cables included: IR

certification: CE, FCC, REACH & California Proposition 65

chipset: SIL9396, SIL9630

compliance certificates: RoHS

connectivity technology: Wired

country of origin: CN

dc-in jack: Yes

extended display identification data (edid): Yes

hdcp: Yes

hdcp pass-through: Yes

hdmi in: 1

hdmi version: 2.0

input current: 1 A

ir pass-through: Yes

manual: Yes

material: Metal

maximum refresh rate: 60 Hz

maximum resolution: 3840 x 2160 pixels

maximum transfer distance: 50 m

number of hdmi outputs: 2

operating relative humidity (h-h): 20 - 90%

operating temperature (t-t): 0 - 40 °C

operating voltage: 24 V

package depth: 70 mm

package height: 130 mm

package type: Box

package weight: 605 g

package width: 220 mm

packaging height: 7.0

packaging lenght: 22.0

packaging width: 13.0

product colour: Black

receiver dimensions (wxdxh): 70 x 15 x 97 mm

receiver weight: 151 g

remote (ir) input: 1

remote (ir) output: 1

rj-45 input ports: 1

rj-45 output ports: 1

storage temperature (t-t): -20 - 60 °C

tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/59/5f/65/655f597160a44124c5bf3744/38205_TDS_v2.pdf

transmitter dimensions (wxdxh): 70 x 15 x 97 mm

transmitter weight: 156 g

type: AV transmitter & receiver

usb connector type: Micro-USB

usb ports quantity: 2

warranty: 2.0

Description

Specifications

AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance: 50m (164.04ft) – Cat.6/7, 30m (98.42ft)– Cat.5e
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: Pass-through
EDID Pass Through: Pass-through
Supported Audio: Up to 7.1 (Pass-through)
Separate Audio Ports: -
IR Support: 20-60kHz
CEC Support: -
Serial Interface: -
Transmission Protocol: -
Transmission Medium: 1 x Cat.5e/6 or higher
Laser Class (only for Fibre): -
Wavelength (only for Fibre): -
Chipset: Transmitter: SIL9396 / Receiver: SIL9630
Special Features:
- PoC (Power over Cable)
- IR Pass-through
- Loop Out

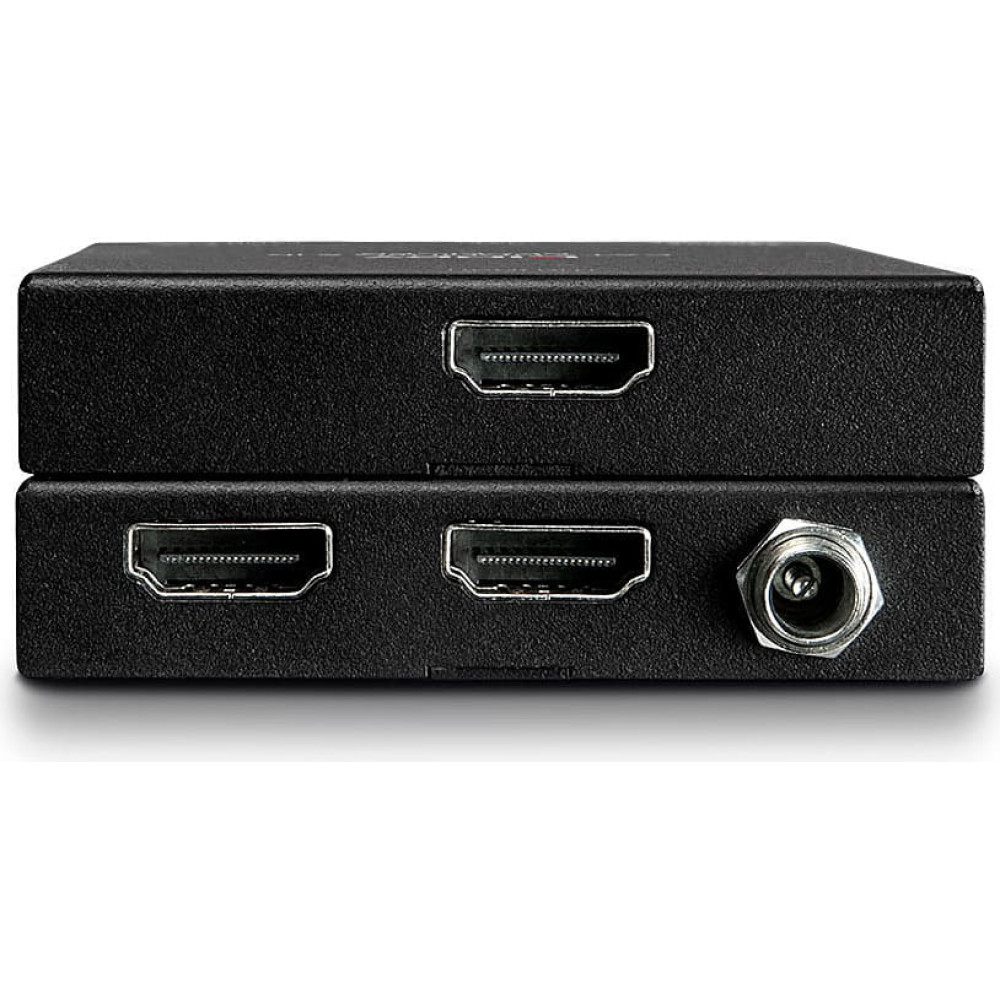

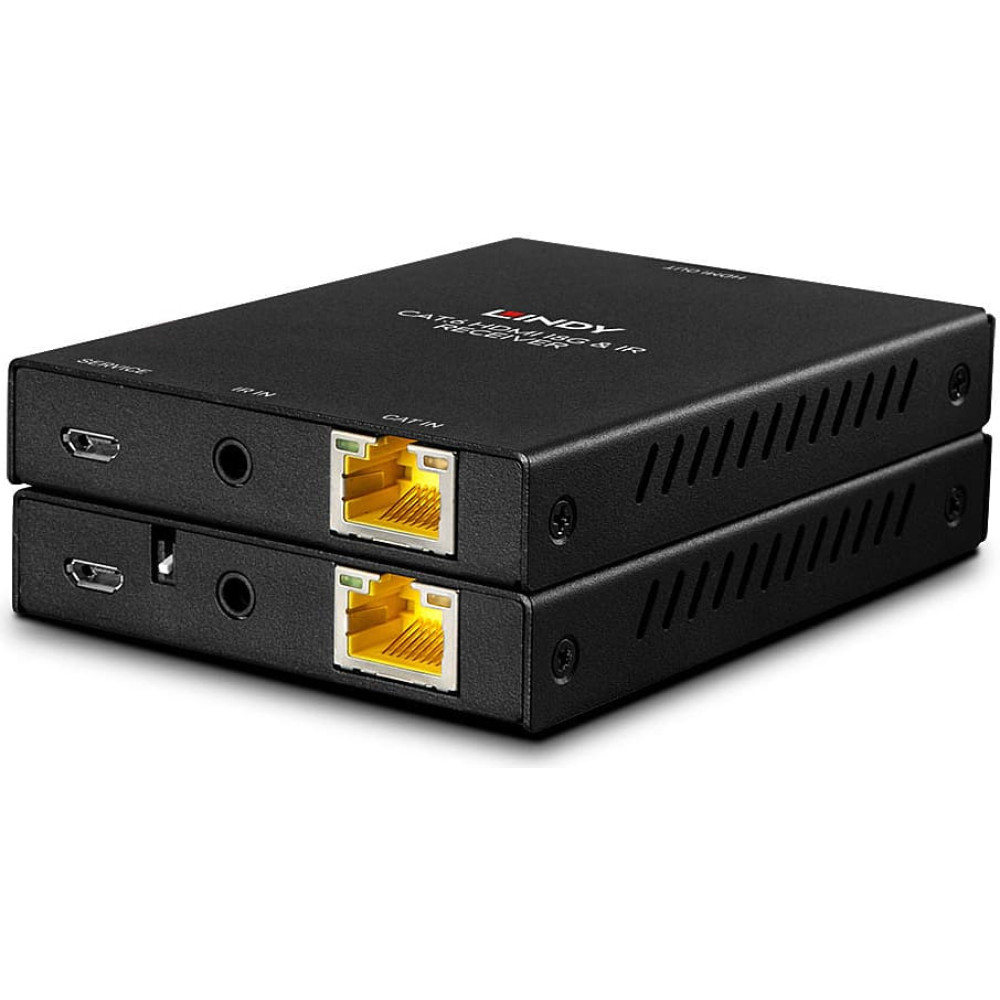

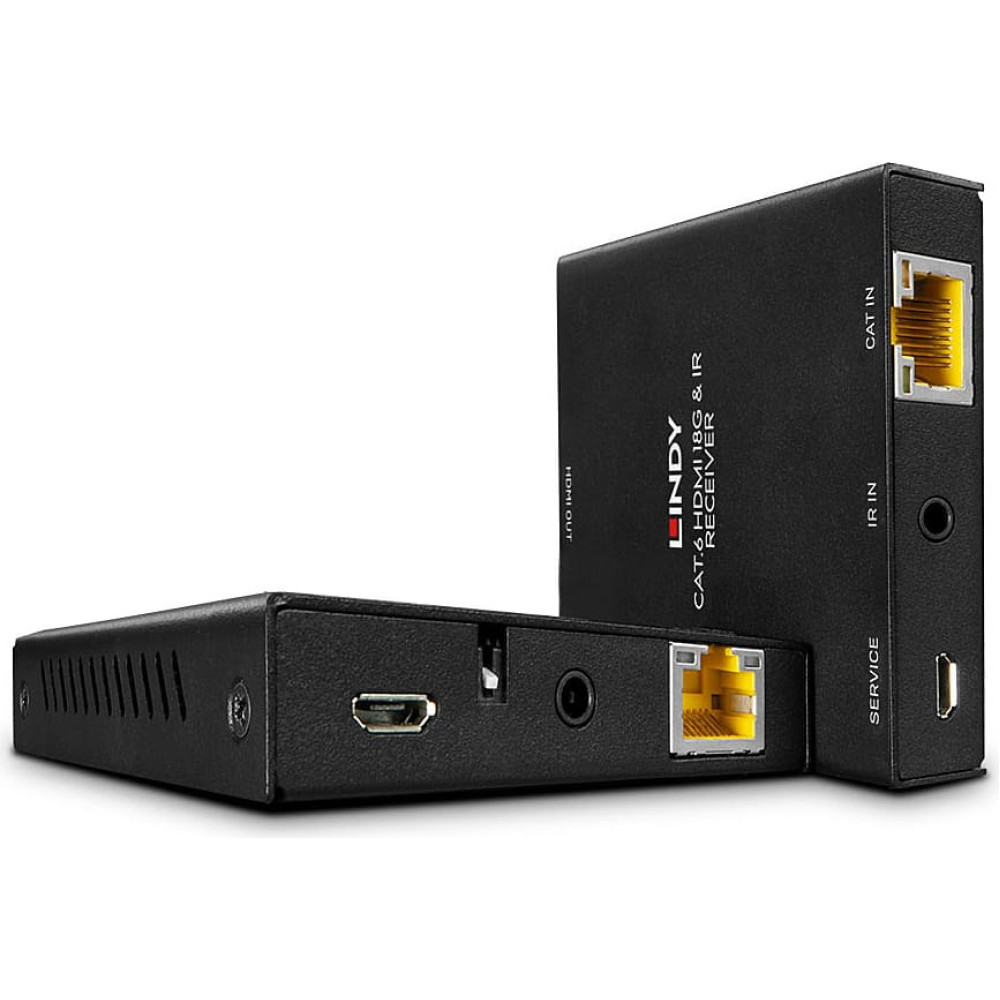

Connectors

Transmitter Input: HDMI Type A 19pin (Female), Micro-USB (Female), DC12V Power
Transmitter Output: HDMI Type A 19pin (Female), RJ45 (Female), IR (Female)
Receiver Input: RJ45 (Female), IR (Female), Micro-USB (Female)
Receiver Ouput: HDMI Type A 19pin (Female)
Bidirectonal Ports: -
Power: 5.5/2.1mm barrel size

Physical Properties

Dimensions (approx.) WxDxH:
- Transmitter: 70x97x15mm (2.76x3.82x0.59in)
- Receiver: 70x97x15mm (2.76x3.82x0.59in)
Housing Material: Metal
Net Weight:
- Transmitter: 0.156kg (0.34lb)
- Receiver: 0.151kg (0.33lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 – 90% RH (no condensation)
Power Requirements: 12VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
Gross Weight: 0.605kg (1.33lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

Transmitter
Receiver
12VDC 1A Multi-country Power Supply (UK, EU, US & AUS)
IR Transmitter
IR Receiver
Lindy Manual
