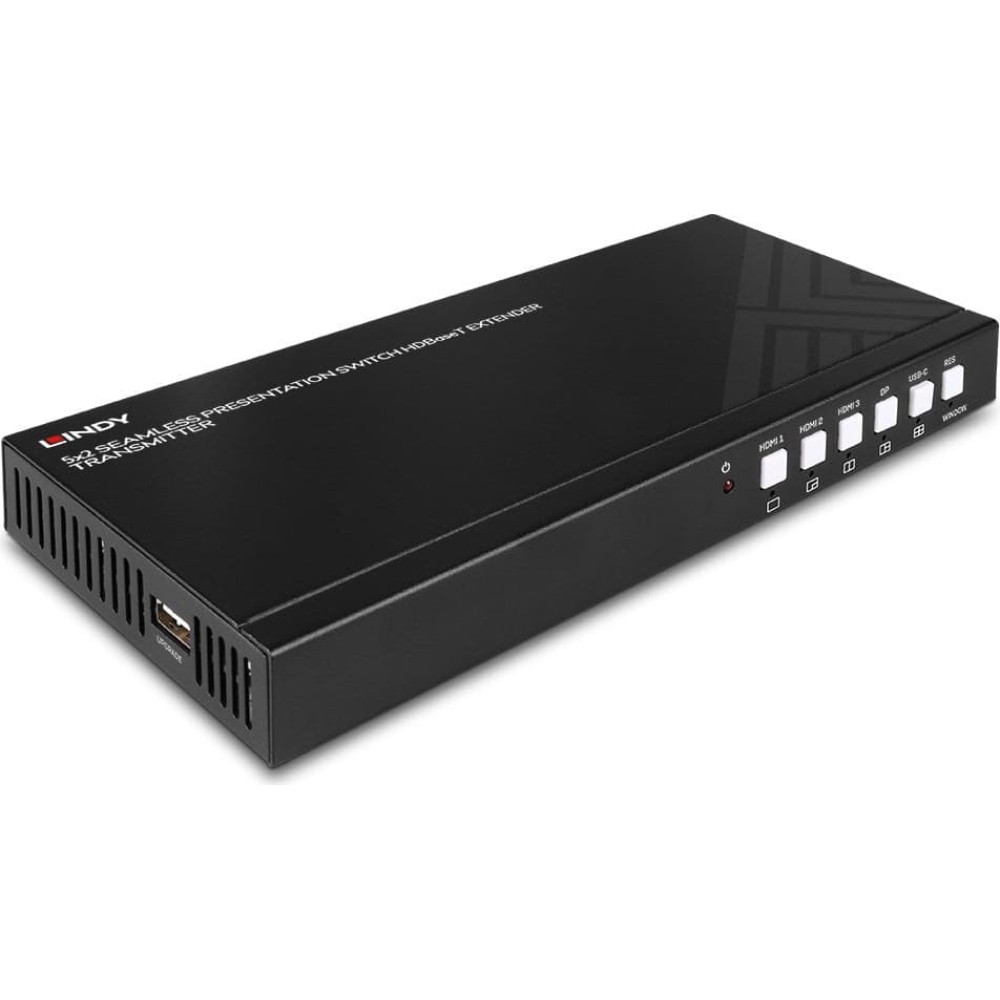

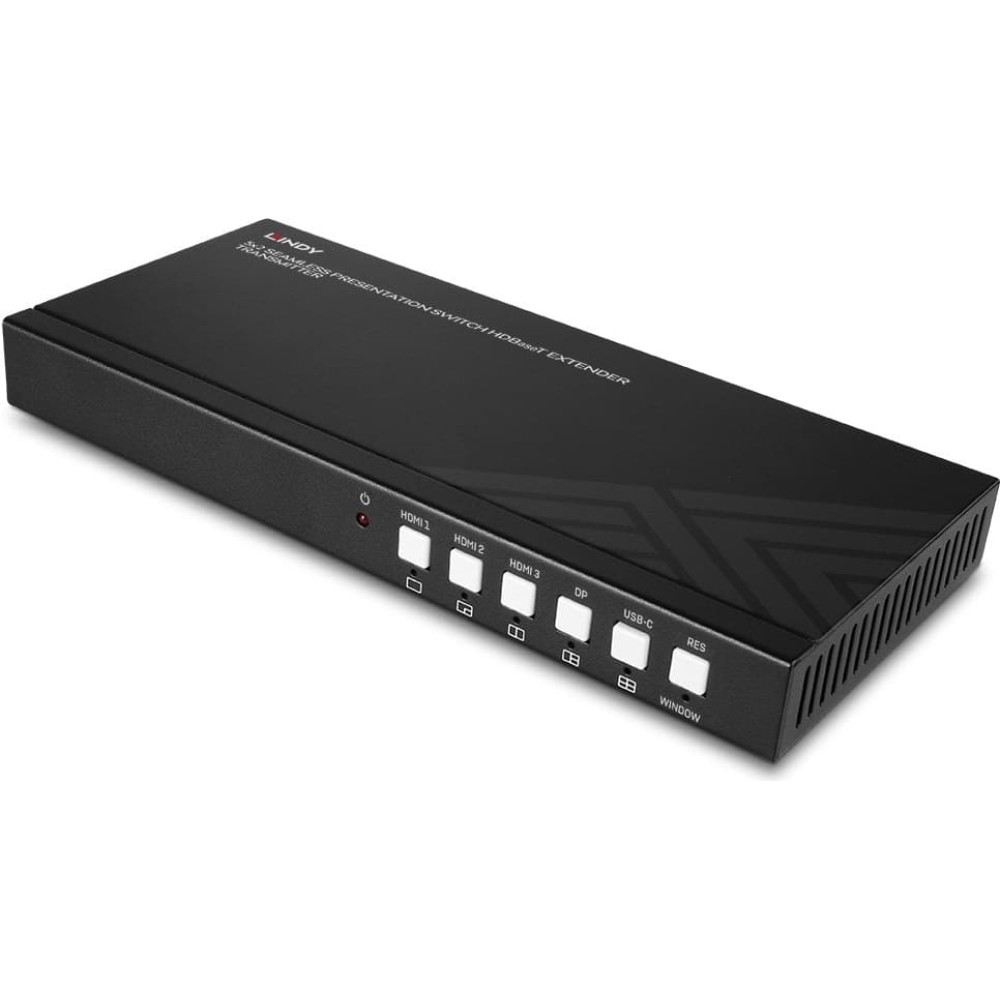

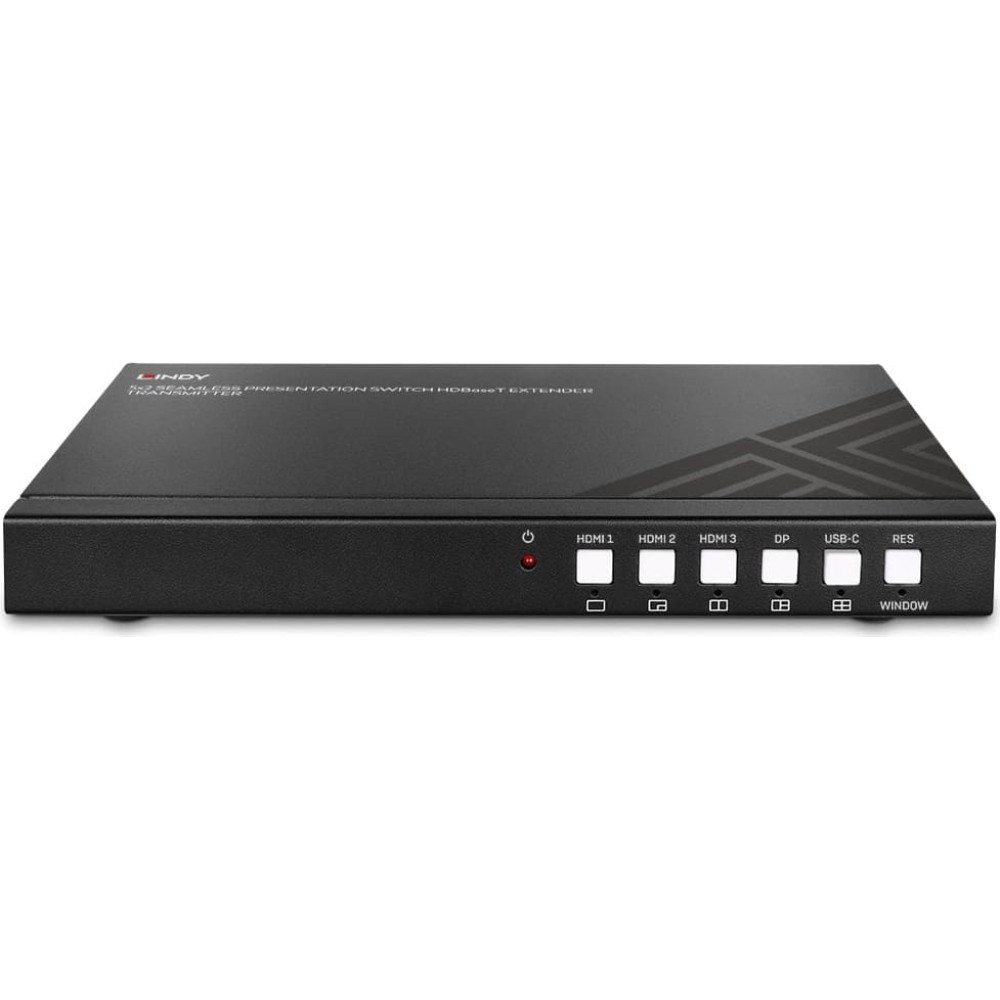

Lindy Extender Transmitter mit HDMI,DP,Typ-C Inputs HDBaseT

LINDY

Lindy Extender Transmitter mit HDMI,DP,Typ-C Inputs HDBaseT

Product Code: 38338
Barcode 4002888383387

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
3.5 mm (1/8-inch) out: Yes
bandwidth: 18 Gbit/s
cable types supported: Cat6
certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
chipset: MST9804
connectivity technology: Wired
country of origin: CN
depth: 100 mm
displayports in: 1
hdbaset certified: Yes
hdcp: Yes
hdcp & edid bypass: Yes
hdcp version: 2.2
hdmi in: 3
height: 25 mm
material: Metal
maximum resolution: 3840 x 2160 pixels
maximum transfer distance: 70 m
number of hdmi outputs: 1
operating relative humidity (h-h): 10 - 50%
operating temperature (t-t): 0 - 40 °C
package depth: 138 mm
package height: 75 mm
package weight: 1.02 kg
package width: 273 mm
packaging height: 6.0
packaging lenght: 36.0
packaging width: 26.0
product colour: Black
quantity per pack: 1 pc(s)
rj-45 output ports: 1
storage temperature (t-t): -20 - 60 °C
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/0c/6c/a4/63/63a46c0cfb5a6051082eeecd/38338_TDSv2.pdf
type: AV transmitter
usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: 1
warranty: 2.0
weight: 590 g
width: 225 mm
Description

Specifications



  • AV Interface: HDMI, DisplayPort, Type C (Alt. mode)
  • Interface Standard: HDMI 2.0b, DP 1.4
  • Supported Bandwidth: 18Gbps
  • Maximum Distance: 70m (229.66ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
  • HDCP Support: 2.2
  • EDID Pass Through: up to 14 resolutions selectable
  • Supported Audio: HDMI Pass-through, 2Ch audio stereo
  • Separate Audio Ports: 3.5mm
  • IR Support: -
  • CEC Support: -
  • Serial Interface: RS-232 Pass-through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010
  • Special Features:
    • Multiview
    • Auto-switch
    • Seamless switching
    • EDID management
    • PoC (Power over Cable)

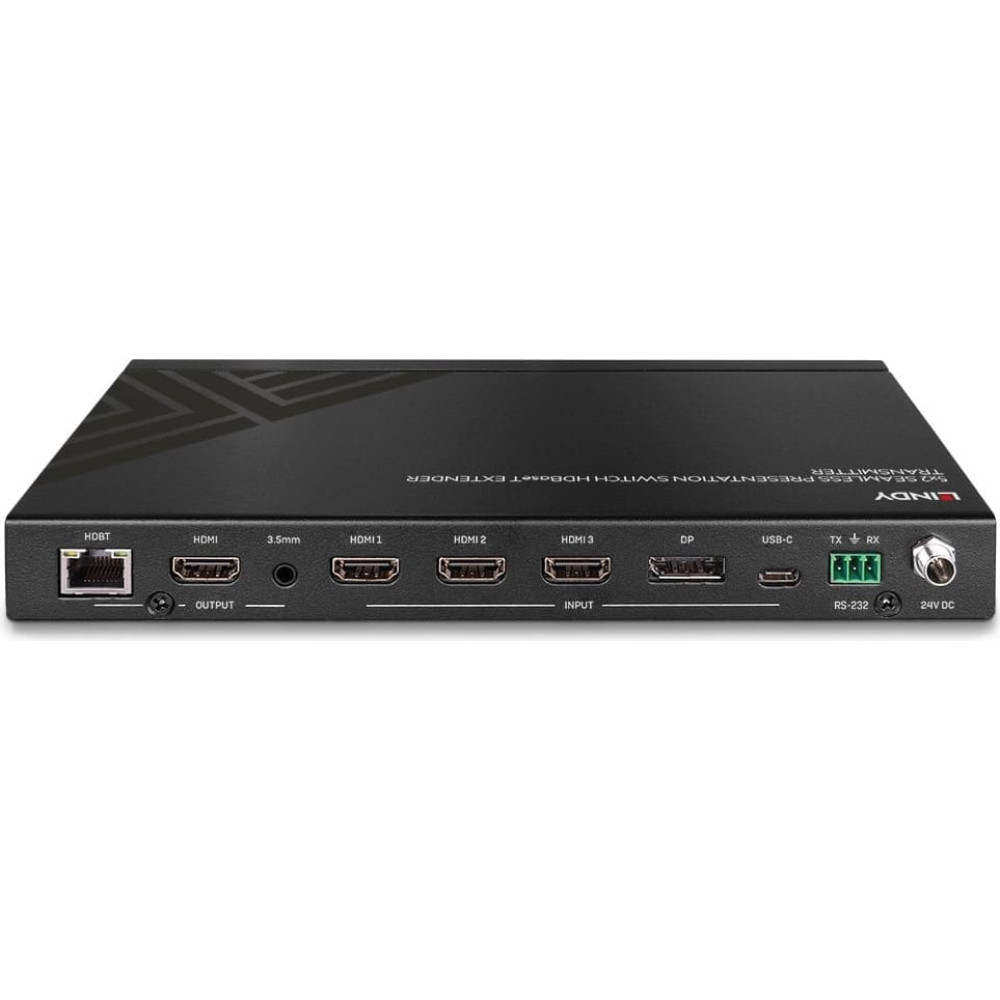

Connectors



  • Input: 3xHDMI Type A (Female), DisplayPort (Female), USB Type C (Female)
  • Output: HDBaseT RJ-45 (Female), HDMI Type A (Female), 3.5mm Audio (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm



Physical Properties



  • Dimensions (approx.) WxDxH: 225x100x25mm (8.86x3.94x0.98in)
  • Housing Material: Metal
  • Net Weight: 0.81kg (1.79lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 10-50% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous



  • Packaging Type: Carton Box
  • Packaging Dimensions: 360x260x60mm (14.17x10.24x2.36in)
  • Gross Weight: 1.02kg (2.25lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Content



  • Presentation Switch HDBaseT Transmitter
  • Multi-country Power Supply (UK, EU, US & AUS)
  • 3-Pin Terminal Block
  • Lindy Manual



Purchasing Information



  • No.: 38338
  • EAN: 4002888383387
