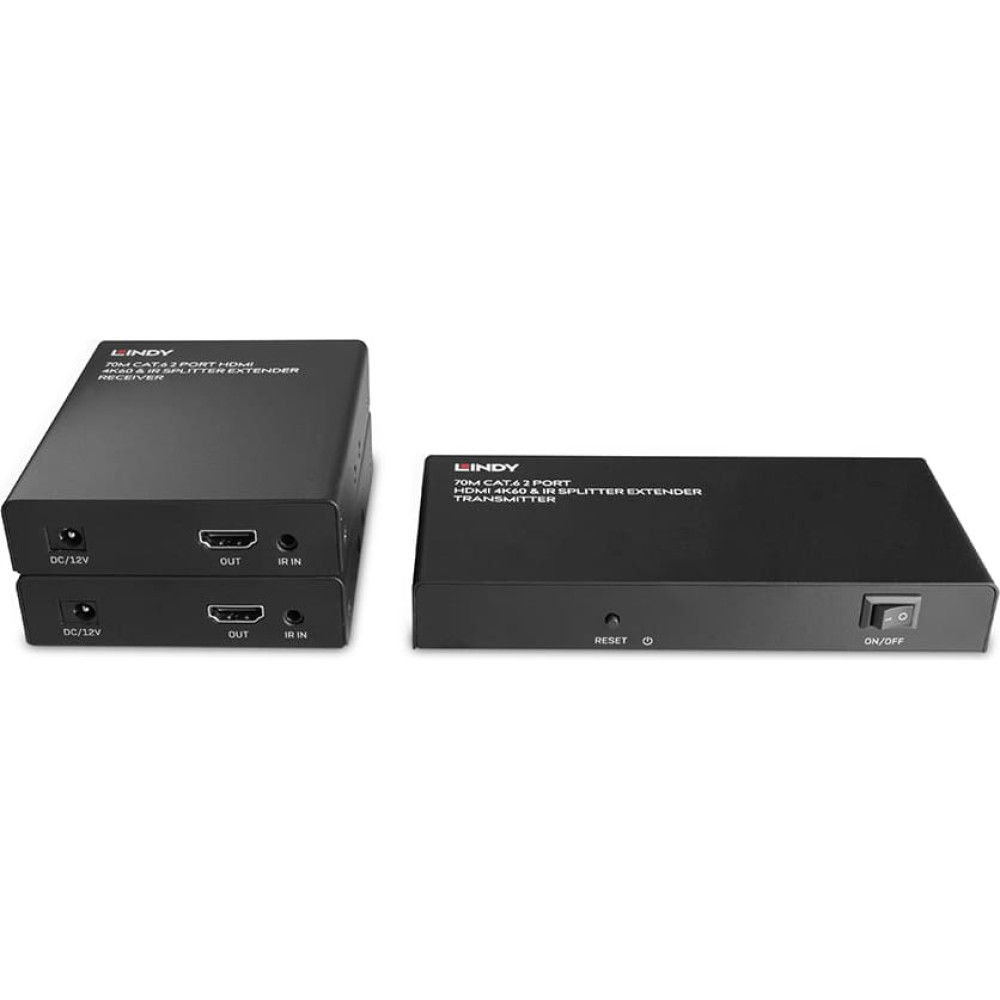

Lindy 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender

LINDY

Lindy 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender

Product Code: 38385
Barcode 4002888383851

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
audio formats supported: LPCM
bandwidth: 18 Gbit/s
cables included: IR
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/e3/43/58/67/675843e3b61fa404a9129d2c/CE_38385.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/e3/43/58/67/675843e3b61fa404a9129d2c/CE_38385.pdf
certification: CE, UKCA, FCC, RoHS, REACH & California Propositon 65
chipset: GSV2006 & GSV5100
connectivity technology: Wired
country of origin: CN
edid management: Yes
gross weight: 1.18
hdcp: Yes
hdcp version: 2.2
hdmi in: 1
infrared (ir) frequency range: 20 - 60 kHz
manual: Yes
material: Metal
maximum resolution: 3840 x 2160 pixels
maximum transfer distance: 70 m
mounting brackets included: Yes
net weight: 0.95
number of hdmi outputs: 2
operating relative humidity (h-h): 5 - 90%
operating temperature (t-t): 0 - 50 °C
package depth: 238 mm
package height: 55 mm
package type: Box
package weight: 1.26 kg
package width: 292 mm
packaging content: 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender 2 x Receivers IR Emitter Cable, 1.2m 2 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 4 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual
packaging height: 23.80
packaging lenght: 29.20
packaging width: 5.50
product colour: Black
quantity per pack: 3 pc(s)
receiver dimensions (wxdxh): 100 x 88 x 23 mm
receiver weight: 199 g
remote (ir) input: 1
remote (ir) output: 1
rj-45 input ports: 1
rj-45 output ports: 2
storage temperature (t-t): -10 - 80 °C
transmitter dimensions (wxdxh): 154 x 103 x 23 mm
transmitter weight: 263 g
type: AV transmitter & receiver
warranty: 2
Description

Specifications

  • AV Interface: HDMI®
  • Supported Bandwidth: 18Gbps as specified in 2.0 specifications
  • Maximum Distance: 70m (229.66ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID management: default 4K60, downscale function to Full HD, copy function from loop-out port
  • Supported Audio: LPCM 2CH, up to 5.1 copying EDID from loop out port
  • Separate Audio Ports: -
  • IR Support: 20-60KHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: GSV2006 & GSV5100
  • Special Features: PoC (Power over Cable)

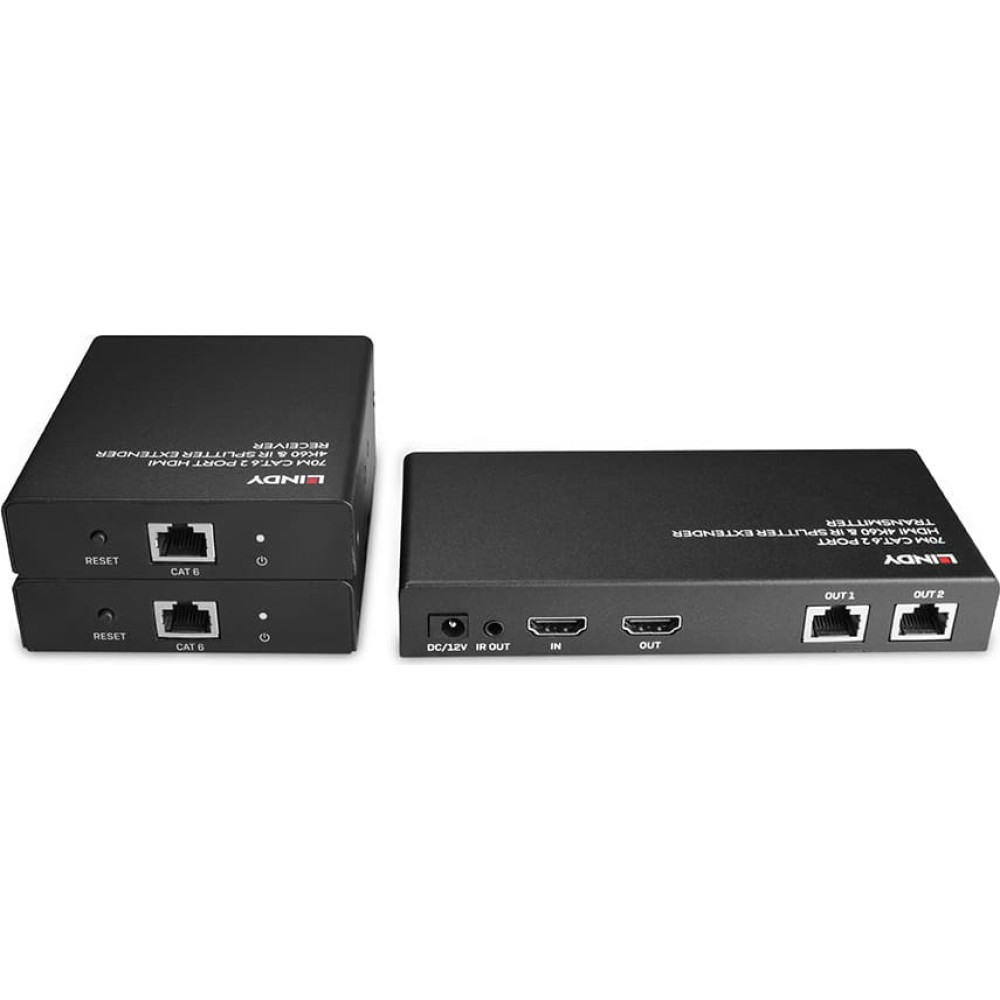

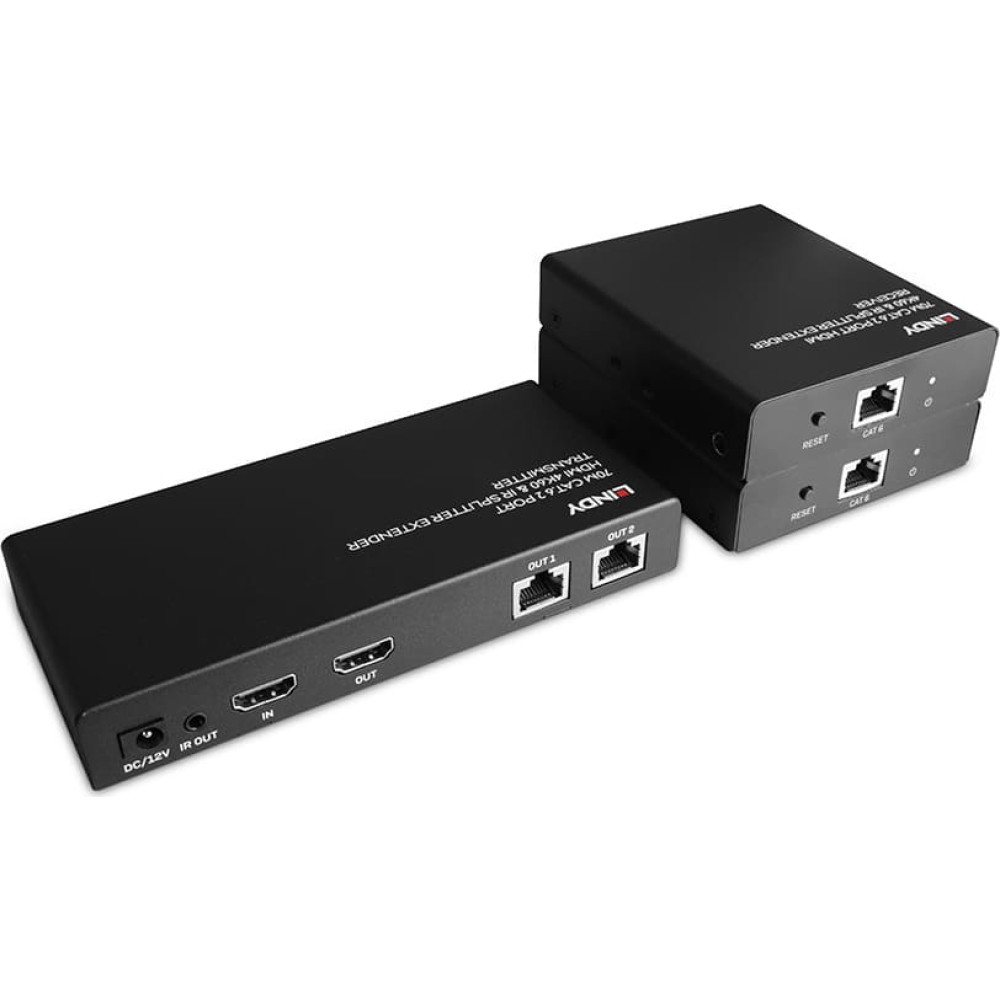

Connectors

  • Transmitter Input: HDMI® Type A (Female)
  • Transmitter Output: 2 x RJ-45 (Female), HDMI® Type A (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Output: HDMI® Type A (Female)
  • Bi-directional Ports: -
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions (approx.) WxDxH: Transmitter: 154x103x23mm (6.06x4.06x0.91in), Receiver: 100x88x23mm (3.94x3.46x0.91in)
  • Housing Material: Metal
  • Net Weight: Transmitter: 0.263kg (0.58lb), Receiver: 0.199kg (0.44lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 5 - 90% RH (non-condensing)
  • Power Requirements: 12VDC 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 292x238x55mm (11.5x9.37x5.47in)
  • Gross Weight: 1.18kg (2.6lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Propositon 65

Package Contents

  • 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender
  • 2 x Receivers
  • IR Emitter Cable, 1.2m
  • 2 x IR Receiver Cable, 1.2m
  • 2 x Transmitter Mounting Brackets & Screws
  • 4 x Receiver Mounting Brackets & Screws
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 38385
  • EAN: 4002888383851



CE Doc: CE_38385.pdf
